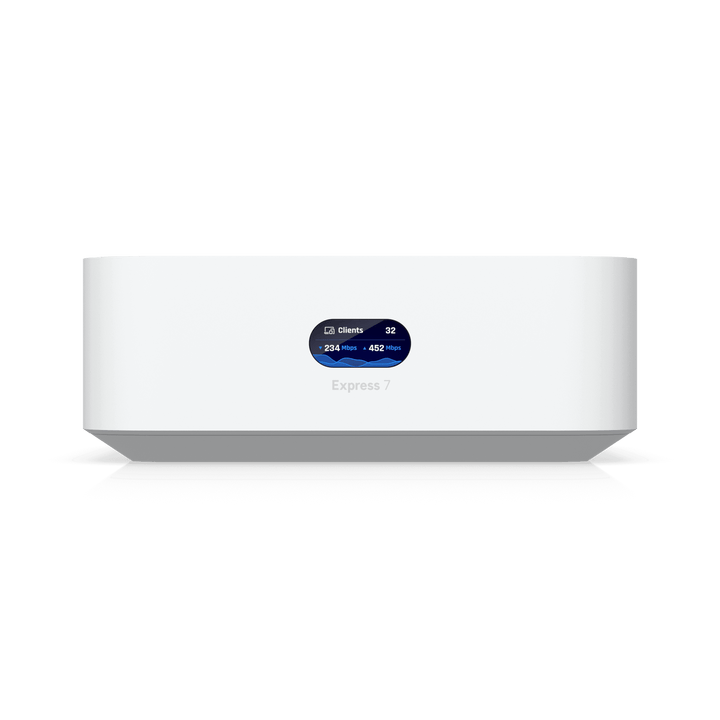

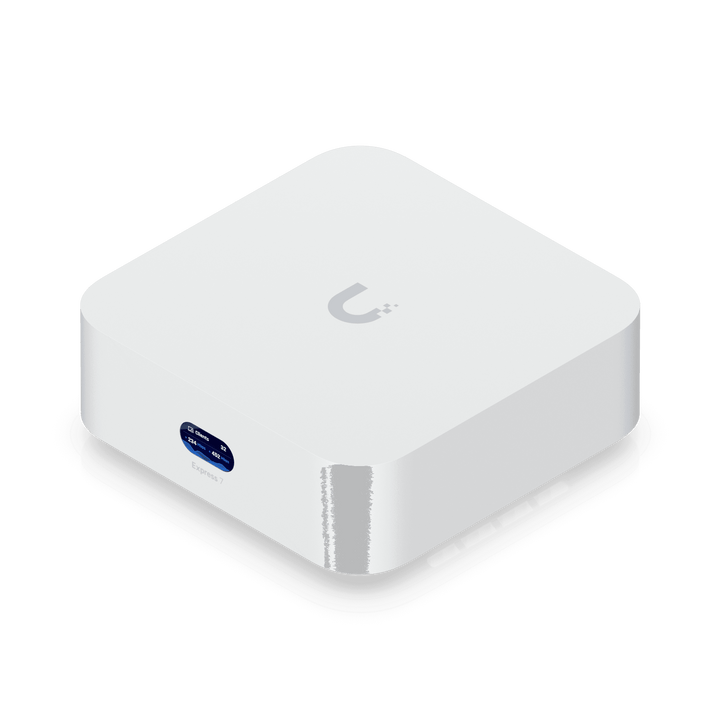

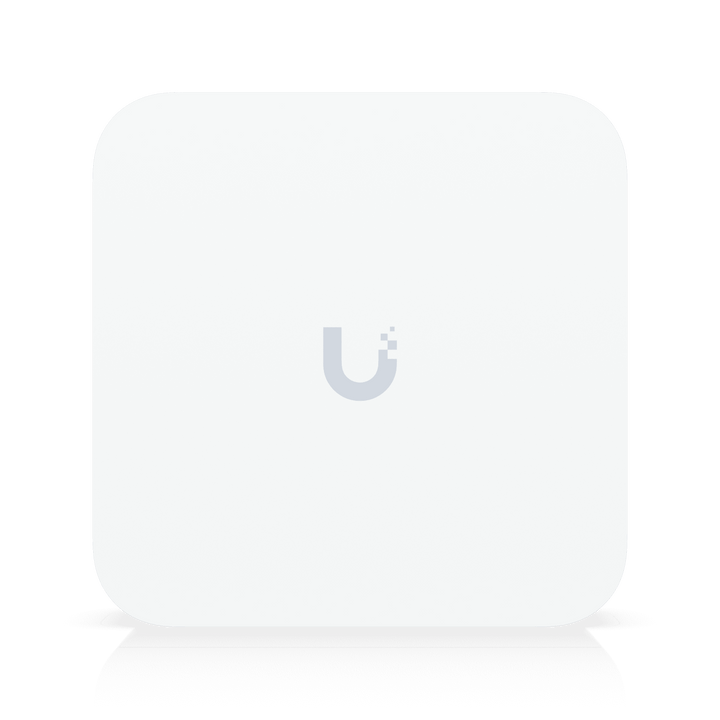

UniFi Express 7
Mesh-scalable, super-compact 10G Cloud Gateway with integrated WiFi 7.
Technical
| Specification | Details |
|---|---|
| Dimensions | 117 x 117 x 42.5 mm (4.61 x 4.61 x 1.67'') |
| Coverage Area | 160 m² (1,750 ft²) |
| UniFi Application Suite | |
| Network | ✓ |
| Managed UniFi Devices | 30+ |
| Simultaneous Users Connected | 300+ |
| Max. WAN Port Count | 1 |
| Default WAN Ports | (1) 10 GbE RJ45 |

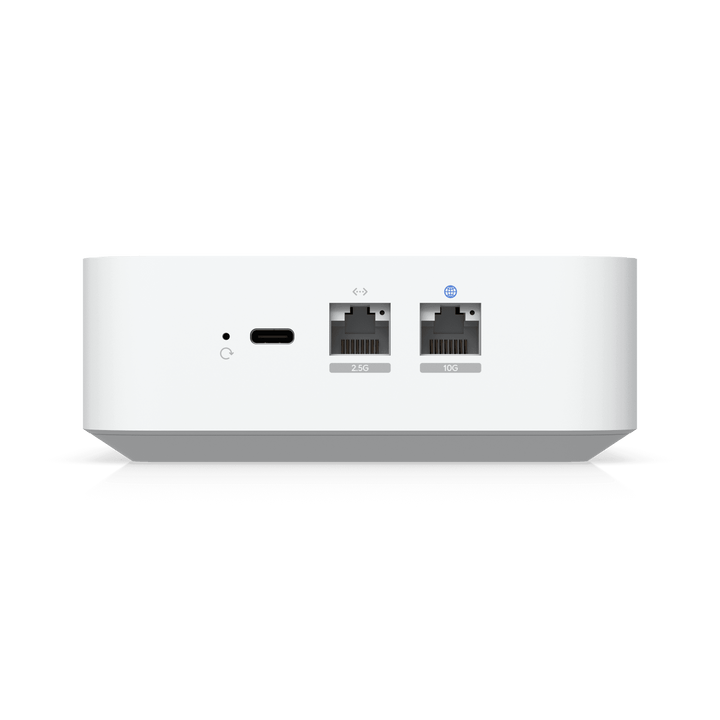

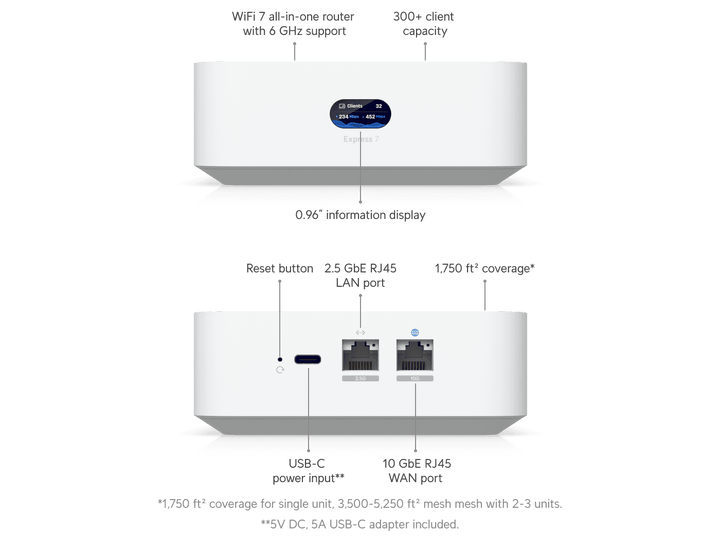

| Port Layout | 2.5 GbE RJ45 (1) (2.5G/1G/100M/10M) 10 GbE RJ45 (1) (10G/5G/2.5G/1G/100M) |
| IDS/IPS Throughput | 2.3 Gbps |
| Form Factor | Compact desktop |
| Security | |
| Stateful Firewall | ✓ |
| Application-Aware Layer 7 Firewall | ✓ |
| DPI & Traffic Identification | ✓ |
| Zone-Based Filtering | ✓ |
| Content Filtering | ✓ |
| Intrusion Prevention (IPS/IDS) | ✓ |
| Ad Blocking | ✓ |
| IDS/IPS Signatures | 20,000+ with CyberSecure |
| VLAN/Subnet Segmentation | ✓ |
| VPN & SD-WAN | |
| License-Free SD-WAN | ✓ |
| Site-to-Site VPN | Site Magic, IPsec, OpenVPN |
| VPN Server | Identity Endpoint, Teleport, WireGuard, OpenVPN, L2TP |
| VPN Client | OpenVPN, WireGuard |
| Networking | |
| Dynamic Routing | OSPF |
| QoS | Advanced QoS, mDNS |
| Advanced NAT | SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT |
| RADIUS | Integrated + RadSec |
| Failover | UniFi LTE Backup |
| Internet Monitoring | Quality & outage reporting |
| Integrated WiFi | |
| WiFi Standard | 802.11a/b/g/n/ac/ax/be (WiFi 6/6E/7) |
| Throughput | 6 GHz: 5.7 Gbps 5 GHz: 4.3 Gbps 2.4 GHz: 688 Mbps |
| MIMO | 2x2 (DL/UL MU-MIMO) per band |
| Antenna Gain | 6 GHz: 6 dBi 5 GHz: 7 dBi 2.4 GHz: 4 dBi |
| Max TX Power | 6 GHz: 24 dBm 5 GHz: 26 dBm 2.4 GHz: 23 dBm |
| Wireless Security | WPA-PSK, WPA2, WPA3, PPSK |
| Max BSSIDs | 4 per Radio (Gateway/AP) |
| Hardware | |
| Max Power Consumption | 22W |
| Power Method | USB-C (5V DC/5A) |
| Processor | Quad-core ARM Cortex-A53 1.5 GHz |
| Memory | 3 GB |
| Weight | 422 g (14.9 oz) |
| Material | Polycarbonate |
| Software | |
| VLAN | 802.1Q |
| Guest Traffic Isolation | ✓ |
| UniFi Network Requirement | Version 9.0.108 and later |
