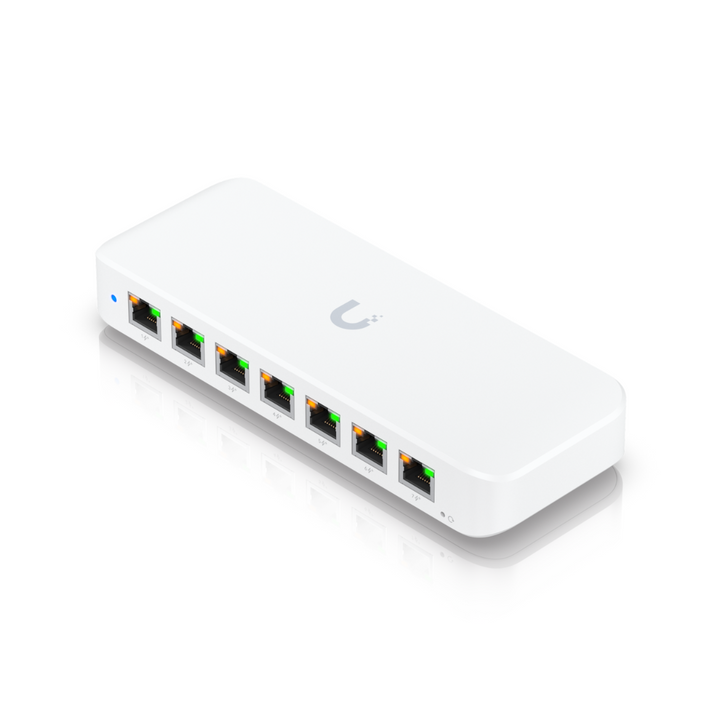

Ultra 60W

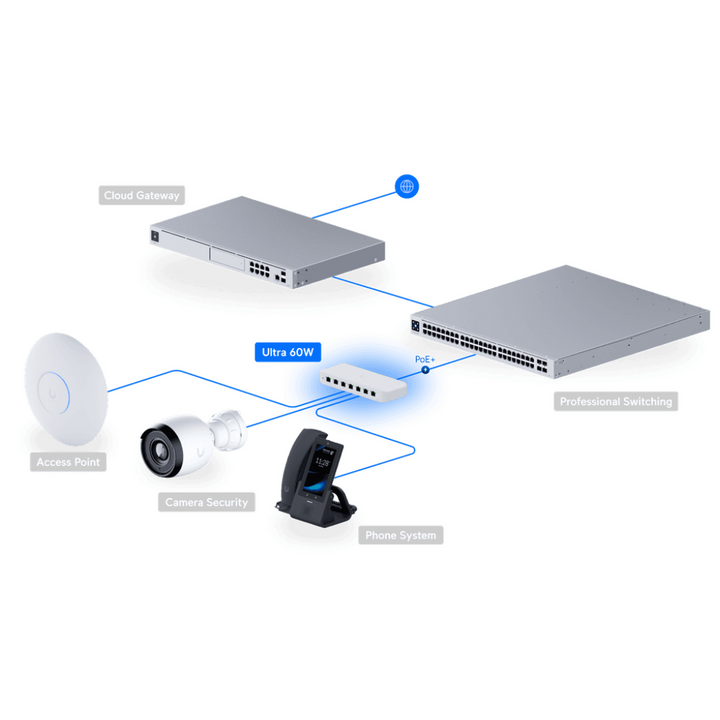

A compact, Layer 2, 8-port GbE PoE switch with versatile mounting options.
Technical
| Hardware Specifications | |
|---|---|

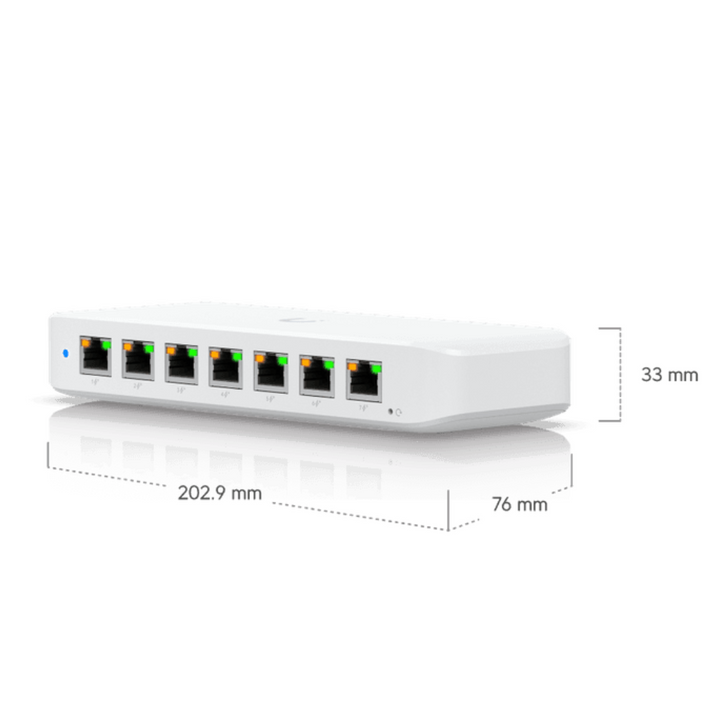

| Dimensions | 203 x 76 x 33 mm (8 x 3 x 1.3") |
| Form Factor | Compact desktop, wall mount, magnetic |

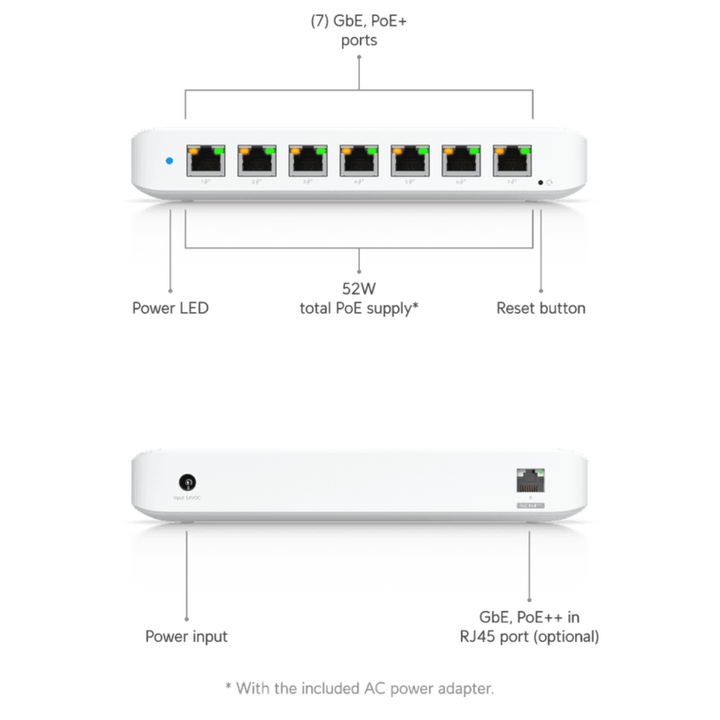

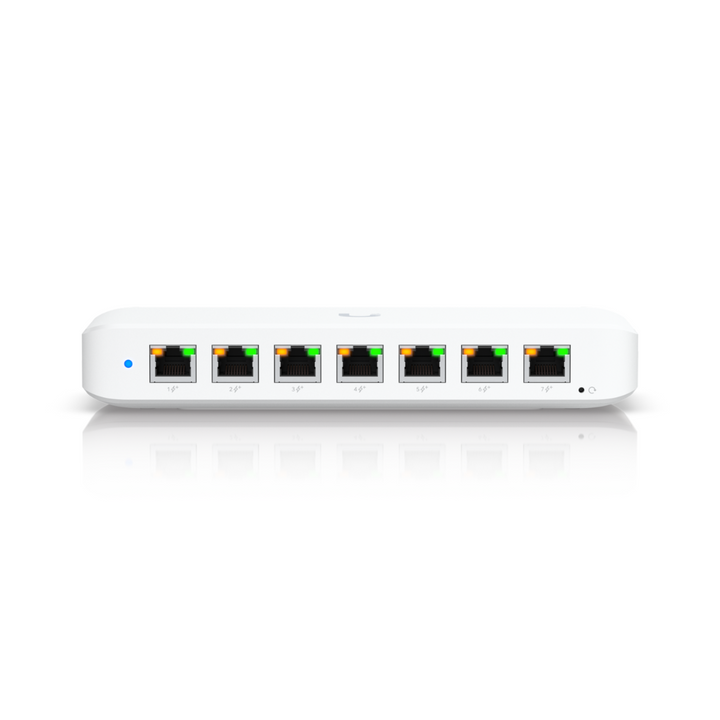

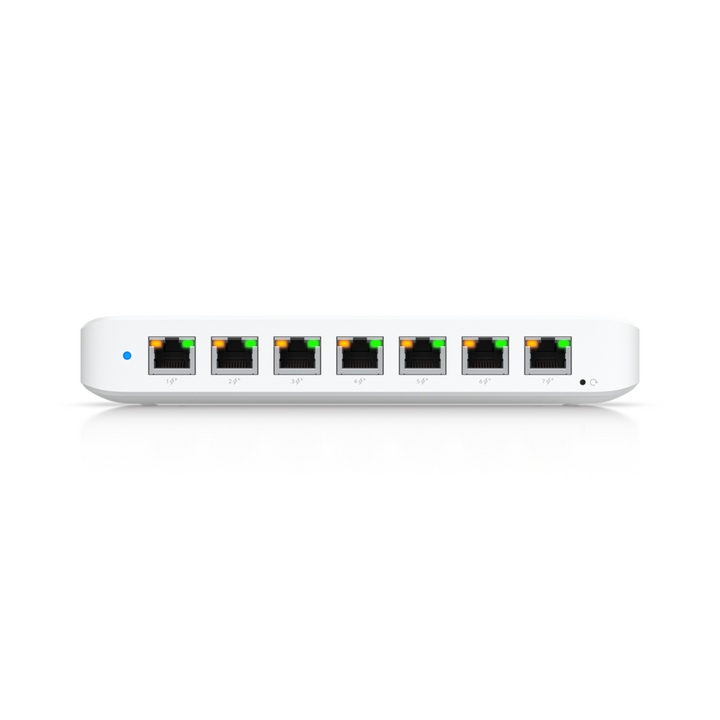

| Port Layout | 1 GbE RJ45: 8 (7 PoE+, 1 PoE++ input) |
| Max. PoE Output | Up to PoE+ |
| Total PoE Availability |
- PoE++ input: 42W - PoE+ input: 16W - 60W PoE adapter: 42W - 60W AC adapter: 52W - 210W AC adapter: 202W |
| PoE+ Ports | 7 |
| PoE++ Input | 1 port |
| Max PoE Wattage per Port | PoE+: 30W |
| Max Power Consumption |
- 9W (excl. PoE) w/ PoE input - 8W (excl. PoE) w/ adapter input - 210W (incl. PoE) w/ 210W adapter |

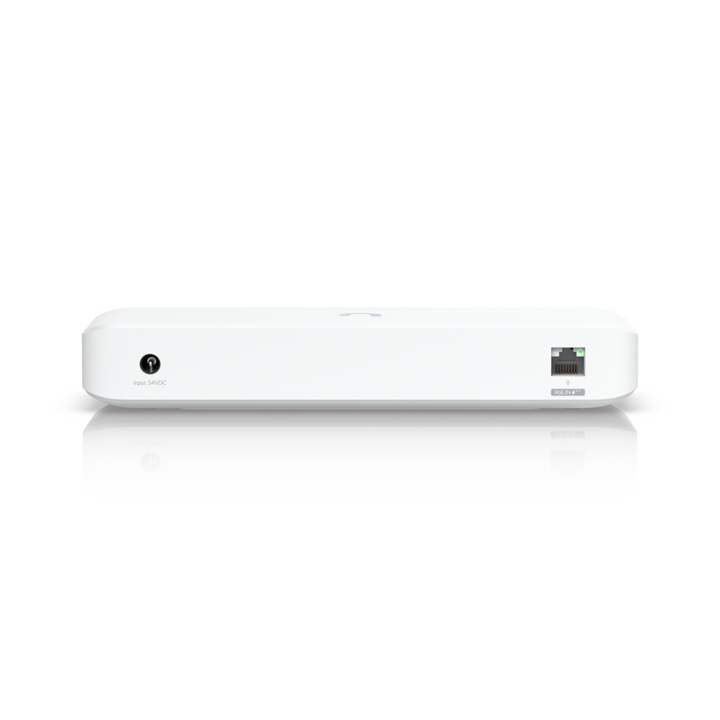

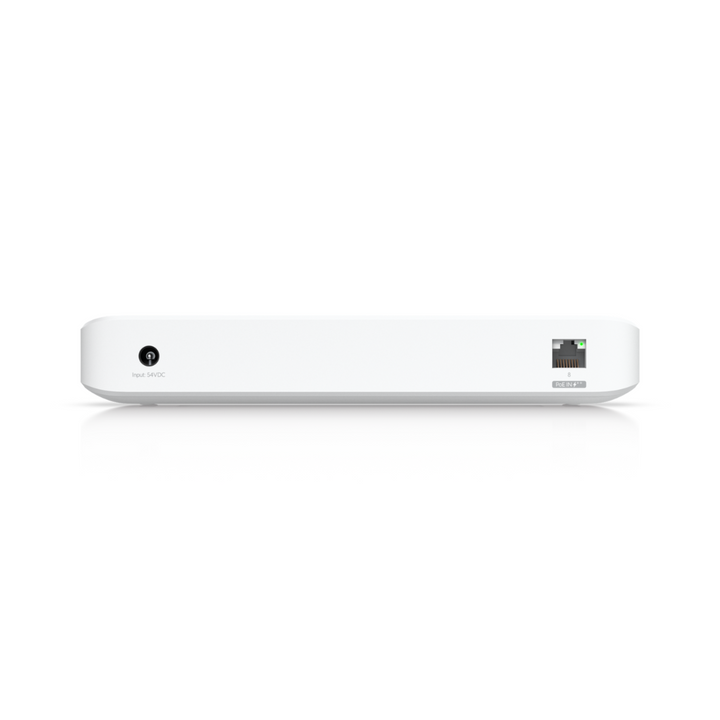

| Power Input | PoE++ or AC/DC Adapter (included) |
| Supported Voltage | 50–57V DC/PoE |
| Power Supply | AC/DC external, 60W standard |
| Enclosure Material | Polycarbonate |
| Weight |
Device: 320 g (11.3 oz) Wall mount: 45 g (1.6 oz) Adapter: 330 g (11.6 oz) |
| Certifications | CE, FCC, IC, Anatel |
| NDAA Compliant | ✓ |
| Performance | |
| Switching Capacity | 16 Gbps |
| Total Non-Blocking Throughput | 8 Gbps |
| Forwarding Rate | 12 Mpps |
| Supported VLANs | 256 |
| MAC Address Table Size | 4,000 |
| Layer 2 Features | |
| STP & RSTP | ✓ |
| Egress Rate Limit | ✓ |
| Flow Control | ✓ |
| Storm Control | ✓ |
| Multicast/Broadcast Rate Limiting | ✓ |
| Port Isolation | ✓ |
| Port Mirroring | ✓ |
| Jumbo Frames | ✓ |
| Loop Protection | ✓ |
| Environmental | |
| Heat Dissipation |
- 30.708 BTU/hr (PoE input) - 27.296 BTU/hr (Adapter input) |
| Operating Temperature |
- PoE++ input: -30 to 60°C (-22 to 140°F) - 60W adapter: -20 to 45°C (-4 to 113°F) |
| Humidity | 10% – 90% non-condensing |
| ESD/EMP Protection | ±16kV (Air/Contact) |
| Software | |
| Management | Ethernet |
| Application Requirements | UniFi Network Version 8.0.7 and later |
