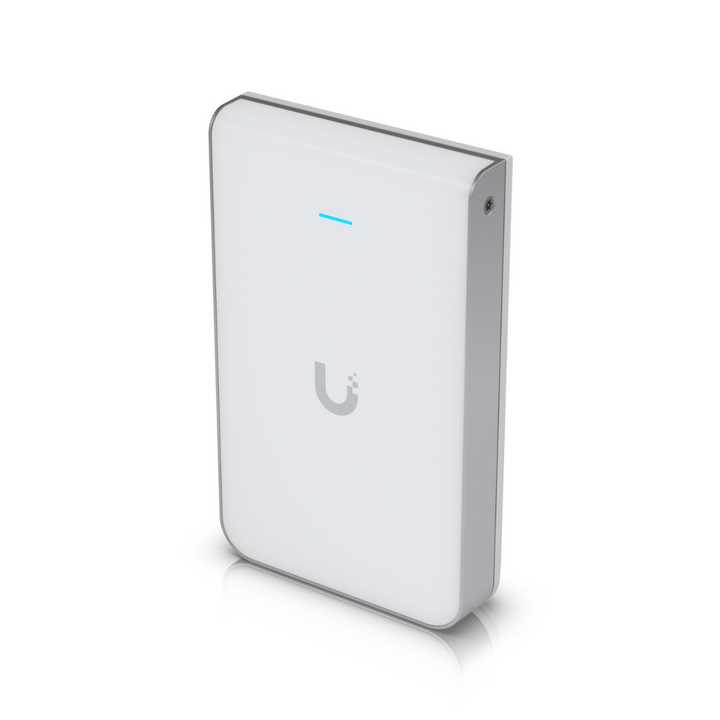

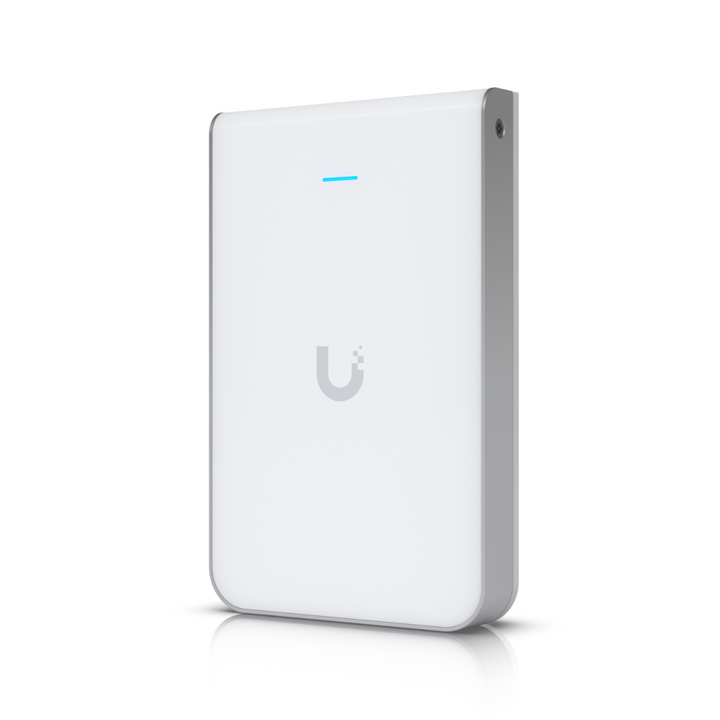

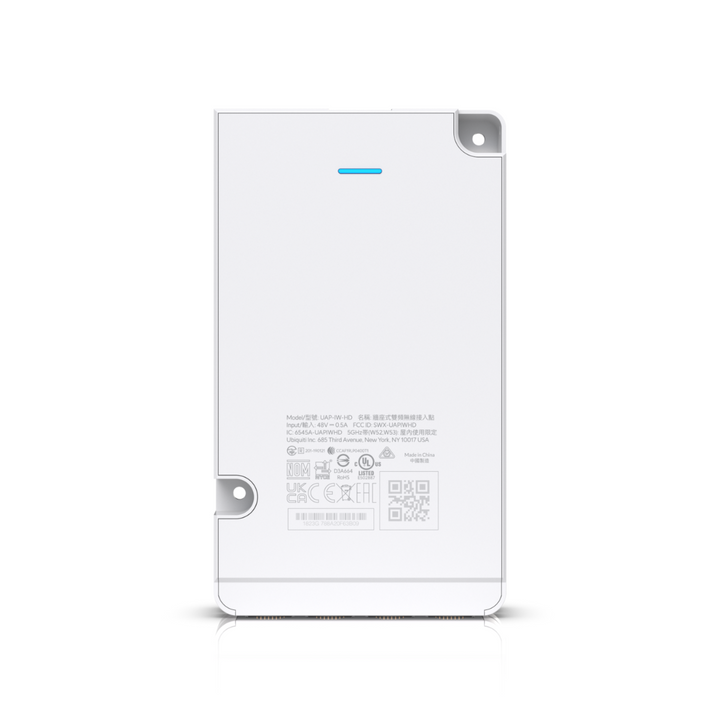

UAP IW HD
Wall-mounted WiFi 5 AP with 6 spatial streams and a built-in 4?port switch ideal for single-room coverage in hospitality environments.
Technical
| Hardware Specifications | |
|---|---|

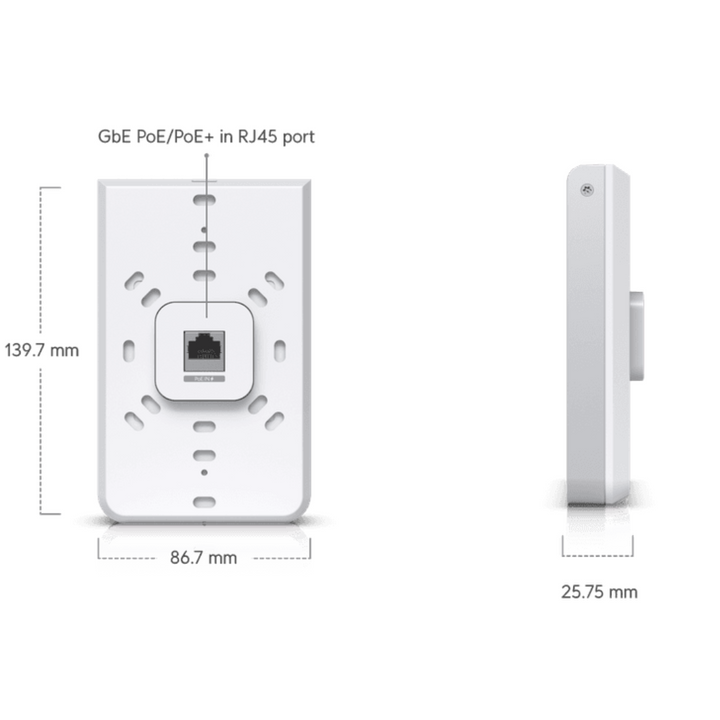

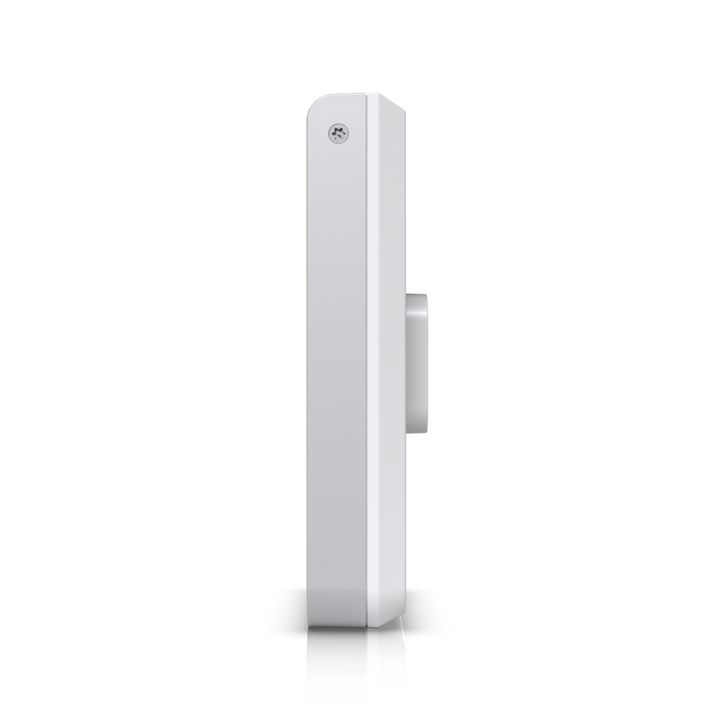

| Dimensions | 139.7 x 86.7 x 25.8 mm (5.5 x 3.4 x 1") |
| Weight | 210 g (7.4 oz) |
| Enclosure Material | Polycarbonate |

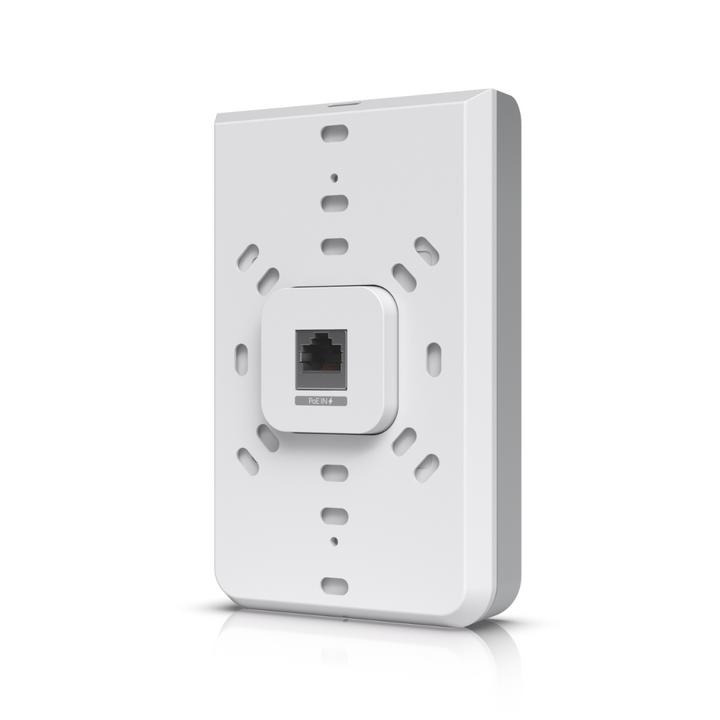

| Mounting | Wall (Mount Included) |

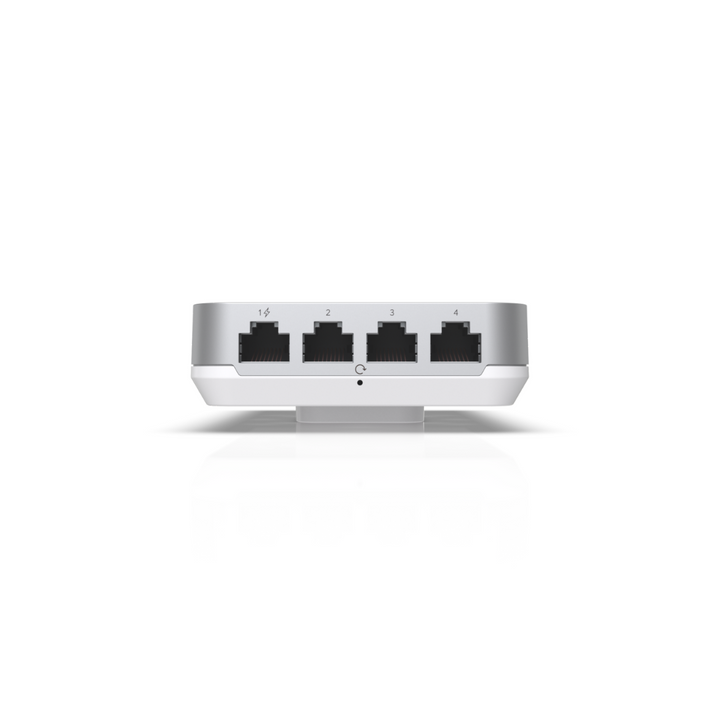

| Built-In Switch | (4) GbE ports with (1) PoE Output |
| Networking Interface | (5) GbE RJ45 ports |

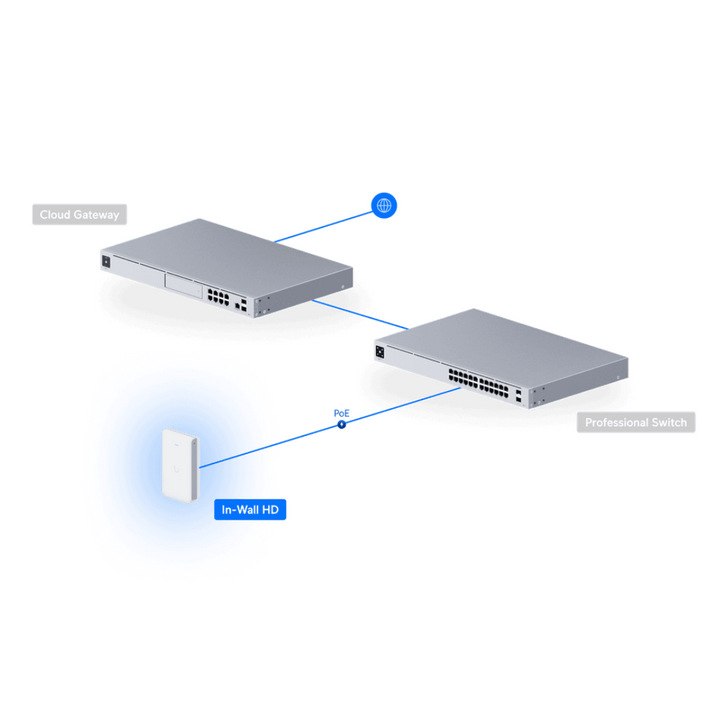

| Power Method | PoE (PoE+ required for PoE passthrough) |
| Supported Voltage Range | 44–57V DC |
| Max Power Consumption | 11W (Excluding PoE Output) |
| LED Indicators | Status |
| Wireless Performance | |
| WiFi Standard | WiFi 5 (802.11ac) |
| Spatial Streams | 6 |
| Coverage Area | 90 m² (1,000 ft²) |
| Max. Client Count | 200+ |
| MIMO |
5 GHz: 4x4 DL MU-MIMO 2.4 GHz: 2x2 DL MU-MIMO |
| Max Data Rate |
5 GHz: 1.7 Gbps (BW80) 2.4 GHz: 300 Mbps (BW40) |
| Antenna Gain |
5 GHz: 4 dBi 2.4 GHz: 1.8 dBi |
| Max TX Power |
5 GHz: 26 dBm 2.4 GHz: 23 dBm |
| Channel Bandwidth | HT 20/40, VHT 20/40/80/160 MHz |
| Max BSSIDs | 8 per Radio |
| Supported Data Rates |
802.11ac: 6.5 Mbps to 1.7 Gbps (VHT 20/40/80/160) 802.11n: 6.5 Mbps to 300 Mbps (HT 20/40) |
| Wireless Features | |
| Wireless Meshing | ✓ |
| Band Steering | ✓ |
| 802.11v (BSS Transition) | ✓ |
| 802.11r (Fast Roaming) | ✓ |
| 802.11k (RRM) | ✓ |
| Advanced Radio Management | ✓ |
| Passpoint (Hotspot 2.0) | ✓ |
| Captive Portal | ✓ (Custom Branding & Landing Page) |
| Authentication Methods | Voucher, Payment, Password, External Portal, PPSK |
| Guest Network Isolation | ✓ |
| Client Device Isolation | ✓ |
| WiFi Speed Limiting | ✓ |
| WiFi Schedules | ✓ |
| Dynamic RADIUS VLAN | ✓ |
| RADIUS over TLS (RadSec) | ✓ |
| Environmental & Compliance | |
| Operating Temp | -10 to 60° C (14 to 140° F) |
| Operating Humidity | 5 to 95% non-condensing |
| NDAA Compliant | ✓ |
| Certifications | CE, FCC, IC, cULus |
| Operating Frequency (US/CA) |
2.4 GHz: 2400–2472 MHz 5 GHz: U-NII-1/2A/2C/3 (5150–5850 MHz) |
| Operating Frequency (Worldwide) |
2.4 GHz: 2400–2483.5 MHz 5 GHz: 5150–5725 MHz |
| Software & Management | |
| UniFi Application Required | UniFi Network (Version 6.0.45+) |
| Management Interface | Ethernet |
