UAP AC IW

55.000 KD

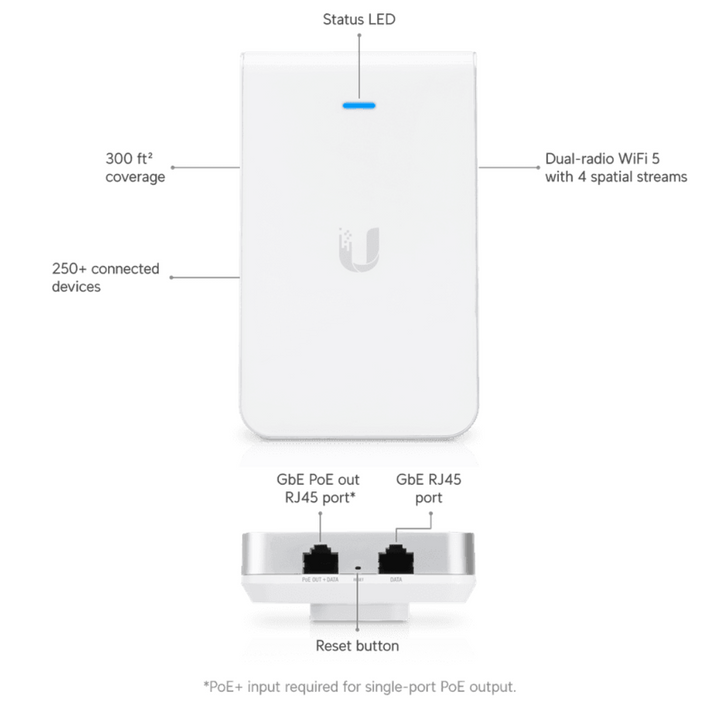

Wall-mounted WiFi 5 AP with 4 spatial streams and a built-in 2?port switch ideal for seamless coverage of smaller rooms.
Add to WishlistCompare
Ask a Question
SKU:
Availability: In Stock Pre order Out of stock
Categories: Access Points
Overview
Technical
Hardware Specifications
Dimensions139.7 x 86.7 x 25.8 mm (5.5 x 3.4 x 1")
Weight200 g (6.4 oz)
MountingWall (Mount Included)
Enclosure MaterialPolycarbonate

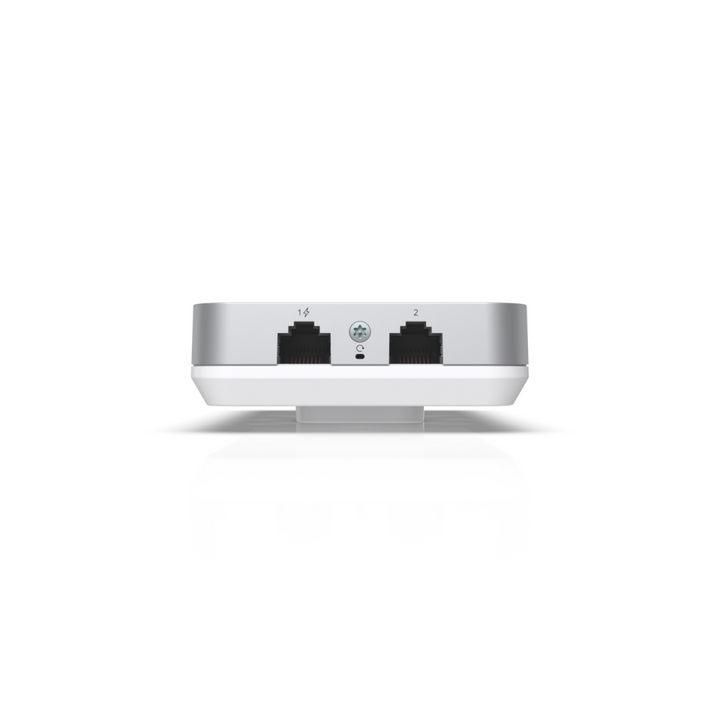

Networking Interface(3) GbE RJ45 ports
Power MethodPoE / PoE+ (Required for PoE passthrough)
Supported Voltage Range44–57V DC
Max Power Consumption7W (Excluding PoE Output)
LED IndicatorsSystem Status
Wireless Performance
WiFi StandardWiFi 5 (802.11ac)
Spatial Streams4
Coverage Area25 m² (300 ft²)
Max Client Count250+
MIMO 5 GHz: 2x2 DL MU-MIMO
2.4 GHz: 2x2 DL MU-MIMO
Max Data Rate 5 GHz: 867 Mbps (BW80)
2.4 GHz: 300 Mbps (BW40)
Antenna Gain 5 GHz: 2 dBi
2.4 GHz: 1 dBi
Max TX Power 5 GHz: 20 dBm
2.4 GHz: 20 dBm
Channel BandwidthHT 20/40, VHT 20/40/80 MHz
Max BSSIDs8 per radio
Supported Data Rates 802.11ac: 6.5–867 Mbps (MCS0–MCS9 NSS1/2, VHT 20/40/80)
802.11n: 6.5–300 Mbps (MCS0–MCS23, HT 20/40)
Wireless Features
Wireless Meshing✓
Band Steering✓
Fast Roaming802.11r ✓
BSS Transition Management802.11v ✓
Radio Resource Management802.11k ✓
Advanced Radio Management✓
Passpoint (Hotspot 2.0)✓
Captive Portal ✓ (Custom Branding, Voucher, Payment, Password, PPSK)
Guest Network Isolation✓
Client Device Isolation✓
WiFi Speed Limiting✓
WiFi Schedules✓
RADIUS over TLS (RadSec)✓
Dynamic VLAN Assignment✓
Environmental & Compliance
Operating Temperature-10 to 50° C (14 to 122° F)
Operating Humidity5 to 95% (noncondensing)
NDAA Compliant✓
CertificationsCE, FCC, IC, Anatel
Operating Frequency (US/CA) 2.4 GHz: 2400–2472 MHz
5 GHz: 5150–5850 MHz (U-NII 1/2A/2C/3)
Operating Frequency (Worldwide) 2.4 GHz: 2400–2483.5 MHz
5 GHz: 5150–5725 MHz
Software & Management
UniFi Application RequiredUniFi Network (v6.0.45+)
Management InterfaceEthernet
