Technical
| General Specifications | |
|---|---|

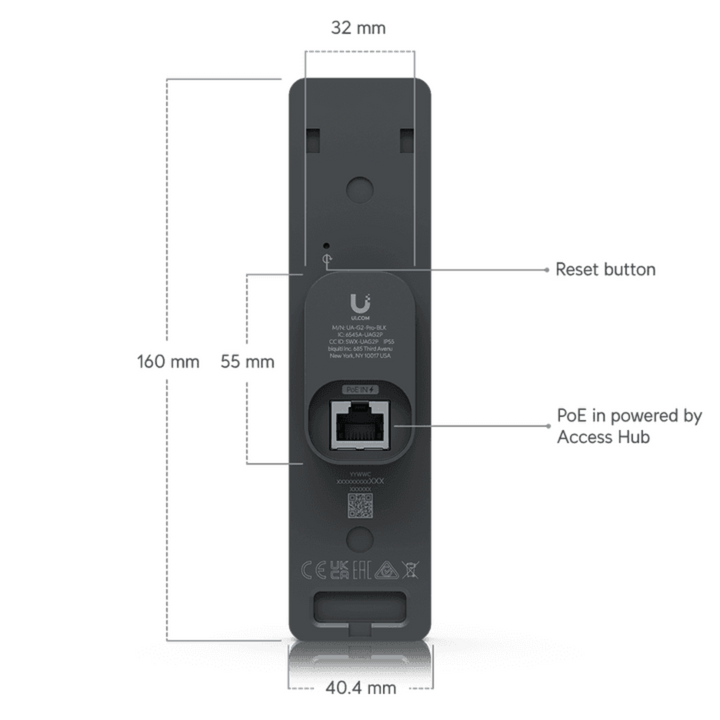

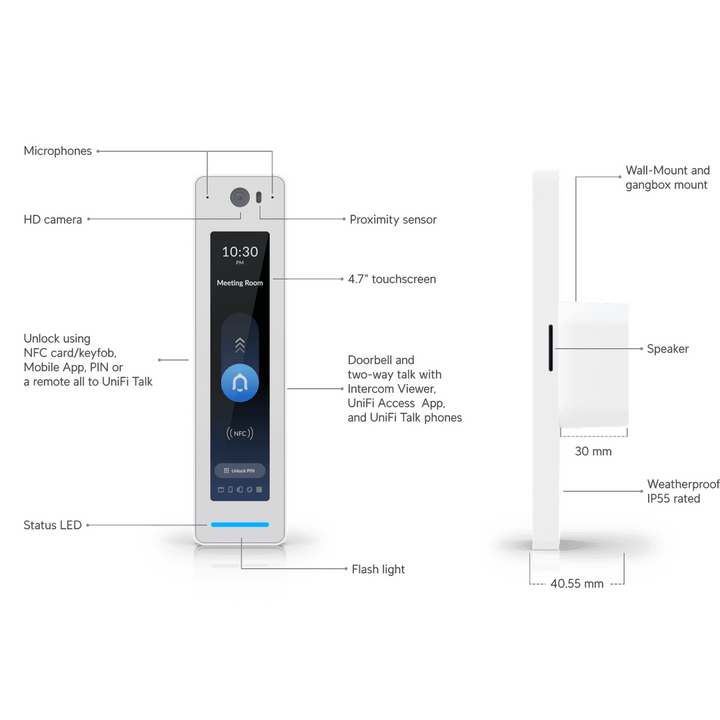

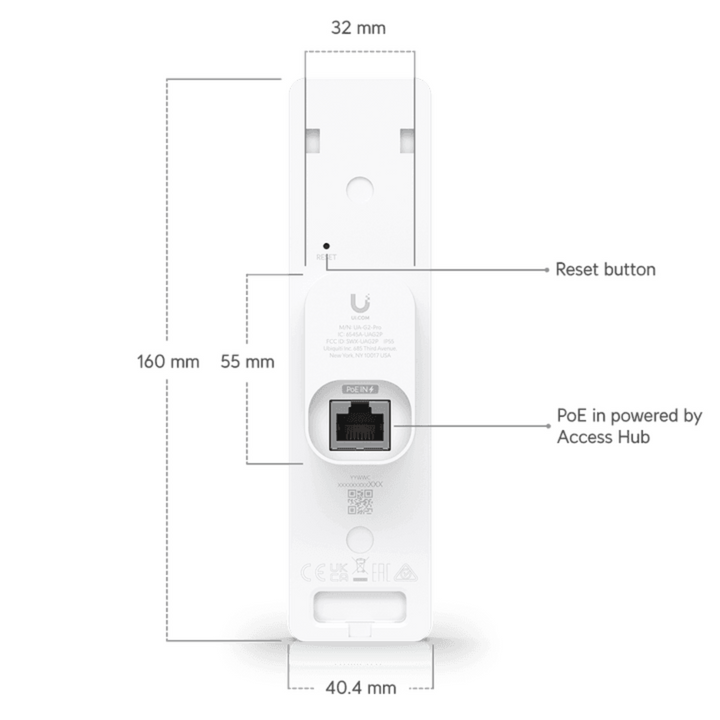

| Dimensions | 160 x 40.4 x 40.55 mm (6.3 x 1.59 x 1.6") |
| Weight | 136 g (4.8 oz) |
| Enclosure Material | Polycarbonate, Glass |

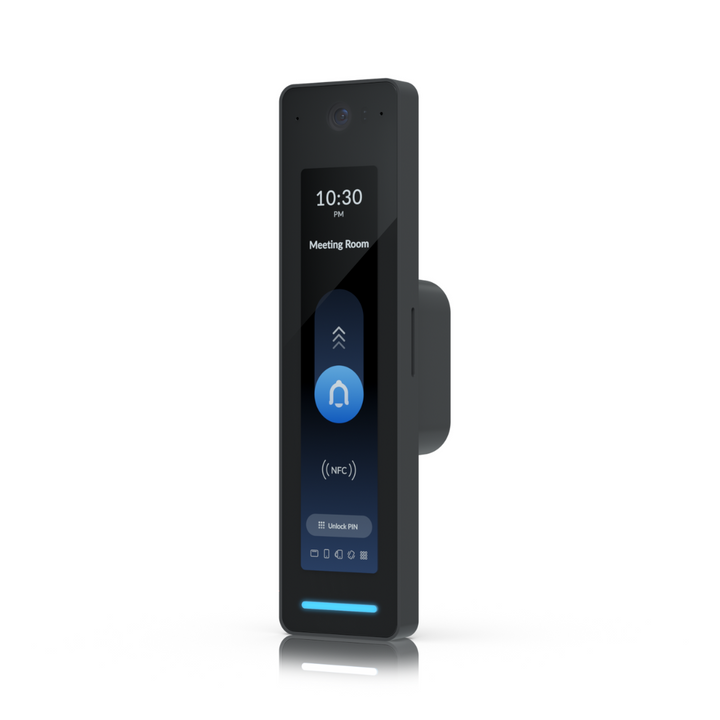

| Mounting | Wall or Gang Box (Mount Included), Optional Angle or Junction Box Mount |
| Weatherproof Rating | IP55 |
| Indoor/Outdoor Use | Yes |
| NDAA Compliant | ✓ |
| Certifications | CE, FCC, IC, SRRC, UL 294, CAN/ULC-60839-11-1 |
| Access & Security Features | |

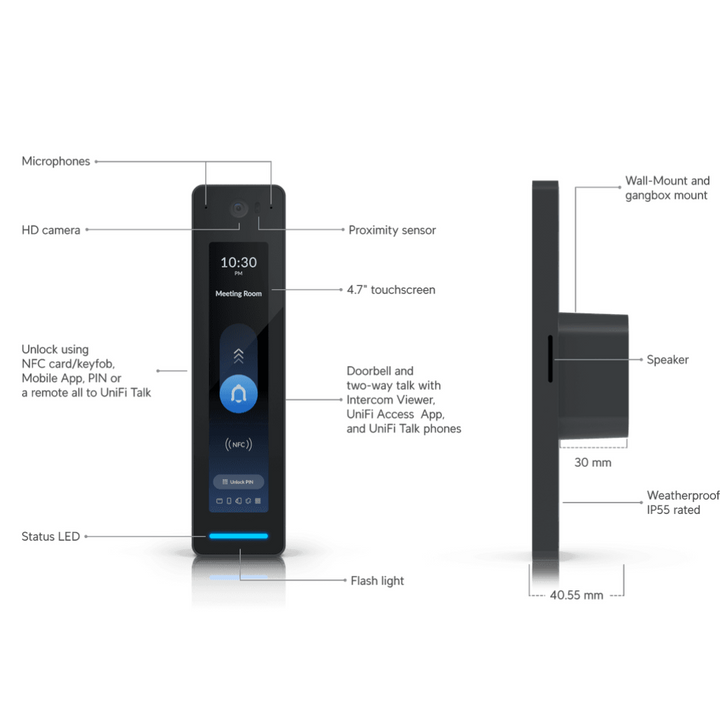

| Integrated Camera | ✓ |
| Two-Way Intercom | ✓ |
| Doorbell Function | ✓ |
| Mobile Unlock | ✓ |
| NFC Card & Keyfob | ✓ |
| PIN Access | ✓ |
| UL 294 Level |
Destructive Attack: Level I Line Security: Level I Endurance: Level I Standby Power: Level I |
| CAN/ULC-60839-11-1 Grade | Grade I |
| Display & Audio | |

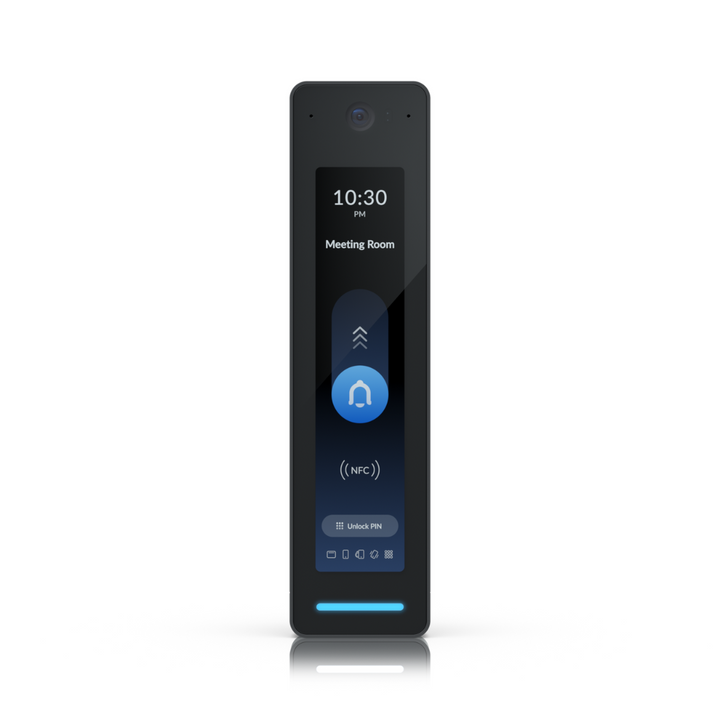

| Touchscreen | ✓ (Capacitive) |
| Display Size | 120 mm (4.7") Diagonal |
| Resolution | 1280 x 286 px |
| Brightness | 480 nits (Typical) |
| Screen Orientation | Portrait |
| Microphone | ✓ |
| Speaker | ✓ |
| LED Indicators | RGB, White, Amber |
| Connectivity & Power | |

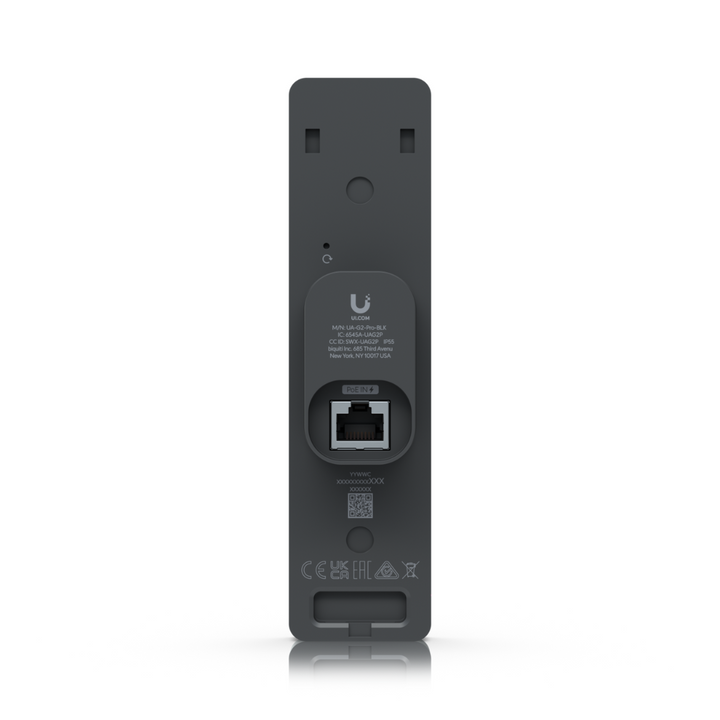

| Networking Interface | 1x GbE RJ45 |
| Wireless | BLE 4.2, NFC |
| NFC Frequency | 13.56 MHz |
| NFC Read Range | < 30 mm (1.18") |
| NFC Compatibility |
ISO/IEC 14443A/B, 15693, 18092 (Ecma 340) MIFARE Classic / DESFire, Sony FeliCa (ID only) NFC Forum T1T–T5T |

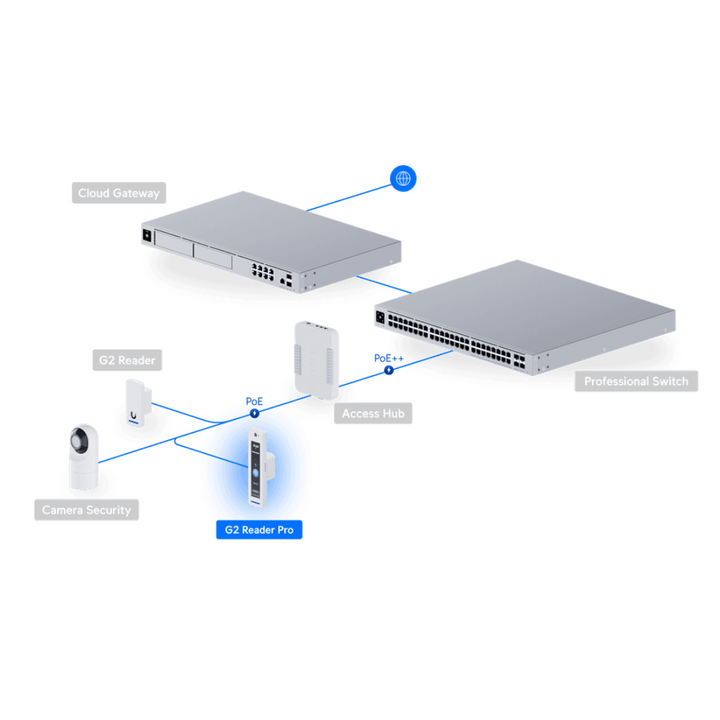

| Power Method | PoE (48V DC, Class 2) |
| Power Consumption | Max 6W |
| PoE Cabling Requirements |
Cat 5e or better Patch cords: 26 AWG min Horizontal/riser: 24 AWG min |
| Environmental | |
| Operating Temperature |
Device: -30 to 45° C (-22 to 113° F) Display: -10 to 45° C (14 to 113° F) |
| Humidity | 5 to 90% Noncondensing |
| ESD/EMP Protection | Air: ±15kV, Contact: ±8kV |
| Factory Reset Button | ✓ |
| Software & Management | |
| Management Application | UniFi Access |
| Software Info | https://unifi.ui.com |
