Technical
| Dimensions | |
|---|---|

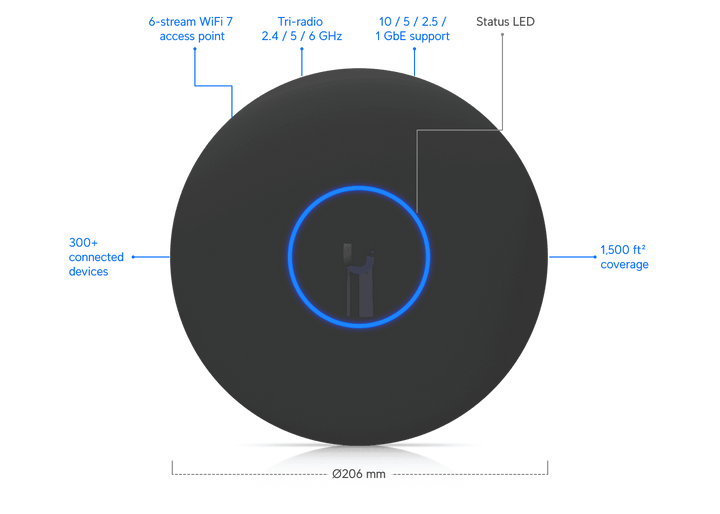

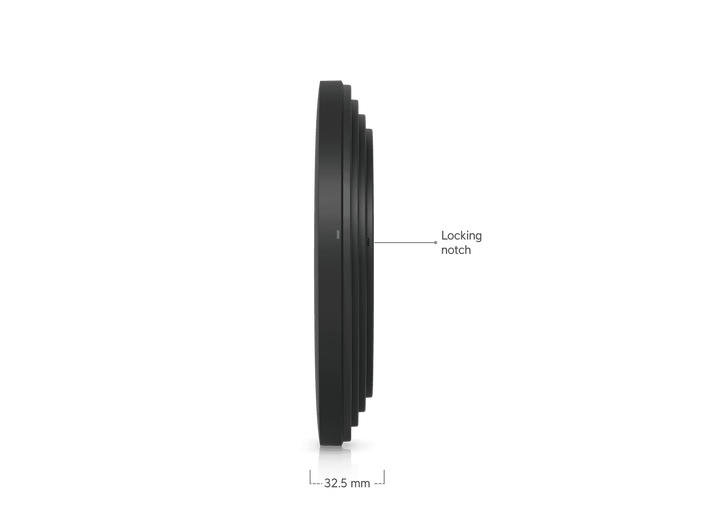

| Size | Ø206 x 32.5 mm (Ø8.1 x 1.3") |
| Weight | 750 g (1.7 lb) |
| Mounting | Ceiling, Wall (Lite Mount Included) |
| Power Method | PoE+ |
| WiFi & Performance | |
| WiFi Standard | WiFi 7 (802.11be) |
| Spatial Streams | 6 |
| Coverage Area | 140 m² (1,500 ft²) |
| Max Client Count | 300+ |
| Uplink | 10 GbE |
| MIMO |
6 GHz: 2x2 (DL/UL MU-MIMO) 5 GHz: 2x2 (DL/UL MU-MIMO) 2.4 GHz: 2x2 (DL/UL MU-MIMO) |
| Max Data Rate |
6 GHz: 5.8 Gbps (BW320) 5 GHz: 4.3 Gbps (BW240) 2.4 GHz: 688 Mbps (BW40) |
| Antenna Gain |
6 GHz: 6 dBi 5 GHz: 5 dBi 2.4 GHz: 4 dBi |
| Max TX Power |
6 GHz: 24 dBm 5 GHz: 26 dBm 2.4 GHz: 23 dBm |
| Max BSSIDs | 8 per Radio |
| Supported Data Rates |
802.11be (WiFi 7): 6 GHz: 7.3 Mbps – 5.8 Gbps (MCS0–MCS13 NSS1/2, EHT 20–320) 5 GHz: 7.3 Mbps – 4.3 Gbps (MCS0–MCS13 NSS1/2/3/4, EHT 20–240) 802.11ax (WiFi 6): 7.3 Mbps – 2.4 Gbps (MCS0–MCS11 NSS1/2, HE 20–160) 802.11ac (WiFi 5): 6.5 Mbps – 1.7 Gbps (MCS0–MCS9 NSS1/2, VHT 20–160) 802.11n: 6.5 Mbps – 300 Mbps (MCS0–MCS15, HT 20/40) |
| Features | |
| Wireless Meshing | ✓ |
| Band Steering | ✓ |
| 802.11v BSS Transition Management | ✓ |
| 802.11r Fast Roaming | ✓ |
| 802.11k RRM | ✓ |
| Advanced Radio Management | ✓ |
| Passpoint (Hotspot 2.0) | ✓ |
| Captive Portal / Custom Branding | ✓ |
| Voucher / Payment / Password Auth | ✓ |
| Guest Network Isolation | ✓ |
| Private Pre-Shared Key (PPSK) | ✓ |
| WiFi Speed Limiting | ✓ |
| Client Device Isolation | ✓ |
| WiFi Schedules | ✓ |
| RADIUS over TLS (RadSec) | ✓ |
| Dynamic VLAN Assignment | ✓ |
| Hardware | |
| Max Power Consumption | 22W |
| Supported Voltage Range | 42.5–57V DC |

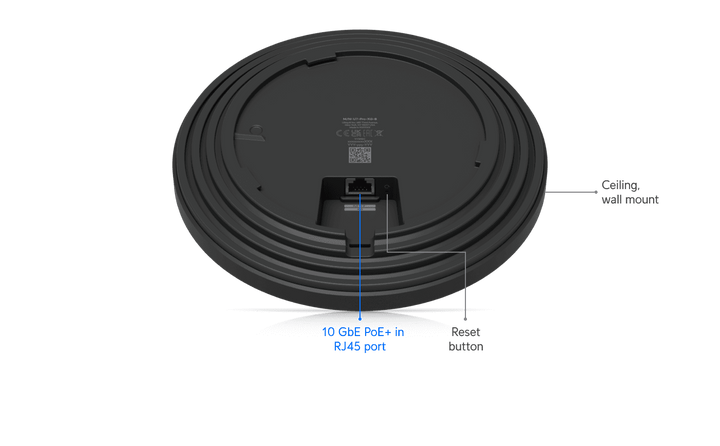

| Networking Interface | (1) 10 GbE RJ45 Port |
| Enclosure Material | UV-stabilized polycarbonate, aluminum alloy |
| Mount Material | Stainless steel (SUS304), galvanized steel (SGCC) |
| LED Indicators | System: White/Blue |
| Channel Bandwidth | HT/VHT/HE/EHT 20–320 MHz |
| NDAA Compliant | ✓ |
| Certifications | CE, FCC, IC |
| Operating Conditions | |
| Operating Frequency |
US/CA: 2400–2472 MHz, 5150–5850 MHz, 5925–7125 MHz Worldwide: 2400–2483.5 MHz, 5150–5725 MHz, 5925–7125 MHz |
| Ambient Operating Temperature | -30 to 40°C (-22 to 104°F) |
| Ambient Operating Humidity | 5–95% noncondensing |
| Software | |
| Application Requirements | UniFi Network |
| Supported Versions |

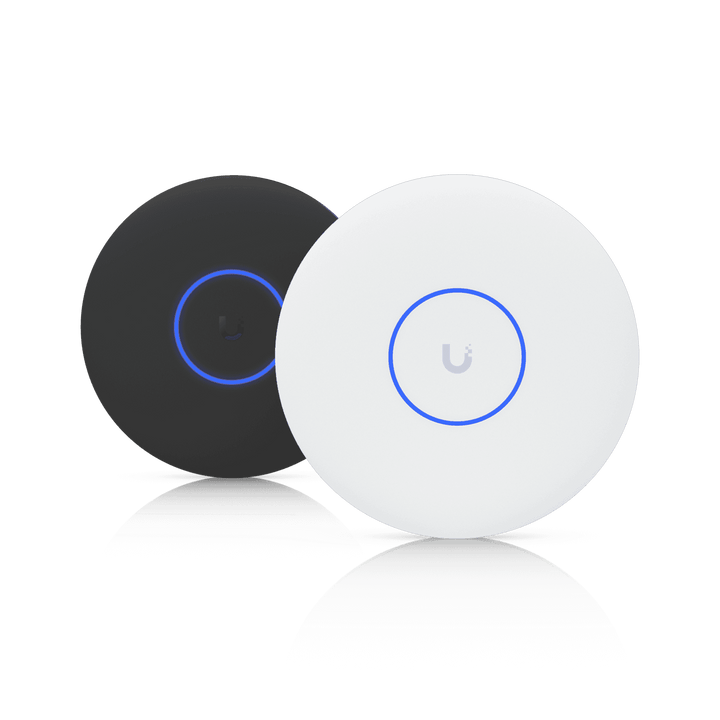

v9.0.114+ (U7 Pro XG - White) v9.1.120+ (U7 Pro XG - Black) |
