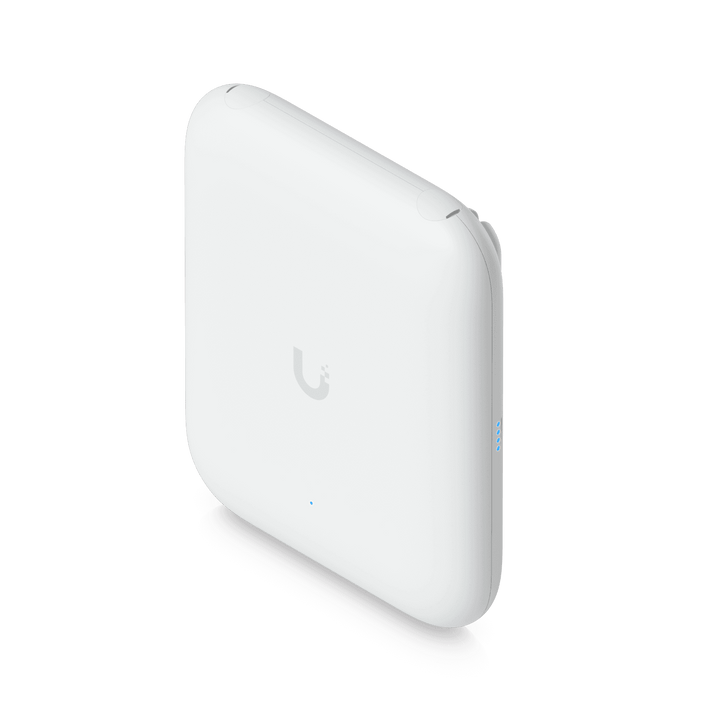

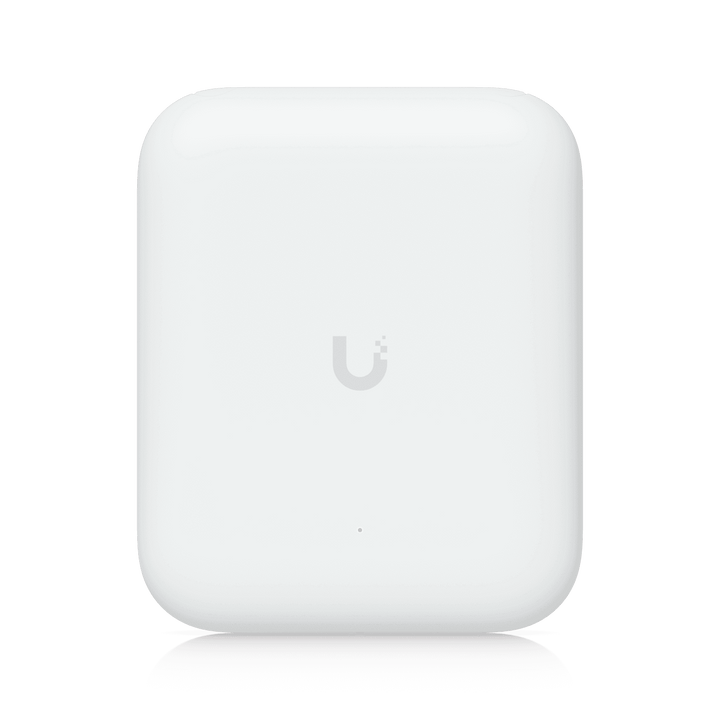

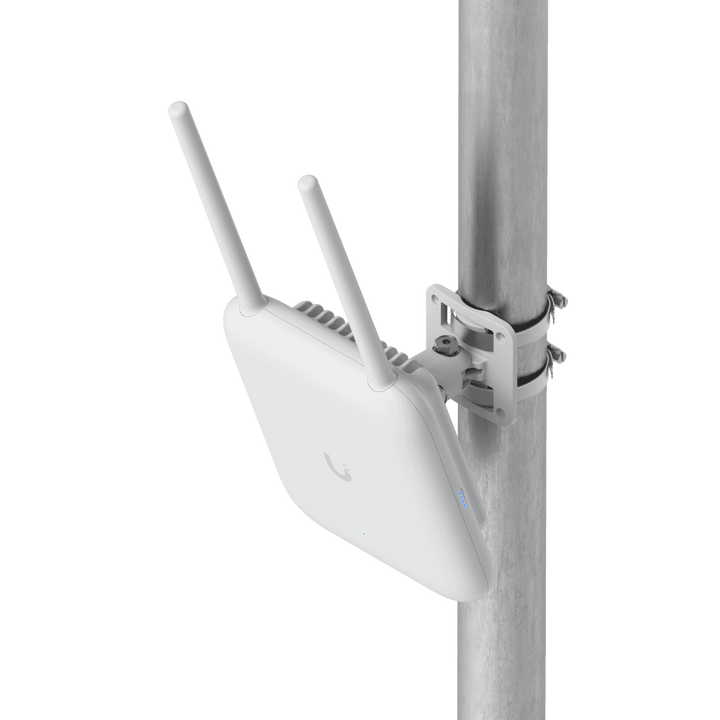

U7 Pro Outdoor
All-weather IP67 WiFi 7 AP with 6 spatial streams, extended-range AFC 6 GHz support, integrated directional super antenna, and articulation mounting bracket.
Technical
| Specification | Details |
|---|---|
| General | |

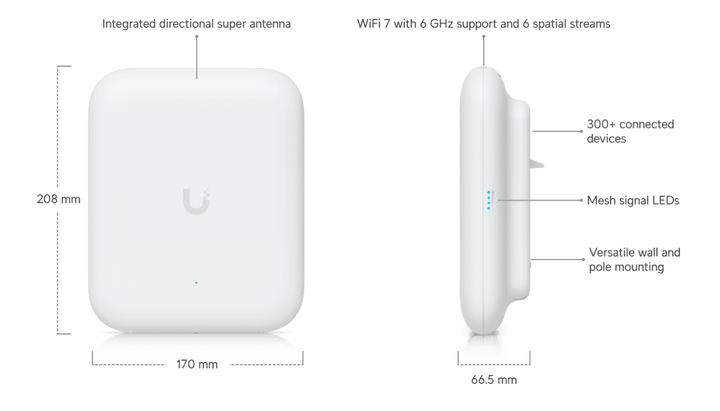

| Dimensions | Without mount: 170 x 208 x 66.5 mm (6.7 x 8.2 x 2.6") With mount: 170 x 208 x 121.8 mm (6.7 x 8.2 x 4.8") |
| WiFi Standard | WiFi 7 |
| Spatial Streams | 6 |
| Coverage Area | 465 m² (5,000 ft²) |
| Max. Client Count | 300+ |
| Uplink | 2.5 GbE |

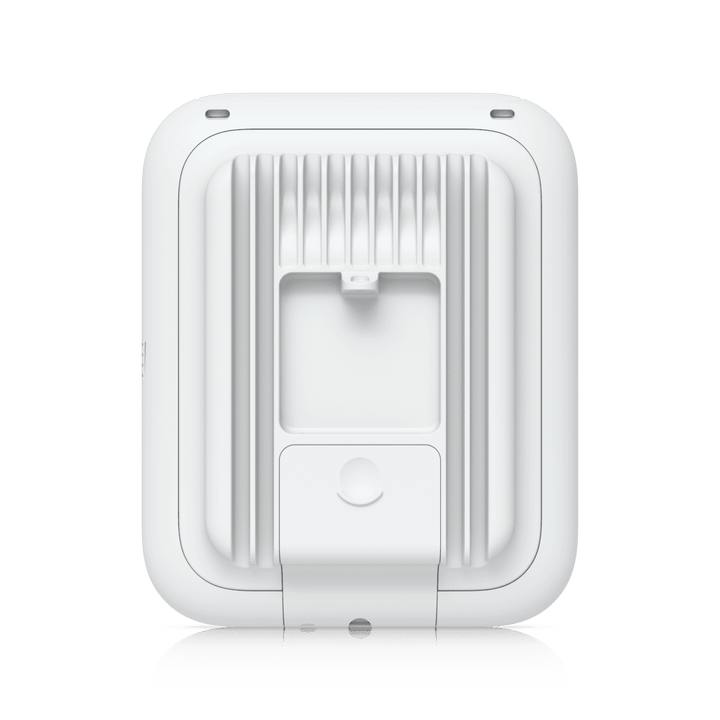

| Mounting | Wall, Pole (Mounts Included) |
| Weatherproofing | IPX6, IP67 (with cable-gland door kit) |
| Power Method | PoE+ |
| Performance | |
| MIMO | 6 GHz: 2x2 (DL/UL MU-MIMO) 5 GHz: 2x2 (DL/UL MU-MIMO) 2.4 GHz: 2x2 (DL/UL MU-MIMO) |
| Max. Data Rate | 6 GHz: 5.8 Gbps (BW320) 5 GHz: 4.3 Gbps (BW240) 2.4 GHz: 688 Mbps (BW40) |

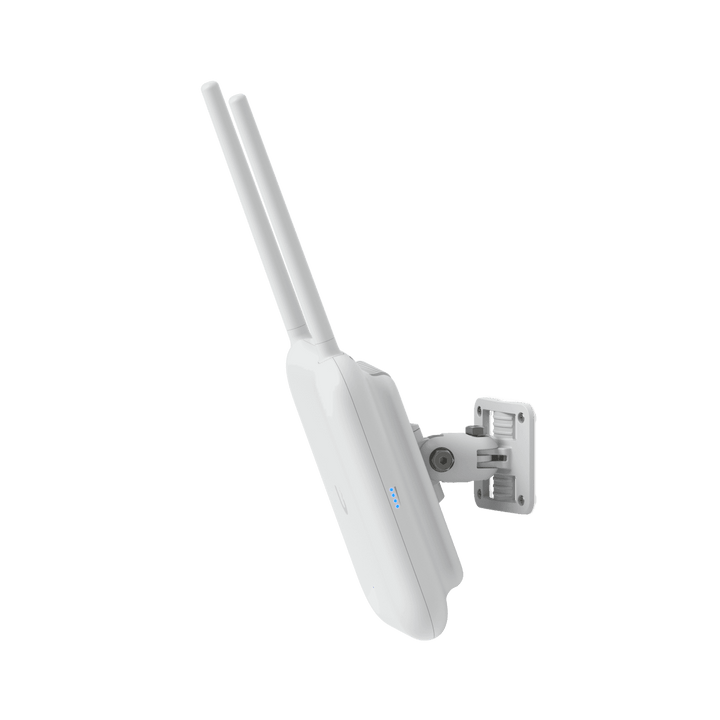

| Antenna Gain | 6 GHz: 10 dBi directional (90° x 45°) 5 GHz: 11 dBi directional (90° x 45°), 8 dBi external omni (360° x 15°) 2.4 GHz: 8 dBi directional (90° x 90°), 6 dBi external omni (360° x 15°) |
| Max. TX Power | 6 GHz: 26 dBm 5 GHz: 26 dBm 2.4 GHz: 23 dBm |
| Max. BSSIDs | 8 per radio |
| Supported Data Rates |
802.11be (WiFi 7): 7.3 Mbps – 5.8 Gbps (MCS0–MCS13 NSS1/2, EHT 20/40/80/160/240/320) 802.11ax (WiFi 6/6E): 7.3 Mbps – 2.4 Gbps (MCS0–MCS11 NSS1/2, HE 20/40/80/160) 802.11ac (WiFi 5): 6.5 Mbps – 1.7 Gbps (MCS0–MCS9 NSS1/2, VHT 20/40/80/160) 802.11n: 6.5 Mbps – 300 Mbps (MCS0–MCS15, HT 20/40) |
| Features | |

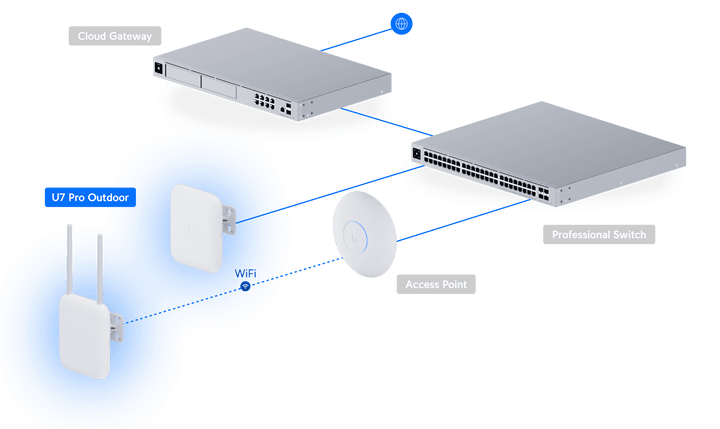

| Wireless Meshing | ✓ |
| Band Steering | ✓ |
| Fast Roaming (802.11r) | ✓ |
| Advanced Radio Management | ✓ |
| Guest Network & Captive Portal | ✓ (Custom Branding, Voucher, Payment, Password) |
| Security & Authentication | PPSK, RADIUS over TLS, Dynamic VLAN, Client Isolation |
| Hardware | |
| Max. Power Consumption | 21W |
| Supported Voltage Range | 42.5–57V DC |

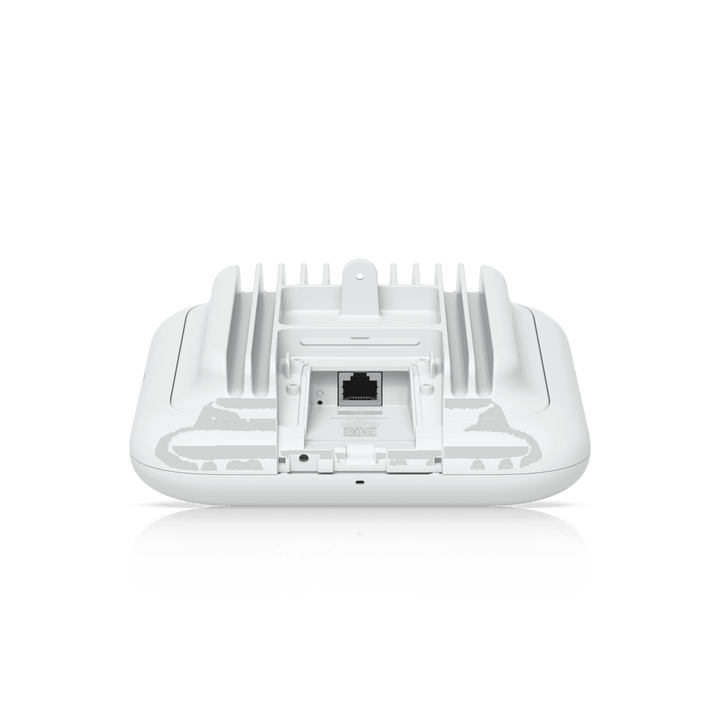

| Networking Interface | (1) 1/2.5 GbE RJ45 port |
| Weight | Device: 1.2 kg (2.6 lb) With mount: 1.33 kg (2.9 lb) |
| Wind Loading | 74.6 N at 200 km/h (16.8 lbf at 125 mph) |
| Pole Mount Diameter | 1–2.5" (25–63.5 mm) |

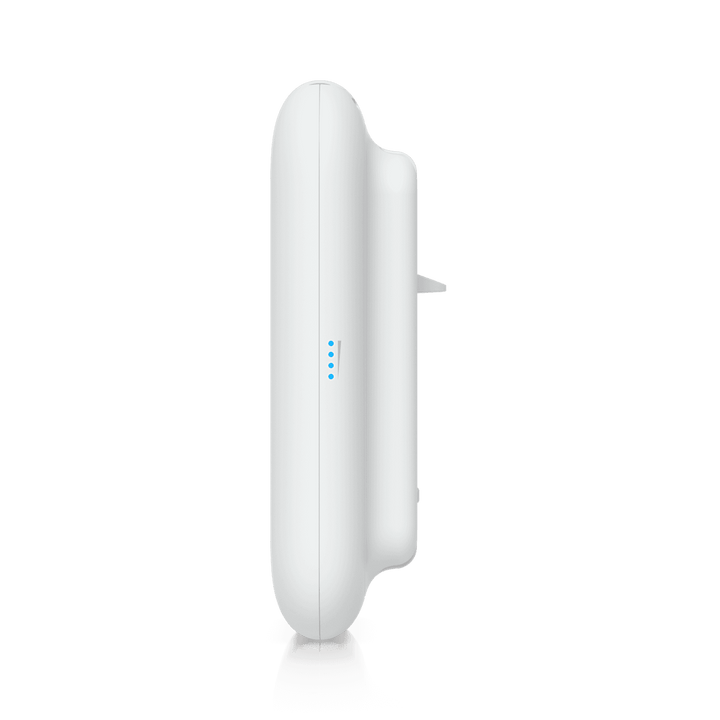

| LEDs | (1) Power: White/Blue (4) Mesh signal: Blue |
| Certifications | FCC, IC |
| Operating Conditions | -30 to 60°C (-22 to 140°F), 5–95% RH noncondensing |
| Software | |
| Application Requirements | UniFi Network v9.0.114 and later |
| Mobile App | iOS 10.20.2+, Android 10.21.7+ |
