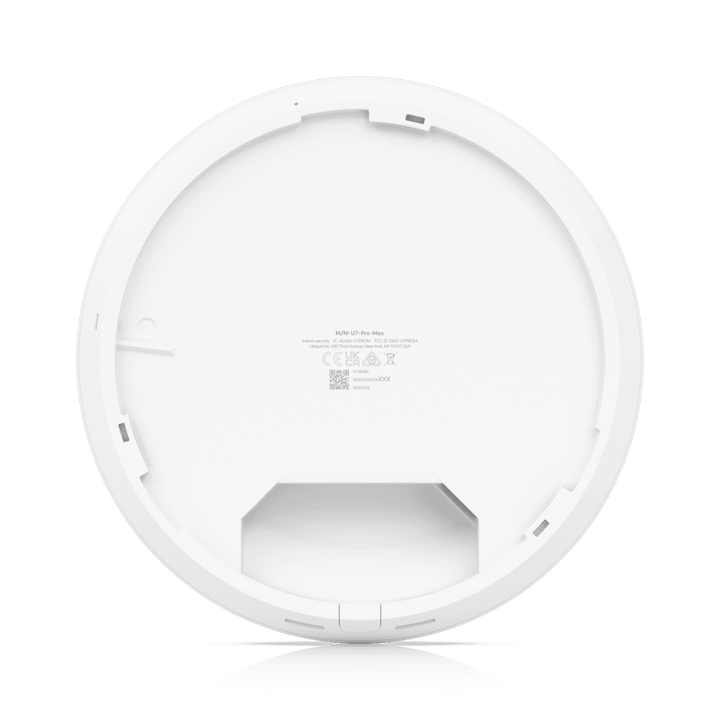

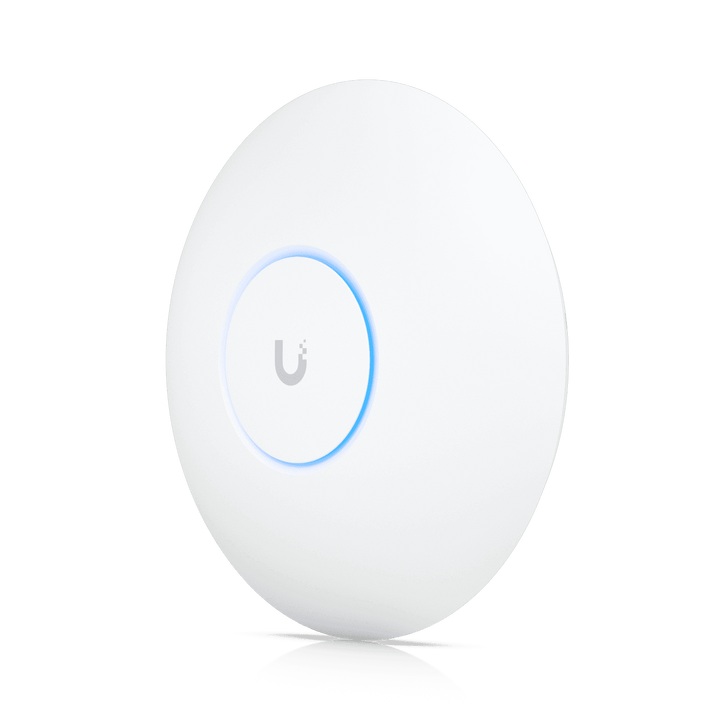

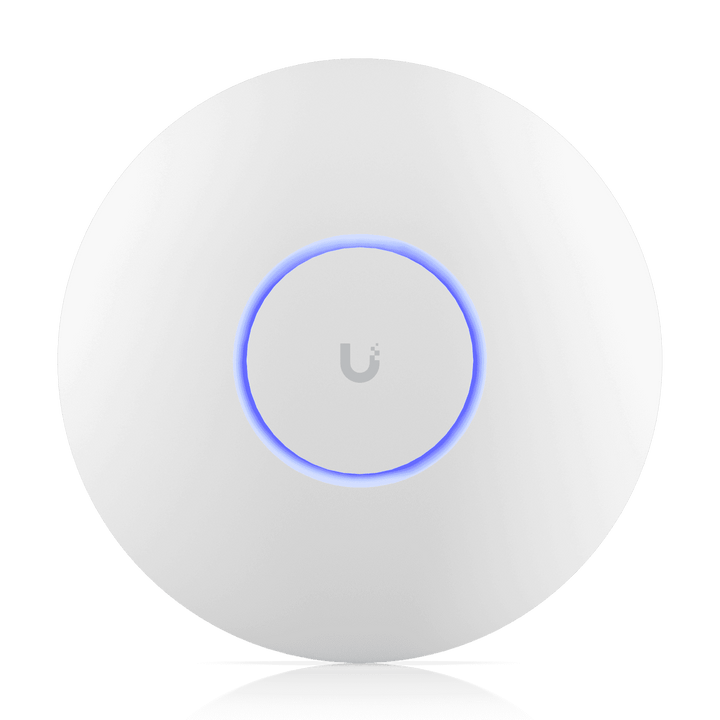

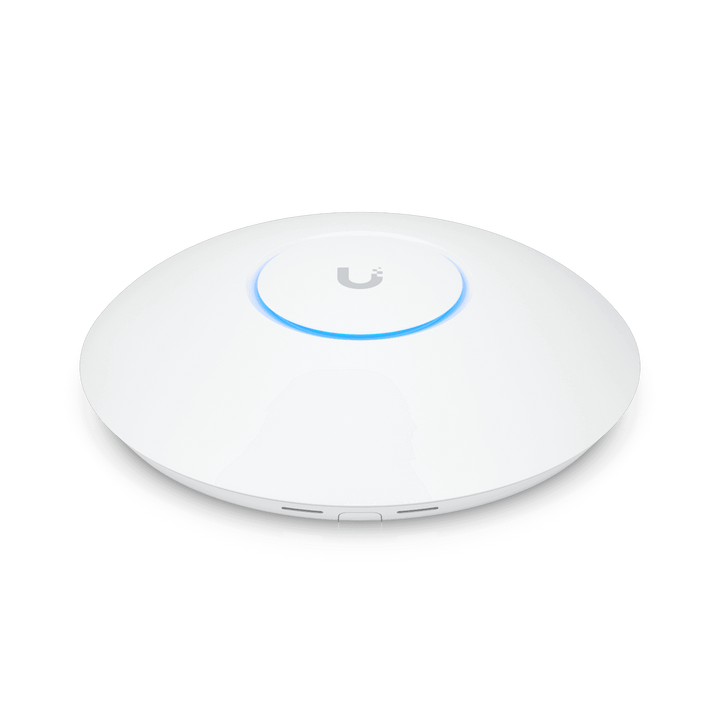

U7 Pro Max
Ceiling-mounted WiFi 7 AP with 8 spatial streams, 6 GHz support, and a dedicated spectral scanning engine for interference-free WiFi in demanding, large-scale environments.
Technical
| Dimensions | |
|---|---|
| Size | Ø206 x 46 mm (Ø8.1 x 1.8") |
| WiFi & Coverage | |
| WiFi Standard | WiFi 7 |
| Spatial Streams | 8 |
| Coverage Area | 160 m² (1,750 ft²) |
| Max. Client Count | 500+ |
| Uplink | 2.5 GbE |
| Mounting | Ceiling, Wall (Pro Mount Included) |
| Power Method | PoE+ |
| Performance | |
| MIMO (6 GHz) | 2 x 2 (DL/UL MU-MIMO) |
| MIMO (5 GHz) | 4 x 4 (DL/UL MU-MIMO) |
| MIMO (2.4 GHz) | 2 x 2 (DL/UL MU-MIMO) |
| Max. Data Rate (6 GHz) | 5.8 Gbps (BW320) |
| Max. Data Rate (5 GHz) | 8.6 Gbps (BW240) |
| Max. Data Rate (2.4 GHz) | 688 Mbps (BW40) |
| Antenna Gain (6 GHz) | 5.9 dBi |
| Antenna Gain (5 GHz) | 6 dBi |
| Antenna Gain (2.4 GHz) | 4 dBi |
| Max. TX Power (6 GHz) | 23 dBm |
| Max. TX Power (5 GHz) | 29 dBm |
| Max. TX Power (2.4 GHz) | 23 dBm |
| Max. BSSIDs | 8 per Radio |
| Supported Data Rates |
802.11be (WiFi 7): 6 GHz: 7.3 Mbps – 5.8 Gbps, 5 GHz: 7.3 Mbps – 8.6 Gbps 802.11ax (WiFi 6/6E): up to 4.8 Gbps 802.11ac (WiFi 5): up to 3.4 Gbps 802.11n: up to 600 Mbps |
| Features | |
| Wireless Meshing | ✓ |
| Band Steering | ✓ |
| 802.11v BSS Transition Management | ✓ |
| 802.11r Fast Roaming | ✓ |
| 802.11k Radio Resource Management | ✓ |
| Advanced Radio Management | ✓ |
| Real-Time Spectral Analysis | ✓ |
| Passpoint (Hotspot 2.0) | ✓ |
| Captive Hotspot Portal | ✓ |
| Voucher & Payment Authentication | ✓ |
| External Portal Server Support | ✓ |
| Password Authentication | ✓ |
| Guest Network Isolation | ✓ |
| Private Pre-Shared Key (PPSK) | ✓ |
| WiFi Speed Limiting | ✓ |
| Client Device Isolation | ✓ |
| WiFi Schedules | ✓ |
| RADIUS over TLS (RadSec) | ✓ |
| Dynamic RADIUS-assigned VLAN | ✓ |
| Hardware | |
| Max. Power Consumption | 25W |
| Supported Voltage Range | 44–57V DC |
| Networking Interface | (1) 1/2.5 GbE RJ45 port |
| Weight | 680 g (1.5 lb) |
| Management | Ethernet |
| Enclosure Material | Polycarbonate, Aluminum |
| Mount Material | Stainless steel (SUS304), Galvanized steel (SGCC) |
| LEDs | System: White/Blue |
| Channel Bandwidth | HT, VHT, HE, EHT (20–320 MHz) |
| Environmental | |
| Operating Frequency (US/CA) |
2400–2472 MHz U-NII-1/2A/2C/3: 5150–5850 MHz U-NII-5 to U-NII-8: 5925–7125 MHz |
| Operating Frequency (Worldwide) |
2400–2483.5 MHz 5150–5725 MHz 5925–7125 MHz |
| Operating Temperature | -30 to 50° C (-22 to 122° F) |
| Operating Humidity | 5 to 95% noncondensing |
| Compliance & Software | |
| NDAA Compliant | ✓ |
| Certifications | CE, FCC, IC, Anatel |
| Application Requirements | UniFi Network Version 8.2.93 and later |
