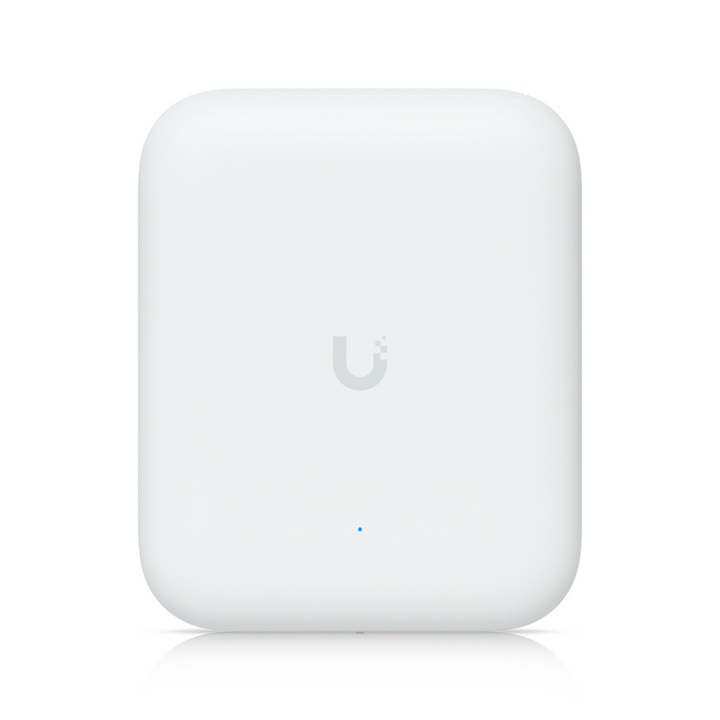

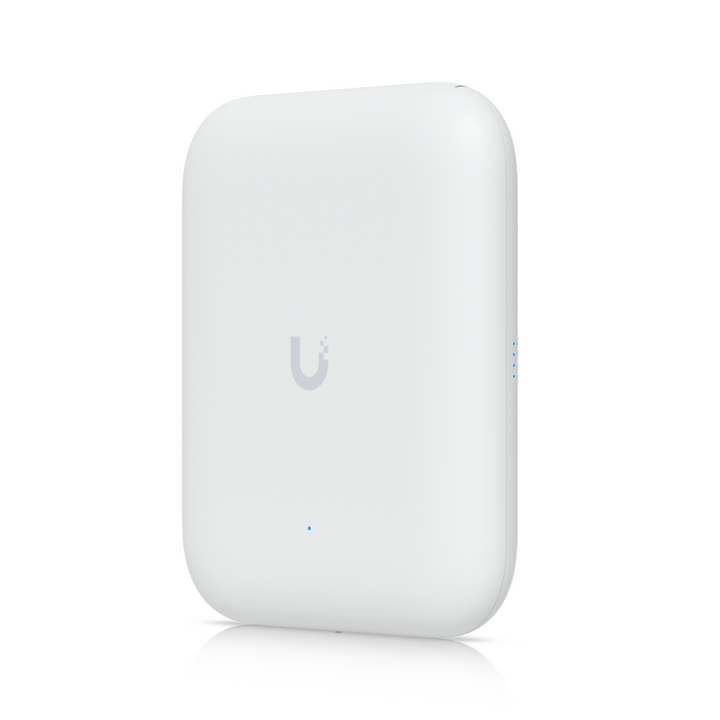

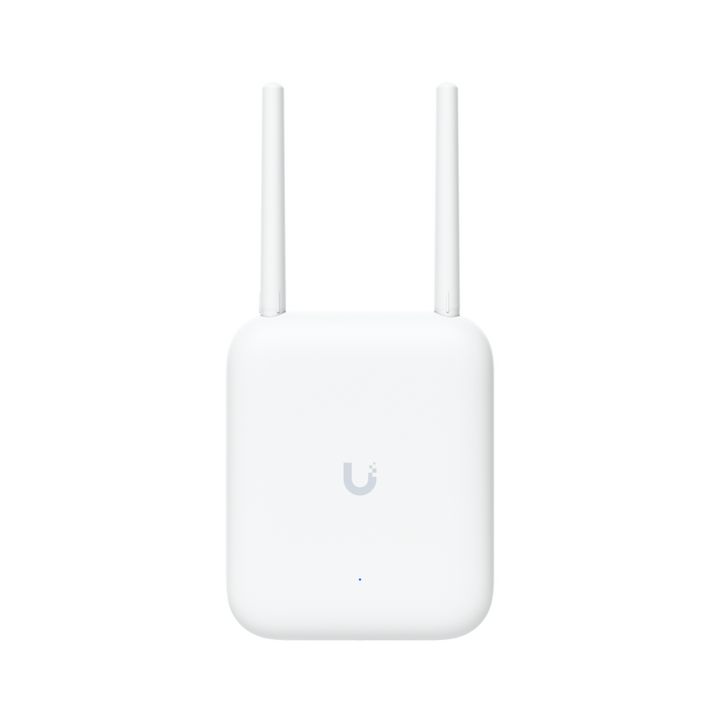

U7 Outdoor
All-weather WiFi 7 AP with 4 spatial streams, an integrated directional super antenna, and versatile mounting options.
Technical
| Hardware Specifications | |
|---|---|

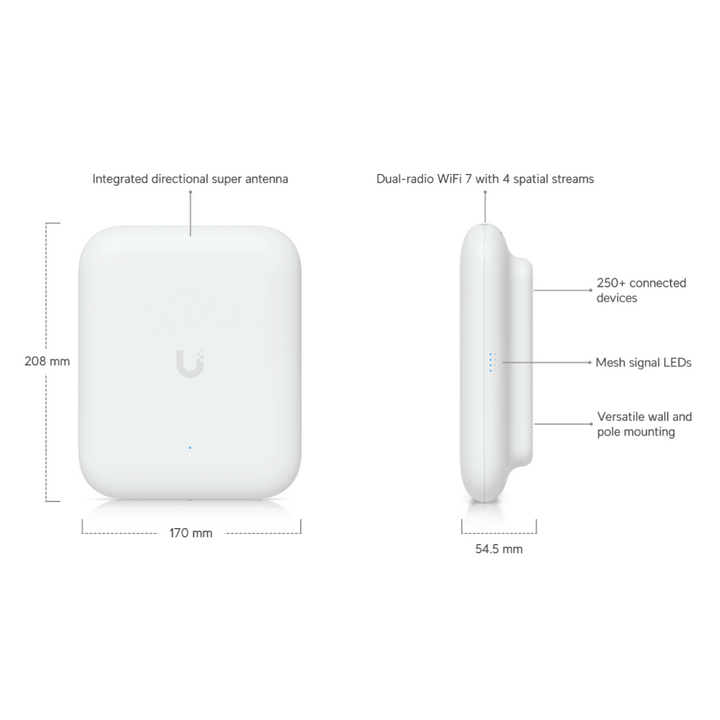

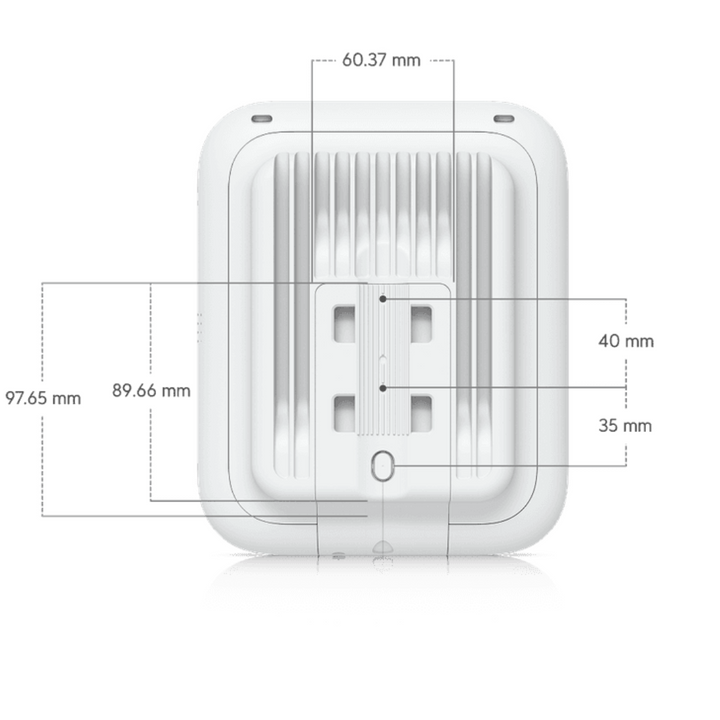

| Dimensions | 170 x 208 x 54.5 mm (6.7 x 8.2 x 2.1") |
| Weight | 1.2 kg (2.6 lb) |

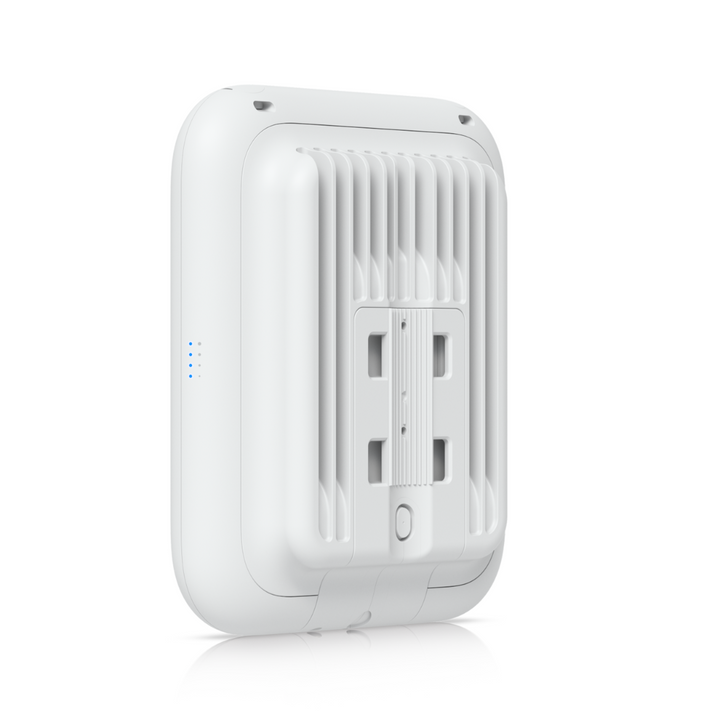

| Mounting | Wall, Pole (Mounts Included) |
| Enclosure Material | UV-stabilized polycarbonate, aluminum alloy |

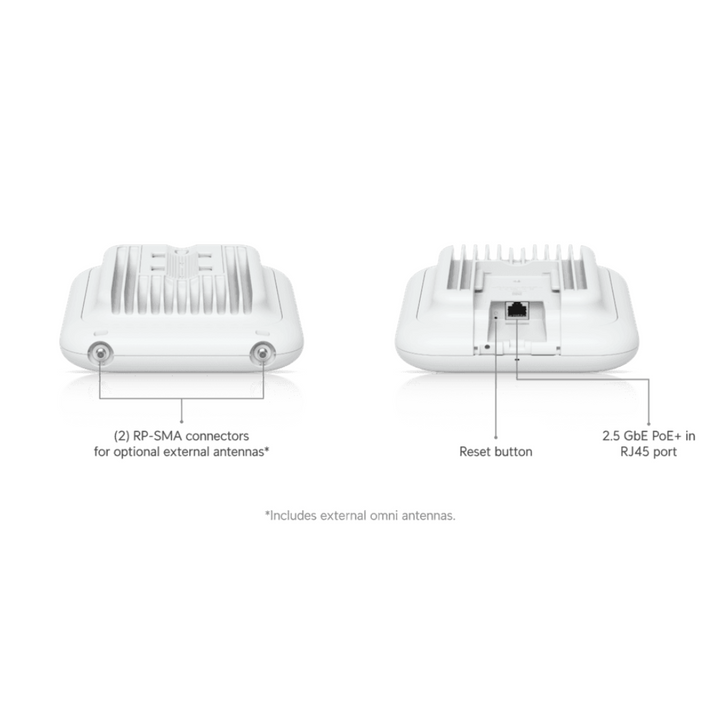

| Networking Interface | (1) 1/2.5 GbE RJ45 port |

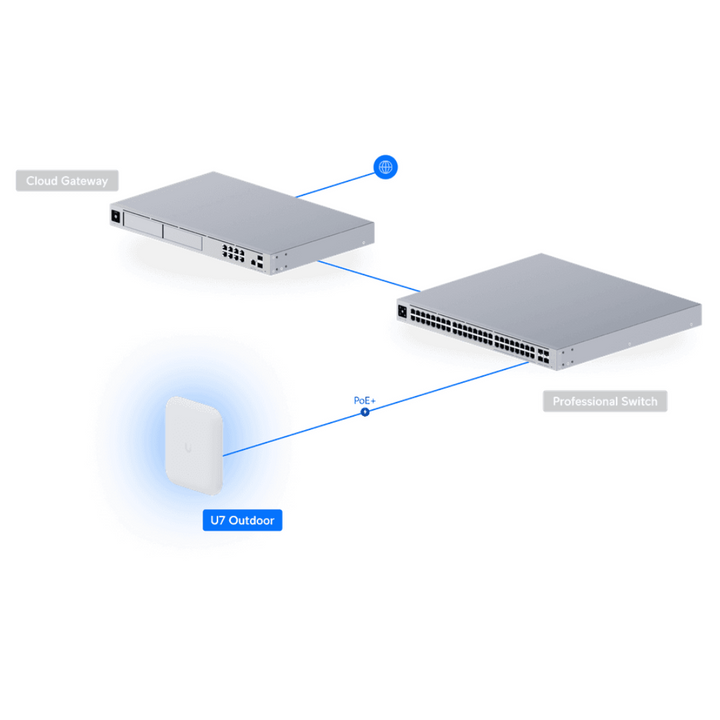

| Power Method | PoE+ |
| Supported Voltage Range | 42.5–57V DC |
| Max Power Consumption | 19W |
| Wind Loading | 74.6 N at 200 km/h (16.8 lbf at 125 mph) |
| Pole Mount Diameter | 1–2.36" (25–60 mm) |

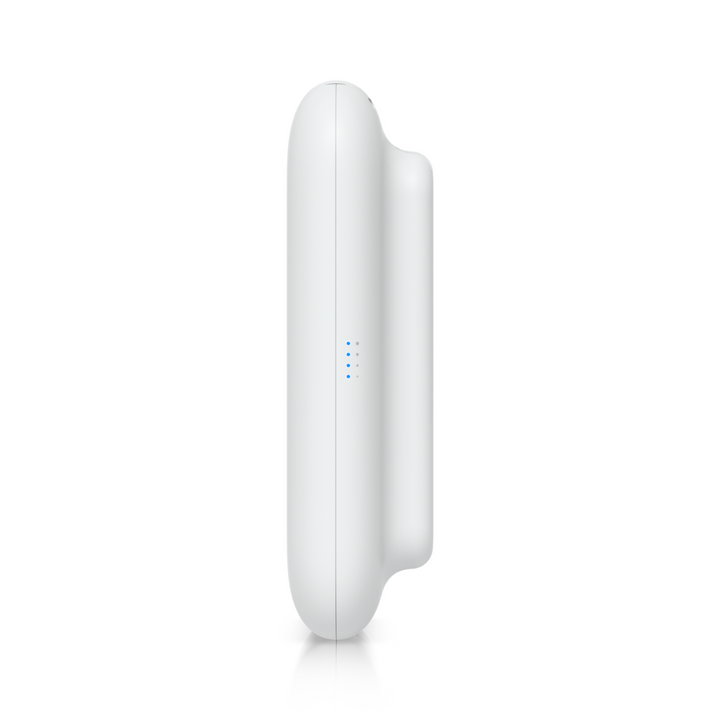

| LED Indicators | Power, System, Mesh Signal |
| Wireless Performance | |
| WiFi Standard | WiFi 7 (802.11be) |
| Spatial Streams | 4 |
| Coverage Area | 465 m² (5,000 ft²) |
| Max Client Count | 250+ |
| MIMO |
5 GHz: 2x2 DL/UL MU-MIMO 2.4 GHz: 2x2 DL/UL MU-MIMO |
| Max Data Rate |
5 GHz: 4.3 Gbps (BW240) 2.4 GHz: 688 Mbps (BW40) |
| Antenna Gain |
5 GHz: Directional 12.5 dBi (45° x 45°), Omni 4 dBi (360° x 30°) 2.4 GHz: Directional 8 dBi (90° x 90°), Omni 3 dBi (360° x 30°) |
| Max TX Power |
5 GHz: 26 dBm 2.4 GHz: 23 dBm |
| Channel Bandwidth | HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240 MHz |
| Max BSSIDs | 8 per Radio |
| Supported Data Rates |
802.11be (WiFi 7): 7.3 Mbps – 4.3 Gbps 802.11ax (WiFi 6): 7.3 Mbps – 2.4 Gbps 802.11ac (WiFi 5): 6.5 Mbps – 1.7 Gbps 802.11n: 6.5 Mbps – 300 Mbps |
| Wireless Features | |
| Wireless Meshing | ✓ |
| Band Steering | ✓ |
| Fast Roaming | 802.11r ✓ |
| BSS Transition Management | 802.11v ✓ |
| Radio Resource Management | 802.11k ✓ |
| Advanced Radio Management | ✓ |
| Passpoint (Hotspot 2.0) | ✓ |
| Captive Portal | ✓ (Custom Branding, Voucher, Payment, Password, PPSK) |
| Guest Network Isolation | ✓ |
| Client Device Isolation | ✓ |
| WiFi Speed Limiting | ✓ |
| WiFi Schedules | ✓ |
| RADIUS over TLS (RadSec) | ✓ |
| Dynamic VLAN Assignment | ✓ |
| Environmental & Compliance | |
| Weatherproofing | IPX6 |
| Operating Temperature | -30 to 60° C (-22 to 140° F) |
| Operating Humidity | 5 to 95% (noncondensing) |
| NDAA Compliant | ✓ |
| Certifications | CE, FCC, IC, Anatel |
| Operating Frequency (US/CA) |
2.4 GHz: 2400–2472 MHz 5 GHz: 5150–5850 MHz (U-NII 1/2A/2C/3) |
| Operating Frequency (Worldwide) |
2.4 GHz: 2400–2483.5 MHz 5 GHz: 5150–5725 MHz |
| Software & Management | |
| UniFi Application Required | UniFi Network (v8.2.93+) |
| Management Interface | Ethernet |
