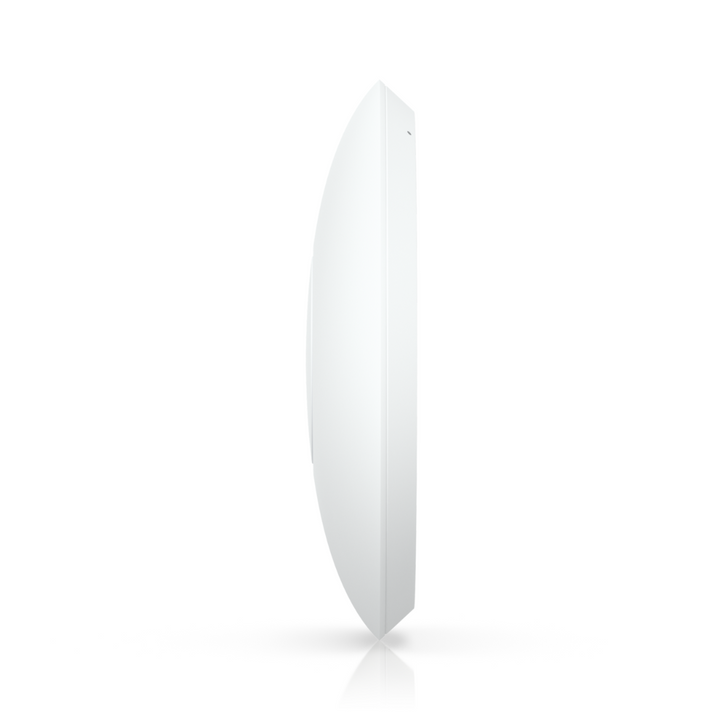

U7 Lite
Compact, ceiling-mounted WiFi 7 AP with 4 spatial streams and 2.5 GbE uplink.
Technical
| Specification | Details |
|---|---|
| Overview | |

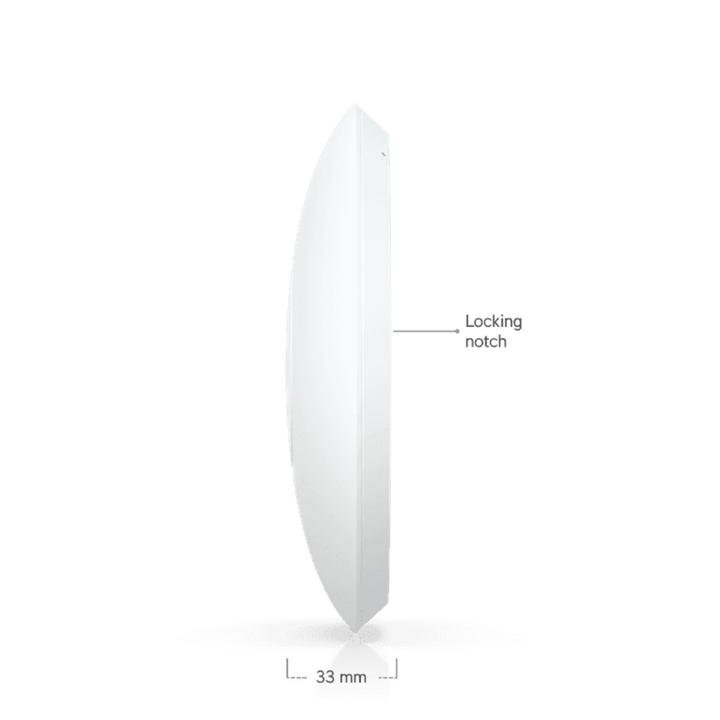

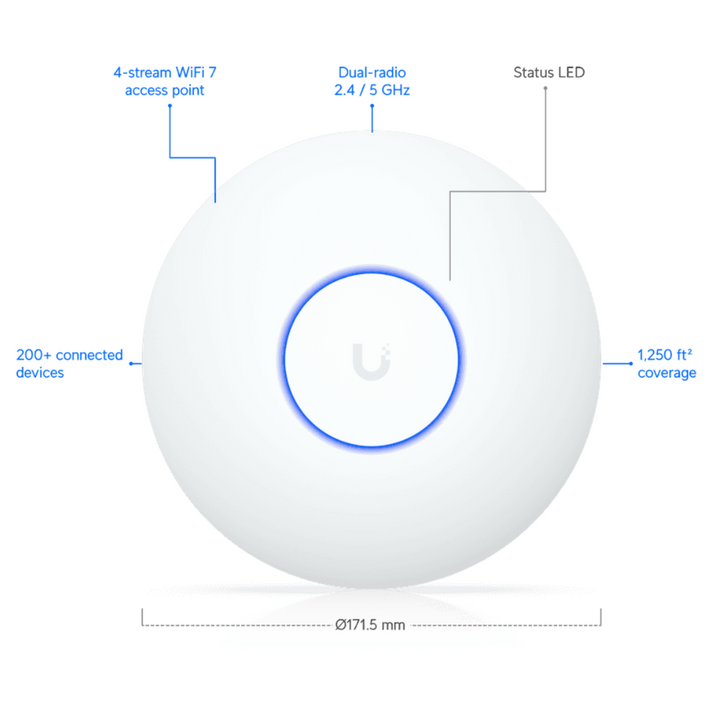

| Dimensions | Ø171.5 × 33 mm (Ø6.8 × 1.3") |
| Wi-Fi Standard | Wi-Fi 7 |
| Spatial Streams | 4 |
| Coverage Area | 115 m² (1,250 ft²) |
| Max. Client Count | 200+ |
| Uplink | 2.5 GbE |

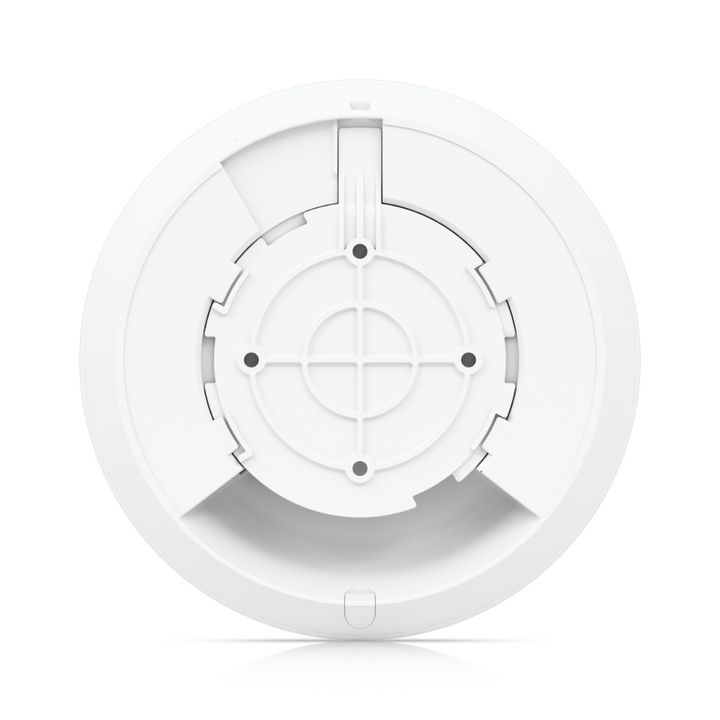

| Mounting | Ceiling, Wall (Lite Mount Included) |
| Power Method | PoE |
| Performance | |
| MIMO (5 GHz) | 2 × 2 (DL/UL MU-MIMO) |
| MIMO (2.4 GHz) | 2 × 2 (DL/UL MU-MIMO) |
| Max. Data Rate (5 GHz) | 4.3 Gbps (BW240) |
| Max. Data Rate (2.4 GHz) | 688 Mbps (BW40) |
| Antenna Gain (5 GHz) | 5 dBi |
| Antenna Gain (2.4 GHz) | 4 dBi |
| Max. TX Power (5 GHz) | 24 dBm |
| Max. TX Power (2.4 GHz) | 23 dBm |
| Max. BSSIDs | 8 per Radio |
| Supported Data Rates (802.11be / Wi-Fi 7) | 7.3 Mbps to 4.3 Gbps (MCS0–MCS13 NSS1/2, EHT 20/40/80/160/240) |
| Supported Data Rates (802.11ax / Wi-Fi 6) | 7.3 Mbps to 2.4 Gbps (MCS0–MCS11 NSS1/2, HE 20/40/80/160) |
| Supported Data Rates (802.11ac / Wi-Fi 5) | 6.5 Mbps to 1.7 Gbps (MCS0–MCS9 NSS1/2, VHT 20/40/80/160) |
| Supported Data Rates (802.11n) | 6.5 Mbps to 300 Mbps (MCS0–MCS15, HT 20/40) |
| Features | |
| Wireless Meshing | ✓ |
| Band Steering | ✓ |
| 802.11v BSS Transition Management | ✓ |
| 802.11r Fast Roaming | ✓ |
| 802.11k Radio Resource Management (RRM) | ✓ |
| Advanced Radio Management | ✓ |
| Passpoint (Hotspot 2.0) | ✓ |
| Captive Hotspot Portal | ✓ |
| • Custom Branding Landing Page | ✓ |
| • Voucher Authentication | ✓ |
| • Payment-Based Authentication | ✓ |
| • External Portal Server Support | ✓ |
| • Password Authentication | ✓ |
| Guest Network Isolation | ✓ |
| Private Pre-Shared Key (PPSK) | ✓ |
| Wi-Fi Speed Limiting | ✓ |
| Client Device Isolation | ✓ |
| Wi-Fi Schedules | ✓ |
| RADIUS over TLS (RadSec) | ✓ |
| Dynamic RADIUS-assigned VLAN | ✓ |
| Hardware | |
| Max. Power Consumption | 13 W |
| Supported Voltage Range | 42.5—57 V DC |

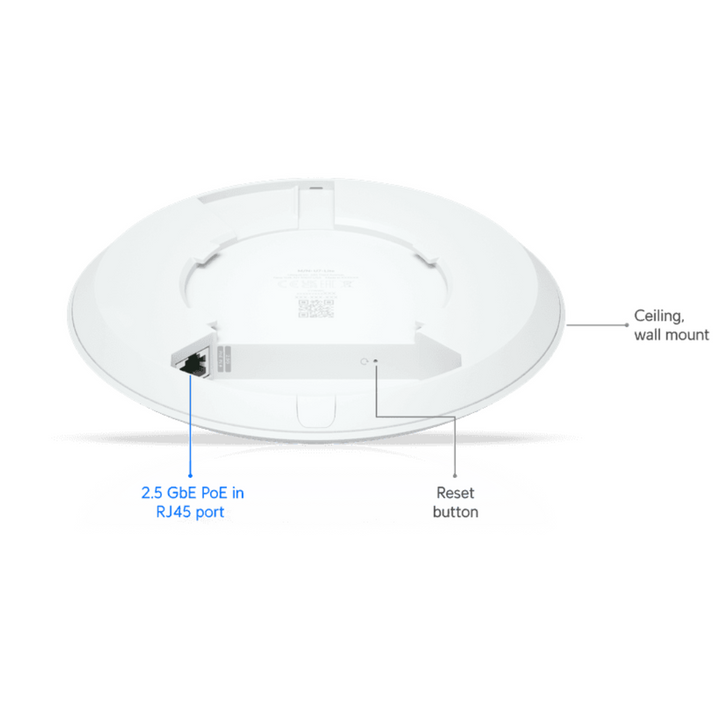

| Networking Interface | (1) 2.5 GbE RJ45 port |
| Weight | 313 g (11 oz) |
| Management | Ethernet |
| Enclosure Material | UV-stabilized polycarbonate |
| Mount Material | UV-stabilized polycarbonate, galvanized steel (SGCC) |
| LEDs | System: White / Blue |
| Channel Bandwidth | HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240 (MHz) |
| NDAA Compliant | ✓ |
| Certifications | CE, FCC, IC, Anatel, SRRC |
| Ambient Operating Temperature | -30 to 40° C (-22 to 104° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Software | |
| Application Requirements | UniFi Network version 9.0.114 and later |
| Mobile App (iOS) | iOS™ version 10.20.2 and later |
| Mobile App (Android) | Android™ version 10.21.7 and later |
