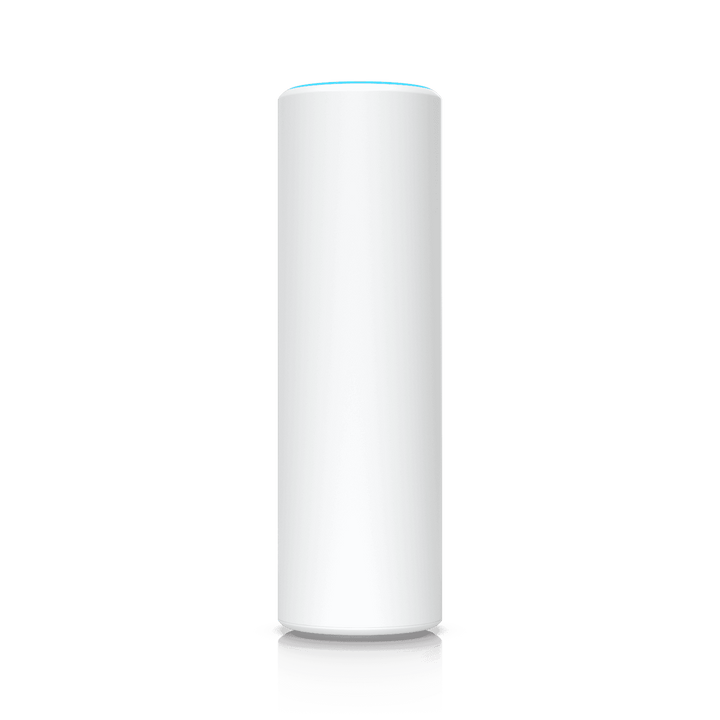

U6 Mesh

80.000 KD 75.000 KD
Sleek, indoor/outdoor WiFi 6 AP with 6 spatial streams designed for mesh applications.
Add to WishlistCompare
Ask a Question
SKU:
Availability: In Stock Pre order Out of stock
Categories: Access Points
Overview
Technical
Specification Details
DimensionsØ48.5 x 159.5 mm (Ø1.9 x 6.3")
WiFi StandardWiFi 6
Spatial Streams6
Coverage Area140 m² (1,500 ft²)
Max. Client Count300+
UplinkGbE
MountingWall, Pole (Mounts Included)
WeatherproofingIPX5
Power MethodPoE

Performance

MIMO5 GHz: 4x4 (DL/UL MU-MIMO)
2.4 GHz: 2x2 (DL/UL MU-MIMO)
Max. Data Rate5 GHz: 4.8 Gbps (BW160)
2.4 GHz: 573.5 Mbps (BW40)
Antenna Gain5 GHz: 5 dBi
2.4 GHz: 3 dBi
Max. TX Power5 GHz: 26 dBm
2.4 GHz: 22 dBm
Max. BSSIDs8 per Radio
Supported Data Rates 802.11ax (WiFi 6): 7.3 Mbps – 4.8 Gbps (MCS0–11 NSS1/2/3/4, HE 20/40/80/160)
802.11ac (WiFi 5): 6.5 Mbps – 3.4 Gbps (MCS0–9 NSS1/2/3/4, VHT 20/40/80/160)
802.11n: 6.5 Mbps – 600 Mbps (MCS0–31, HT 20/40)

Features

  • Wireless Meshing ✓
  • Band Steering ✓
  • 802.11v BSS Transition Management ✓
  • 802.11r Fast Roaming ✓
  • 802.11k Radio Resource Management ✓
  • Advanced Radio Management ✓
  • Passpoint (Hotspot 2.0) ✓
  • Captive Hotspot Portal (Custom Branding, Vouchers, Payment, External Portal, Password)
  • Guest Network Isolation ✓
  • Private Pre-Shared Key (PPSK) ✓
  • WiFi Speed Limiting ✓
  • Client Device Isolation ✓
  • WiFi Schedules ✓
  • RADIUS over TLS (RadSec) ✓
  • Dynamic RADIUS-assigned VLAN ✓

Hardware

Max. Power Consumption13W
Includes PoE Adapter✓
Supported Voltage Range44–57V DC
Networking Interface(1) GbE RJ45 port
Weight400 g (14.1 oz)
ManagementEthernet
Enclosure MaterialPolycarbonate, Aluminum
Mount MaterialPolycarbonate
LEDsSystem: White/Blue
Channel BandwidthHT 20/40, VHT 20/40/80/160, HE 20/40/80/160
NDAA Compliant✓
CertificationsCE, FCC, IC, Anatel, SRRC
Operating Frequency US/CA: 2400–2472 MHz; U-NII-1: 5150–5250 MHz; U-NII-2A: 5250–5350 MHz;
U-NII-2C: 5470–5725 MHz; U-NII-3: 5725–5850 MHz
Worldwide: 2400–2483.5 MHz; 5150–5725 MHz
Ambient Operating Temp-30 to 60 °C (-22 to 140 °F)
Ambient Operating Humidity5 to 95% non-condensing

Software

Application Requirements: UniFi Network (Version 6.0.45 and later)
