U6-IW

72.000 KD 65.000 KD
Wall-mounted WiFi 6 AP with 6 spatial streams and a built-in 4?port switch ideal for single-room coverage in hospitality environments.
Add to WishlistCompare
Ask a Question
SKU:
Availability: In Stock Pre order Out of stock
Categories: Access Points
Overview
Technical
Hardware Specifications

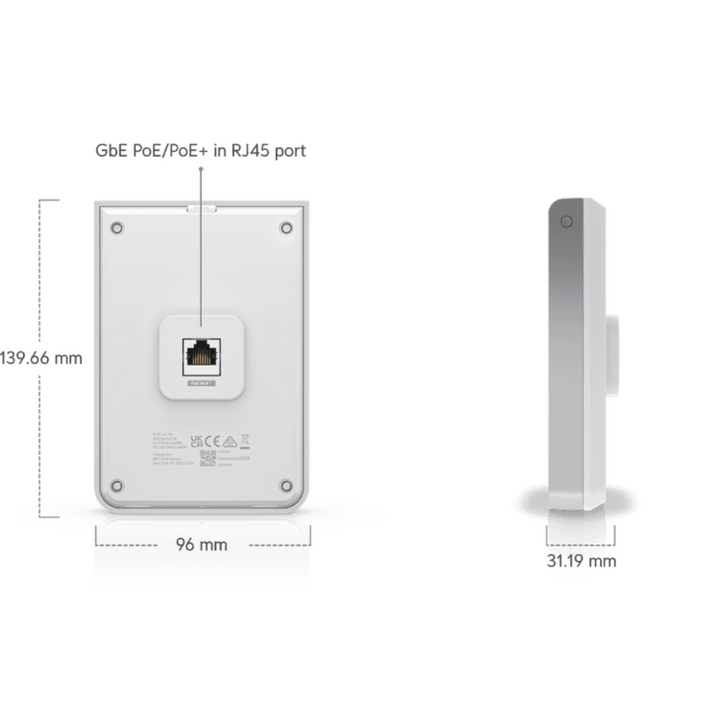

Dimensions139.7 x 96 x 31.2 mm (5.5 x 3.8 x 1.3")
Weight460 g (1 lb)

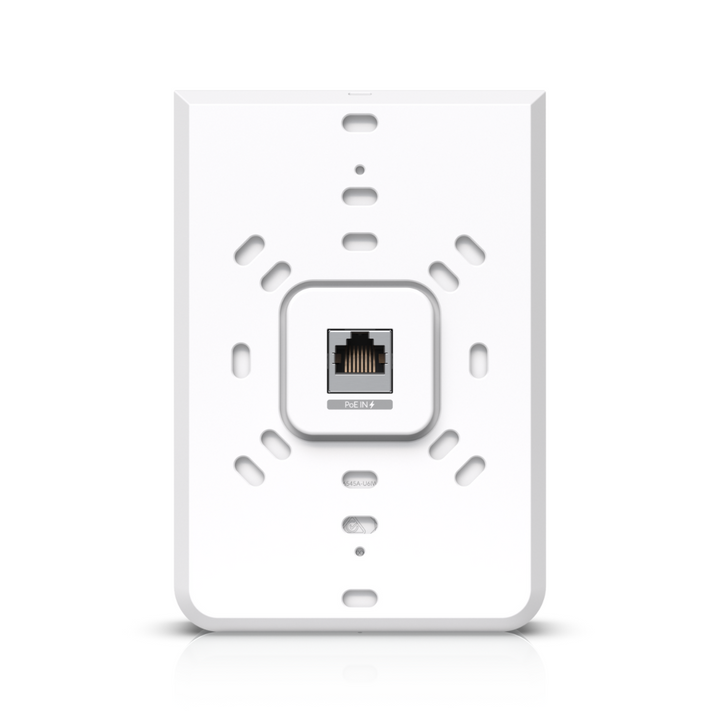

MountingWall (Mount Included)
Enclosure MaterialPlastic, Aluminum
Mount MaterialAluminum

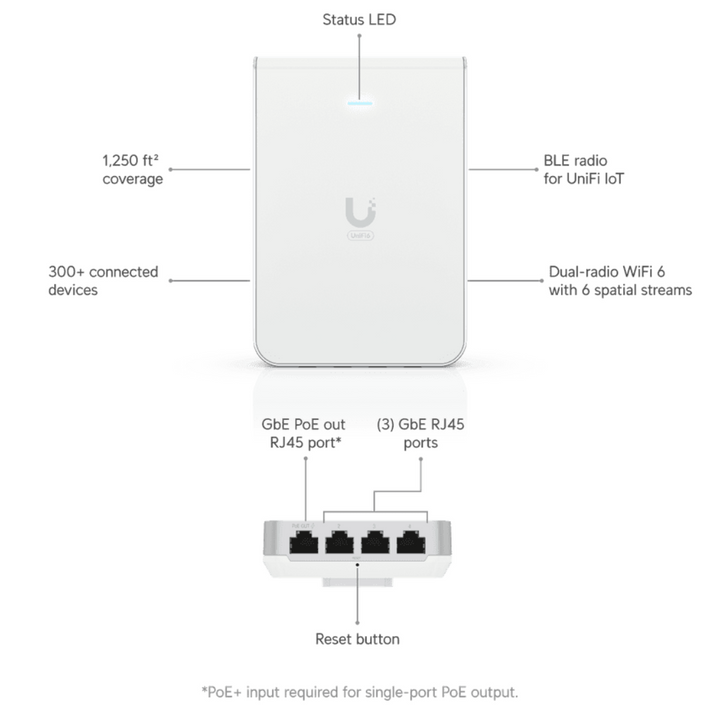

Networking Interface (1) GbE RJ45 (Data-In)
(4) GbE RJ45 (Data-Out, 1x PoE Out)
Built-In Switch✓ (4x GbE ports, 1x PoE Out)
Power MethodPoE (PoE+ required for PoE output)
Max Power Consumption13W (Excluding PoE output)
ManagementEthernet, Bluetooth
LED IndicatorsSystem (White/Blue)
Wireless Performance
WiFi StandardWiFi 6 (802.11ax)
Spatial Streams6
Coverage Area115 m² (1,250 ft²)
Max Client Count300+
MIMO 5 GHz: 4x4 DL/UL MU-MIMO
2.4 GHz: 2x2 DL/UL MU-MIMO
Max Data Rate 5 GHz: 4.8 Gbps (BW160)
2.4 GHz: 573.5 Mbps (BW40)
Antenna Gain 5 GHz: 5.9 dBi
2.4 GHz: 5 dBi
Max TX Power 5 GHz: 26 dBm
2.4 GHz: 22 dBm
Channel Bandwidth HT/VHT/HE 20/40/80/160 MHz
Max BSSIDs8 per Radio
Supported Data Rates WiFi 6: 7.3 Mbps – 4.8 Gbps
WiFi 5: 6.5 Mbps – 3.4 Gbps
WiFi 4: 6.5 Mbps – 600 Mbps
Wireless Features
Wireless Meshing✓
Band Steering✓
Fast Roaming802.11r ✓
BSS Transition Management802.11v ✓
Radio Resource Management802.11k ✓
Advanced Radio Management✓
Passpoint (Hotspot 2.0)✓
Captive Portal ✓ (Custom Branding, Voucher, Payment, Password)
Guest Network Isolation✓
Client Device Isolation✓
WiFi Speed Limiting✓
WiFi Schedules✓
RADIUS over TLS (RadSec)✓
Dynamic VLAN Assignment✓
Environmental & Compliance
Operating Temperature-30 to 60° C (-22 to 140° F)
Operating Humidity5 to 95% (noncondensing)
NDAA Compliant✓
CertificationsCE, FCC, IC, Anatel, SRRC
Software & Management
UniFi ApplicationUniFi Network (v6.0.45 and later)
Management InterfaceEthernet, Bluetooth
