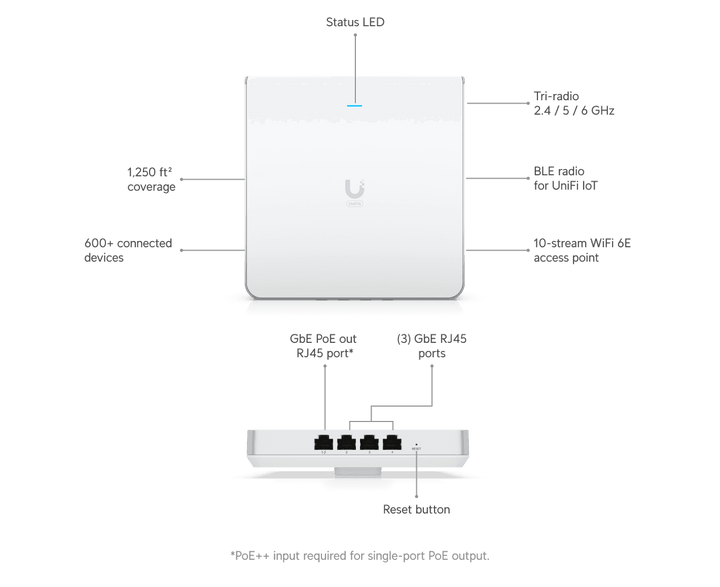

U6 Enterprise In-Wall
Wall-mounted WiFi 6E AP with 10 spatial streams, 6 GHz support, and a built-in 4-port switch. Designed for high-density office networks.
Technical
| General | |
|---|---|
| Dimensions | 159.7 x 156.7 x 33.8 mm (6.3 x 6.2 x 1.3") |
| WiFi Standard | WiFi 6E |
| Spatial Streams | 10 |
| Coverage Area | 115 m² (1,250 ft²) |
| Max. Client Count | 600+ |
| Uplink | 2.5 GbE |

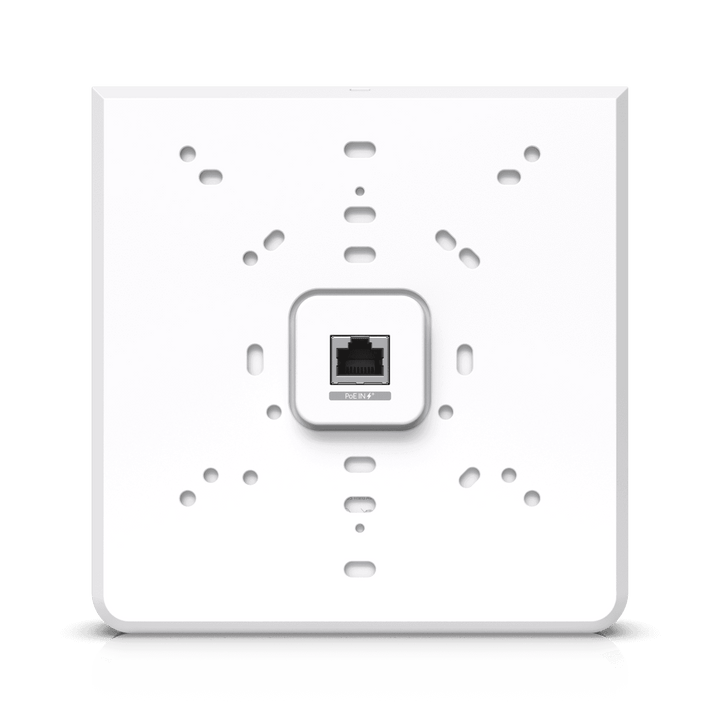

| Mounting | Wall (Mount Included) |
| Power Method | PoE+, PoE++ (Required for PoE output) |
| Performance | |
| MIMO | 6 GHz: 4x4 5 GHz: 4x4 2.4 GHz: 2x2 |
| Max. Data Rate | 6 GHz: 4.8 Gbps (BW160) 5 GHz: 4.8 Gbps (BW160) 2.4 GHz: 573.5 Mbps (BW40) |
| Antenna Gain | 6 GHz: 5.8 dBi 5 GHz: 5.8 dBi 2.4 GHz: 4 dBi |
| Max. TX Power | 6 GHz: 26 dBm 5 GHz: 26 dBm 2.4 GHz: 22 dBm |
| Max. BSSIDs | 8 per Radio |
| Supported Data Rates | WiFi 6/6E: up to 4.8 Gbps WiFi 5: up to 3.4 Gbps WiFi 4: up to 600 Mbps |
| Features | |
| Wireless Meshing, Band Steering, 802.11v/k/r, Advanced Radio Management, Passpoint (Hotspot 2.0), Captive Portal with Branding, Voucher & Payment Authentication, Guest Isolation, PPSK, WiFi Speed Limiting, Client Isolation, Scheduling, RADIUS over TLS, Dynamic VLAN | |
| Hardware | |
| Max. Power Consumption | 21W (Excl. PoE output) |
| Voltage Range | 44—57V DC |

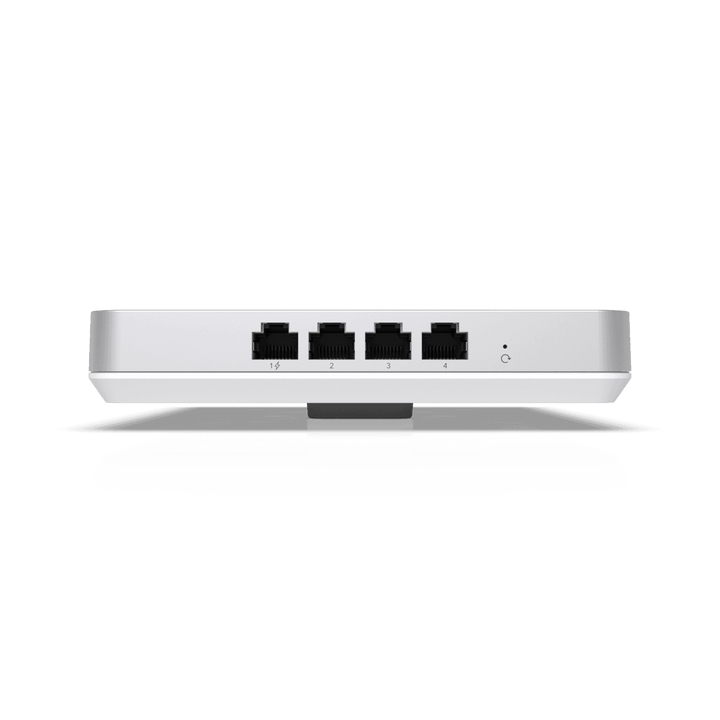

| Networking | (1) 1/2.5 GbE RJ45 input (4) GbE RJ45 outputs with PoE |
| Weight | 884 g (1.9 lb) |
| Management | Ethernet, Bluetooth |
| Materials | Polycarbonate, Aluminum (enclosure & mount) |

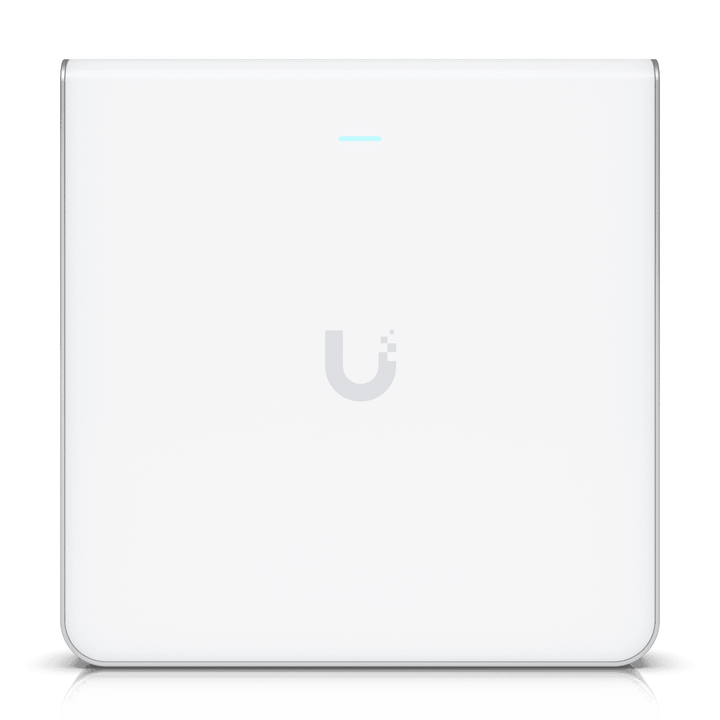

| LEDs | System: White/Blue |
| Certifications | CE, FCC, IC, Anatel |
| Operating Frequency | 2.4 GHz: 2400–2472 MHz 5 GHz: 5150–5850 MHz 6 GHz: 5925–7125 MHz |
| Temperature | -30 to 60° C (-22 to 140° F) |
| Humidity | 5 to 95% (noncondensing) |
| Software | |
| Application | UniFi Network (v6.0.45+) |
