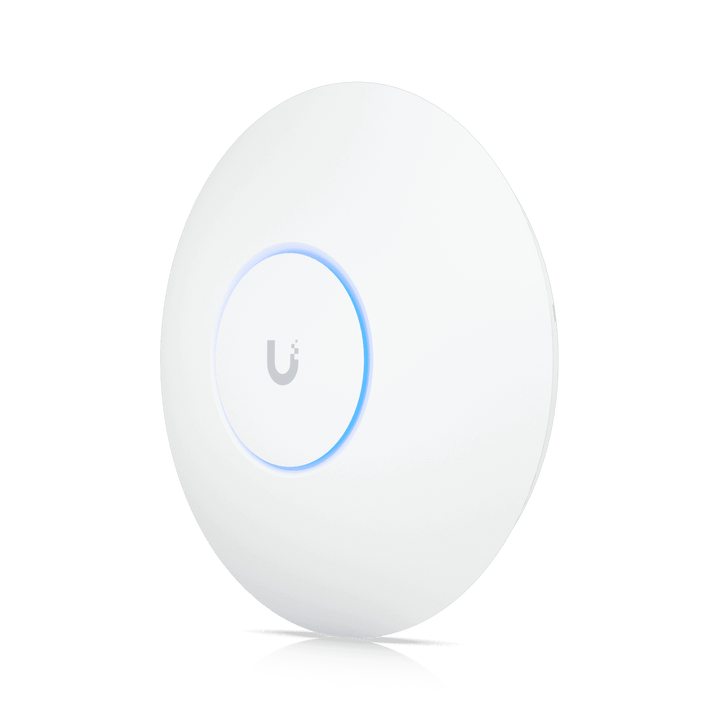

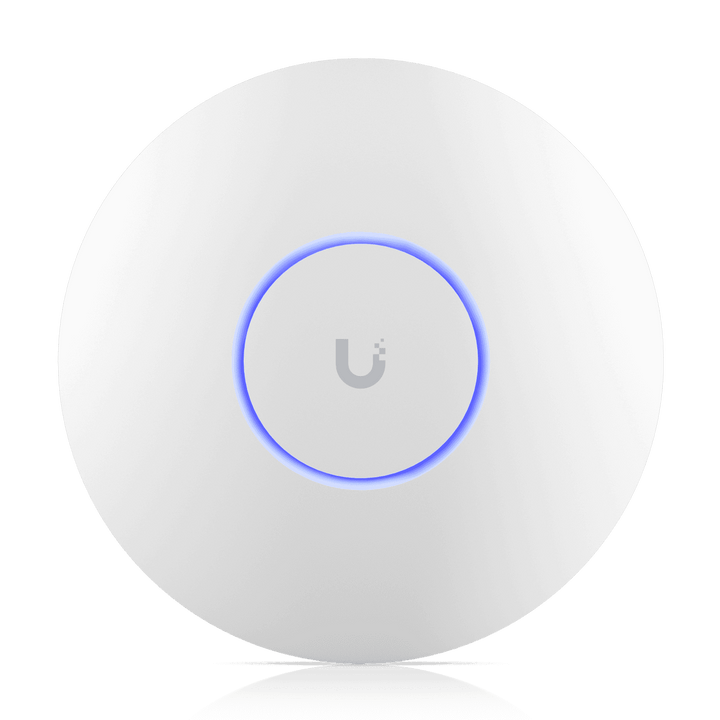

U6 Enterprise
Ceiling-mounted WiFi 6E AP with 10 spatial streams and 6 GHz support to provide seamless, multi-band coverage within high client density environments.
Technical
| Specification | Details |
|---|---|
| Dimensions | |

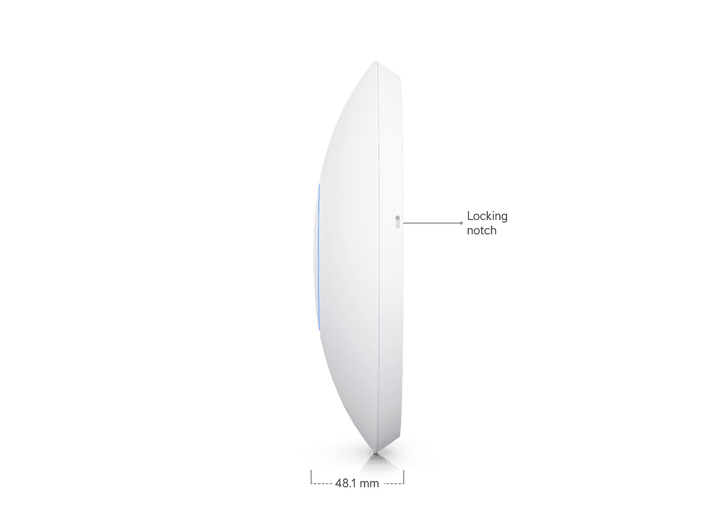

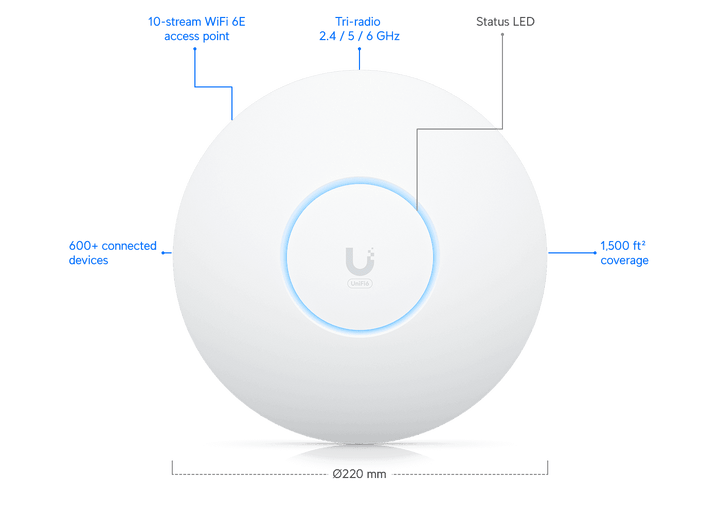

| Size | Ø220 x 48 mm (Ø8.7 x 1.9") |
| WiFi Standard | WiFi 6E |
| Spatial Streams | 10 |
| Coverage Area | 140 m² (1,500 ft²) |
| Max. Client Count | 600+ |
| Uplink | 2.5 GbE |
| Mounting | Ceiling, Wall (Pro Mount Included) |
| Power Method | PoE+ |
| Performance | |
| MIMO | 6 GHz: 4x4 (DL/UL MU-MIMO) 5 GHz: 4x4 (DL/UL MU-MIMO) 2.4 GHz: 2x2 (DL/UL MU-MIMO) |
| Max. Data Rate | 6 GHz: 4.8 Gbps (BW160) 5 GHz: 4.8 Gbps (BW160) 2.4 GHz: 573.5 Mbps (BW40) |
| Antenna Gain | 6 GHz: 6 dBi 5 GHz: 5.3 dBi 2.4 GHz: 3.2 dBi |
| Max. TX Power | 6 GHz: 26 dBm 5 GHz: 26 dBm 2.4 GHz: 22 dBm |
| Max. BSSIDs | 8 per Radio |
| Supported Data Rates |
802.11ax (WiFi 6/6E): 7.3 Mbps – 4.8 Gbps (NSS1–4) 802.11ac (WiFi 5): 6.5 Mbps – 3.4 Gbps (NSS1–4) 802.11n: 6.5 Mbps – 600 Mbps (MCS0–31) |
| Features | |
| Wireless Meshing / Band Steering / Advanced Radio Mgmt | ✓ |
| 802.11v / 802.11r / 802.11k | ✓ |
| Passpoint (Hotspot 2.0) | ✓ |
| Captive Portal (Branding, Vouchers, Payment) | ✓ |
| Authentication (Password, PPSK, RADIUS) | ✓ |
| Guest Network Isolation / Device Isolation | ✓ |
| WiFi Speed Limiting / Scheduling | ✓ |
| Dynamic VLAN / RADIUS over TLS (RadSec) | ✓ |
| Hardware | |
| Max. Power Consumption | 22W |
| Supported Voltage Range | 44–57V DC |

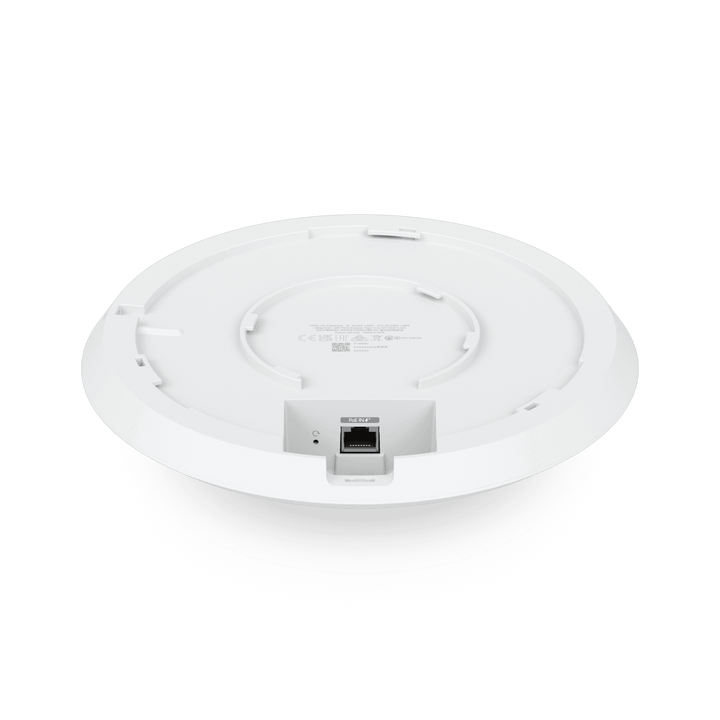

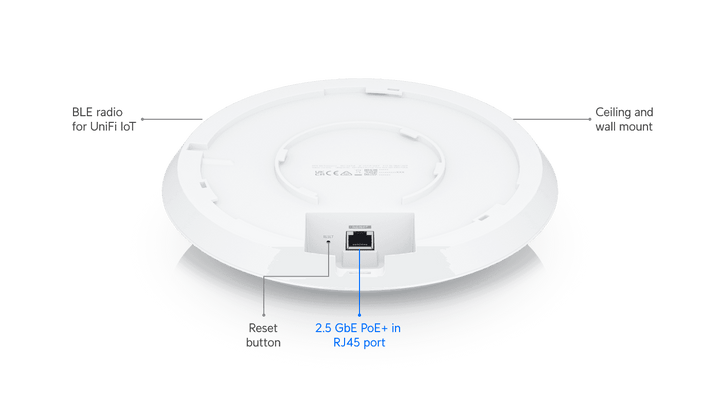

| Networking Interface | 1× 1/2.5 GbE RJ45 |
| Weight | Device: 960 g (2.1 lb) With mount: 1.1 kg (2.4 lb) |
| Management | Ethernet, Bluetooth |
| Enclosure | Polycarbonate, aluminum |
| Mount Material | Stainless steel (SUS304) |
| LEDs | System (White/Blue) |
| Channel Bandwidth | HT 20/40, VHT 20/40/80/160, HE 20/40/80/160 MHz |
| NDAA Compliant | ✓ |
| Certifications | CE, FCC, IC, Anatel |
| Operating Frequency |
US/CA: 2400–2472 MHz, 5150–5850 MHz, 5925–7125 MHz Worldwide: 2400–2483.5 MHz, 5150–5725 MHz, 5925–7125 MHz (Depends on region) |
| Operating Temp | -30 to 60 °C (-22 to 140 °F) |
| Humidity | 5–95% noncondensing |
| Software | |
| App Requirements | UniFi Network v6.0.45+ |
