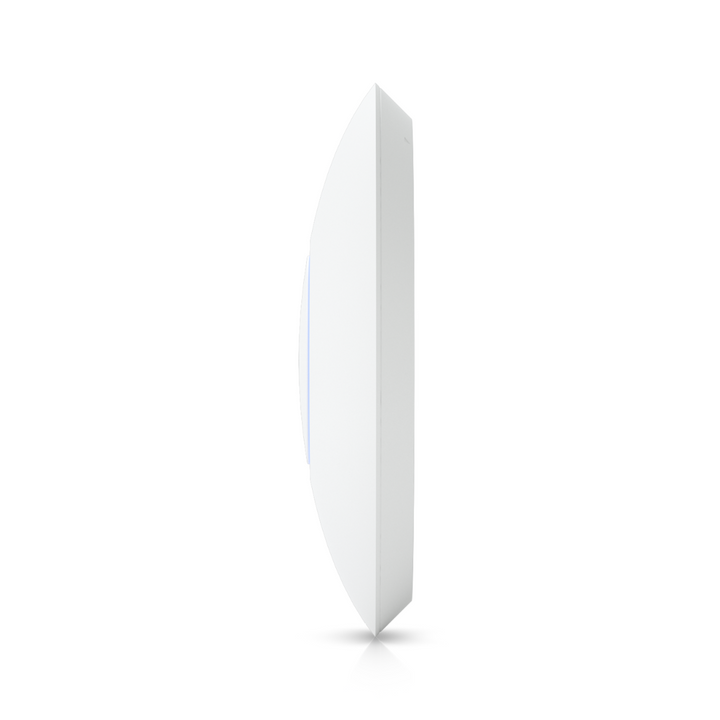

U6+

45.000 KD
Compact, ceiling-mounted WiFi 6 AP with 4 spatial streams that improves upon the U6 Lite with higher performance and dual-band WiFi 6 support. Ideal for small and medium-sized businesses.
Add to WishlistCompare
Ask a Question
SKU:
Availability: In Stock Pre order Out of stock
Categories: Access Points
Overview
Technical
Hardware Specifications

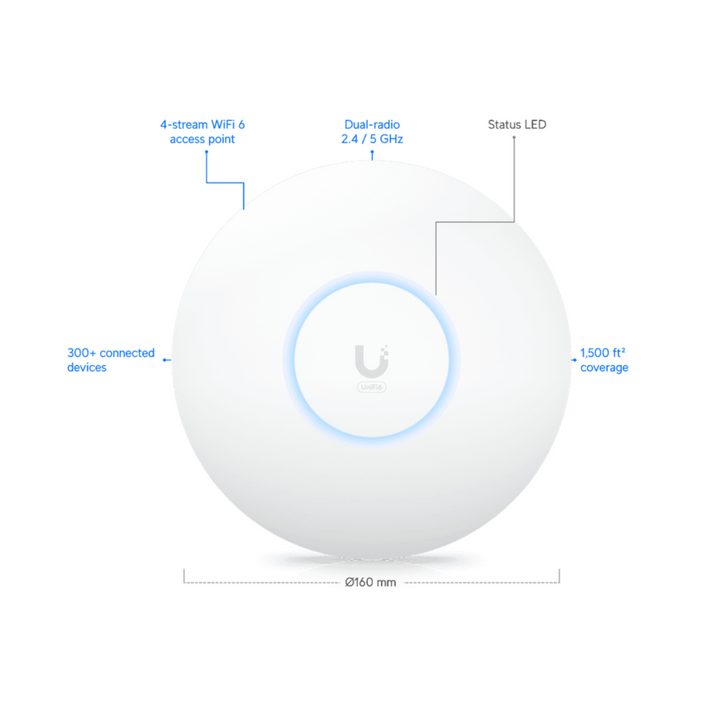

DimensionsØ160 x 33 mm (Ø6.3 x 1.3")
WeightDevice: 338 g (11.9 oz)
With Mount: 413 g (14.6 oz)
MountingCeiling, Wall (Mounts Included)
Enclosure MaterialPolycarbonate, Aluminum
Mount MaterialABS, SGCC Steel

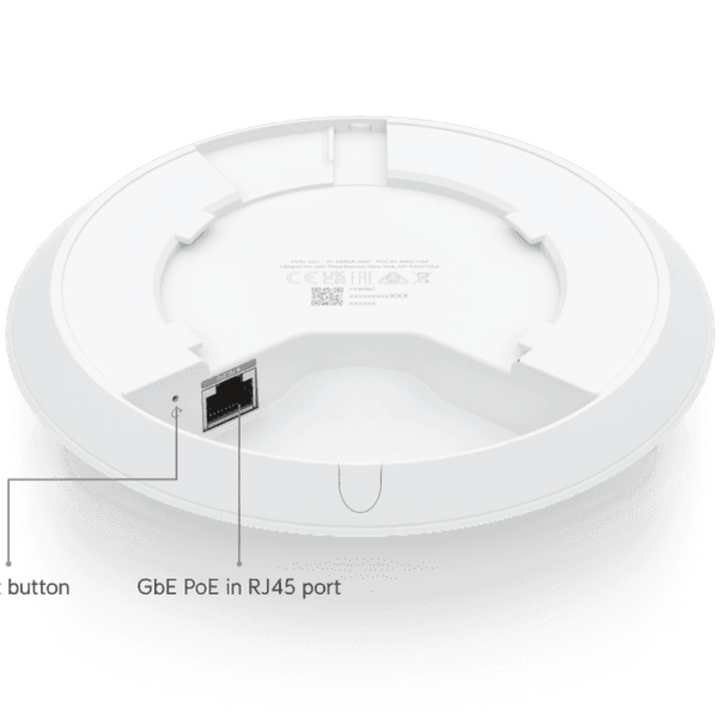

Networking Interface(1) GbE RJ45 Port

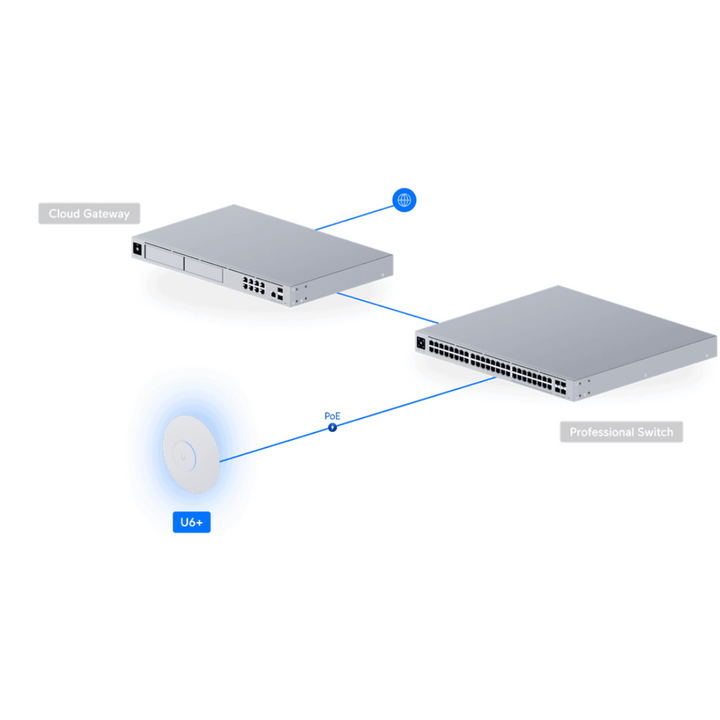

Power MethodPoE
Supported Voltage Range44–57V DC
Max Power Consumption9W
LED IndicatorsSystem (White/Blue)
Wireless Performance
WiFi StandardWiFi 6 (802.11ax)
Spatial Streams4
Coverage Area140 m² (1,500 ft²)
Max Client Count300+
MIMO 5 GHz: 2x2 DL/UL MU-MIMO
2.4 GHz: 2x2 DL/UL MU-MIMO
Max Data Rate 5 GHz: 2.4 Gbps (BW160)
2.4 GHz: 573.5 Mbps (BW40)
Antenna Gain 5 GHz: 5.4 dBi
2.4 GHz: 3 dBi
Max TX Power 5 GHz: 23 dBm
2.4 GHz: 23 dBm
Channel Bandwidth HT/VHT/HE 20/40/80/160 MHz
Max BSSIDs8 per Radio
Supported Data Rates WiFi 6: 7.3 Mbps – 2.4 Gbps
WiFi 5: 6.5 Mbps – 1.7 Gbps
WiFi 4: 6.5 Mbps – 300 Mbps
Wireless Features
Wireless Meshing✓
Band Steering✓
Fast Roaming802.11r ✓
BSS Transition Management802.11v ✓
Radio Resource Management802.11k ✓
Advanced Radio Management✓
Passpoint (Hotspot 2.0)✓
Captive Portal ✓ (Branding, Voucher, Payment, Password, PPSK)
Guest Network Isolation✓
Client Device Isolation✓
WiFi Speed Limiting✓
WiFi Schedules✓
RADIUS over TLS (RadSec)✓
Dynamic VLAN Assignment✓
Environmental & Compliance
Operating Temperature-30 to 60° C (-22 to 140° F)
Operating Humidity5 to 95% (noncondensing)
NDAA Compliant✓
CertificationsCE, FCC, IC, Anatel, SRRC
Software & Management
UniFi ApplicationUniFi Network (v7.3.76+)
Management InterfaceEthernet
