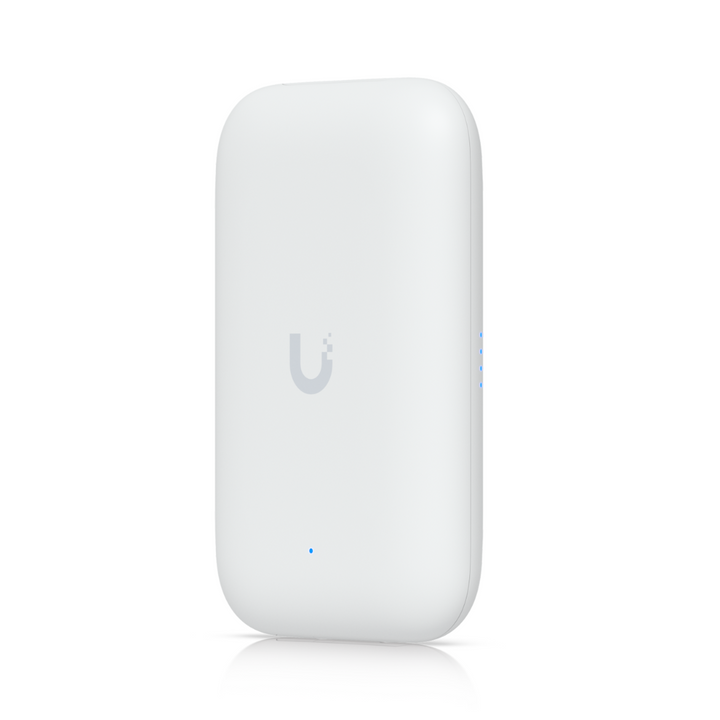

Swiss Army Knife

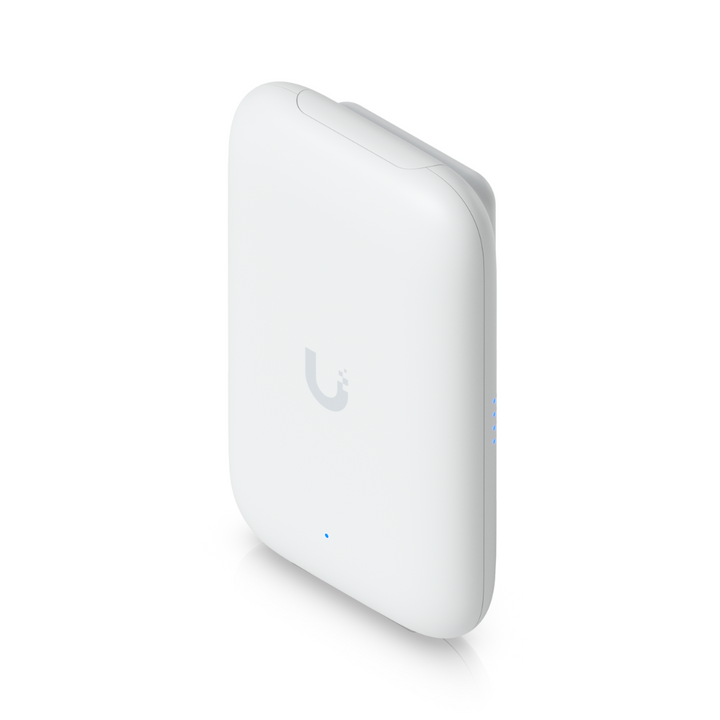

Incredibly compact, indoor/outdoor AP with versatile mounting options and long-range external antenna support.
Technical
| Hardware Specifications | |
|---|---|

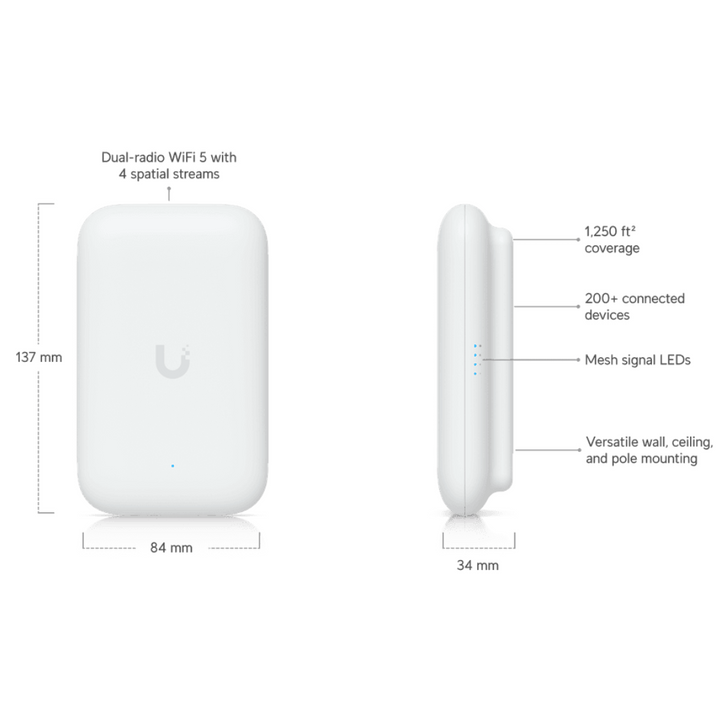

| Dimensions | 137 x 84 x 34 mm (5.4 x 3.3 x 1.3") |
| Weight | 173 g (6.1 oz) |
| Enclosure Material | UV-stabilized polycarbonate |

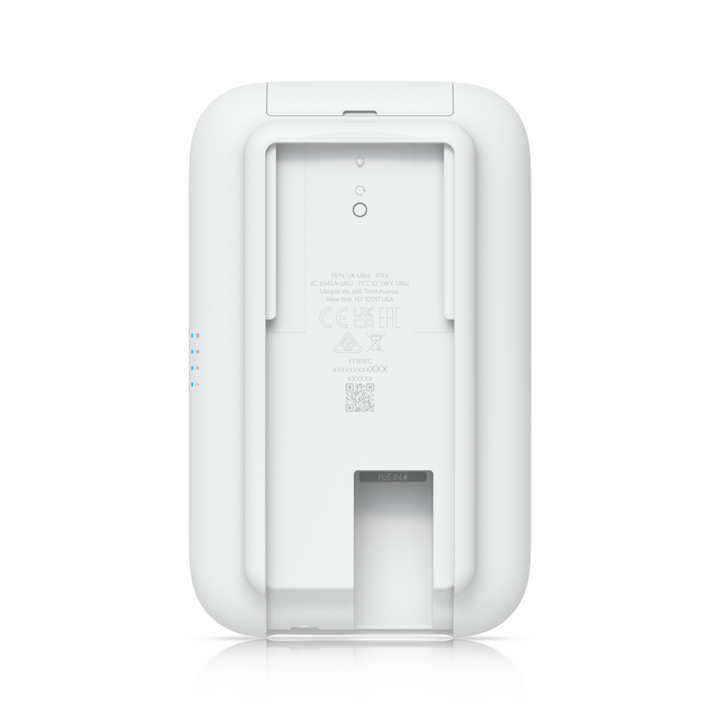

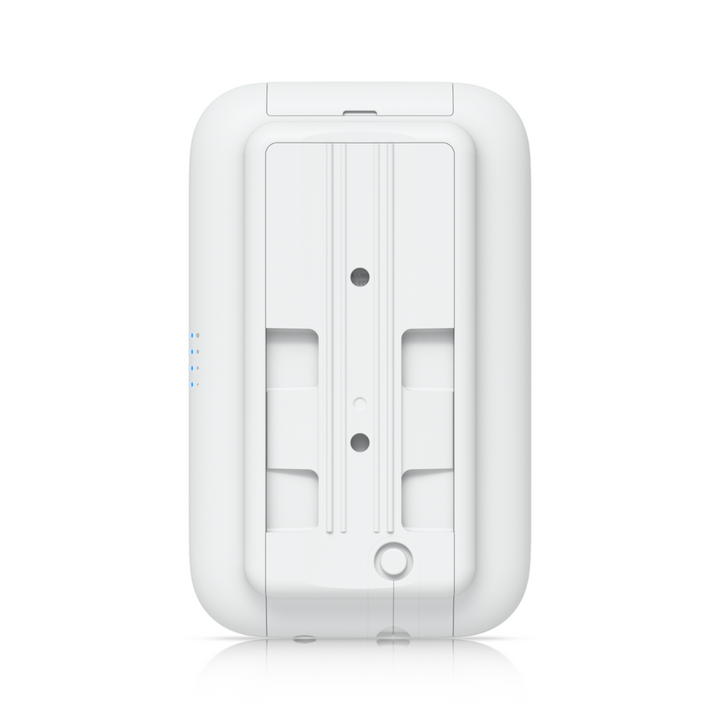

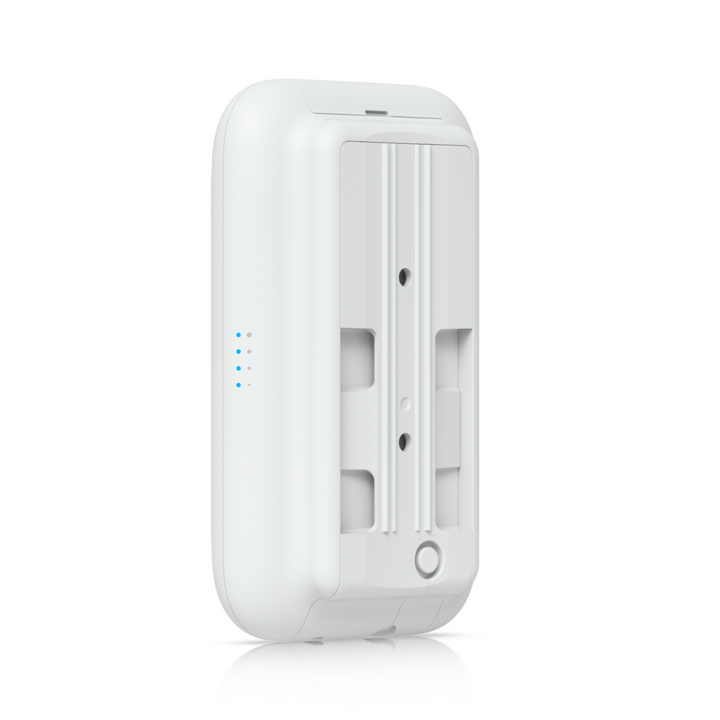

| Mounting Options | Ceiling, Wall, Pole, Table (Mounts Included; Desktop Stand Optional) |
| Mount Materials | Polycarbonate, SGCC Steel, Plastic |
| Weatherproofing | IPX6 |
| Pole Mount Diameter | 25–50 mm (1–2") |
| Wind Loading | 33.2 N at 200 km/h (7.5 lbf at 125 mph) |
| Max Power Consumption | 8W |

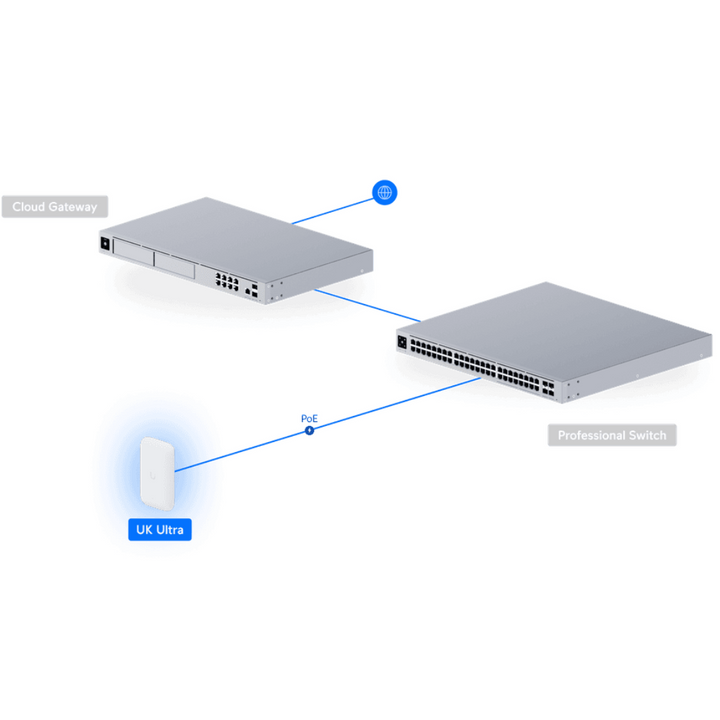

| Power Method | PoE |
| Supported Voltage Range | 44–57V DC |

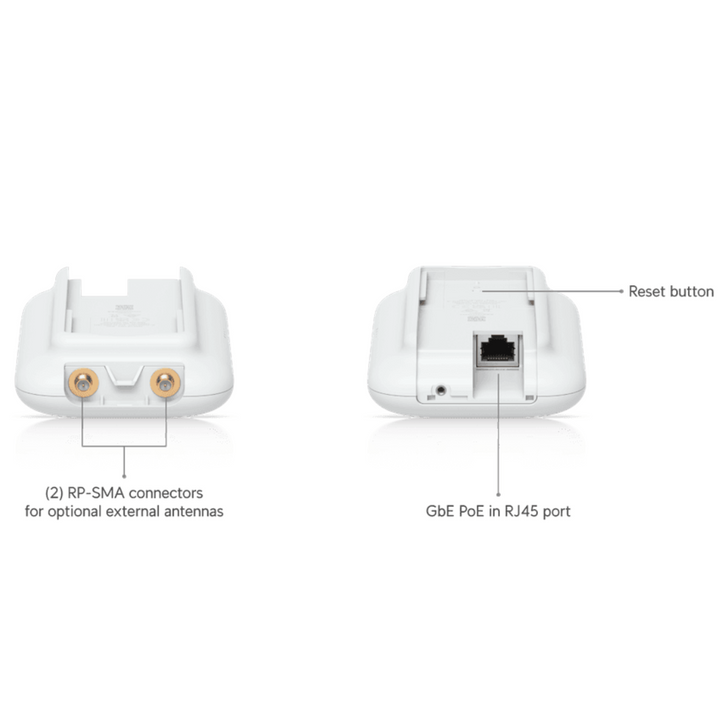

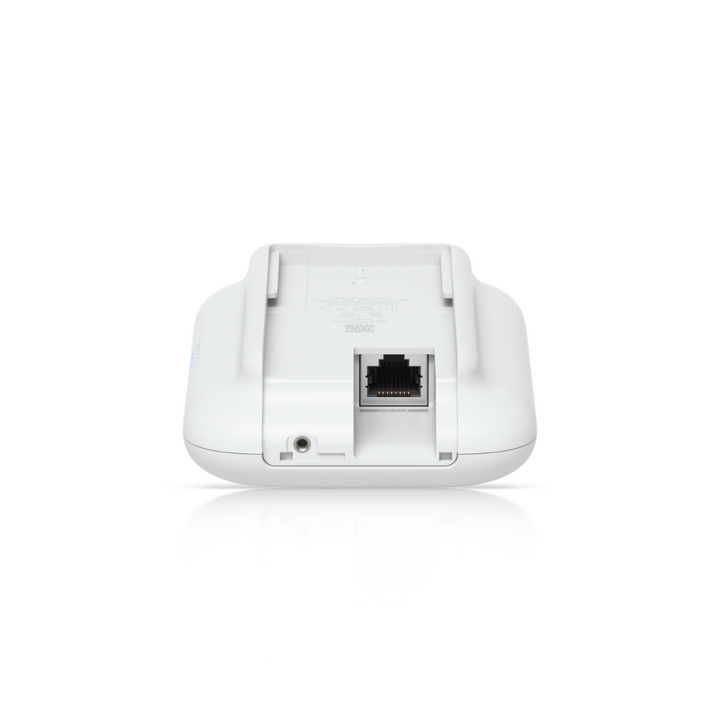

| Networking Interface | (1) GbE RJ45 port |

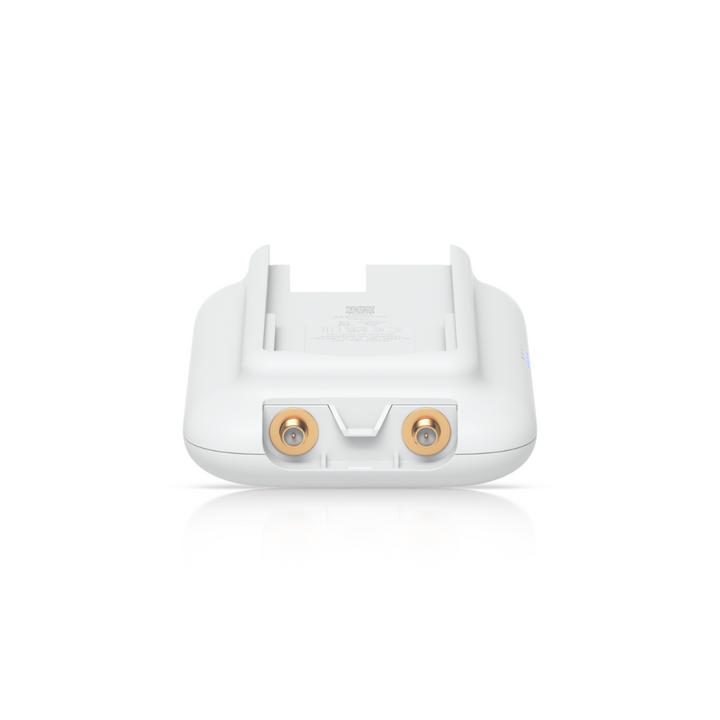

| Antennas | (1) Internal antenna, (2) RP-SMA connectors |

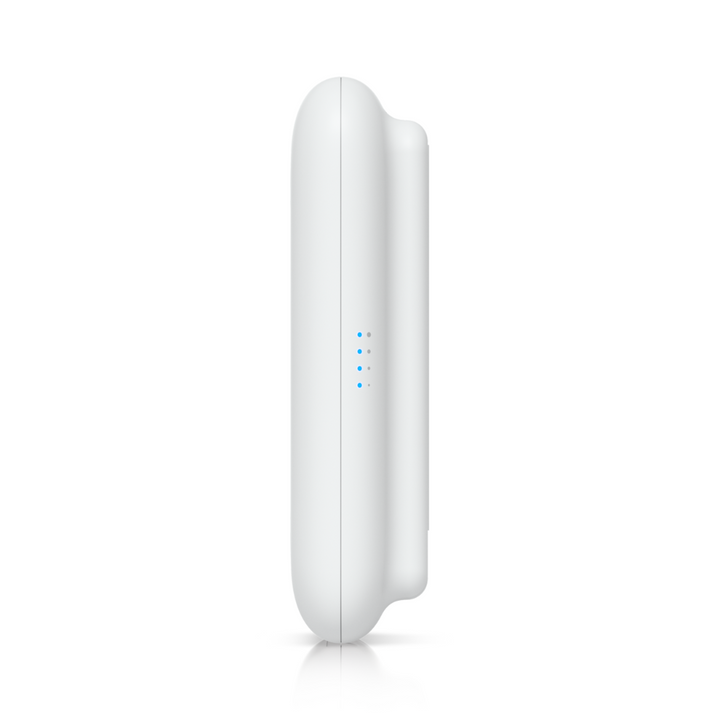

| LED Indicators | Power (White/Blue), Mesh Signal (4x Blue) |
| Wireless Performance | |
| WiFi Standard | WiFi 5 (802.11ac) |
| Spatial Streams | 4 |
| Coverage Area | 115 m² (1,250 ft²) |
| Max. Client Count | 200+ |
| MIMO |
5 GHz: 2x2 DL MU-MIMO 2.4 GHz: 2x2 DL MU-MIMO |
| Max Data Rate |
5 GHz: 866.7 Mbps (BW80) 2.4 GHz: 300 Mbps (BW40) |
| Antenna Gain |
5 GHz: 6.1 dBi 2.4 GHz: 4.7 dBi |
| Max TX Power |
5 GHz: 20 dBm 2.4 GHz: 20 dBm |
| Channel Bandwidth | HT 20/40, VHT 20/40/80, HE 20/40/80 MHz |
| Max BSSIDs | 8 per radio |
| Supported Data Rates |
WiFi 5: 6.5 – 866.7 Mbps WiFi 4: 6.5 – 300 Mbps |
| Wireless Features | |
| Wireless Meshing | ✓ |
| Band Steering | ✓ |
| 802.11v (BSS Transition) | ✓ |
| 802.11r (Fast Roaming) | ✓ |
| 802.11k (RRM) | ✓ |
| Advanced Radio Management | ✓ |
| Passpoint (Hotspot 2.0) | ✓ |
| Captive Portal | ✓ (Custom Branding & Landing Page) |
| Authentication | Voucher, Payment, Password, External Portal, PPSK |
| Guest Network Isolation | ✓ |
| Client Device Isolation | ✓ |
| WiFi Speed Limiting | ✓ |
| WiFi Schedules | ✓ |
| Dynamic RADIUS VLAN | ✓ |
| RADIUS over TLS (RadSec) | ✓ |
| Environmental & Compliance | |
| Operating Temp | -40 to 60° C (-40 to 140° F) |
| Operating Humidity | 5 to 95% non-condensing |
| NDAA Compliant | ✓ |
| Certifications | CE, FCC, IC, Anatel |
| Operating Frequency (US/CA) |
2.4 GHz: 2400–2472 MHz 5 GHz: U-NII-1/2A/2C/3 (5150–5850 MHz) |
| Operating Frequency (Worldwide) |
2.4 GHz: 2400–2483.5 MHz 5 GHz: 5150–5725 MHz |
| Software & Management | |
| UniFi Application Required | UniFi Network (Version 7.5.187+) |
| Management Interface | Ethernet |
