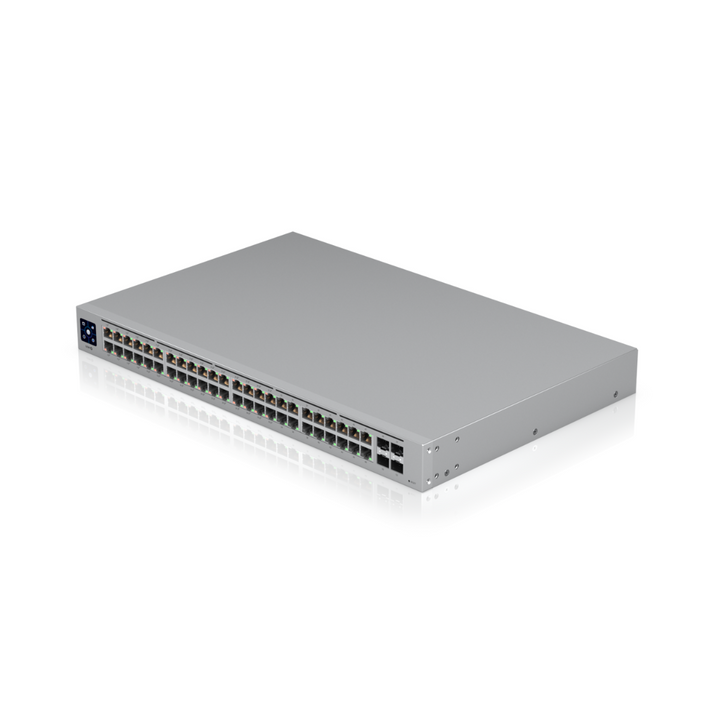

Standard 48 PoE
A 48-port, Layer 2 PoE switch with a silent, fanless cooling system.
Technical
| Hardware Specifications | |
|---|---|

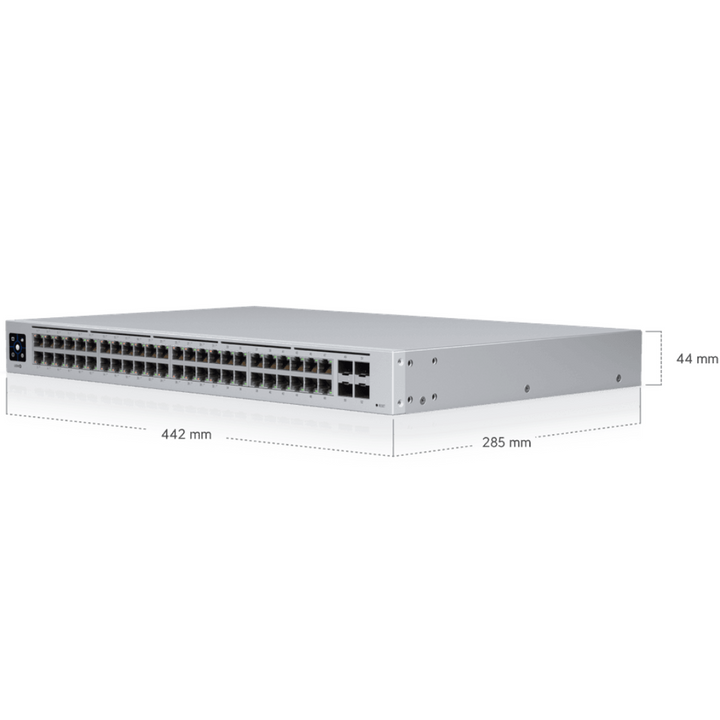

| Dimensions | 442 x 285 x 44 mm (17.4 x 11.2 x 1.7") |

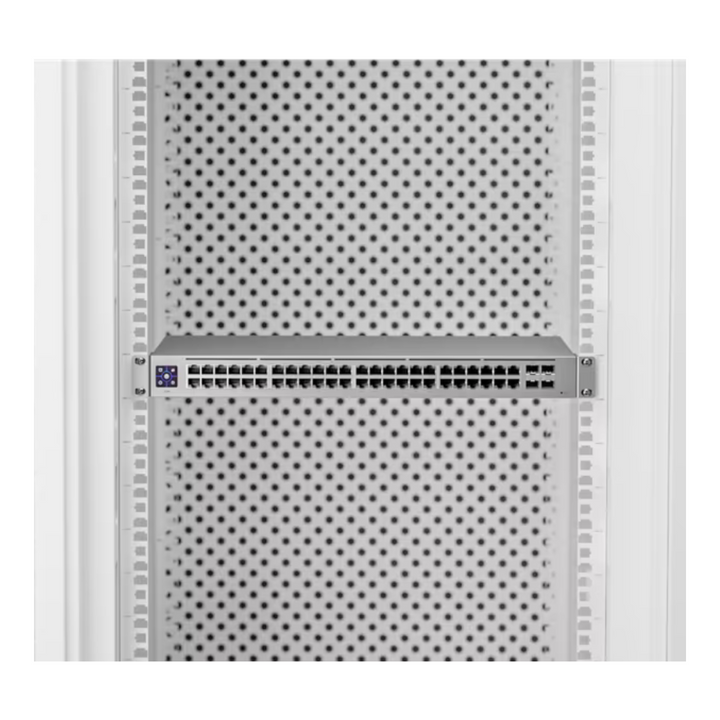

| Form Factor | Rack mount (1U) |

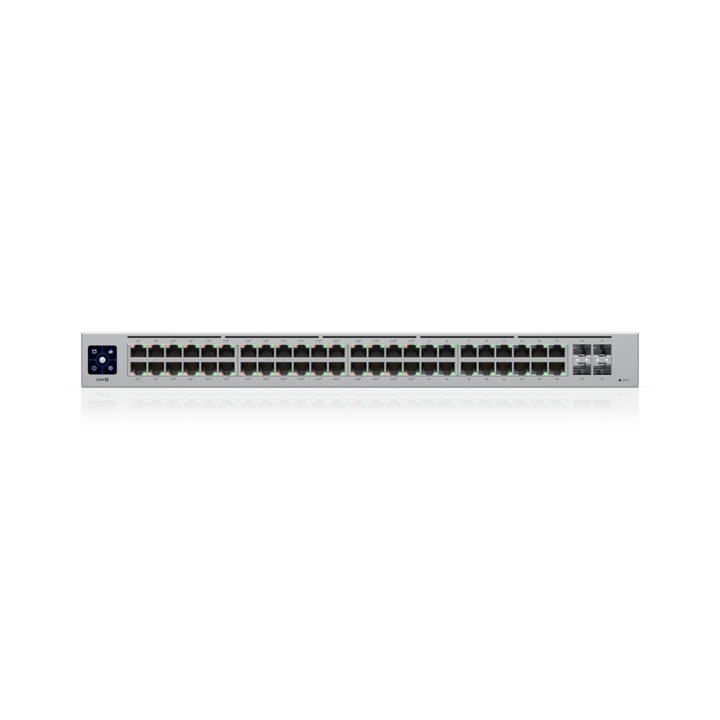

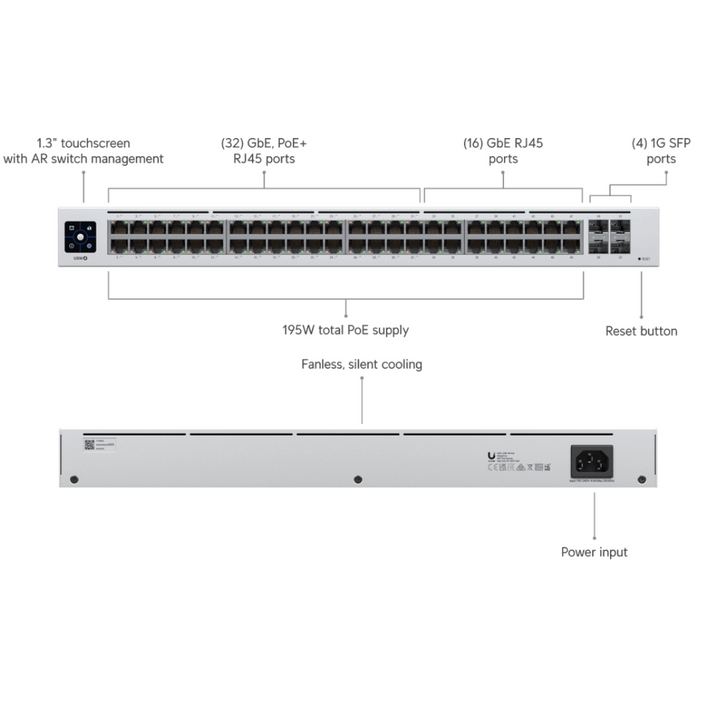

| Port Layout | 1 GbE RJ45: 48 (32 PoE+), 1G SFP: 4 |
| Max. PoE Output | Up to PoE+ |
| Total PoE Availability | 195W |
| PoE+ Ports | 32 |
| Max PoE Wattage per Port | PoE: 15.4W, PoE+: 32W |
| Max Power Consumption | 45W (Excl. PoE), 240W (Incl. PoE) |
| Power Input | AC 100–240V, 50/60 Hz |
| Power Supply | AC/DC Internal, 240W |
| Enclosure Material | SGCC Steel |
| Mount Material | SGCC Steel |
| Weight | 4.5 kg (10 lb) without brackets, 4.6 kg (10.2 lb) with brackets |

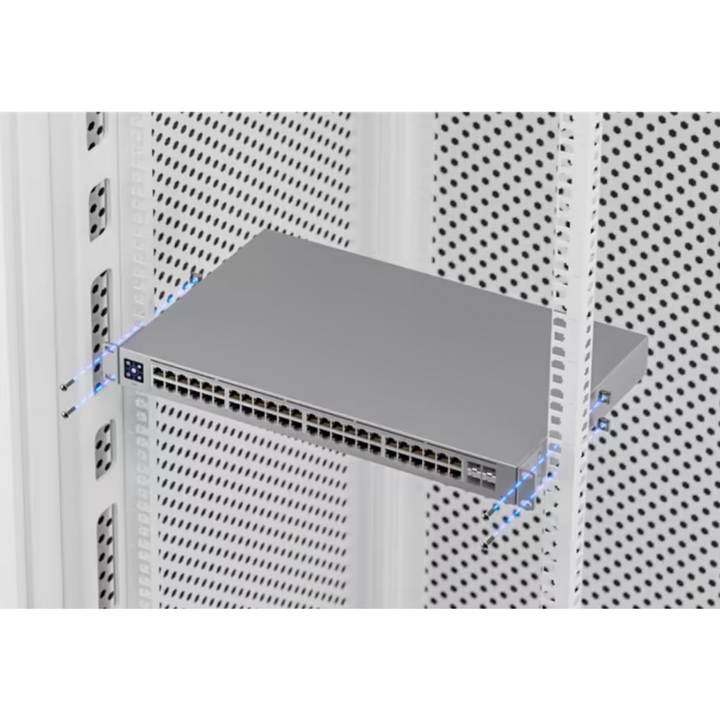

| Supported Rack Depth | 400–1200 mm (15.7–47.2") |
| LCM Display | 1.3" Touchscreen |
| Certifications | CE, FCC, IC, Anatel |
| NDAA Compliant | ✓ |
| Performance | |
| Switching Capacity | 104 Gbps |
| Total Non-Blocking Throughput | 52 Gbps |
| Forwarding Rate | 77 Mpps |
| Supported VLANs | 1,000 |
| MAC Address Table Size | 16,000 |
| Packet Buffer Size | 1.5 MB |
| Access Lists (IPv4 / MAC) | 128 / 128 |
| Layer 2 Features | |
| LACP Port Aggregation | ✓ |
| STP & RSTP | ✓ |
| Advanced IGMP Config | ✓ (Querier, Fast Leave, Router Port) |
| IGMP Snooping | ✓ |
| 802.1X Control | ✓ |
| MAC-Based ACLs & Isolation | ✓ |
| DHCP Snooping & Guarding | ✓ |
| Egress Rate Limit / Flow / Storm Control | ✓ |
| Multicast / Broadcast Rate Limiting | ✓ |
| MAC Address Blocking | ✓ |
| IP-Based ACLs & Isolation | ✓ |
| MAC-Based Port Restriction | ✓ |
| Port Isolation & Mirroring | ✓ |
| Jumbo Frames | ✓ |
| LLDP-MED | ✓ |
| Voice VLAN | ✓ |
| Loop Protection | ✓ |
| Environmental | |
| Heat Dissipation | 153.54 BTU/hr |
| Operating Temperature | -5 to 40°C (23 to 104°F) |
| Operating Humidity | 10% – 90% (non-condensing) |
| ESD/EMP Protection | Air: ±16kV, Contact: ±12kV |
| Software | |
| Management | Ethernet AR |
| Application Requirements | UniFi Network Version 7.2.94 and later |
