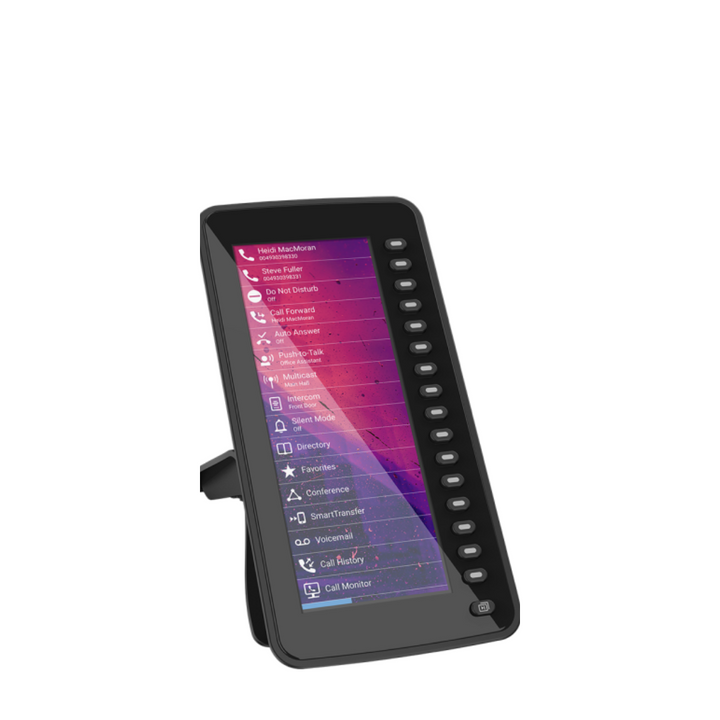

Snom D7C
The Snom D7C is the expansion module for the phones Snom D785, Snom D765, Snom D735 and Snom D717.
The extension module has a high-resolution colour display with a completely revised user interface.
Connected to a Snom phone via USB plug & play, the Snom D7C expands the phone with another large screen and multiple application possibilities.
With the help of the 16 physical (48 virtual) freely programmable and multi-coloured LED function keys, the status of colleagues can, for example, be quickly recognised and the corresponding number dialled or a call forwarded. If the corresponding line or the LED function line lights up green, the colleague is available and can take a call.
Technical
| Feature | Specification |
|---|---|
| Display | 6.8” high-resolution color LCD (480 x 1280 px) |
| Function Keys | 16 multicolor LED keys (48 functions), icon-supported, dedicated page toggle button |
| Expansion | Daisy chain up to 3 modules, USB power from host phone, additional USB port on last module |
| Ease of Use | Plug & Play, configurable via host phone, theme and custom background image support |
| Footstand | Dual-angle: 46° and 28° |
| Power | Powered via USB from phone or 5V DC adapter (10 Watts), optional separate adapter for multiple modules |
| Connectivity | USB 2.0 port, angled Type-A cable included |
| Physical Specs | Dimensions: 4.06” x 1.5” x 8.03” (unit), 4.06” x 8.46” x 6.26” (with desk stand); Weight: 0.83 lbs; Color: Black |
| Environmental Conditions | Operating: 0°C to 35°C, Non-operating: -10°C to 45°C, Humidity: 5%-95% non-condensing |
| Included Accessories | Base unit, foot stand, quick start guide, 3 deskset connectors |
| Warranty & Part Number | 3 years warranty, Part Number: 00004467, APN: 80-S103-00 |
