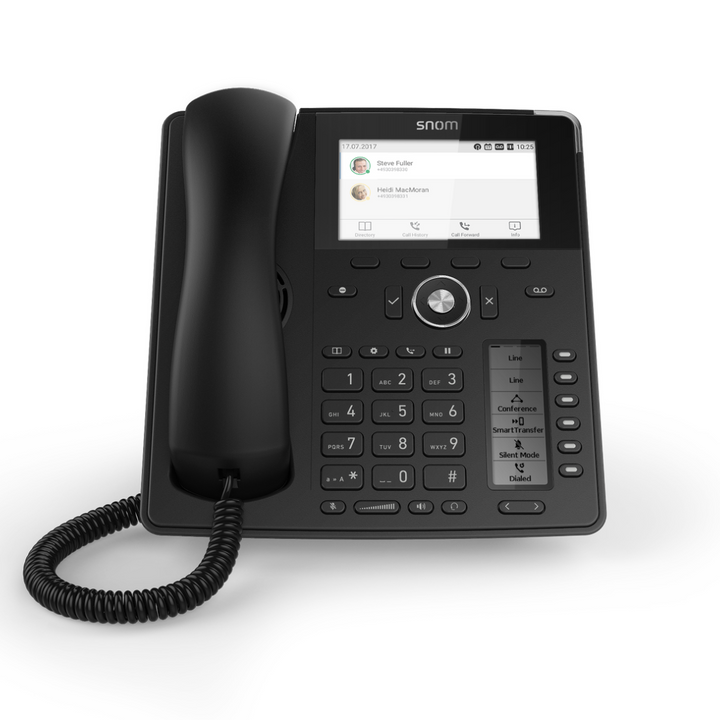

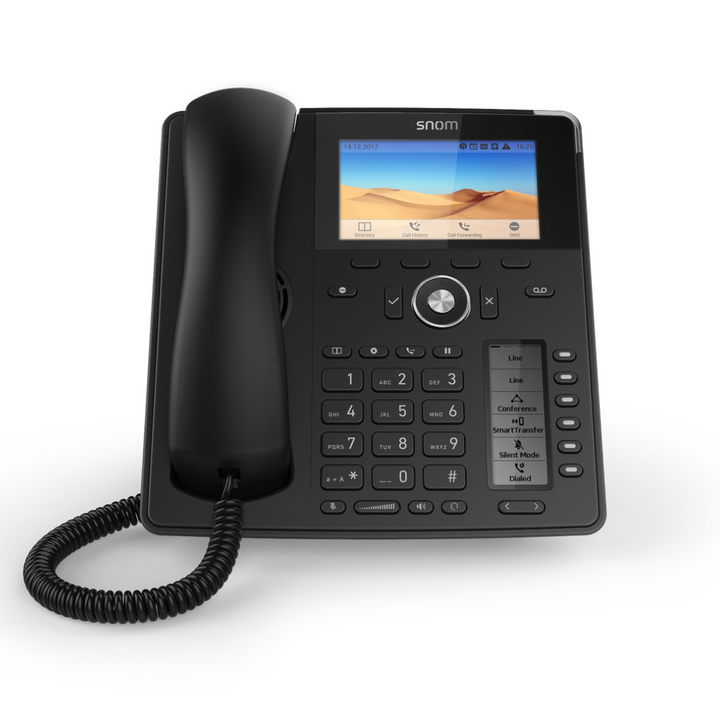

Snom D785
The Snom D785 is part of Snom's latest and most technically advanced phone series. With the elegant design available in black and white, the large high-resolution colour display, as well as the practical second display for a dynamic configuration of the 24 function keys (6 physical), this telephone offers all the functions for every working day.
Technical
| Feature | Specification |
|---|---|
| Product Variants |
D785 Black (PN 00004349) D785 White (PN 00004392) D785N Black (PN 00004599) |
| Product Type | IP Desk Phone (D785 / D785N) |
| Operating System | Linux |
| Placement | Indoor, Desktop, Wall Mounting |
| Dimensions (without footstand) | 220 × 205 × 35 mm |
| Dimensions (with footstand) |
High angle (46°): 220 × 205 × 190 mm Low angle (28°): 210 × 205 × 150 mm |
| Weight | 990 g with footstand, 750 g without footstand |
| Display |
TFT LCD, true colour, backlit, 4.3″ (109 mm), 480 × 272 px SmartDisplay: monochrome, graphical, 2.8″ (70 mm), 254 × 100 px |
| LED Indicators | 11 LEDs: Call status (1 red), Message waiting (1 red), Function keys (6 multicolour), Audio keys (3, 1 red / 2 green) |
| Power Options |
PoE IEEE 802.3af, class 2/3 5 V DC, 2 A, 10 W power adapter |
| Wired Interfaces |
2 × RJ45 (Gigabit Ethernet) USB 2.0 Type A for headsets / accessories Corded handset: RJ9-4P4C Headset: RJ9-4P4C EHS adapters: 2 × RJ12-6P6C |
| Wireless Interfaces |
Bluetooth 4.0, class 2 WLAN optional via A210 USB dongle |
| Keys & Functionality |
42 hard keys, 12 standard keypad, 5-way navigation, 4 context-sensitive keys 6 SmartLabel keys (6 × 4 pages = 24 functions) 5 audio keys (Mute, Speaker, Headset, Volume ±) 10 function keys (Ok, Cancel, DND, Message, Directory, Menu, Transfer, Hold, Page) Expansion module support up to 3 × D7/D7C |
| Audio & Codecs |
Full duplex HD audio, HAC handset Codecs: G.711 (A-law, μ-law), G.722, G.726, G.729, GSM 6.10 (FR), Opus DTMF: SIP-INFO, in-band, out-of-band Features: assignable ringtones, CNG, VAD |
| User Interface & Setup | Web UI, Phone UI, HTTPS login, SRAPS, TR-069/TR-111, Plug & Play, XML Browser, Localization, Diagnostics |
| Networking & Protocols |
VLAN, OpenVPN, SIP, SDP, RTP, RTCP, RTCP-XR, SIP REFER, rport, ENUM, ICE, STUN SIPS, SRTP, SRTCP IPv4/IPv6, DHCP, NTP, LDAP, LLDP-MED, HTTP, TFTP, L2TP TLS V1.2, IEEE 802.1X |
| Directory & Call Features |
12 SIP accounts, up to 12 simultaneous calls LDAP server-based, local directory up to 1,000 entries Speed dial, URL dial, local dial plan, redial, caller ID, CLIR, call completion Intercom, multicast paging, call waiting, DND, call barring, auto answer, diversion Hold, music on hold, blind/attended transfer, 3-way local conference, call park/unpark, CMC Call history lists, extension monitoring, call pickup |
| Environmental Conditions |
Operating: 0 °C – 35 °C Non-operating: -10 °C – 45 °C Humidity: 5% – 95% non-condensing |
| Package Contents | D785 / D785N phone, Footstand, Corded Handset, Ethernet Cable, Quick Installation Guide, GNU GPL |
