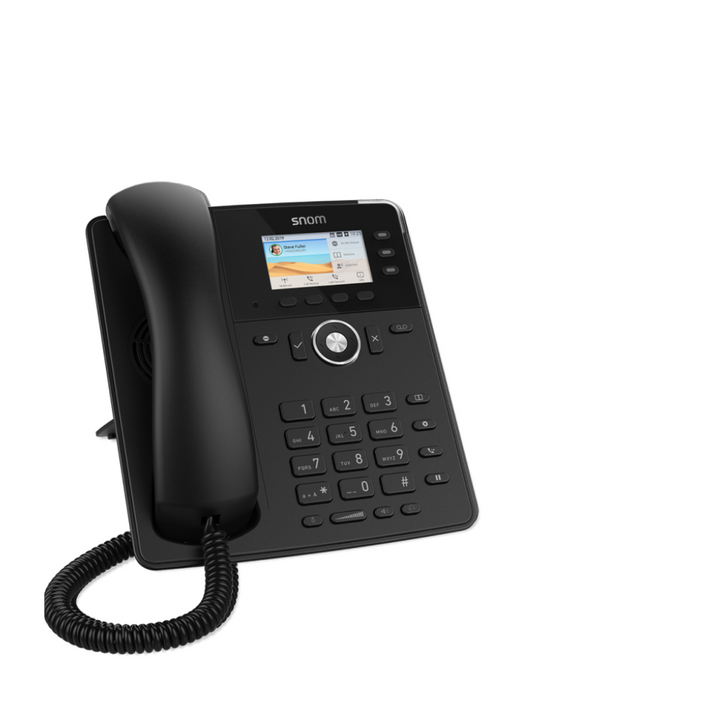

Snom D717
The Snom D717 convinces with a high-resolution colour display and the freely configurable Snom SmartLabel. A built-in ambient sensor ensures that the brightness of the phone display is always adjusted to the current lighting conditions in the room. This is both energy-saving and convenient. The telephone has 3 multi-coloured, self-labelling LED function keys, an integrated gigabit switch. Furthermore, a variety of accessories can be connected via the USB port.
Technical
| Feature | Specification |
|---|---|
| Product Variants |
D717 | Black | PN 00004397 D717 | White | PN 00004398 |
| Operating System | Linux |
| Placement | Indoor, Desktop, Wall Mounting |
| Dimensions (without footstand) | 205 × 185 × 40 mm |
| Dimensions (with footstand) |
High angle (46°): 220 × 185 × 205 mm Low angle (28°): 200 × 185 × 205 mm |
| Weight | 710 g without footstand, 830 g with footstand |
| Display |
TFT LCD, true colour, backlit Size: 2.7″ (71 mm), 59 × 33 mm Resolution: 320 × 240 px 8 LEDs: Call status (1 red), MWI (1 red), Function keys (3 multicolour), Audio keys (3 LEDs: 1 red / 2 green) |
| Keys & Functionality |
37 hard keys: 12 standard keypad, 5-way navigation, 4 context-sensitive keys, 3 SmartLabel keys 5 audio keys: Mute (red), Speaker (green), Headset (green), Volume ± 8 function keys: Ok, Cancel, DND, Message (red), Directory, Menu, Transfer, Hold Expansion module support via USB up to 3 × D7 / D7C Keyboard lock |
| Audio & Codecs |
Full duplex speakerphone, HD audio Corded handset HAC Codecs: G.711 (A-law, μ-law), G.722, G.726, G.729AB, GSM 6.10 (FR) DTMF: SIP-INFO, in-band, out-of-band Built-in assignable ringtones, CNG, VAD |
| Power Options |
PoE IEEE 802.3af/class 3 & 802.3az 5 V DC, 2 A, 10 W power adapter |
| Wired Interfaces |
2 × RJ45-8P8C → Gigabit Ethernet Corded handset: RJ9-4P4C Headset: RJ9-4P4C EHS adapter: RJ12-6P6C USB 2.0 Type A port for headsets/accessories |
| Wireless Interfaces | Optional WLAN via A210 |
| Sensors | Hook switch sensor, Ambient light sensor |
| User Interface & Setup |
Web UI, Phone UI, HTTPS login, XML Browser Auto provisioning via HTTP/HTTPS/TFTP Plug & Play, SRAPS, TR-069 / TR-111 Customisation, Languages, Time zone, Dial tone, Diagnostics |
| Networking & Protocols |
VLAN, OpenVPN, SIP, SDP, RTP, RTCP, RTCP-XR, SIP REFER, rport, ENUM, ICE, STUN SIPS, SRTP, SRTCP IPv4/IPv6, DHCP, NTP, LDAP, LLDP-MED, HTTP, TFTP, L2TP TLS V1.2, IEEE 802.1X |
| Directory & Call Features |
6 SIP accounts, up to 6 simultaneous calls LDAP server-based, local directory up to 1,000 entries Speed dial, URL dial, local dial plan, redial, caller ID, CLIR, call completion Intercom, multicast paging, call waiting, DND, call barring, auto answer, call diversion Hold, music on hold, blind/attended transfer, 3-way local conferencing, call park/unpark, CMC Call history, extension monitoring, call pickup |
| Environmental Conditions |
Operating: 0 °C – 35 °C Non-operating: -10 °C – 45 °C Humidity: 5% – 95% non-condensing |
| Package Contents | D717 phone, Footstand, Corded Handset, Ethernet Cable, Quick Installation Guide, GNU GPL |
