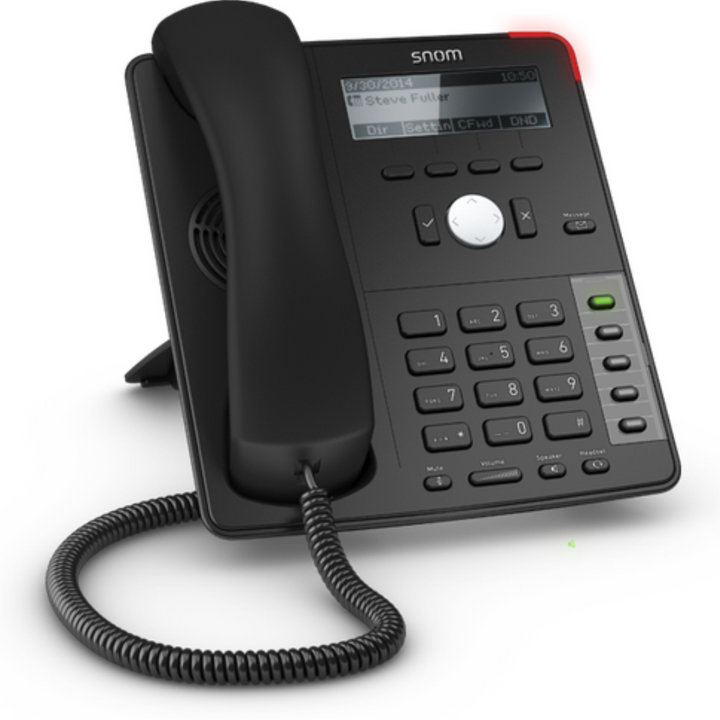

Snom D715
The D715 is technologically future-proof with a
Gigabit Ethernet switch. The integrated USB
connection can be used for USB headsets, the D7
expansion module and the connection of WiFi devices
using a USB stick. The D715 has a multi-line B / W
graphic display which, together with context-sensitive
function keys, allows intuitive operation of the user
interface. 5 LED function keys can be programmed
individually and flexibly with numerous telephone
functions such as speed dialing, extensions or
presence display.
Technical
| Feature | Specification |
|---|---|
| Model & Variants | D715 | Black (PN 00004039), White (PN 00004381) |
| Device Type | IP Desk Phone |
| Operating System & Placement | Linux, Indoor, Desktop, Wall-mountable |
| Dimensions & Weight | 205 x 185 x 40 mm (w/o footstand), 220 x 185 x 205 mm (high angle 46°), 200 x 185 x 205 mm (low angle 28°), Weight: 560 g with footstand |
| Display | 3.2" monochrome graphical backlit LCD, 4 lines, 128 x 48 px, 10 LED indicators, call and MWI red LEDs |
| Keypad & Function Keys | 33 hard keys, 12 standard ITU keypad, 4-way navigation key, 4 context-sensitive keys, 3 programmable keys, 5 dedicated audio keys, 3 dedicated function keys (Ok, Cancel, Message), Expansion via USB for up to 3 × D7, Keyboard lock |
| Audio & Codecs | Casing microphone & speaker, Full duplex HD audio, HAC, Corded handset microphone & earpiece, Codecs: G.711 (A/μ-law), G.722, G.726, G.729, GSM 6.10 (FR), DTMF (SIP-INFO, in-band, out-of-band), Built-in ringtones, CNG, VAD |
| Power | PoE IEEE 802.3af class 3, Power adapter: 100-240 V AC / 5V DC (SELV), 2A, 10 W |
| Wired Interfaces | 2 × RJ45 Gigabit Ethernet, 1 × USB 2.0 type A port, Corded handset RJ9, Headset RJ9, EHS adapter 4-pin proprietary socket |
| Wireless Interfaces | Optional WLAN via A210 USB dongle |
| Networking & Security | SIP, SDP, RTP, RTCP, RTCP-XR, SIP REFER, rport, ENUM, ICE, RFC2833, STUN, SIPS, SRTP, SRTCP, IPv4/IPv6 dual stack, VLAN, TLS v1.2, HTTPS, 802.1X (EAPoL), OpenVPN |
| Remote Management | TR-069 / TR-069 Annex G (TR-111), Plug & Play support, Secure Redirection And Provisioning Service (SRAPS) |
| Directory & Call Features | 4 SIP identities/accounts, up to 4 simultaneous calls, LDAP & local directory (up to 1,000 entries), Speed dial, URL dial, Redial, Auto answer, Caller ID, CLIR, DND, Call hold, transfer, 3-way local conferencing, Music on hold, Call park/unpark, CMC, Multicast paging |
| Operating Conditions | Operating: 0°C - 35°C, Non-operating: -10°C - 45°C, Humidity: 5%-95% non-condensing |
| Package Contents | IP Desk Phone D715, Footstand, Corded handset, Ethernet cable, Quick Installation Guide, GNU GPL documentation |
| Compatible Accessories | 10 W PSU, WLAN USB dongle A210, DECT USB dongle A230, EHS Advanced 2.0, Wired headsets (A100D/M, A310D/M), USB headsets (A330D/M), DECT headsets (A170, A150), Expansion module D7, Wireless conference speakerphone C300 |
