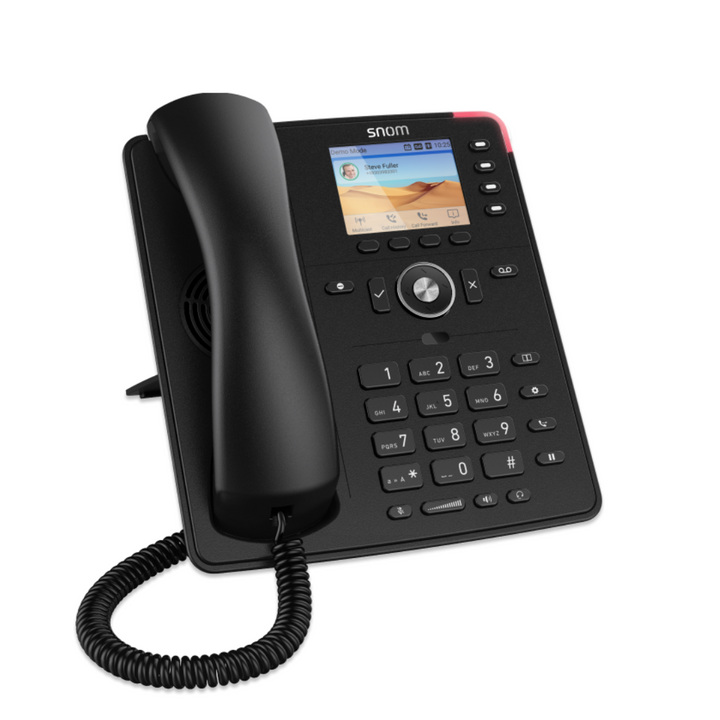

Snom D713
The Snom D713 is the cost-effective entry into the professional world of the Snom D7xx series. Available in black, the phone fits perfectly into any work environment, combining state-of-the-art technology, best HD audio voice quality and current security technology in the usual elegant design.
The high-resolution colour display uses Snom's own labelling solution "SmartLabel" for the 4 freely programmable LED function keys.
The Snom D713 is equipped with a Gigabit switch with PoE support.
In addition, it is possible to connect a headset.
Technical
| Feature | Specification |
|---|---|
| Product Variant | D713 | Black | PN 00004582 |
| Operating System | Linux |
| Placement | Indoor, Desktop, Wall Mounting |
| Dimensions (without footstand) | 205 × 185 × 40 mm |
| Dimensions (with footstand) |
High angle (46°): 205 × 185 × 220 mm Low angle (28°): 205 × 185 × 200 mm |
| Weight | 710 g without footstand, 830 g with footstand |
| Display |
TFT LCD, graphical, high colour, backlit Size: 2.8″ (67 mm), 59 × 33 mm Resolution: 320 × 240 px |
| LED Indicators | 5 LEDs: Call status (1 red), Function keys (4 multicolour) |
| Keys & Functionality |
38 hard keys: 12 standard keypad, 4 context-sensitive keys, 5-way navigation 4 SmartLabel keys (multicolour LED) 5 audio keys (Mute, Speaker, Headset, Volume ±) 8 function keys (Ok, Cancel, DND, Message, Directory, Menu, Transfer, Hold) Keyboard lock Expansion module support via USB up to 3 × D7 |
| Audio & Codecs |
Full duplex speakerphone, Acoustic Echo Cancellation (AEC) Corded handset HAC Codecs: G.711 (A-law, μ-law), G.722, G.726, G.729, GSM 6.10 (FR), Opus DTMF: SIP-INFO, in-band, out-of-band Features: assignable ringtones, CNG, VAD |
| Power Options |
PoE IEEE 802.3af/class 3 & 802.3az 5 V DC, 2 A, 10 W power adapter |
| Wired Interfaces |
RJ45-8P8C → Gigabit Ethernet Corded handset: RJ9-4P4C Headset: RJ9-4P4C EHS adapter: RJ12-6P6C |
| User Interface & Setup |
Web UI, Phone UI, HTTPS login, XML Browser Auto provisioning via HTTP/HTTPS/TFTP Plug & Play, SRAPS, TR-069 / TR-111 Localization, Languages, Time zone, Dial tone, Diagnostics |
| Networking & Protocols |
VLAN, OpenVPN, SIP, SDP, RTP, RTCP, RTCP-XR, SIP REFER, rport, ENUM, ICE, STUN SIPS, SRTP, SRTCP IPv4/IPv6, DHCP, NTP, LDAP, LLDP-MED, HTTP, TFTP, L2TP TLS V1.2, IEEE 802.1X |
| Directory & Call Features |
6 SIP accounts, up to 6 simultaneous calls LDAP server-based, local directory up to 1,000 entries Speed dial, URL dial, local dial plan, redial, caller ID, CLIR, call completion Intercom, multicast paging, call waiting, DND, call barring, auto answer, call diversion Hold, music on hold, blind/attended transfer, 3-way local conferencing, call park/unpark, CMC Call history, extension monitoring, call pickup |
| Environmental Conditions |
Operating: 0 °C – 35 °C Non-operating: -10 °C – 45 °C Humidity: 5% – 95% non-condensing |
| Package Contents | D713 phone, Footstand, Corded Handset, Ethernet Cable, Quick Installation Guide, GNU GPL |
