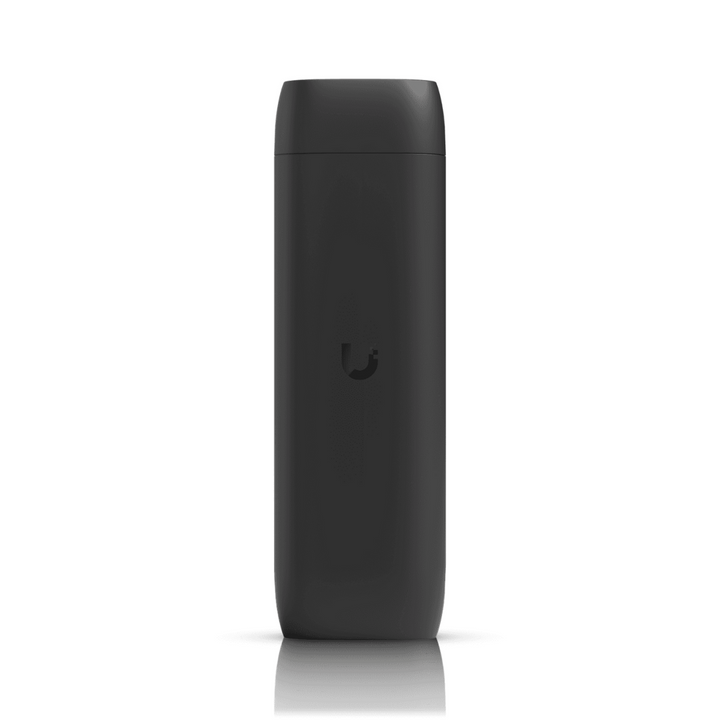

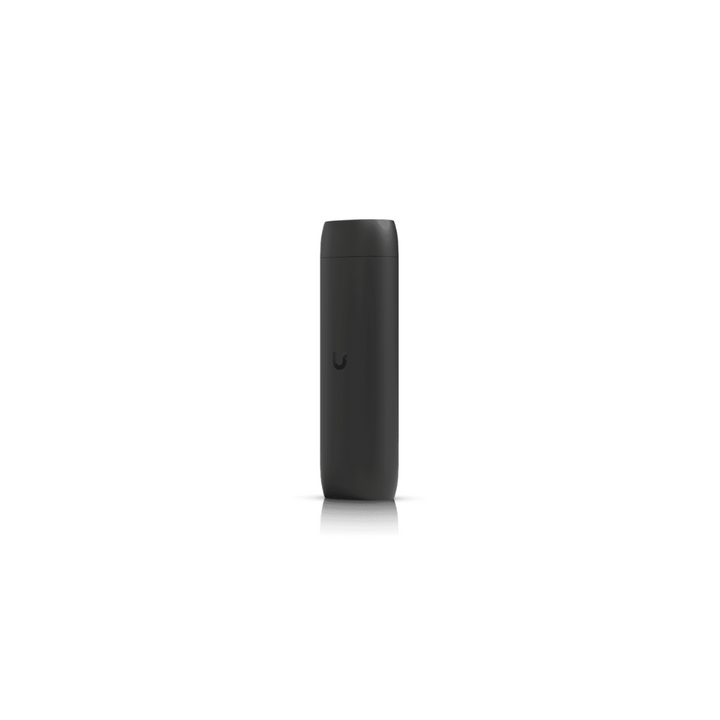

Protect Viewport

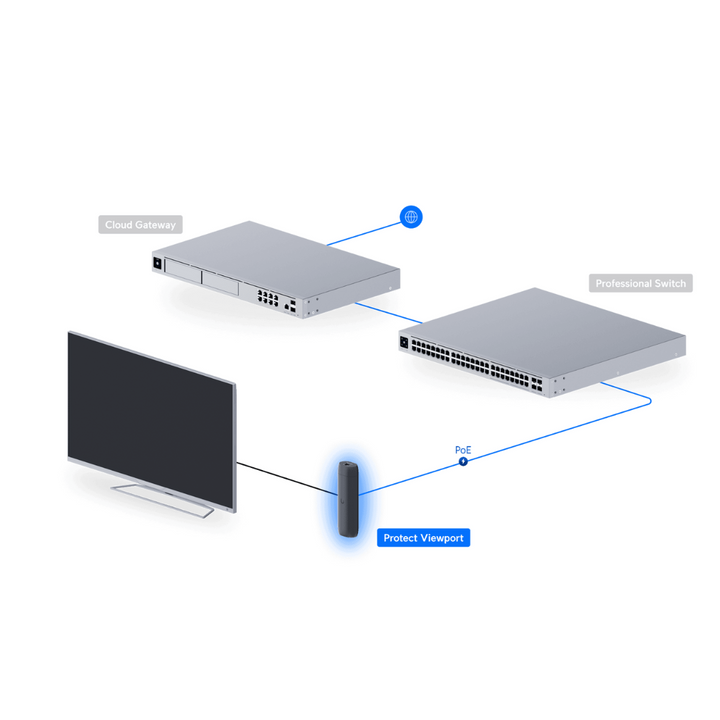

Easy-to-use hub for viewing Protect camera feeds on an HDMI display.
Technical
| General | |
|---|---|

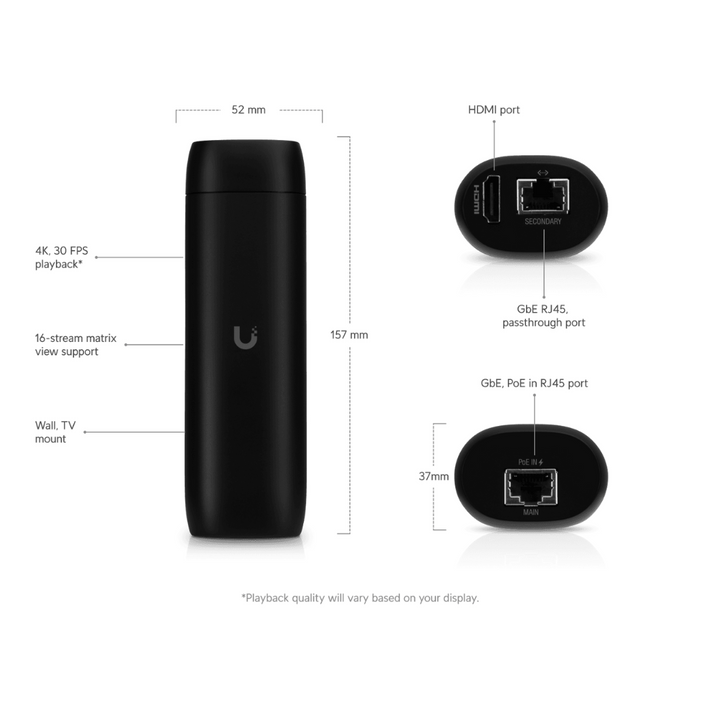

| Dimensions | 157 x 52 x 37 mm (6.2 x 2.1 x 1.5") |
| Weight | Without mount: 230 g (8.1 oz) With TV mount: 252 g (8.9 oz) |
| Enclosure Material | Polycarbonate |
| Mount Material | Polycarbonate |
| Hardware | |

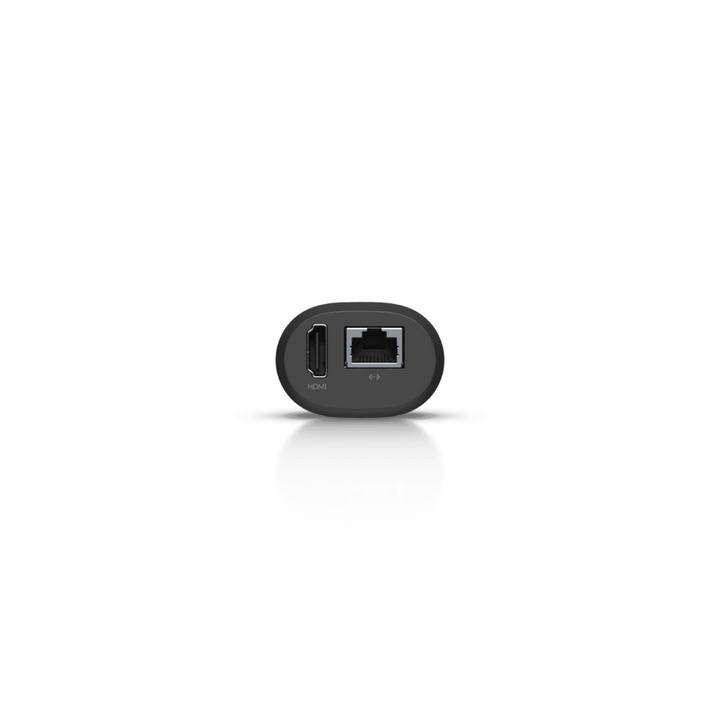

| Networking Interface | (1) GbE RJ45 port |
| Power Method | PoE |
| Max. Power Consumption | 9.5W |
| ESD/EMP Protection | Air: ± 8kV, Contact: ± 4kV |
| Buttons | Factory Reset |
| Operating Temperature | 0 to 40° C (32 to 104° F) |
| Operating Humidity | 20 to 80% noncondensing |
| Compliance | NDAA ✓ |
| Certifications | FCC, IC, CE |
| Software | |
| Application Requirements | Web Application: UniFi Protect Mobile App: UniFi Protect (iOS™ and Android™) |
