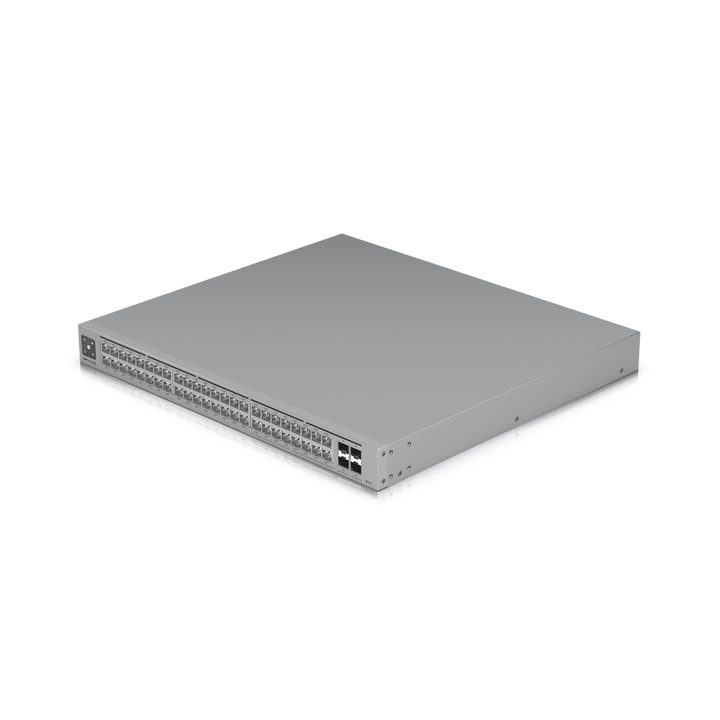

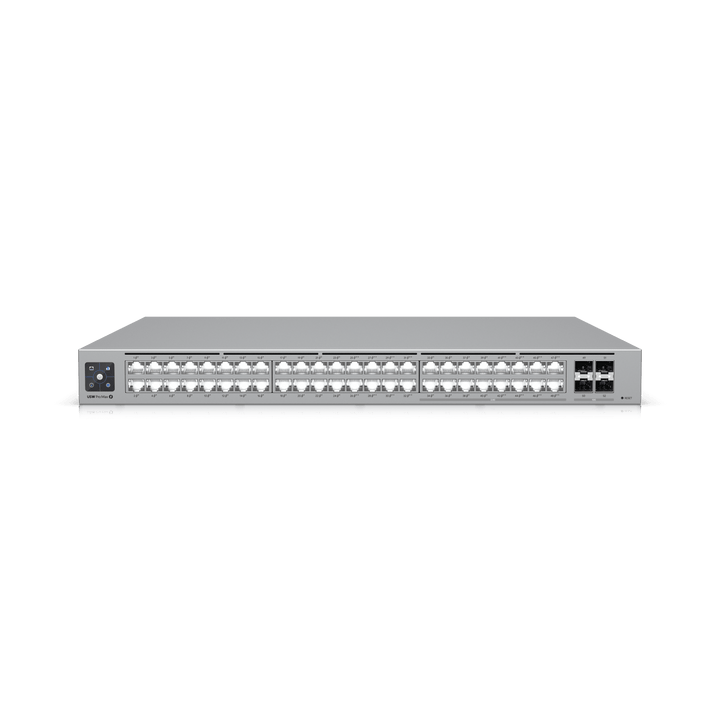

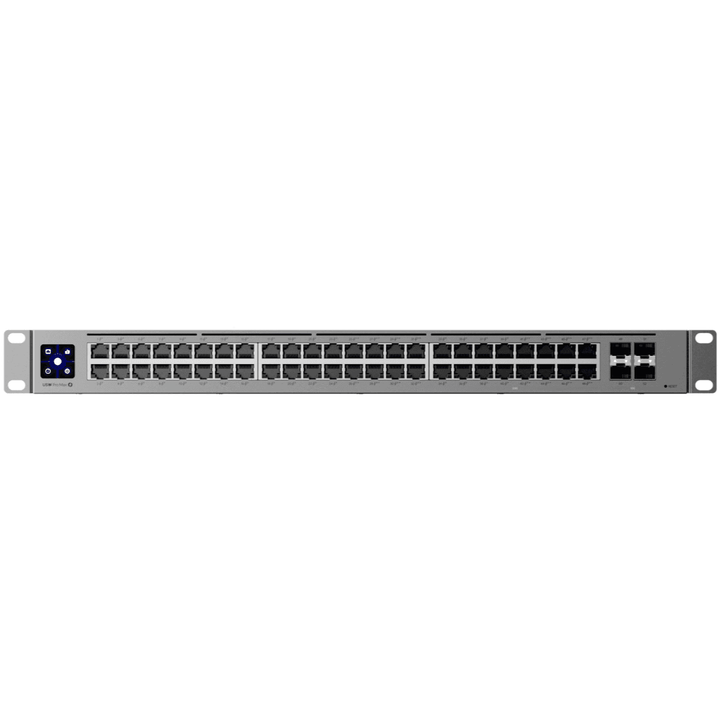

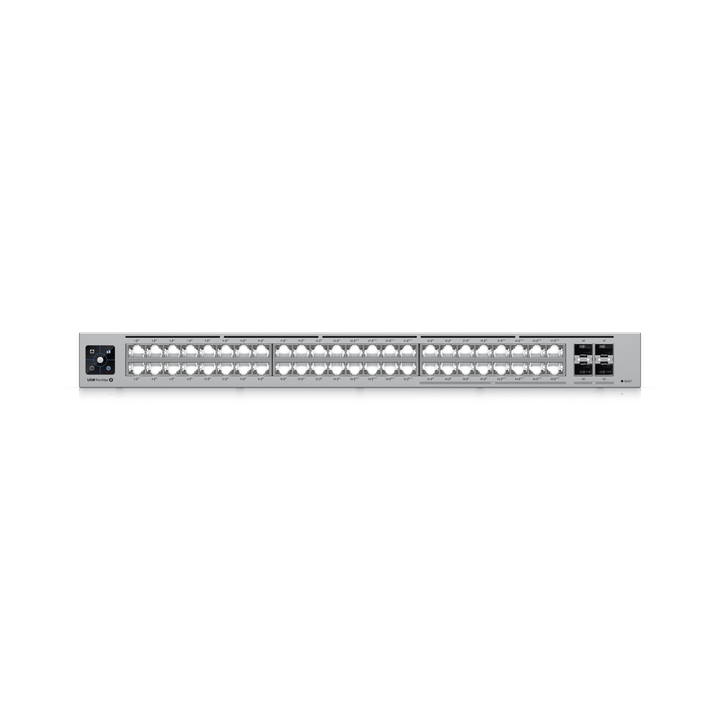

Pro Max 48 PoE
A 48-port, Layer 3 Etherlighting™ switch with 2.5 GbE and PoE++ output.
Technical
| Dimensions | |
|---|---|
| Size | 442.4 x 400 x 44 mm (17.4 x 15.7 x 1.7") |
| Port Layout | |
| 1 GbE RJ45 | 32 (24 PoE+; 8 PoE++) (1G/100M/10M) |
| 2.5 GbE RJ45 | 16 (8 PoE+; 8 PoE++) (2.5G/1G/100M/10M) |
| 10G SFP+ | 4 (10G/1G) |
| Max. PoE Output | Up to PoE++ |
| Total PoE Availability | 720W |
| Redundancy | DC Power Backup |
| Layer 3 | ✓ |
| Form Factor | Rack mount (1U) |

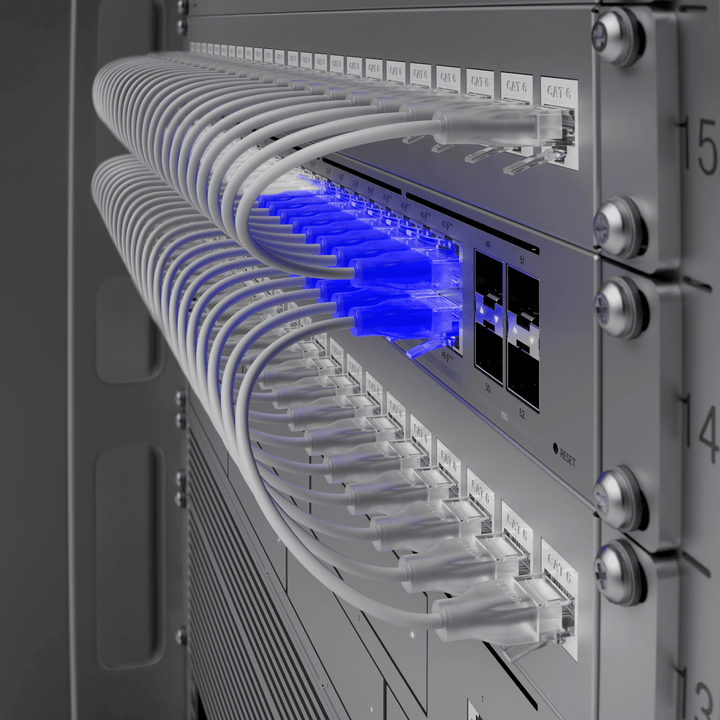

| Etherlighting™ | ✓ |
| Performance | |
| Switching Capacity | 224 Gbps |
| Total Non-Blocking Throughput | 112 Gbps |
| Forwarding Rate | 167 Mpps |
| Supported VLANs | 1,000 |
| MAC Address Table Size | 32,000 |
| L3 Table Size | ARP Entries: 12,000 / IPv4 Routes: 12,000 |
| Packet Buffer Size | 2 MB |
| Access Lists | IPv4: 128 / MAC: 128 |
| Layer 3 Features | |
| DHCP Server (Local Networks) | ✓ |
| DHCP Relay | ✓ |
| Inter-VLAN Routing (Local Networks) | ✓ |
| Static Routing (Local Networks) | ✓ |
| Layer 2 Features | |
| LACP Port Aggregation | ✓ |
| STP & RSTP | ✓ |
| QoS (DSCP) | ✓ |
| Pro AV Profiles | Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron |
| Advanced IGMP Config | Querier, Fast Leave, Router Port |
| IGMP Snooping | ✓ |
| 802.1X Control | ✓ |
| MAC-Based ACLs & Device Isolation | ✓ |
| DHCP Snooping & Guarding | ✓ |
| Egress Rate Limit | ✓ |
| Flow Control | ✓ |
| Storm Control | ✓ |
| Multicast & Broadcast Rate Limiting | ✓ |
| MAC Address Blocking | ✓ |
| IP-Based ACLs & Network Isolation | ✓ |
| MAC-Based Port Restriction | ✓ |
| Port Isolation | ✓ |
| Port Mirroring | ✓ |
| Jumbo Frames | ✓ |
| LLDP-MED | ✓ |
| Voice VLAN | ✓ |
| Loop Protection | ✓ |
| Hardware | |
| PoE Ports | PoE+: 32 / PoE++: 16 |
| Max. PoE Wattage per Port | PoE: 15.4W / PoE+: 32W / PoE++: 64W |
| Max. Power Consumption | 100W (Excl. PoE) / 820W (Incl. PoE) |
| Power Method | (1) Universal input 100—240V AC / (1) USP RPS DC input |
| Power Supply | AC/DC, internal, 870W |
| Management | Ethernet, AR |
| Heat Dissipation | 341.2 BTU/hr (Excl. PoE) |
| Weight | 6.2–6.3 kg (13.7–13.9 lb) |
| Enclosure / Mount Material | SGCC steel |
| Supported Rack Depth | 400–1200 mm (15.7–47.2") |
| LCM Display | 1.3" touchscreen |
| ESD Protection | Air: ±16kV, Contact: ±12kV |
| Operating Temp | -5 to 40° C (23 to 104° F) |
| Humidity | 10–90% noncondensing |
| Etherlighting™ | Ethernet ✓ / SFP+ ✓ |
| NDAA Compliant | ✓ |
| Certifications | CE, FCC, IC, Anatel |
| Software | |
| Application Requirements | UniFi Network Version 8.0.24 and later |
