Pro Max 24 POE
A 24-port, Layer 3 Etherlighting™ switch capable of high-power PoE++ output.
Technical
Technical Specifications
Physical Dimensions

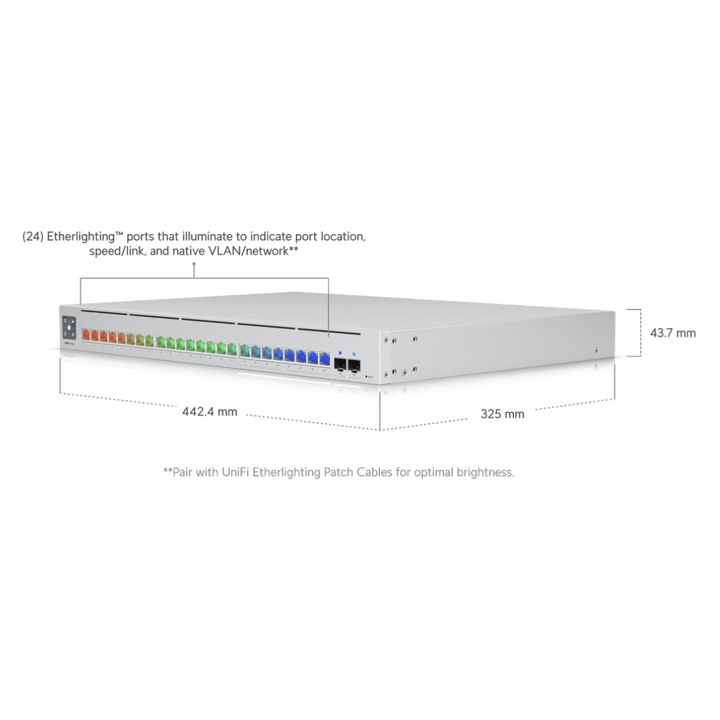

| Dimensions | 442 x 325 x 44 mm (17.4 x 12.8 x 1.7") |
|---|---|

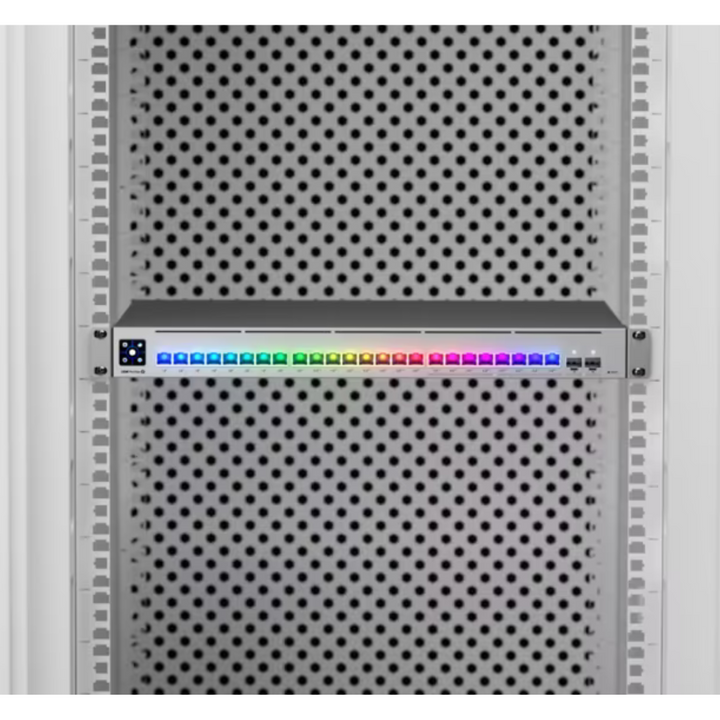

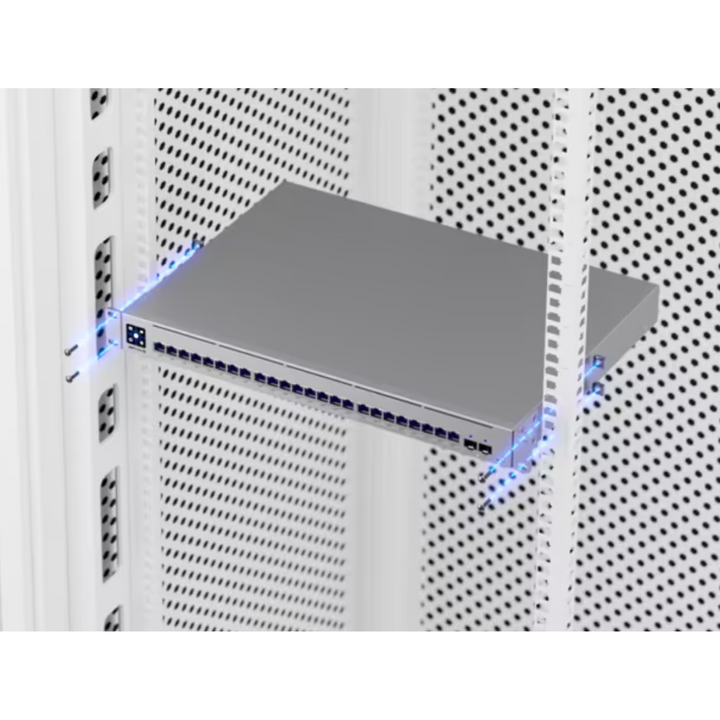

| Form Factor | Rack mount (1U) |
| Weight | 5.1 kg (11.3 lb) without brackets, 5.2 kg (11.5 lb) with brackets |
| Mount Material | SGCC steel |
| Supported Rack Depth | 400–1200 mm (15.7–47.2") |

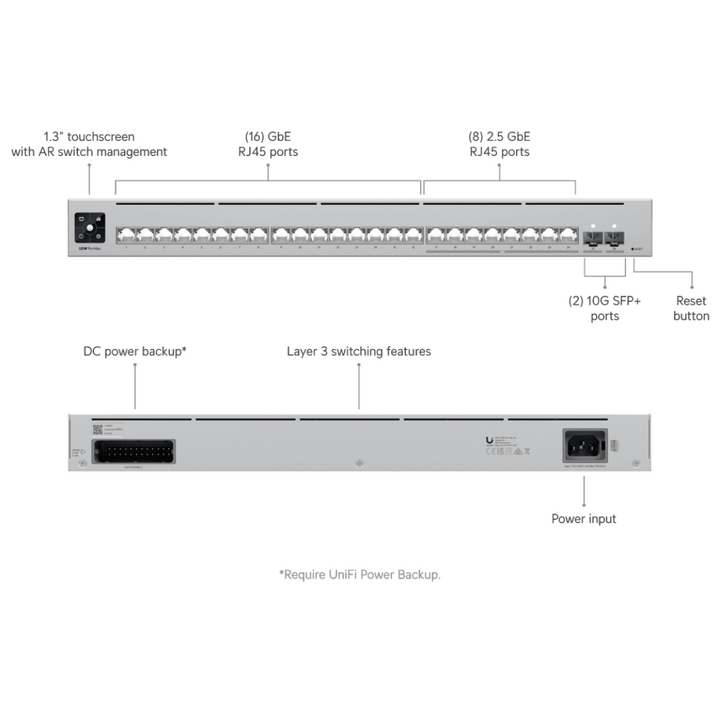

Ports
| 1 GbE RJ45 | 16 (8 PoE+, 8 PoE++) |
|---|---|
| 2.5 GbE RJ45 | 8 (All PoE++) |
| 10G SFP+ | 2 |
| Max PoE Output | Up to PoE++ |
| Total PoE Availability | 400W |
| Redundancy | DC Power Backup |
Performance
| Switching Capacity | 112 Gbps |
|---|---|
| Non-Blocking Throughput | 56 Gbps |
| Forwarding Rate | 83 Mpps |
| Supported VLANs | 1,000 |
| MAC Address Table | 16,000 |
| L3 ARP Table | 6,000 entries |
| Packet Buffer Size | 1.5 MB |
| Access Lists (IPv4) | 128 |
| Access Lists (MAC) | 128 |
Layer 3 Features
| DHCP Server (Local Networks) | ✓ |
| DHCP Relay | ✓ |
| Inter-VLAN Routing | ✓ |
| Static Routing | ✓ |
Layer 2 Features
| LACP Port Aggregation | ✓ |
| STP & RSTP | ✓ |
| QoS (DSCP) | ✓ |
| Pro AV Profiles | ✓ |
| IGMP Snooping | ✓ |
| 802.1X Control | ✓ |
| DHCP Snooping & Guarding | ✓ |
| MAC/IP ACLs & Isolation | ✓ |
| Port Mirroring & Isolation | ✓ |
| Jumbo Frames | ✓ |
| LLDP-MED / Voice VLAN | ✓ |
| Loop Protection / Storm Control | ✓ |
Power & Environmental
| Power Supply | AC/DC internal, 550W |
|---|---|
| Power Input | 100–240V AC, 50/60 Hz |
| Power Consumption | 50W (excluding PoE), 450W (including PoE) |
| Heat Dissipation | 170.6 BTU/hr |
| Ambient Temp | -5 to 40°C (23 to 104°F) |
| Humidity | 10–90% noncondensing |
Other Features
| Etherlighting™ | ✓ (Ethernet & SFP+) |
|---|---|
| LCM Display | 1.3" touchscreen |
| Layer 3 Support | ✓ |
| NDAA Compliant | ✓ |
| Certifications | CE, FCC, IC, Anatel |
| Software Requirement | UniFi Network v8.0.24+ |
