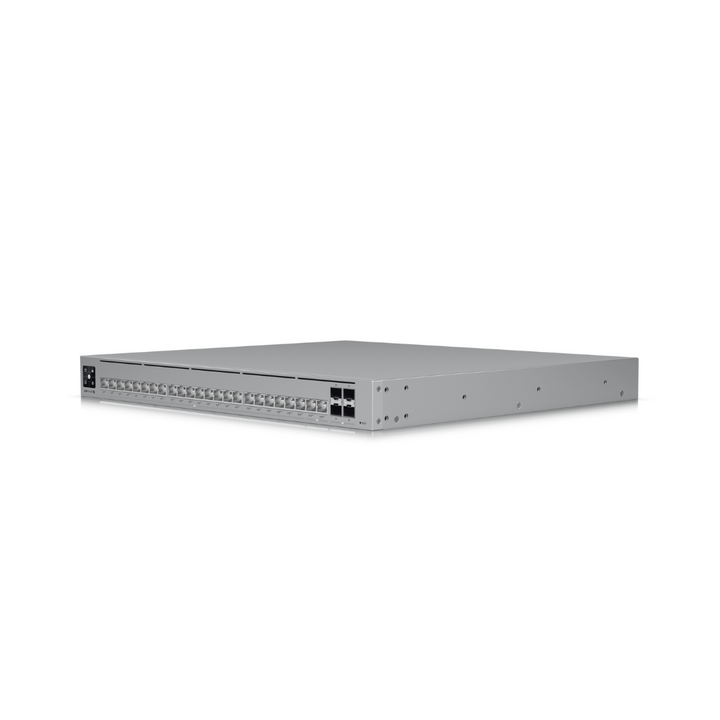

Pro HD 24 PoE
Professional-grade, Layer 3 Etherlighting™ switch with (2) 10 GbE PoE++, (22) 2.5 GbE PoE++, and (4) 10G SFP+ ports.
Technical
| Dimensions | |
|---|---|

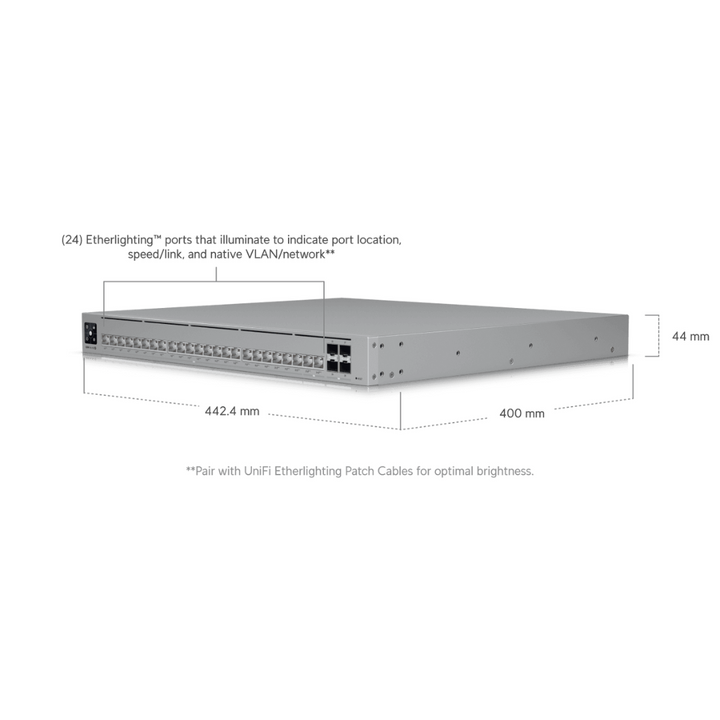

| Size | 442 x 400 x 44 mm (17.4 x 15.7 x 1.7") |
| Form Factor | Rack mount (1U) |
| Weight | 6.2 kg (13.7 lb) without brackets, 6.3 kg (13.9 lb) with brackets |
| Rack Depth Supported | 600 - 1,200 mm (23.6 - 47.2") |

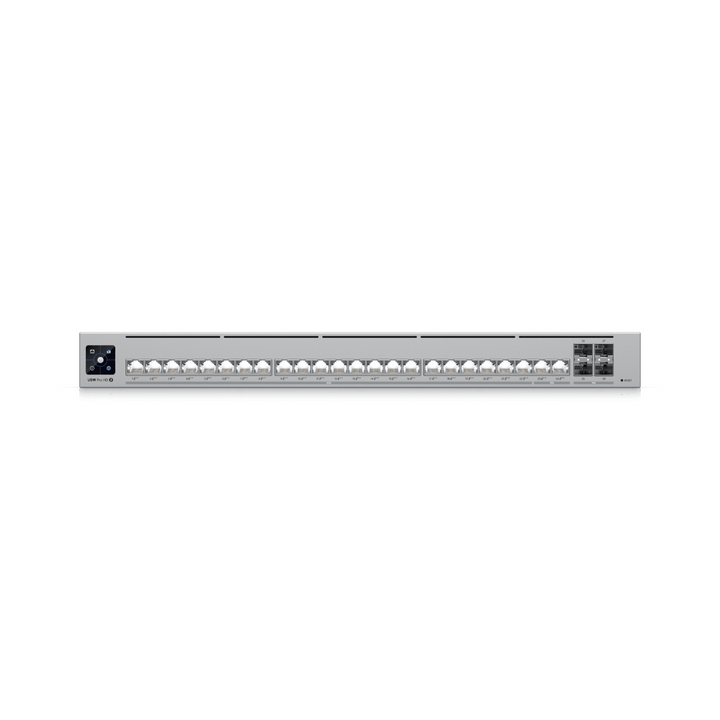

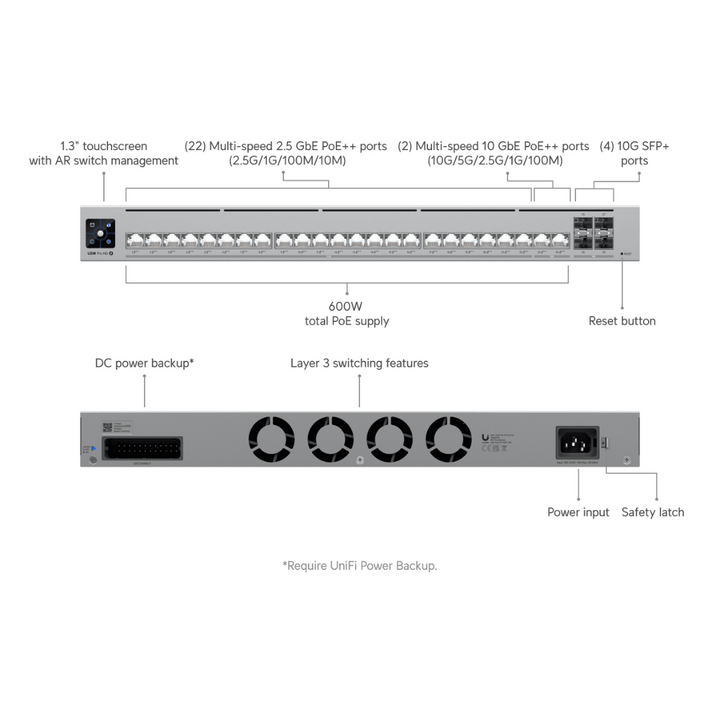

| Port Layout | |
| 2.5 GbE RJ45 | 22 (All PoE++) (2.5G/1G/100M/10M) |
| 10 GbE RJ45 | 2 (All PoE++) (10G/5G/2.5G/1G/100M) |
| 10G SFP+ | 4 (10G/1G) |
| Power & PoE | |
| Max PoE Output | Up to PoE++ |
| Total PoE Availability | 600W |
| PoE Ports | 24 (PoE++) |
| Max PoE Wattage per Port | PoE: 15.4W, PoE+: 30W, PoE++: 64W |
| Max Power Consumption | 60W (Excl. PoE) / 660W (Incl. PoE) |

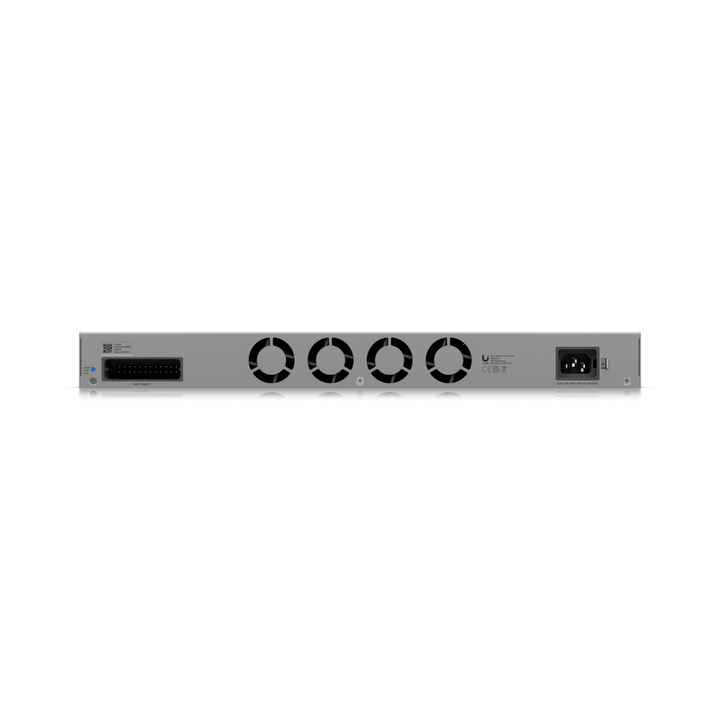

| Power Method | (1) Universal AC 100—240V, 50/60 Hz; (1) USP RPS DC input |
| Power Supply | AC/DC internal, 660W |
| Voltage Range | 100—240V AC |
| Redundancy | DC Power Backup |
| Performance | |
| Switching Capacity | 230 Gbps |
| Total Non-Blocking Throughput | 115 Gbps |
| Forwarding Rate | 171 Mpps |
| Supported VLANs | 1,000 |
| MAC Address Table | 32,000 |
| ARP Entries | 12,000 |
| IPv4 Routes | 12,000 |
| Packet Buffer | 2 MB |
| ACLs | IPv4: 128, MAC: 128 |
| Layer 3 Features | |
| DHCP Server (Local Networks) | ✓ |
| DHCP Relay | ✓ |
| Inter-VLAN Routing | ✓ |
| Static Routing | ✓ |
| Layer 2 Features | |
| LACP Port Aggregation | ✓ |
| STP & RSTP | ✓ |
| QoS (DSCP) | ✓ |
| Pro AV Profiles | ✓ (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron) |
| Advanced IGMP Config | ✓ (Querier, Fast Leave, Router Port) |
| IGMP Snooping | ✓ |
| 802.1X Control | ✓ |
| MAC/IP ACLs & Isolation | ✓ |
| DHCP Snooping & Guarding | ✓ |
| Rate Limiting (Egress, Multicast, Broadcast) | ✓ |
| Flow & Storm Control | ✓ |
| MAC Address Blocking | ✓ |
| Port Isolation, Restriction & Mirroring | ✓ |
| Jumbo Frames | ✓ |
| LLDP-MED | ✓ |
| Voice VLAN | ✓ |
| Loop Protection | ✓ |
| Hardware | |
| Enclosure Material | SGCC steel |
| Mount Material | SGCC steel |
| LCM Display | 1.3" touchscreen |
| Ambient Operating Temp | -5 to 40°C (23 to 104°F) |
| Humidity | 10–90% noncondensing |

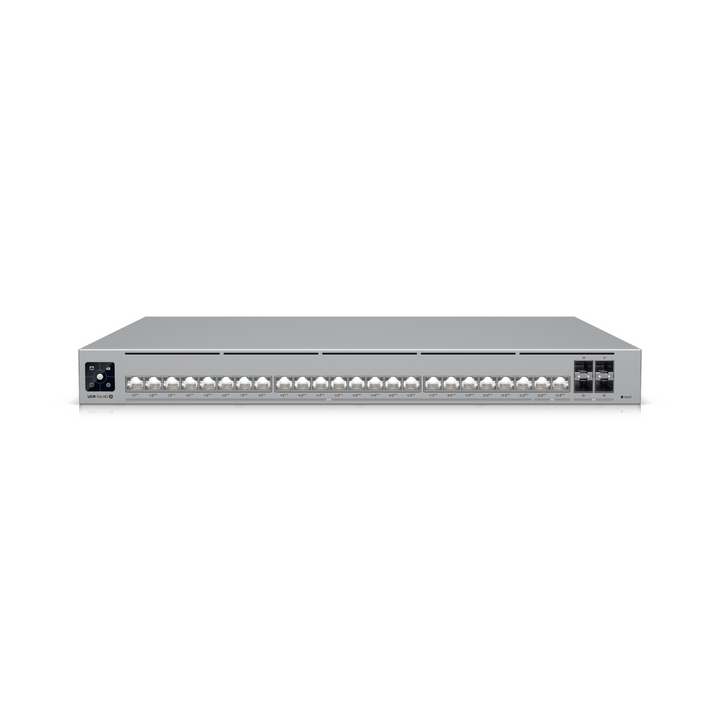

| Etherlighting™ | Ethernet ✓ / SFP+ ✓ |
| NDAA Compliant | ✓ |
| Certifications | CE, FCC, IC |
| Software | |
| App Requirements | UniFi Network, version 9.0.114 and later |
