Technical
| Dimensions | |
|---|---|

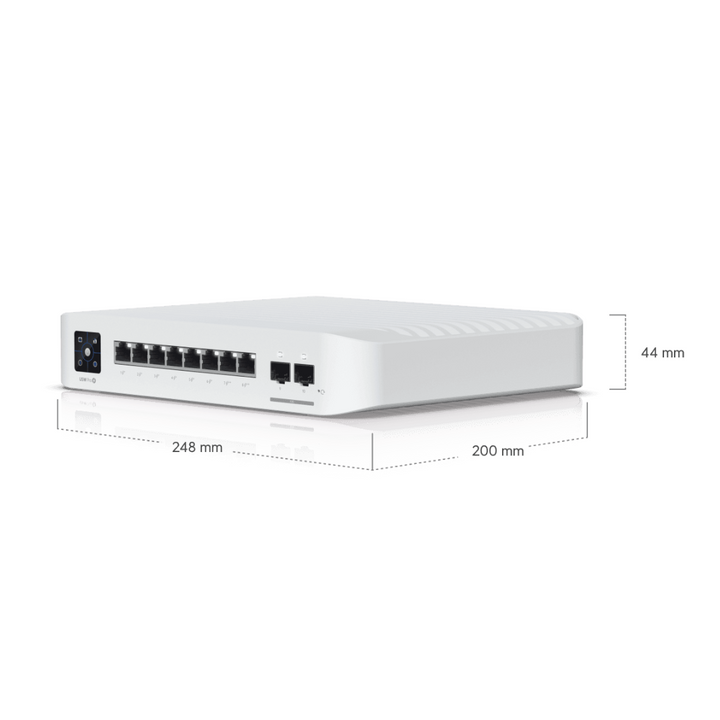

| Enclosure | 200 x 248 x 44 mm (7.9 x 9.8 x 1.7") |

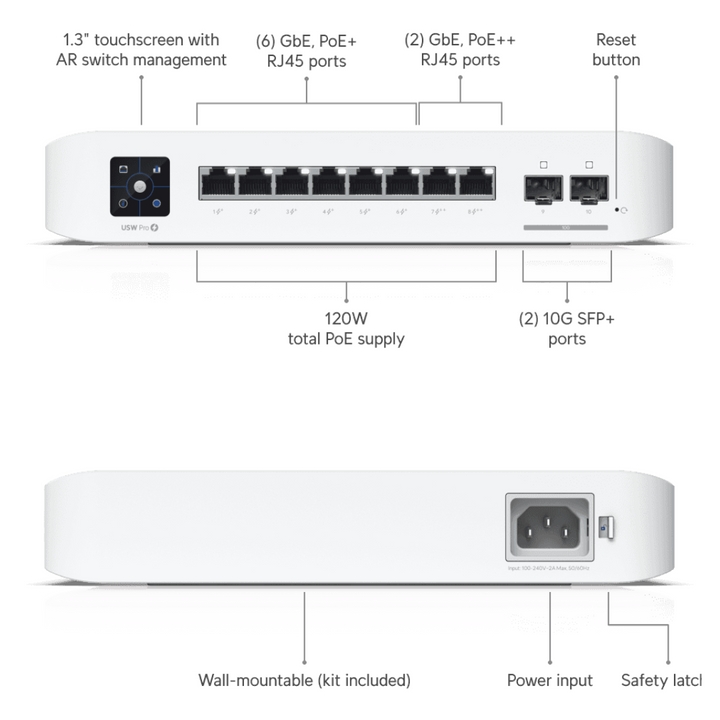

| Port Layout | |
| 1 GbE RJ45 | 8 (6 PoE+; 2 PoE++) (1G/100M/10M) |
| 10G SFP+ | 2 (10G/1G) |
| Power & PoE | |
| Max. PoE Output | Up to PoE++ |
| Total PoE Availability | 120W |
| PoE Ports | PoE+: 6 | PoE++: 2 |
| Max. PoE Wattage per Port | PoE: 15.4W | PoE+: 32W | PoE++: 64W |
| Max. Power Consumption | 30W (Excluding PoE) | 150W (Including PoE) |
| Power Method | Universal input, 100–240V AC, 50/60Hz |
| Power Supply | AC/DC, internal, 150W |
| Supported Voltage Range | 100—240V AC |
| Performance | |
| Switching Capacity | 56 Gbps |
| Total Non-Blocking Throughput | 28 Gbps |
| Forwarding Rate | 42 Mpps |
| Supported VLANs | 1,000 |
| MAC Address Table Size | 16,000 |
| L3 Table Size | ARP Entries: 6,000 | IPv4 Routes: 512 |
| Packet Buffer Size | 1.5 MB |
| Access Lists | IPv4: 128 | MAC: 128 |
| Layer 3 Features | |
| DHCP Server (Local Networks) | ✓ |
| DHCP Relay | ✓ |
| Inter-VLAN Routing (Local Networks) | ✓ |
| Static Routing (Local Networks) | ✓ |
| Layer 2 Features | |
| LACP Port Aggregation | ✓ |
| STP & RSTP | ✓ |
| IGMP Snooping / Advanced IGMP | ✓ |
| 802.1X Control | ✓ |
| MAC/IP-Based ACLs & Device Isolation | ✓ |
| DHCP Snooping & Guarding | ✓ |
| Egress Rate Limit / Flow & Storm Control | ✓ |
| Multicast & Broadcast Rate Limiting | ✓ |
| MAC Address Blocking | ✓ |
| Port Isolation / Mirroring | ✓ |
| Jumbo Frames / LLDP-MED / Voice VLAN | ✓ |
| Loop Protection | ✓ |
| Hardware & Management | |
| Form Factor | Compact desktop, wall |
| Management | Ethernet, AR |
| LCM Display | 1.3" touchscreen |
| Weight | 2.1 kg (4.6 lb) |
| Enclosure / Mount Material | Polycarbonate, metal / Polycarbonate |
| Supported Rack Depth | 400~1200 mm (15.7–47.2") |
| Environmental | |
| Operating Temperature | -5 to 45° C (23 to 113° F) |
| Operating Humidity | 10 to 90% noncondensing |
| Compliance & Software | |
| NDAA Compliant | ✓ |
| Certifications | CE, FCC, IC, Anatel |
| Application Requirements | UniFi Network Version 7.5.176 and later |
