Pro 48 PoE
A 48-port, Layer 3 switch capable of high-power PoE++ output.
Technical
| Hardware Specifications | |
|---|---|

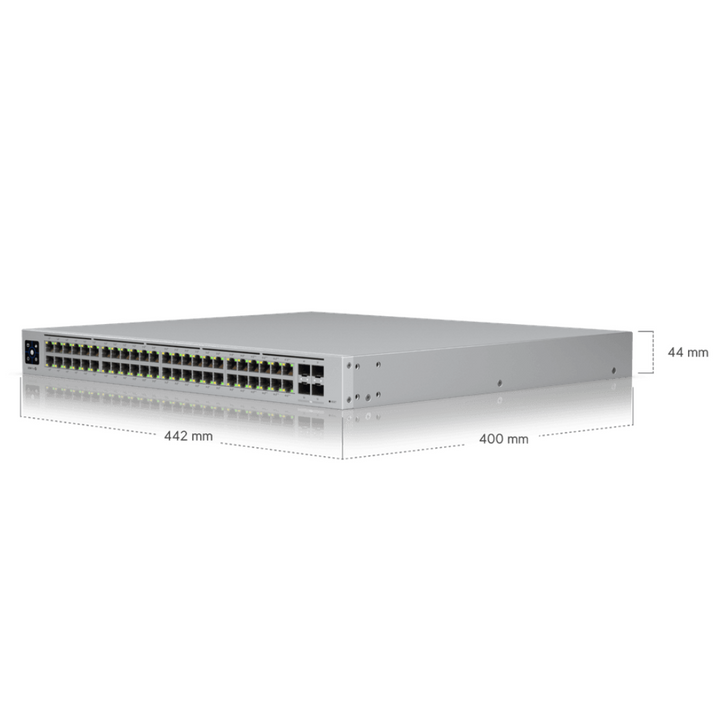

| Dimensions | 442 x 400 x 44 mm (17.4 x 15.7 x 1.7") |

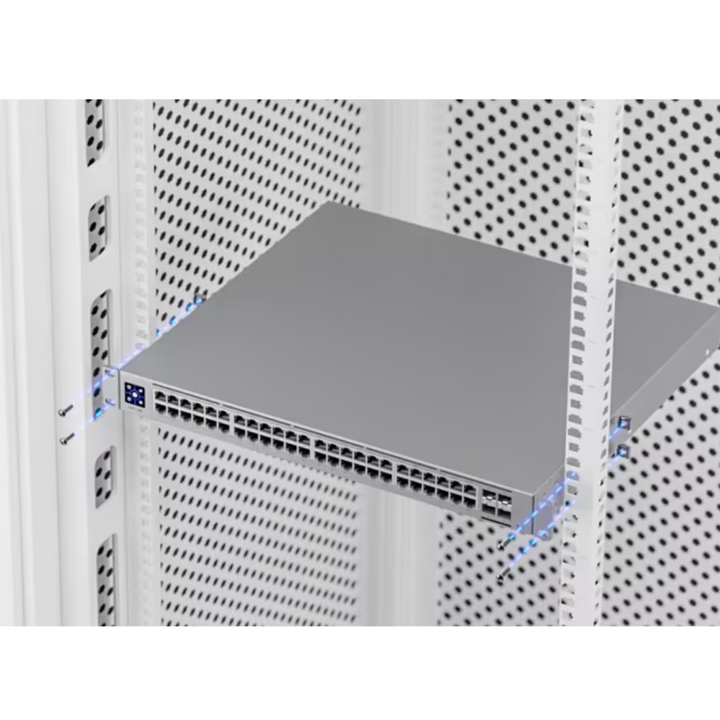

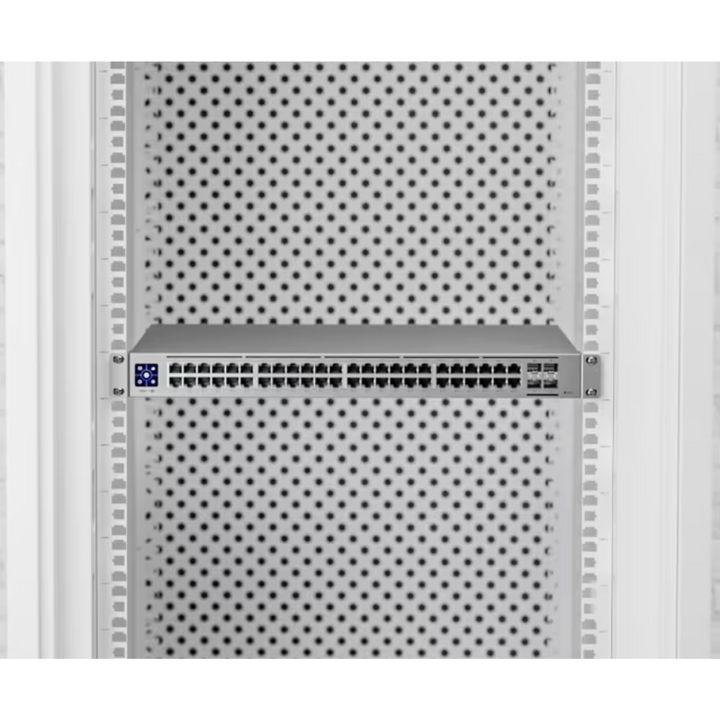

| Form Factor | Rack mount (1U) |

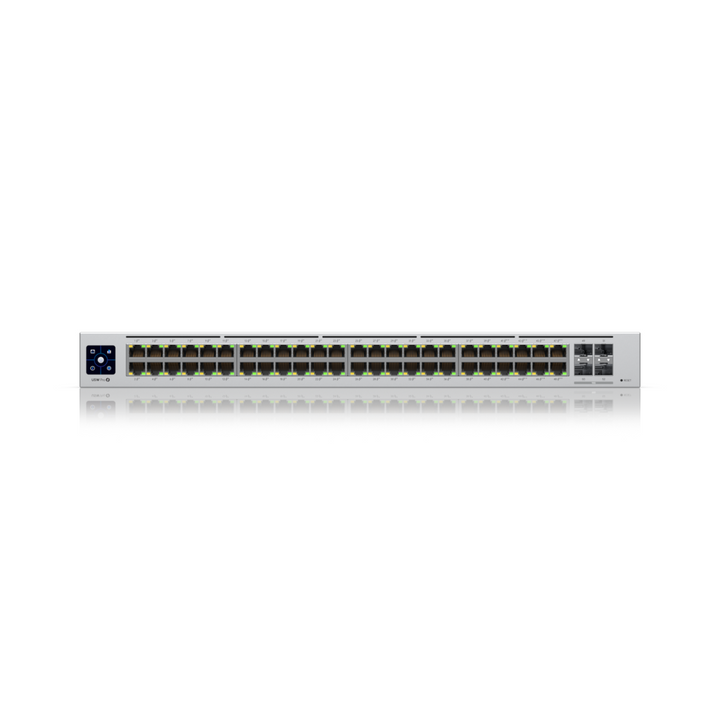

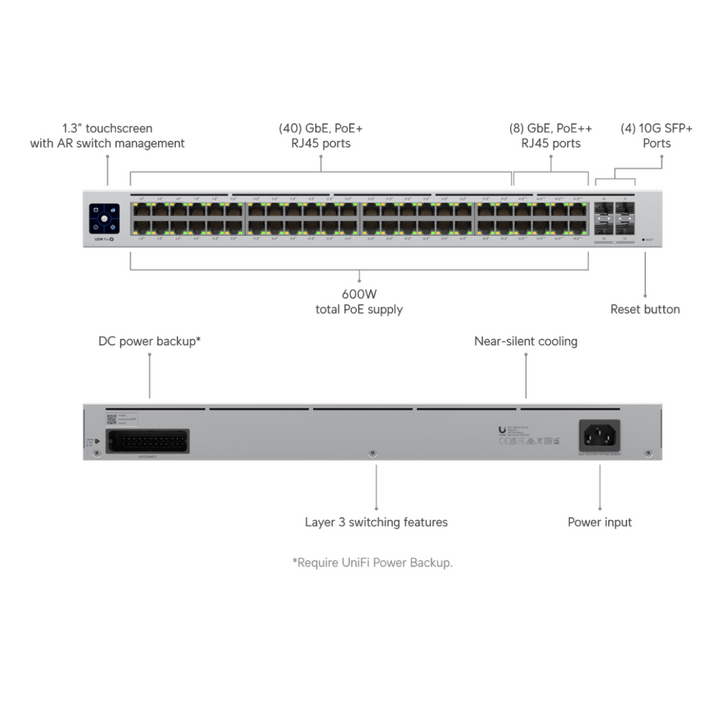

| Port Layout | 1 GbE RJ45: 48 (40 PoE+, 8 PoE++), 10G SFP+: 4 |
| Max. PoE Output | Up to PoE++ |
| Total PoE Availability | 600W |
| Redundancy | DC Power Backup |
| Layer 3 Support | ✓ |
| PoE+ Ports | 40 |
| PoE++ Ports | 8 |
| Max PoE Wattage per Port | PoE: 15.4W, PoE+: 32W, PoE++: 64W |
| Max Power Consumption | 60W (Excl. PoE), 660W (Incl. PoE) |

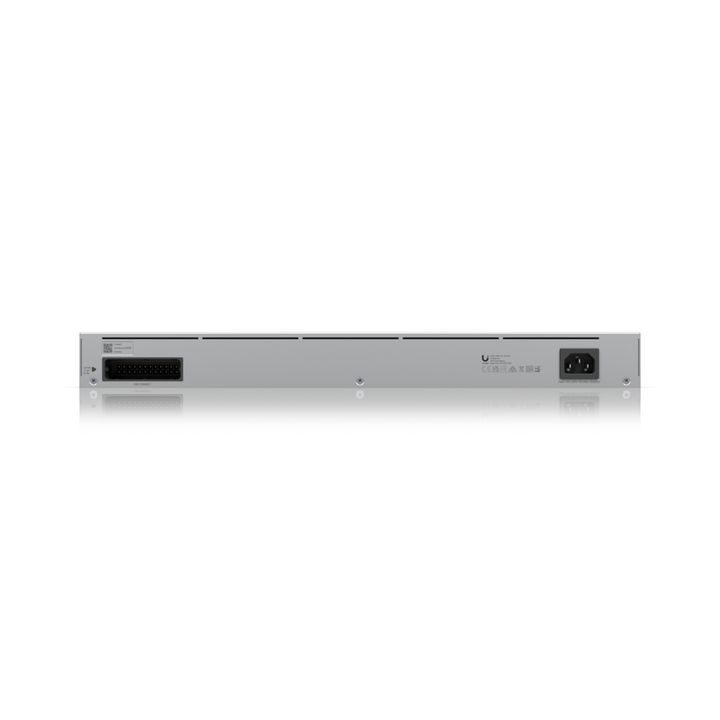

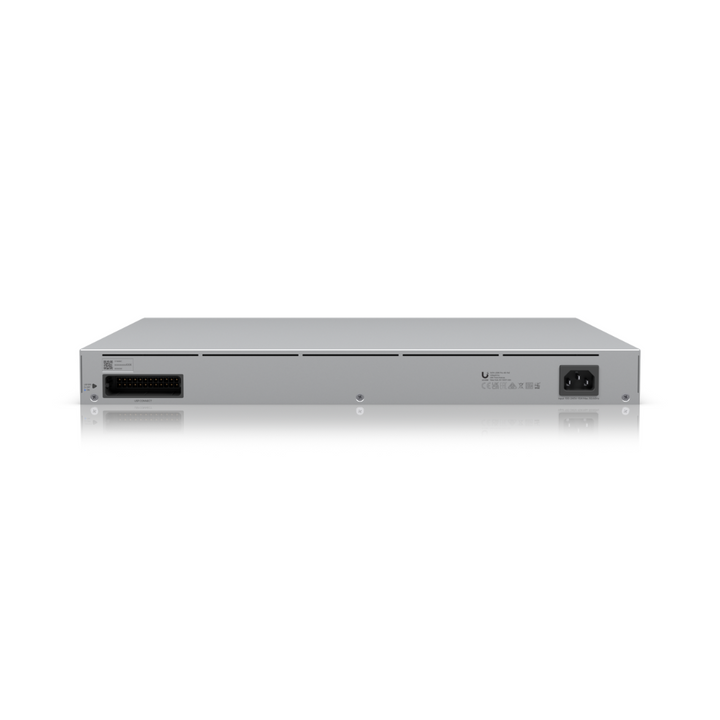

| Power Input | AC 100–240V, 50/60 Hz | USP RPS DC Input |
| Power Supply | AC/DC Internal, 660W |
| Enclosure Material | SGCC Steel |
| Mount Material | SGCC Steel |
| Weight | 6.2 kg (13.7 lb) without brackets, 6.3 kg (13.9 lb) with brackets |
| Supported Rack Depth | 400–1200 mm (15.7–47.2") |
| LCM Display | 1.3" Touchscreen |
| Certifications | CE, FCC, IC, Anatel |
| NDAA Compliant | ✓ |
| Performance | |
| Switching Capacity | 176 Gbps |
| Total Non-Blocking Throughput | 88 Gbps |
| Forwarding Rate | 131 Mpps |
| Supported VLANs | 1,000 |
| MAC Address Table Size | 16,000 |
| ARP Entries | 4,000 |
| IPv4 Routes | 1,000 |
| Packet Buffer Size | 4 MB |
| Access Lists (IPv4 / MAC) | 128 / 128 |
| Layer 3 Features | |
| DHCP Server | ✓ |
| DHCP Relay | ✓ |
| Inter-VLAN Routing | ✓ |
| Static Routing | ✓ |
| Layer 2 Features | |
| LACP Port Aggregation | ✓ |
| STP & RSTP | ✓ |
| QoS (DSCP) | ✓ |
| Pro AV Profiles | ✓ (Play, Dante, Q-SYS, etc.) |
| IGMP (Adv. Config + Snooping) | ✓ |
| 802.1X, DHCP Snooping, Guarding | ✓ |
| Egress Rate / Flow / Storm Control | ✓ |
| Rate Limiting (Multicast/Broadcast) | ✓ |
| MAC / IP ACLs & Isolation | ✓ |
| MAC Port Restriction / Blocking | ✓ |
| Port Isolation & Mirroring | ✓ |
| Jumbo Frames, LLDP-MED, Voice VLAN | ✓ |
| Loop Protection | ✓ |
| Environmental | |
| Heat Dissipation | 204.72 BTU/hr |
| Operating Temperature | -5 to 40°C (23 to 104°F) |
| Operating Humidity | 10% – 90% (non-condensing) |
| ESD/EMP Protection | Air: ±16kV, Contact: ±12kV |
| Software | |
| Management | Ethernet AR |
| Application Requirements | UniFi Network Version 5.10.5 and later |
