Pro 24 PoE
A 24-port, Layer 3 switch capable of high-power PoE++ output.
Technical
| Hardware Specifications | |
|---|---|

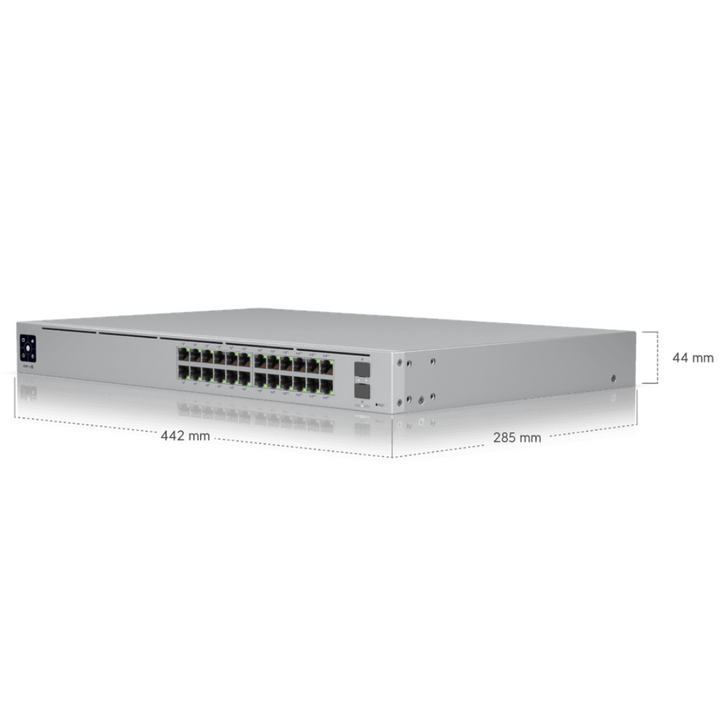

| Dimensions | 442 x 285 x 44 mm (17.4 x 11.2 x 1.7") |

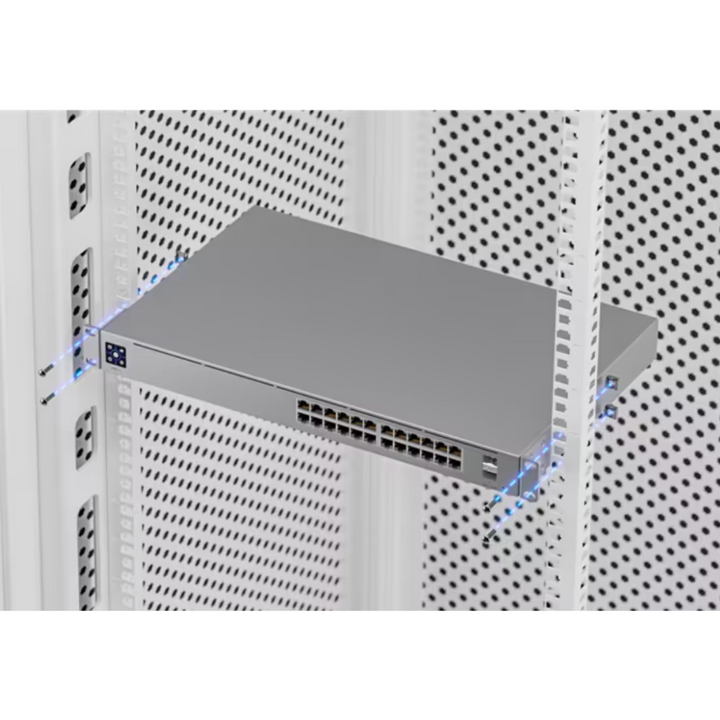

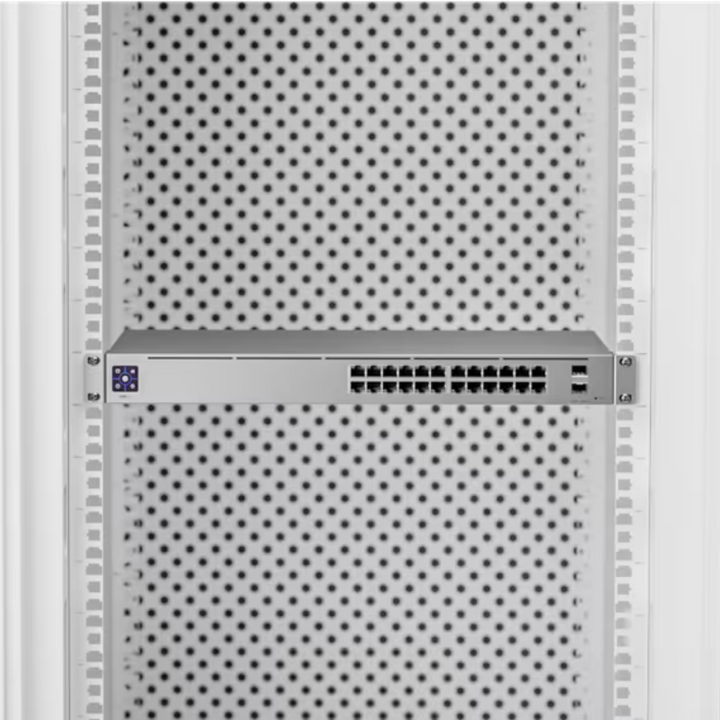

| Form Factor | Rack mount (1U) |

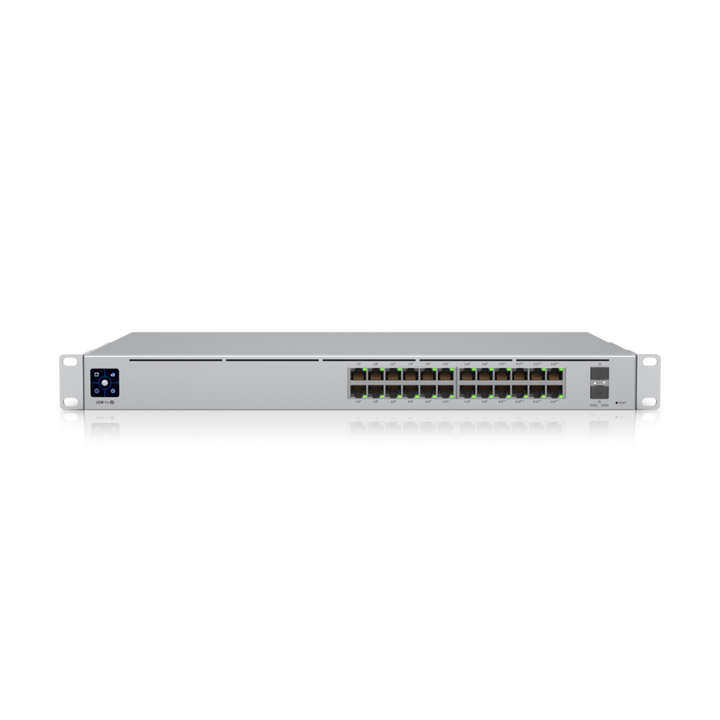

| Port Layout | 1 GbE RJ45: 24 (16 PoE+, 8 PoE++), 10G SFP+: 2 |
| Max. PoE Output | Up to PoE++ |
| Total PoE Availability | 400W |
| Redundancy | DC Power Backup |
| Layer 3 Support | ✓ |
| PoE+ Ports | 16 |
| PoE++ Ports | 8 |
| Max PoE per Port | PoE: 15.4W, PoE+: 30W, PoE++: 64W |
| Max Power Consumption | 50W (excluding PoE), 450W (including PoE) |

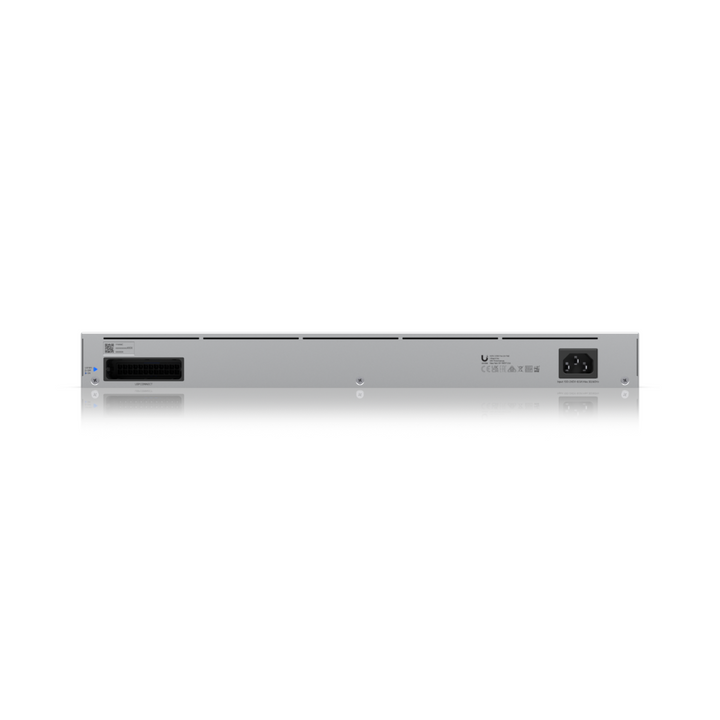

| Power Input | AC 100–240V, 50/60 Hz | USP RPS DC Input |
| Power Supply | AC/DC Internal, 450W |
| Enclosure Material | SGCC Steel |
| Weight | 4.3 kg (9.5 lb) without brackets, 4.4 kg (9.7 lb) with brackets |
| Supported Rack Depth | 400–1200 mm (15.7–47.2") |
| LCM Display | 1.3" Touchscreen |
| Certifications | CE, FCC, IC, Anatel |
| NDAA Compliant | ✓ |
| Performance | |
| Switching Capacity | 88 Gbps |
| Total Non-Blocking Throughput | 44 Gbps |
| Forwarding Rate | 65 Mpps |
| VLANs Supported | 1,000 |
| MAC Address Table Size | 16,000 |
| ARP Entries | 768 |
| IPv4 Routes | 64 |
| Packet Buffer Size | 2 MB |
| Access Lists (IPv4/MAC) | 128 / 128 |
| Layer 3 Features | |
| DHCP Server | ✓ |
| DHCP Relay | ✓ |
| Inter-VLAN Routing | ✓ |
| Static Routing | ✓ |
| Layer 2 Features | |
| LACP Port Aggregation | ✓ |
| STP & RSTP | ✓ |
| QoS (DSCP) | ✓ |
| Pro AV Profiles | ✓ (Play, Dante, Q-SYS, etc.) |
| IGMP Config & Snooping | ✓ |
| 802.1X, DHCP Snooping, Guarding | ✓ |
| Egress Rate Limit | ✓ |
| Flow Control, Storm Control | ✓ |
| Multicast/Broadcast Rate Limiting | ✓ |
| MAC/IP ACLs & Isolation | ✓ |
| Port Mirroring & Isolation | ✓ |
| Jumbo Frames, LLDP-MED, Voice VLAN | ✓ |
| Loop Protection | ✓ |
| Environmental | |
| Heat Dissipation | 170.6 BTU/hr |
| Operating Temp | -5 to 40°C (23 to 104°F) |
| Operating Humidity | 10% – 90% (non-condensing) |
| ESD/EMP Protection | Air: ±16kV, Contact: ±12kV |
| Software | |
| Management | Ethernet AR |
| Application Requirements | UniFi Network 5.10.5 or later |
