Intercom Viewer
Display that works with Intercom and Reader Pro for visitor screening and remote access control.
Technical
| Specification | Details |
|---|---|
| Dimensions | 135 x 185 x 32 mm (5.3 x 7.3 x 1.3") |
| Mobile Unlock | Yes |
| NDAA Compliant | Yes |
| UL 294 Level |
Destructive attack: Level I Line security: Level I Endurance: Level I Standby power: Level I |
| Weight | 168 g (5.9 oz) |
| Enclosure Material | Glass, polycarbonate |
| Mount Material | Aluminum alloy |
| Mounting | Wall (Included), Gang box mount (Optional) |
| Indoor / Outdoor | Indoor only |
| Operating Temperature | 0 to 40° C (32 to 104° F) |
| Operating Humidity | 5 to 95% noncondensing |

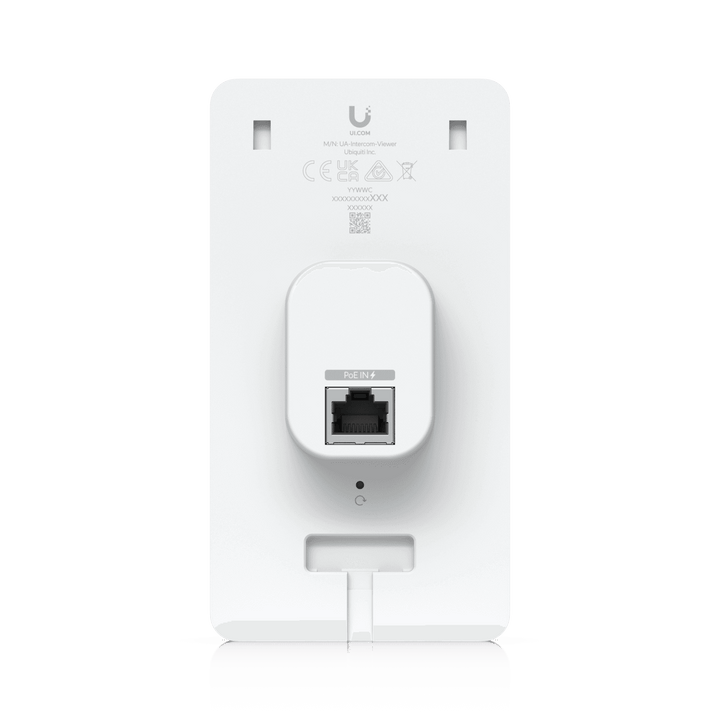

| Networking Interface | (1) 10/100 Mbps RJ45 port |
| Connectivity | Ethernet |
| Power Method | PoE UL 294 Power-limited Class 2 PSU UL 60950-1/62368-1 LPS/PS2 PSU |
| Max Power Consumption | 5W |
| Supported Voltage | 44–57V DC |
| Display | 127 mm (5") diagonal |
| Touch Screen | Capacitive multi-touch |
| Display Luminance | 300 nits (Typical) |
| Orientation | Portrait |
| Resolution | 1280 x 720 px |
| Microphone | Yes |
| Speaker | Yes |
| Buttons | (1) Factory-reset |
| PoE Cabling Requirements |
Cat 5e minimum. Conductor gauge: 26 AWG for patch cords, 24 AWG for horizontal/riser cable. |
| UL 294 Statement |
IEEE 802.3 compliance not verified under UL 294. Complies with NEC, ANSI/NFPA 70, Article 725.121. |
| CAN/ULC-60839-11-1 Grade | Grade I |
| Certifications | CE, FCC, IC, UL 294, CAN/ULC-60839-11-1 |
| Document Reference | UA-Intercom-Viewer, V01 |
| Management Application | Access |
| Software Information | Software version can be checked at https://unifi.ui.com |
