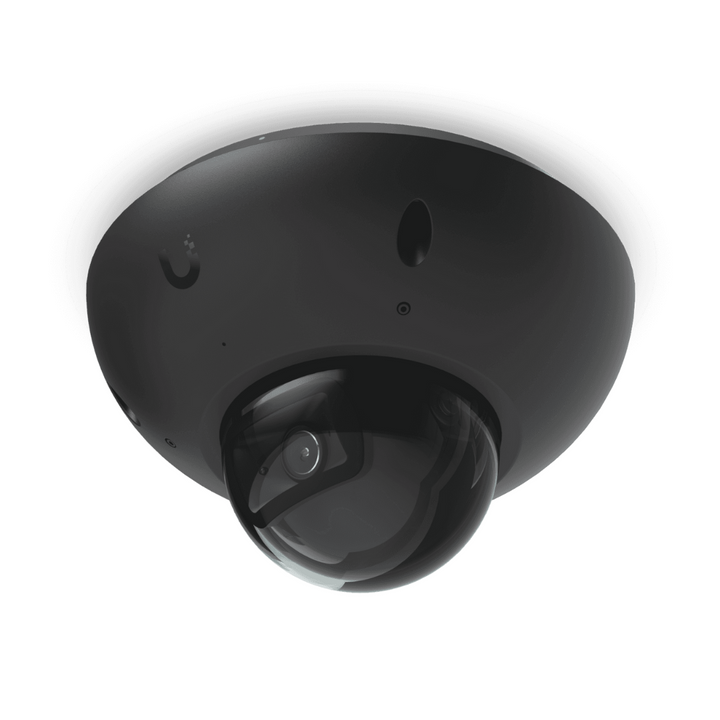

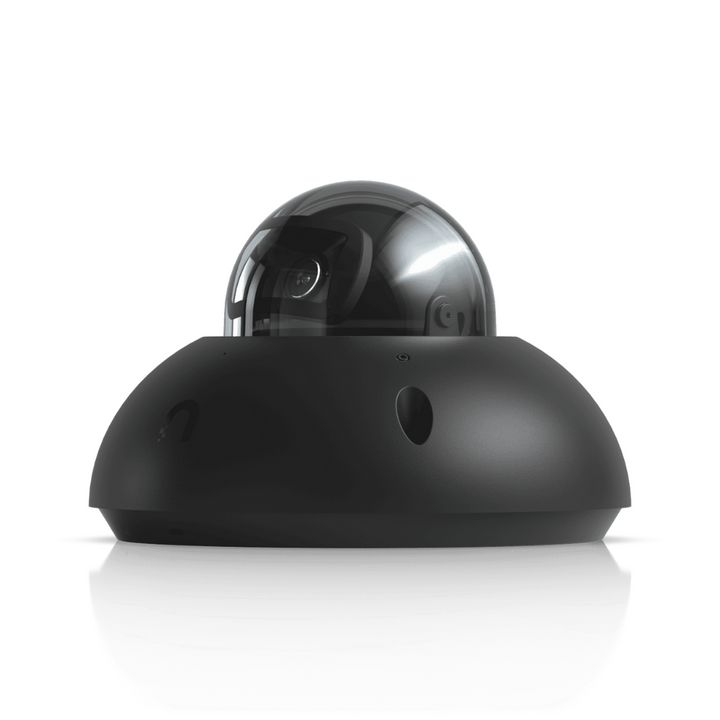

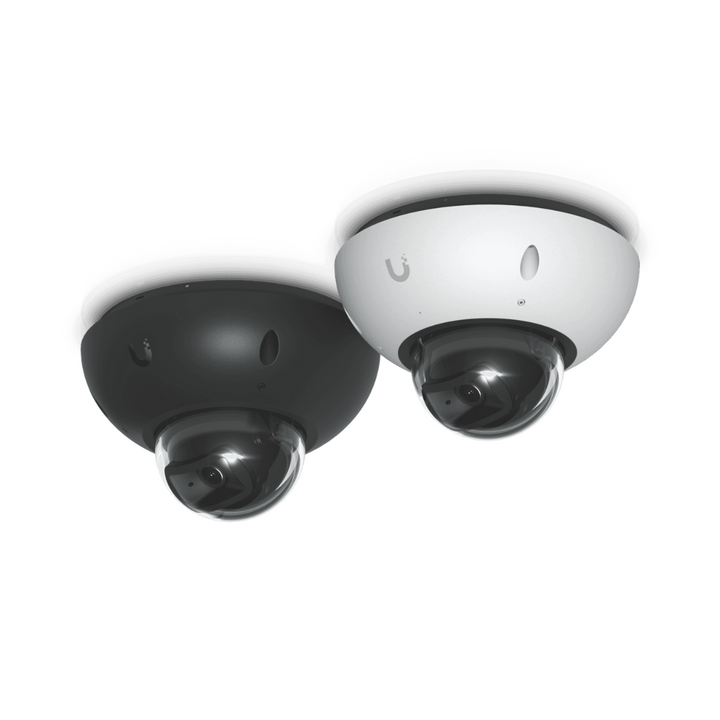

G6 Dome
All-weather, vandal-proof 4K PoE camera with a 1/1.8" 8MP image sensor, Multi-TOPS AI Engine, and long-range IR night vision ideal for discreet installations in high-traffic areas.
Technical
| General | |
|---|---|

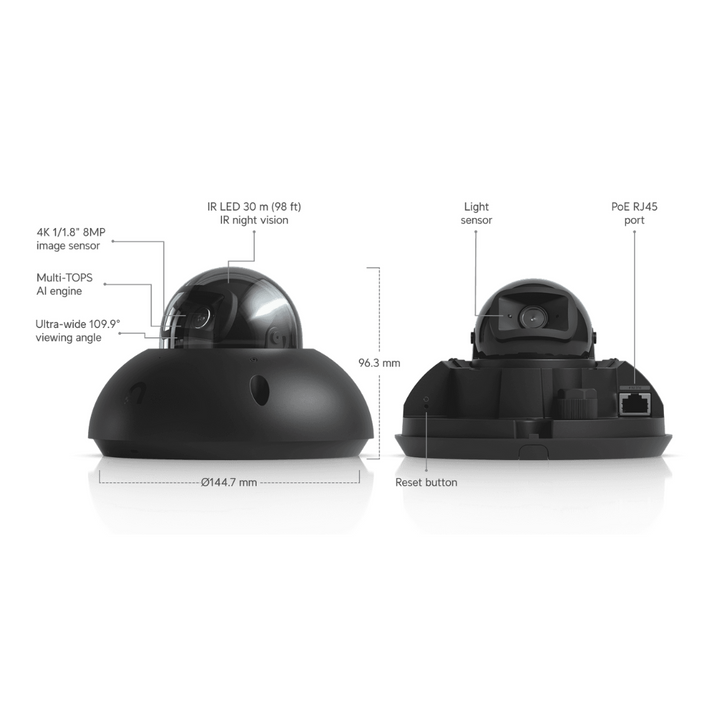

| Dimensions | Ø144.7 x 96.3 mm (Ø5.7 x 3.8") |
| IR Night Vision | 30 m (98 ft) |
| Face Recognition | ✓ |
| License Plate Recognition | ✓ |
| Smart Detections | People, Vehicles, Animals |
| Resolution | 4K |
| Networking Interface | 10/100 MbE RJ45 port |
| Field of View | H: 109.9°, V: 56.7°, D: 134.1° |
| Audio | Microphone |

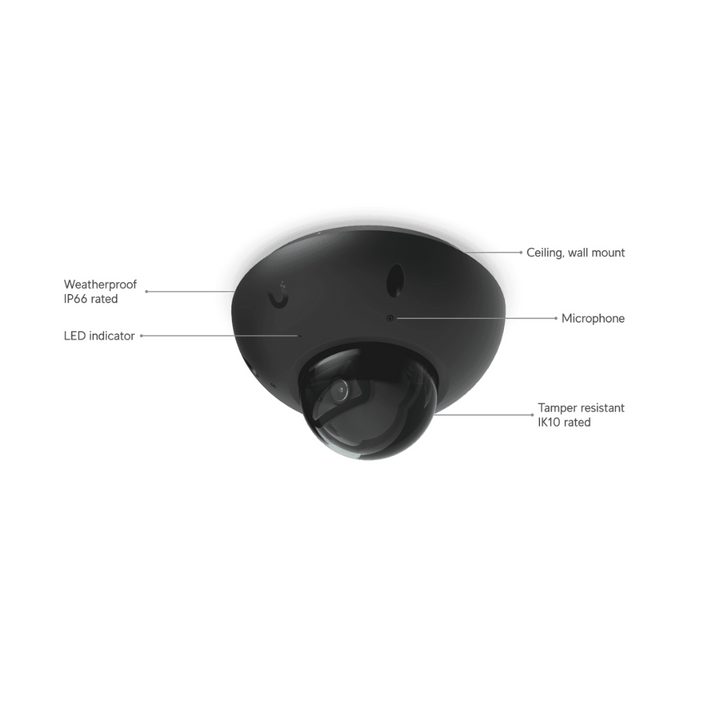

| Weatherproofing | IP66 |
| Tamper Resistance | IK10 |
| Mounting |
Ceiling, Wall mount (Included) Gang Box Mounting Plate, Camera Dual Mount, Flush Mount, Weather Shield (Optional) |
| UniFi Application Suite | Protect ✓ |
| Performance | |
| Video | Image Settings: Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay, HDR |
| Max. Frame Rate | 30 FPS |
| Resolution | 8MP 3840 x 2160 (16:9) |
| Optics |
Sensor: 1/1.8" 8MP Lens: Fixed focal length |
| Night Mode | Built-in IR LED illumination and IR cut filter |
| Hardware | |
| Max. Power Consumption | 9.25W |
| Supported Voltage Range | 37—57V DC |
| Power Method | PoE |
| Processor | Quad-core Arm® Cortex®-A53 based chip |
| Weight | 820 g (1.8 lb) |
| Enclosure Material | Aluminum alloy |
| Mount Material | Polycarbonate |
| Button | (1) Factory-reset |
| Operating Temperature | -20 to 50º C (-4 to 122º F) |
| Operating Humidity | 0 to 90% noncondensing |
| NDAA Compliant | ✓ |
| Certifications | CE, FCC, IC |
