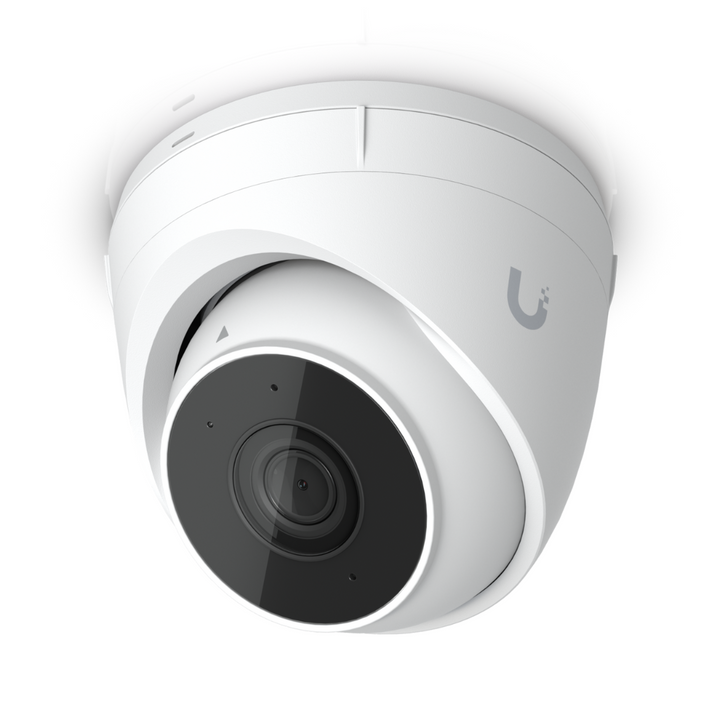

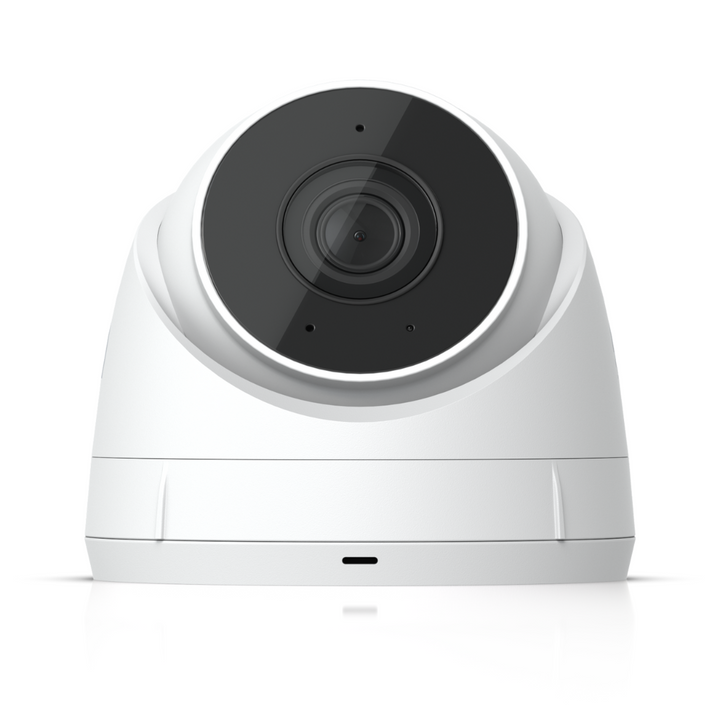

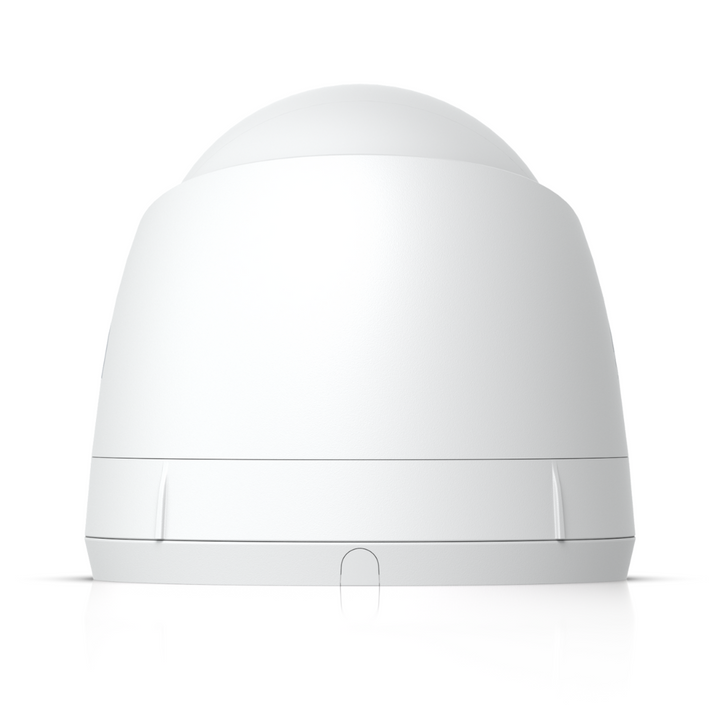

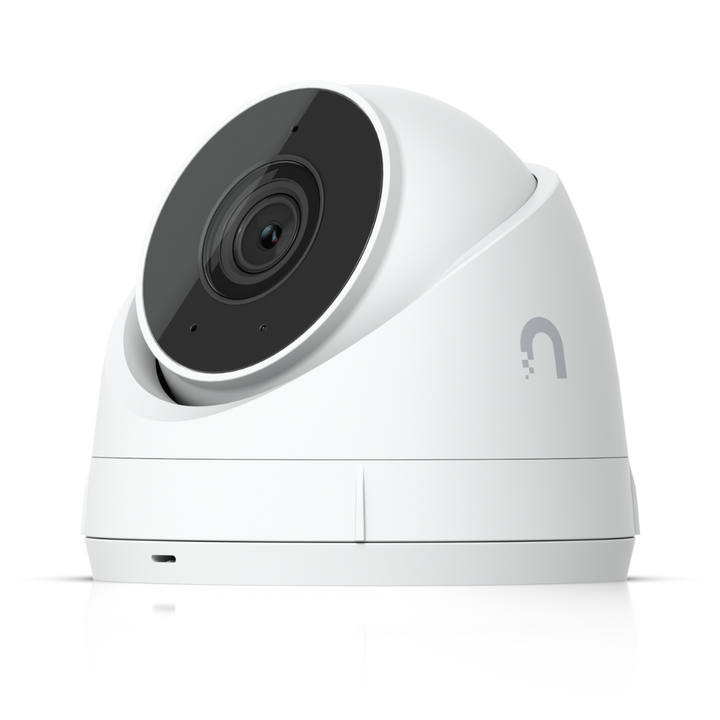

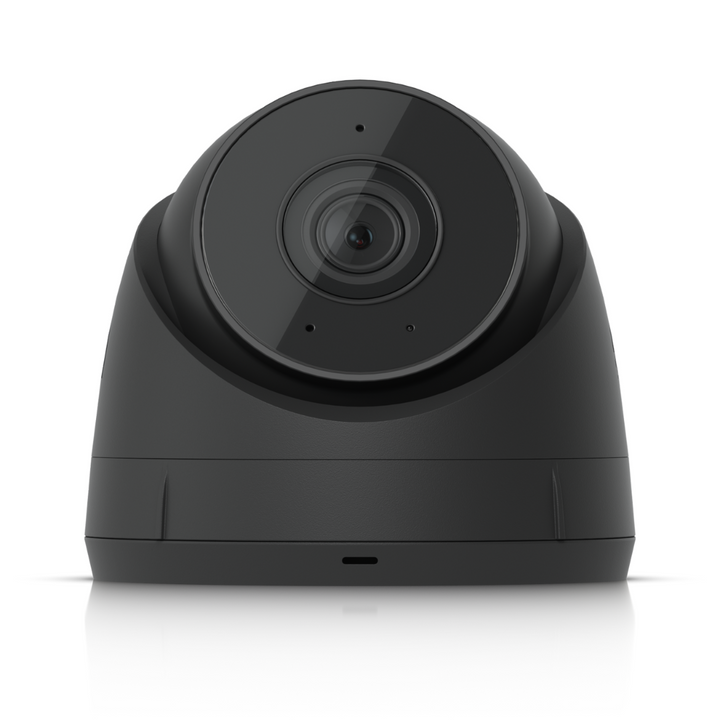

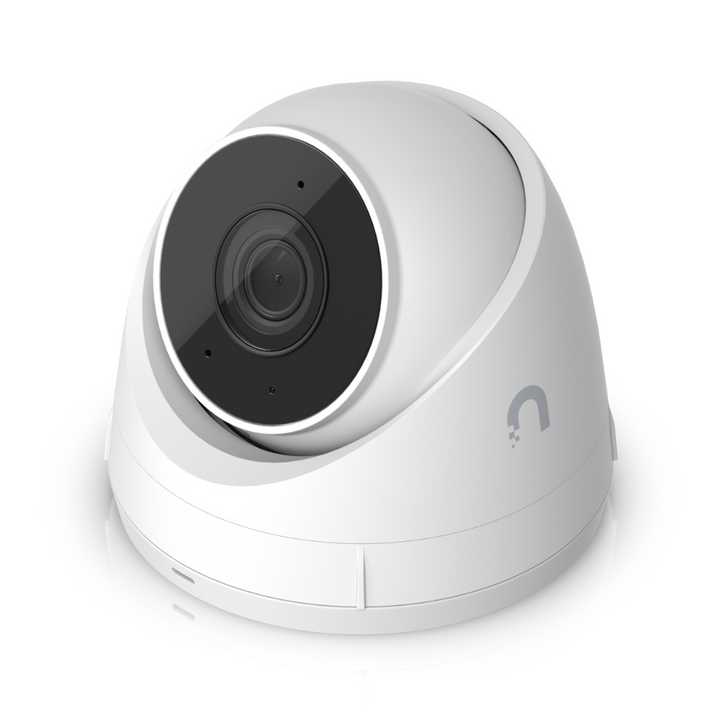

G5 Turret Ultra
Ultra-compact, tamper-resistant, and weatherproof 2K HD PoE camera with long-range night vision.
Technical
| General Specifications | |
|---|---|

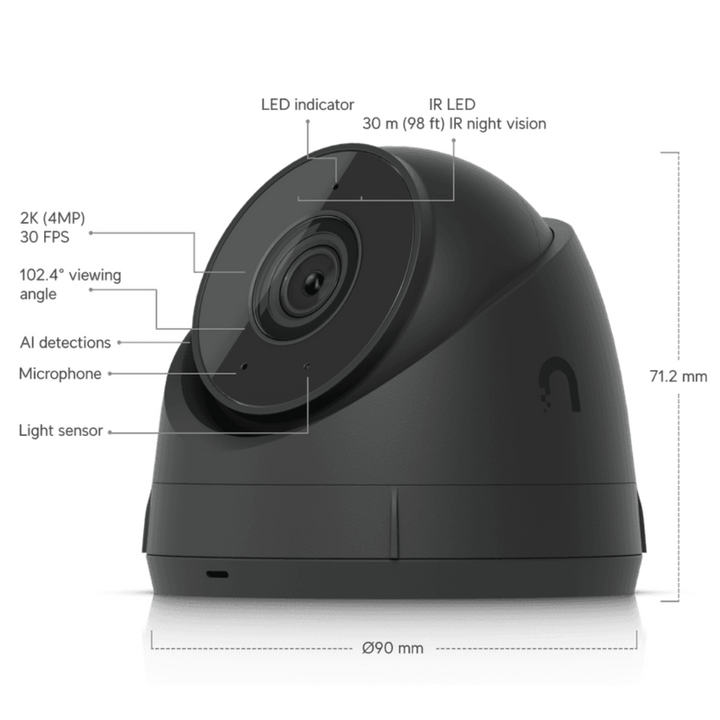

| Dimensions | Ø90 x 71.2 mm (Ø3.5 x 2.8") |
| Weight | 330 g (11.6 oz) |
| Mounting Options | Wall, Ceiling (Included) Junction Box, Arm Mount (Optional) |
| Enclosure Material | Aluminum Alloy, UV-Stabilized Polycarbonate |

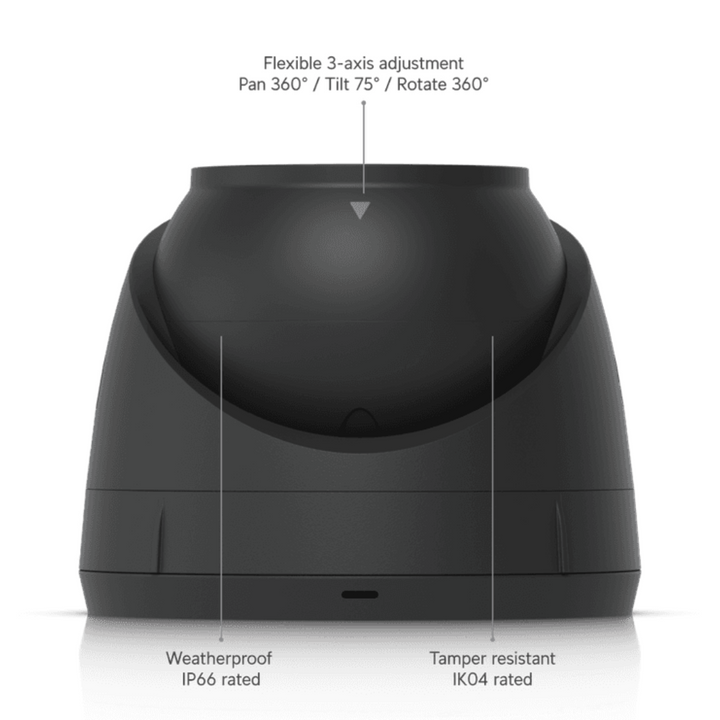

| Tamper Resistance | IK04 |
| Weatherproofing | IP66 |
| NDAA Compliant | ✓ |
| Certifications | CE, FCC, IC |
| Camera Performance | |
| Resolution | 2K (4MP) – 2688 x 1512 (16:9) |
| Sensor | 1/2.4" CMOS |
| Field of View | H: 102.4°, V: 54.9°, D: 120.6° |
| Frame Rate | 30 FPS |
| Lens Type | Fixed Focal Length |
| Night Vision | 30 m (98 ft), IR LED with IR Cut Filter |
| Smart Detections | ✓ (People, Vehicles, Animals) |
| Audio & Networking | |
| Microphone | ✓ |
| Networking Interface | 10/100 MbE RJ45 Port |

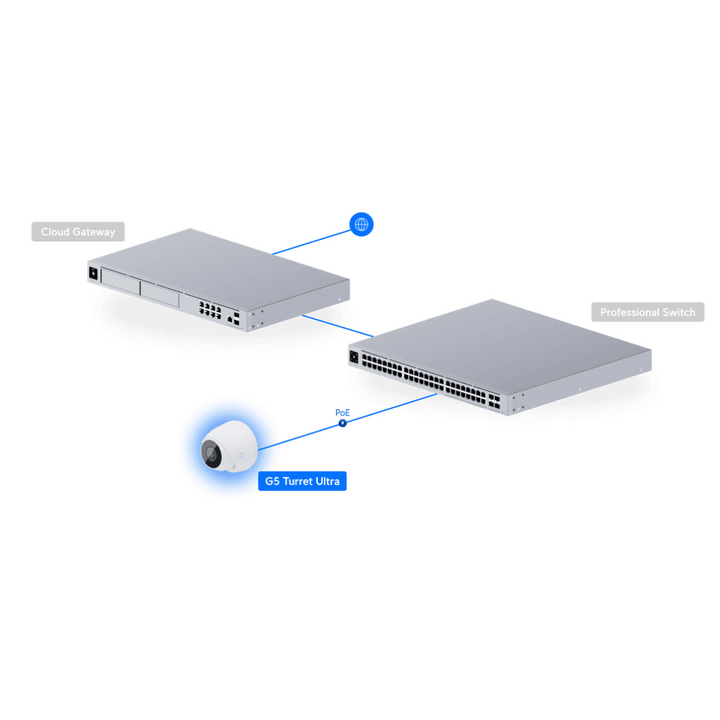

| Power Method | PoE |
| Supported Voltage | 37—57V DC |
| Max Power Consumption | 4W |
| Video & Processing | |
| Image Settings | Color, Brightness, Sharpness, Contrast, White Balance, Exposure Control, 2DNR, 3DNR, NR by Motion, Masking, Text Overlay |
| Processor | Dual-core Arm® Cortex®-A7 |

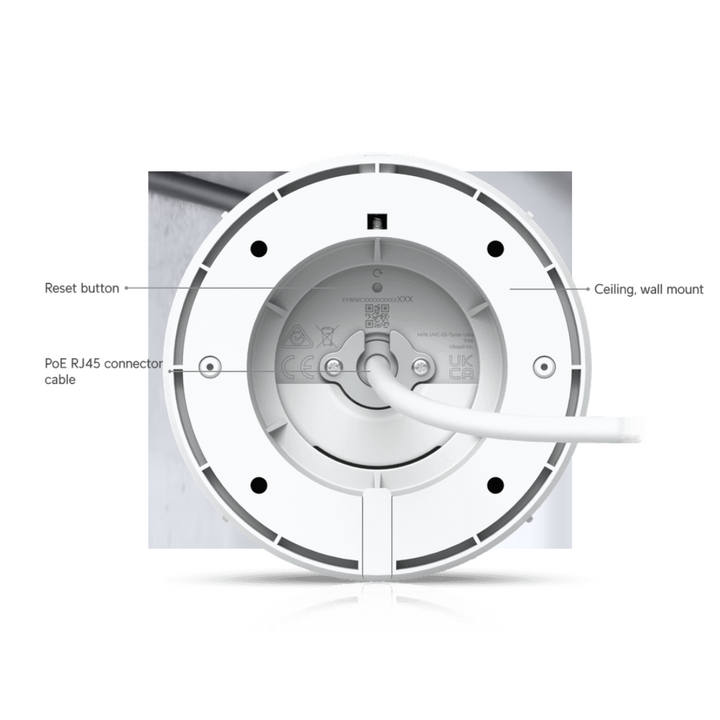

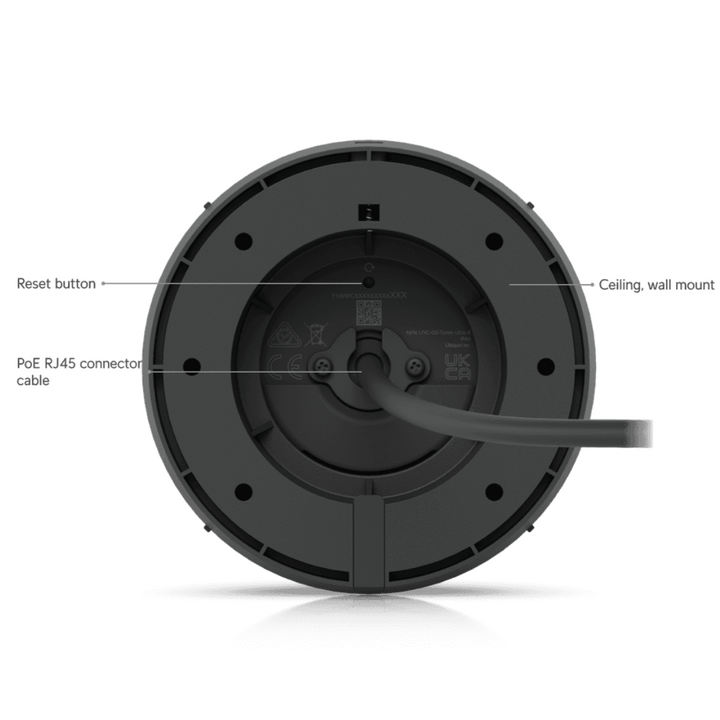

| Reset Button | ✓ |
| Cabling & Environment | |
| Cable Type | RJ45 |
| Cable Length | 30 cm (1 ft) |
| Cable Diameter | 5 mm (0.2") |
| Cable Jacket Material | Thermoplastic Elastomer, Polycarbonate, Silicone Rubber |
| Ambient Operating Temperature | -30 to 50° C (-22 to 122° F) |
| Ambient Operating Humidity | 0 to 90% Noncondensing |
