Technical
| 2K Camera Specifications | |
|---|---|
| Dimensions (Without Mount) | Ø75.5 x 74.4 mm (Ø3 x 2.9") |
| Dimensions (With Mount) | Ø75.5 x 150 mm (Ø3 x 5.9") |
| Weight (Without Mount) | 225 g (8 oz) |
| Weight (With Mount) | 315 g (11.1 oz) |
| IR Night Vision | 9 m (30 ft) |
| Smart Detections | People, Vehicles, Animals |
| Resolution | 2K (4MP) – 2688 x 1512 (16:9) |
| Field of View | H: 84.4°, V: 45.4°, D: 99.8° |
| Audio | Microphone |
| Weatherproofing | IP55 |
| Tamper Resistance | IK04 |
| Mounting | Wall, ceiling, pole mount (Included) Junction box, angled base (Optional) |

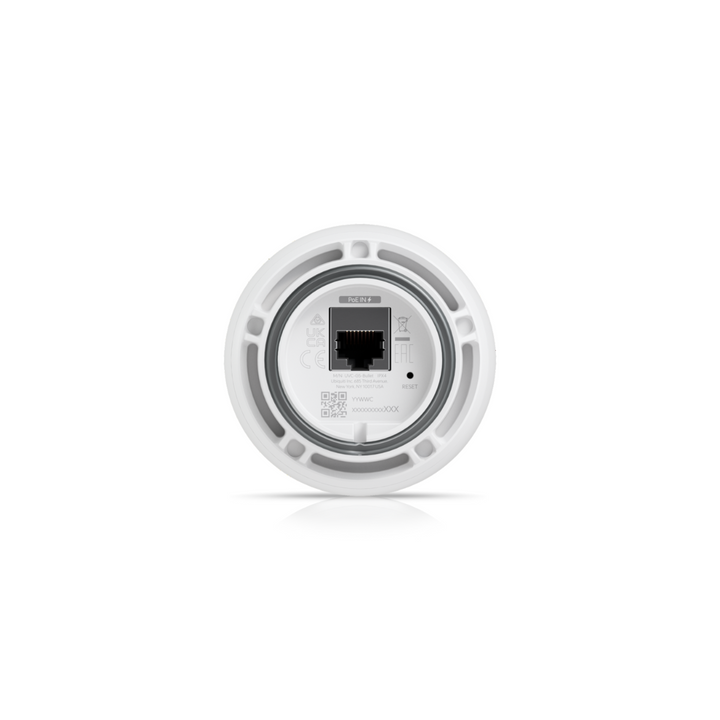

| Networking Interface | 10/100 MbE RJ45 port |
| Image Settings | Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay |
| Max Frame Rate | 30 FPS |
| Sensor | 5MP CMOS |
| Lens | Fixed focal length |
| Night Mode | Built-in IR LED illumination and IR cut filter |
| Max Power Consumption | 4W |
| Supported Voltage Range | 37—57V DC |
| Power Method | PoE |
| Processor | Dual-core Arm® Cortex®-A7 |
| Pole Mount Diameter | 3/4" (19 mm) |
| Enclosure Material | Polycarbonate, Aluminum Alloy |
| Mount Material | Wall mount: Aluminum Alloy, Polycarbonate Pole mount: Aluminum Alloy |
| Reset Button | 1 Factory-reset button |
| Operating Temperature | -20 to 40° C (-4 to 104° F) |
| Operating Humidity | 0 to 90% noncondensing |
| NDAA Compliant | ✓ |
| Certifications | CE, FCC, IC |
