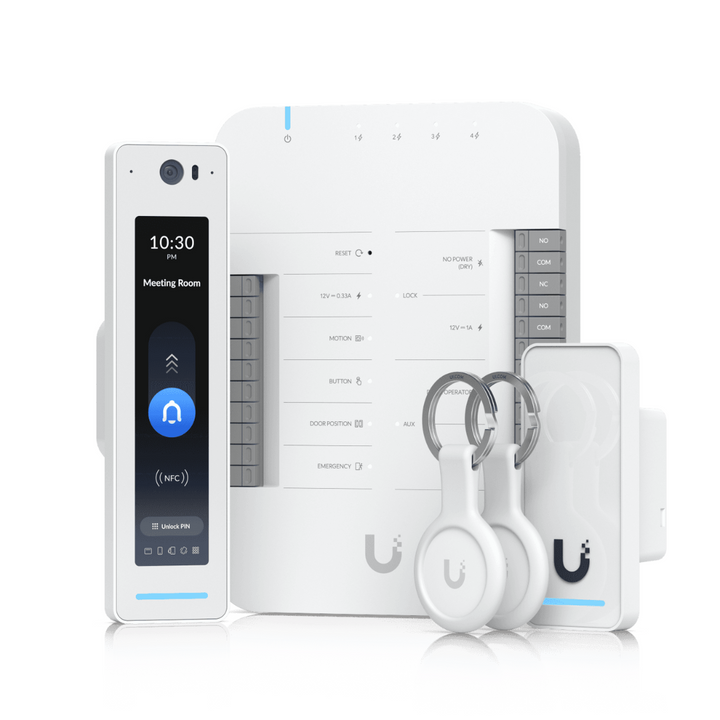

G3 Starter Kit Pro

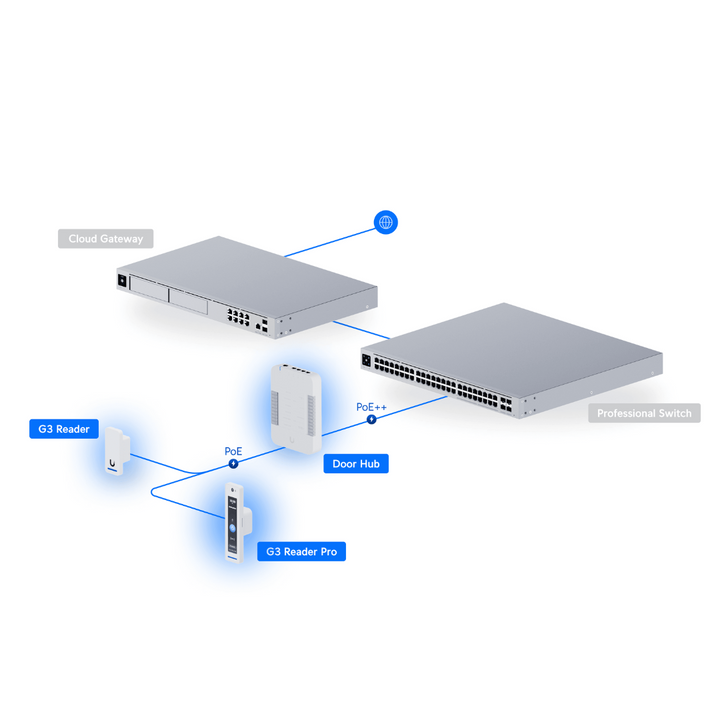

Starter kit that provides complete entry and exit control for a single door with two readers and Touch Pass support.
Technical
| In the Box | |
|---|---|
| (1) Door Hub | (1) G3 Reader Pro |
| (1) G3 Reader | (2) Pocket Keyfobs |
| Touch Pass: 10 free 1-year Touch Passes included | |

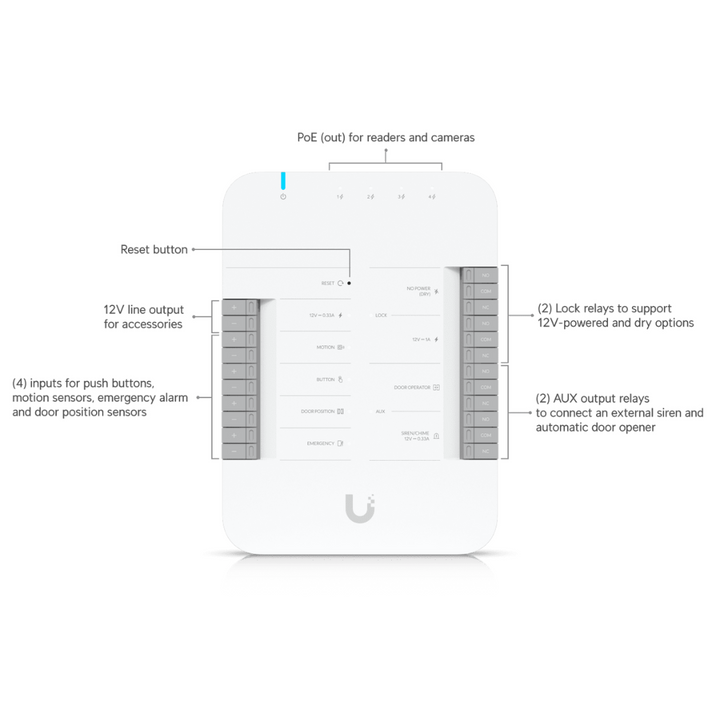

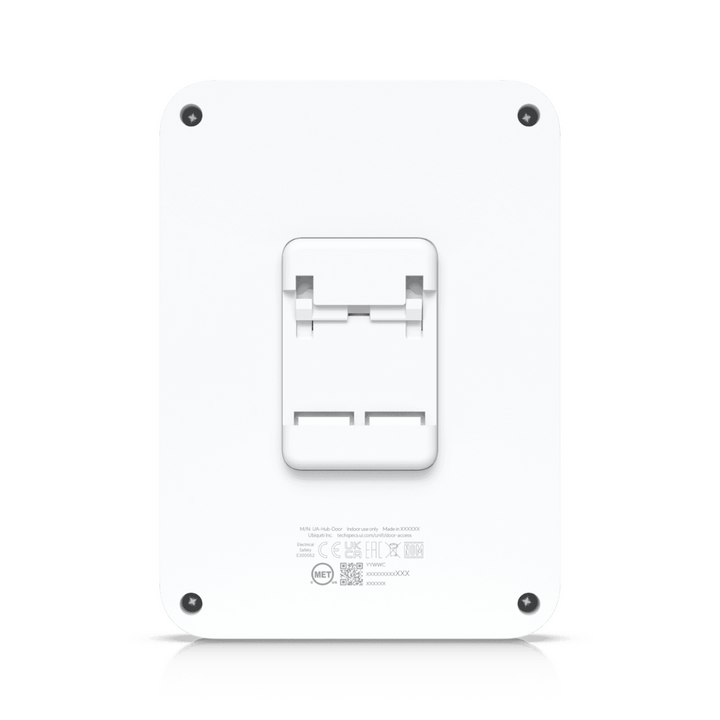

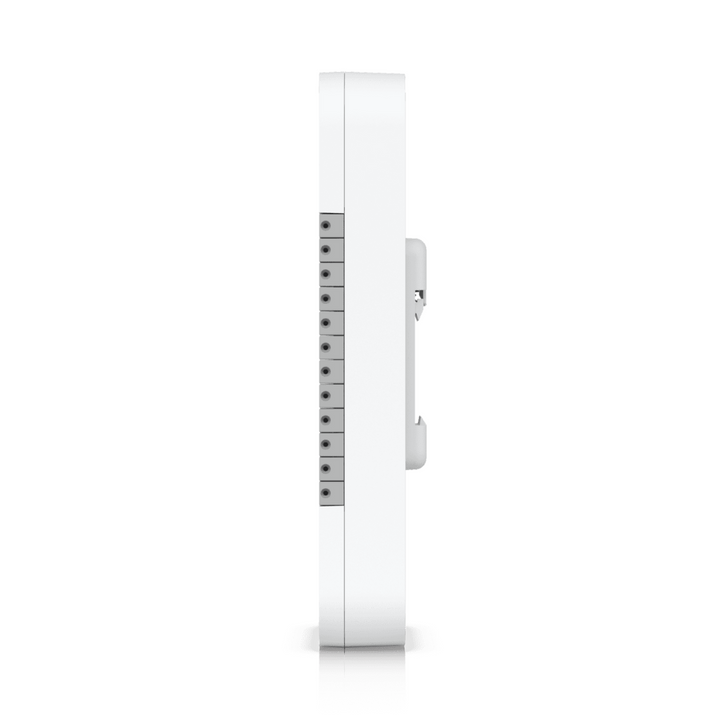

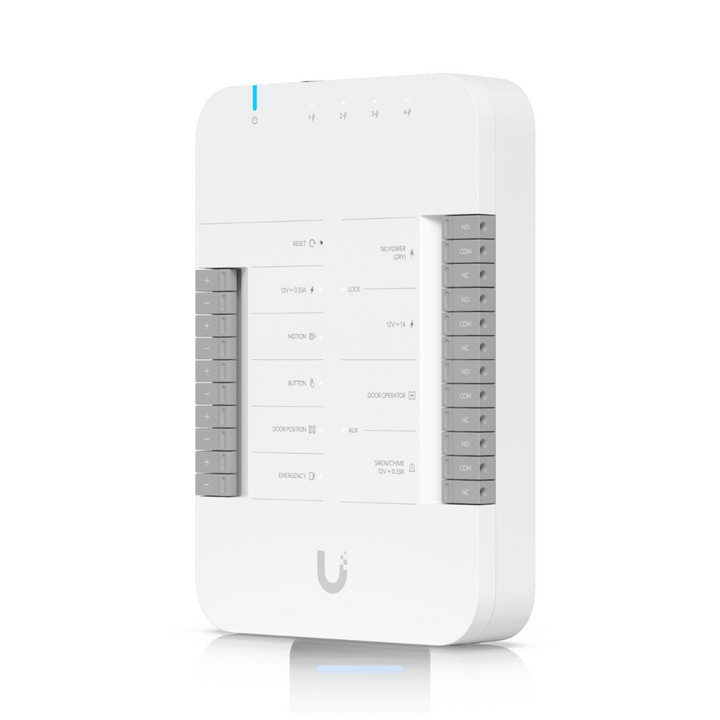

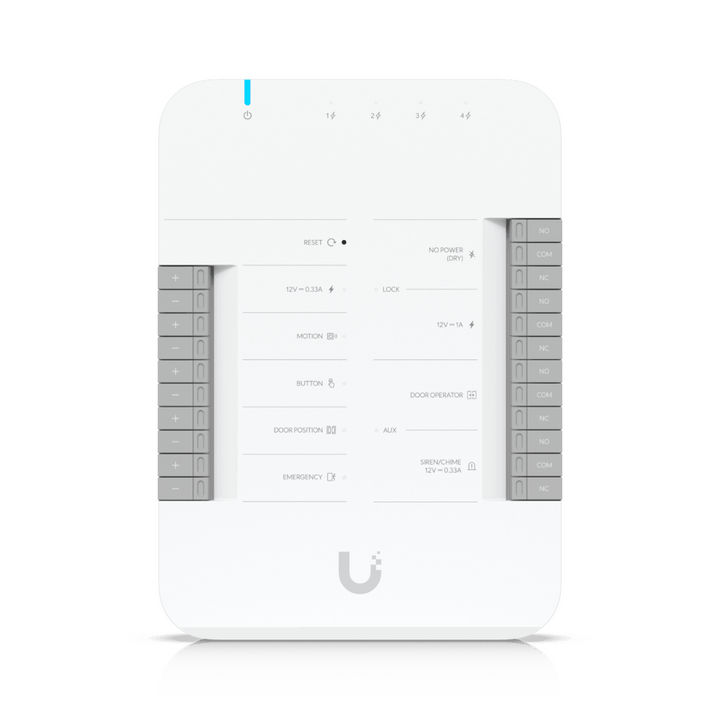

| Door Hub | |
|---|---|

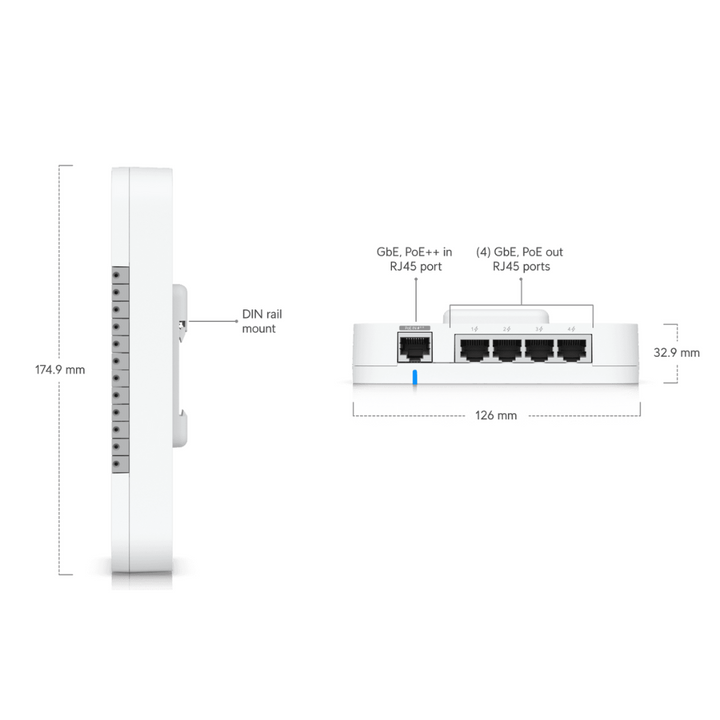

| Dimensions | 174.9 x 126 x 32.9 mm (6.9 x 5 x 1.3") |
| Supported Doors | 1 |
| Input Terminals | (2) Door exit request, (1) Door position, (1) Emergency |
| Power Method | PoE++ |

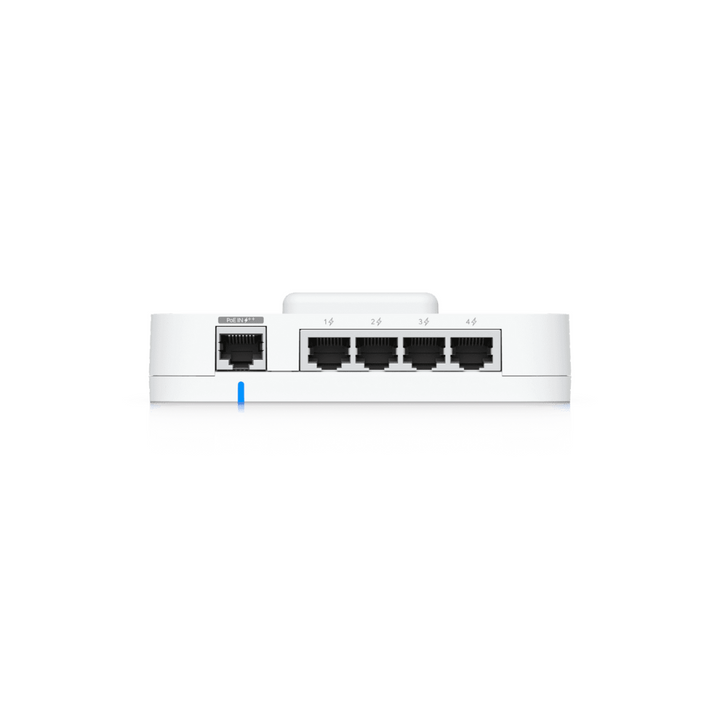

| Networking Interface | (5) 10/100/1000 Base-T |
| PoE Interface | (1) PoE++ input, 50V DC, 1A (4) PoE outputs, 50V DC, 30W per port (Max 45W aggregated) |
| Max. Power Consumption | 30W (Without PoE output) / 50W (With PoE output) |
| Relays | Lock: 30V DC, 1A / Aux: 30V DC, 1A / Powered Lock: 12V DC, 1A / Powered Aux: 12V DC, 0.33A |
| Weight | 363 g (12.8 oz) |
| Enclosure / Mount Material | Polycarbonate / DIN-rail (Included) |
| Operating Temperature | 0 to 40° C (32 to 104° F) |
| Operating Humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC, UL 294, CAN/ULC-60839-11-1 |

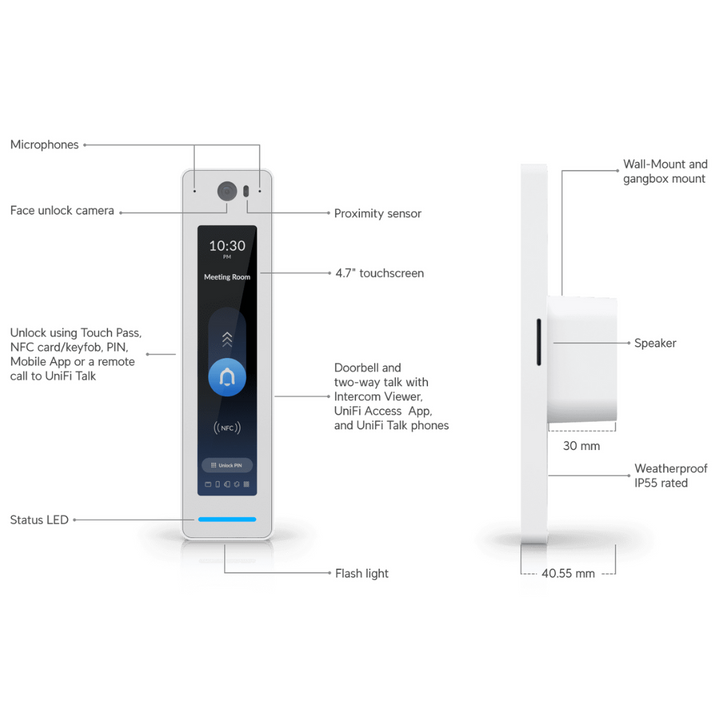

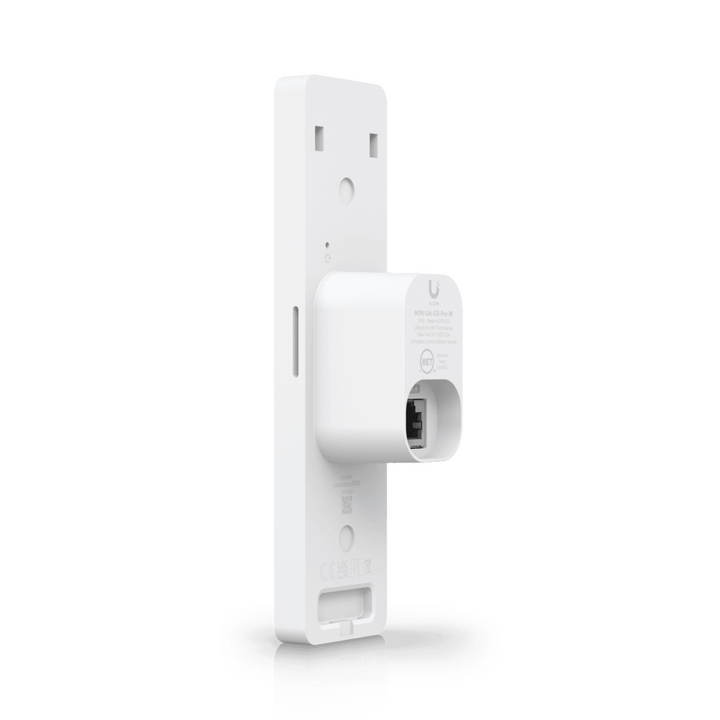

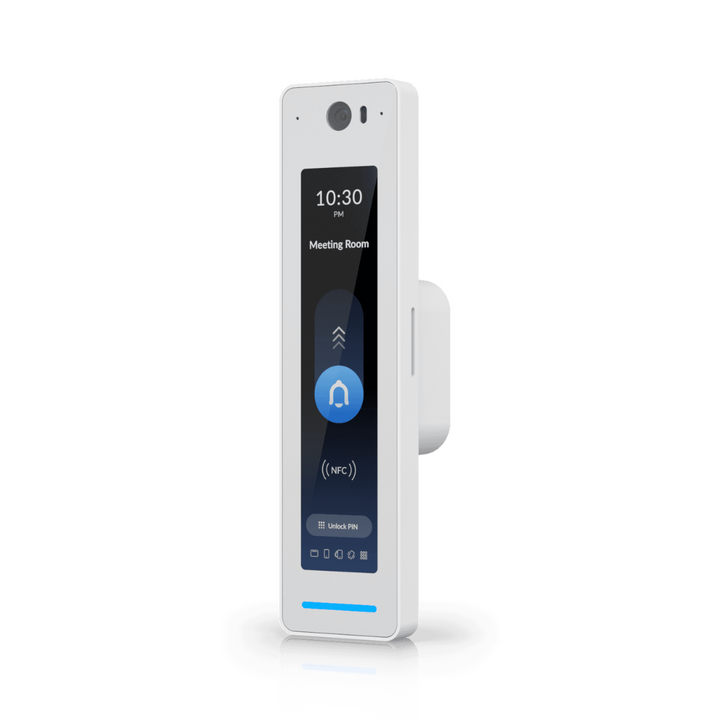

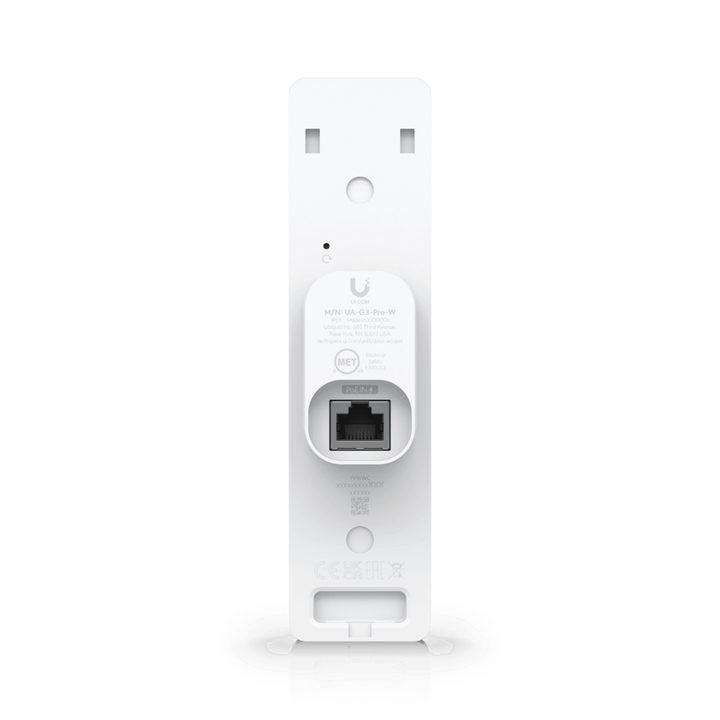

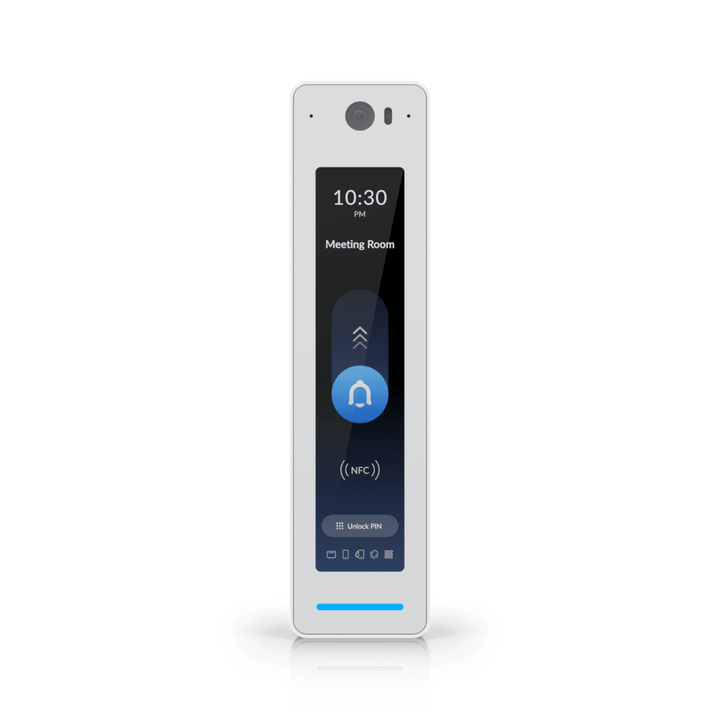

| G3 Reader Pro | |
|---|---|

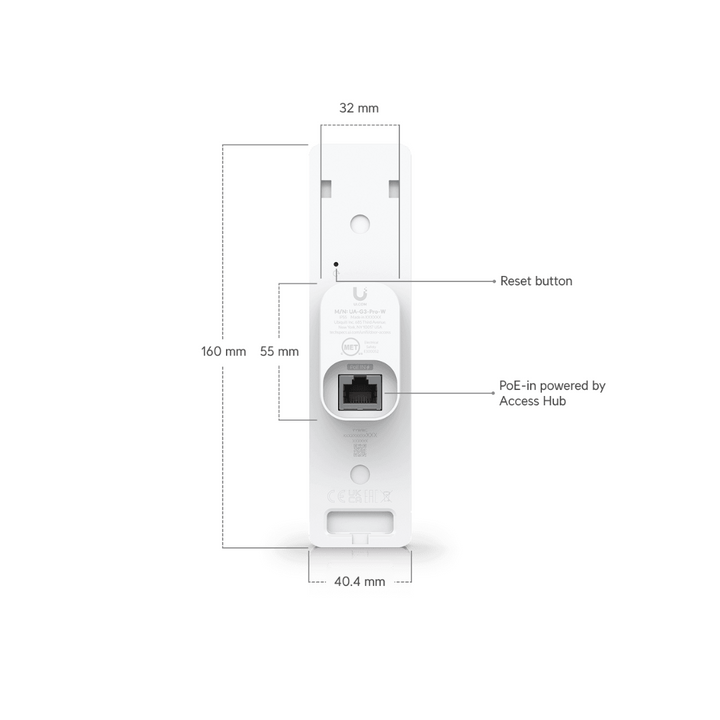

| Dimensions | 160 x 40.4 x 40.55 mm (6.3 x 1.59 x 1.6") |
| Integrated Camera | ✓ |
| Access Methods | NFC, Keyfob, PIN, Apple/Google Wallet, Mobile Unlock |
| Intercom & Doorbell | ✓ |
| Display | 4.7" capacitive touchscreen, 480 nits, 1280 x 286 px |
| Networking | (1) GbE RJ45 |
| Connectivity | BLE 4.2, NFC |
| Power | PoE, 48V DC, Max 6W |
| Weight | 136 g (4.8 oz) |
| Weatherproofing | IP55 |
| Certifications | CE, FCC, IC, UL 294, CAN/ULC-60839-11-1 |

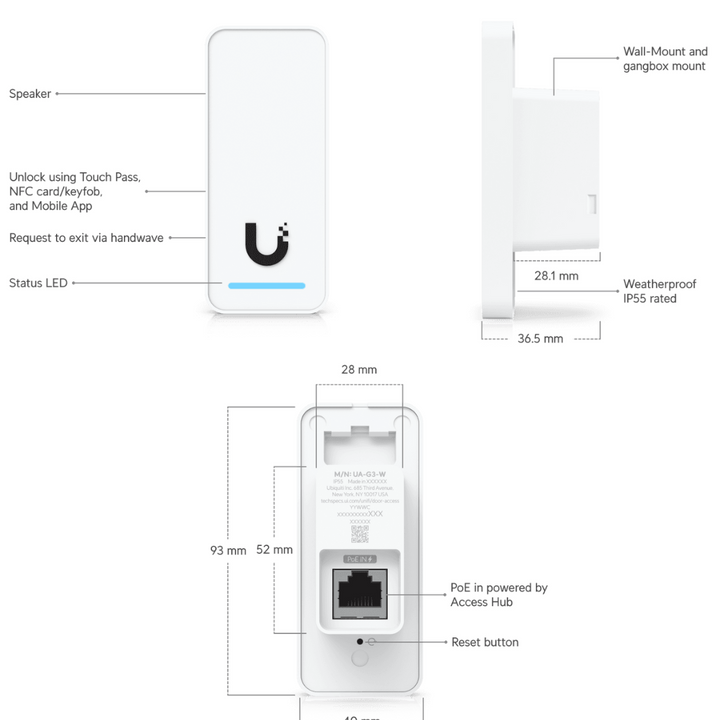

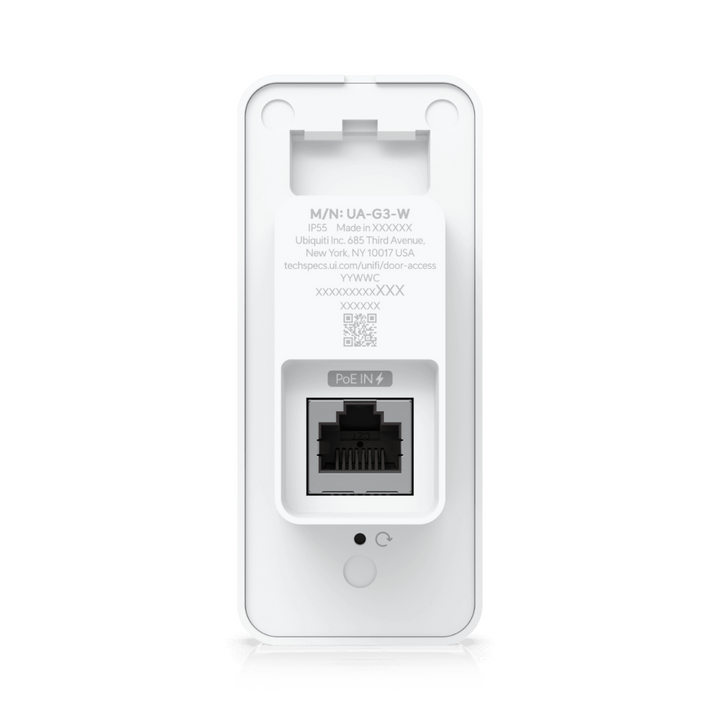

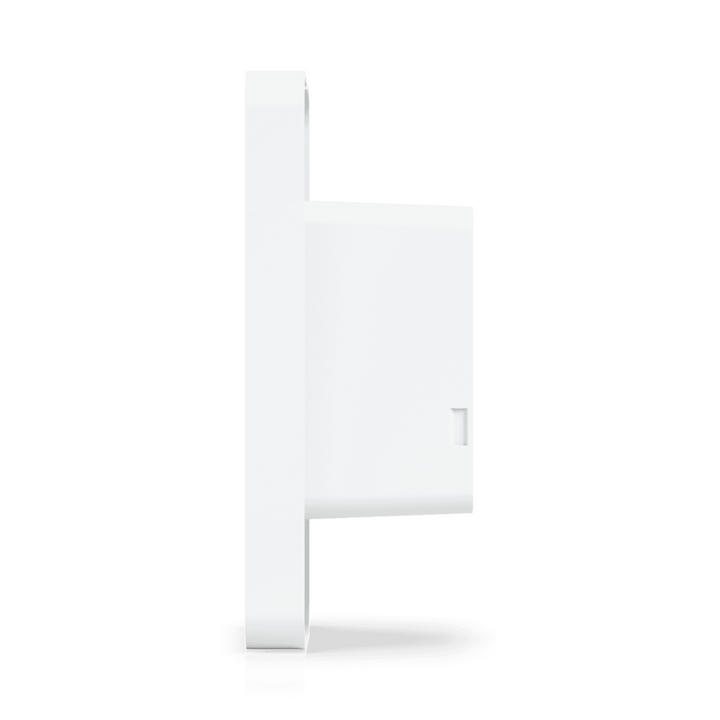

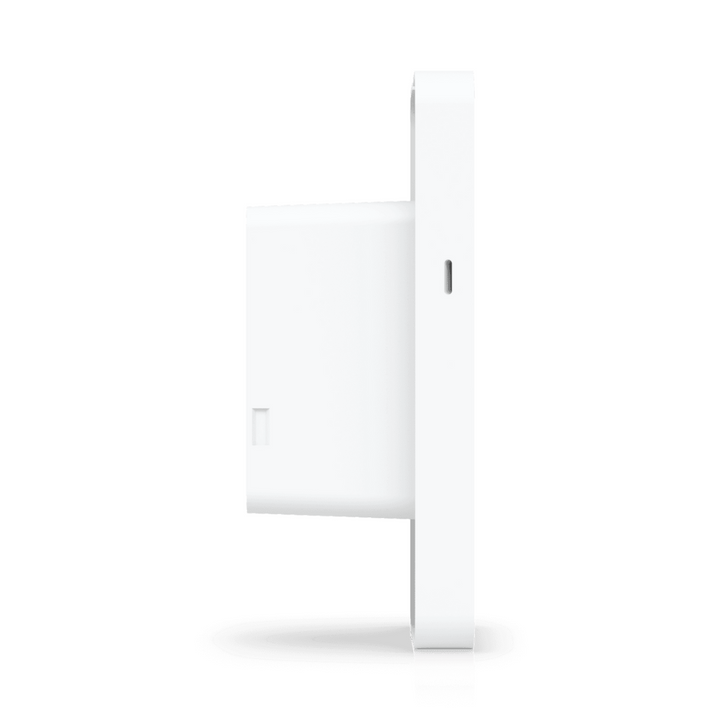

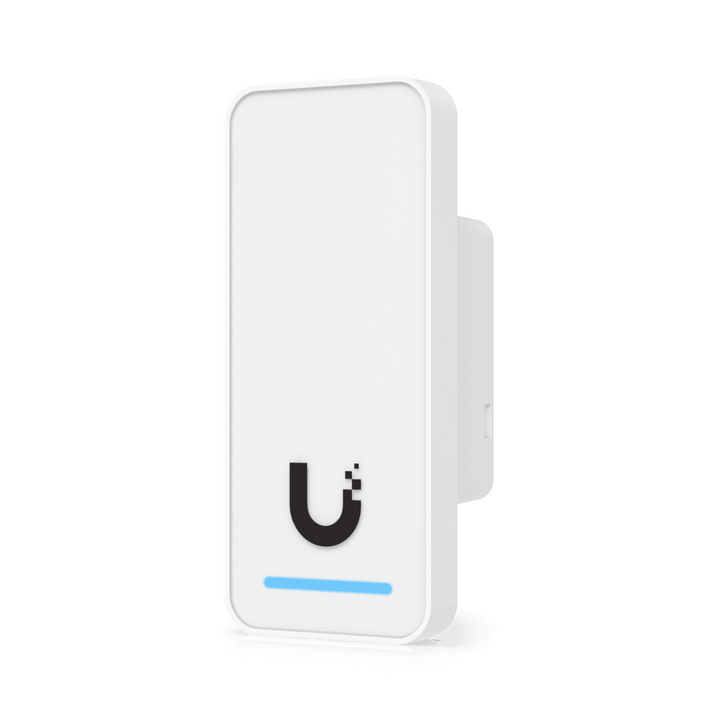

| G3 Reader | |
|---|---|
| Dimensions | 93 x 40 x 36.5 mm (3.7 x 1.6 x 1.4") |
| Access Methods | NFC, Keyfob, Apple/Google Wallet, Mobile Unlock, Handwave Request to Exit |
| Networking | (1) 10/100 MbE RJ45 port |
| Connectivity | BLE 4.1, NFC |
| Power | PoE, 48V DC, Max 5W |
| Weight | 82 g (2.9 oz) |
| Weatherproofing | IP55 |
| Certifications | CE, FCC, IC, UL 294, CAN/ULC-60839-11-1 |
| Pocket Keyfob | |
|---|---|
| Dimensions | 84 x 39 x 7.4 mm (3.3 x 1.5 x 0.29") |
| Weight | 16 g (0.56 oz) |
| Material | Polycarbonate, stainless steel, silicone rubber |
| Weatherproofing | IP54 |
| NFC | 13.56 MHz, MIFARE DESFire EV3 4K |
| Certification | CE |
