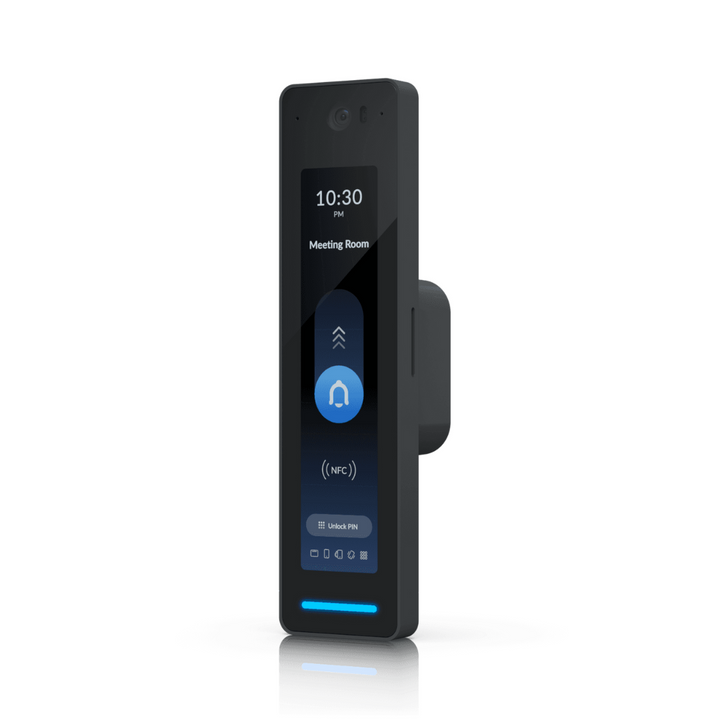

G3 Reader Pro
Third-generation, indoor/outdoor NFC reader and intercom with Touch Pass support.
Technical
| General | |
|---|---|
| Dimensions | 160 x 40.4 x 40.55 mm (6.3 x 1.59 x 1.6") |
| Integrated Camera | ✓ |
| NFC Card & Keyfob Access | ✓ |
| PIN Access | ✓ |
| Apple/Google Wallet | ✓ |
| Mobile Unlock | ✓ |
| Two-Way Intercom & Doorbell Access | ✓ |
| NDAA Compliant | ✓ |
| UL 294 Level |
Destructive attack: Level I Line security: Level I Endurance: Level I Standby power: Level I |
| Weatherproofing | IP55 |
| Mechanical | |
| Weight | 136 g (4.8 oz) |
| Enclosure Material | Polycarbonate, glass |
| Mount Material | Aluminum alloy |

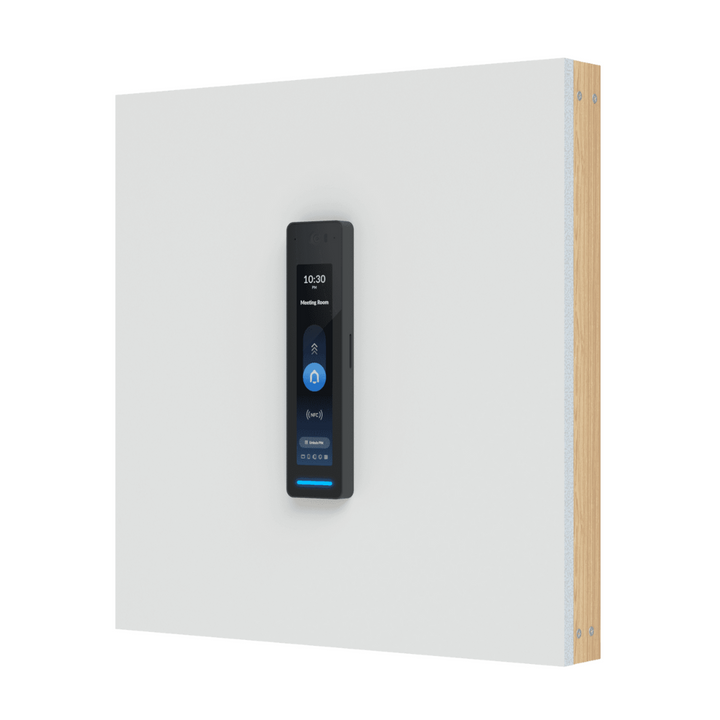

| Mounting |
Wall, gang-box mount (Included) Angle mount, junction box (Optional) |
| Hardware | |
| Indoor and Outdoor Use | Yes |
| Operating Temperature |
Device: -30 to 45° C (-22 to 113° F) Display: -10 to 45° C (14 to 113° F) |
| Operating Humidity | 5 to 90% noncondensing |

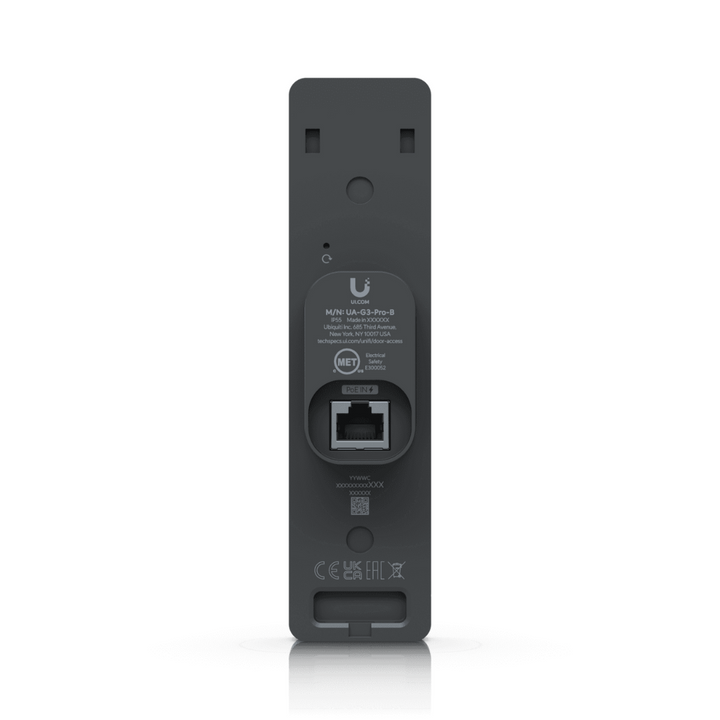

| Networking Interface | (1) GbE RJ45 port |
| Connectivity | BLE 4.2, NFC |
| Power Method | PoE UL 294 Power-limited Class 2 PSU UL 60950-1/62368-1 LPS/PS2 PSU |
| Max. Power Consumption | 6W |
| Supported Voltage Range | 48V DC |
| ESD/EMP Protection | Air: ±15kV, Contact: ±8kV |
| Sensors | Proximity sensor |
| Display |
120 mm (4.7") diagonal Capacitive touch 480 nits (Typical) Portrait orientation 1280 x 286 px |
| Microphone | ✓ |
| Speaker | ✓ |
| LEDs | R/G/B/W/Amber |
| Button | (1) Factory-reset |
| NFC |
Frequency: 13.56 MHz Read Range: < 30 mm (1.18") Technology: ISO/IEC 14443A / 14443B / 15693 / 18092 (Ecma 340) MIFARE Classic / MIFARE DESFIRE Sony FeliCa™ (ID only) NFC Forum tags T1T–T5T ECP 2.0 |
| PoE Cabling Requirements |
Cat 5e or higher Min conductor: 26 AWG (patch cords), 24 AWG (horizontal/riser) |
| UL 294 Statement |
Compliance with IEEE 802.3 not verified. Intended for NEC Article 725.121 Class 2 & 3 Circuits. |
| CAN/ULC-60839-11-1 Grade | Grade I |
| Certifications | CE, FCC, IC, SRRC, UL 294, CAN/ULC-60839-11-1 |
| Document Info | UA-G3-Pro-W/UA-G3-Pro-B, V01 |
| Software | |
| Management Application | Access |
| Software Information | Software version available at https://unifi.ui.com |
