G3 Intercom

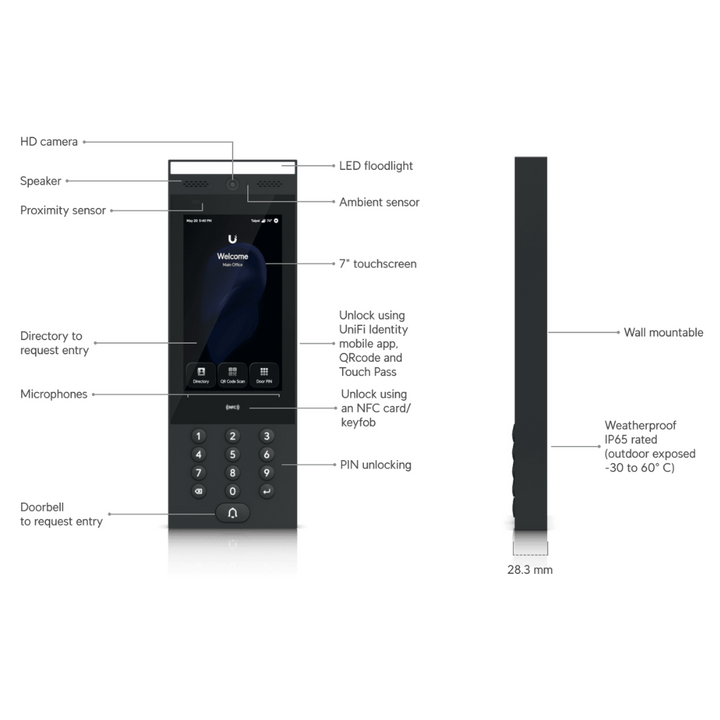

Indoor/outdoor intercom terminal for managing residential and commercial building entry requests with Touch Pass support.
Technical
| General | |
|---|---|

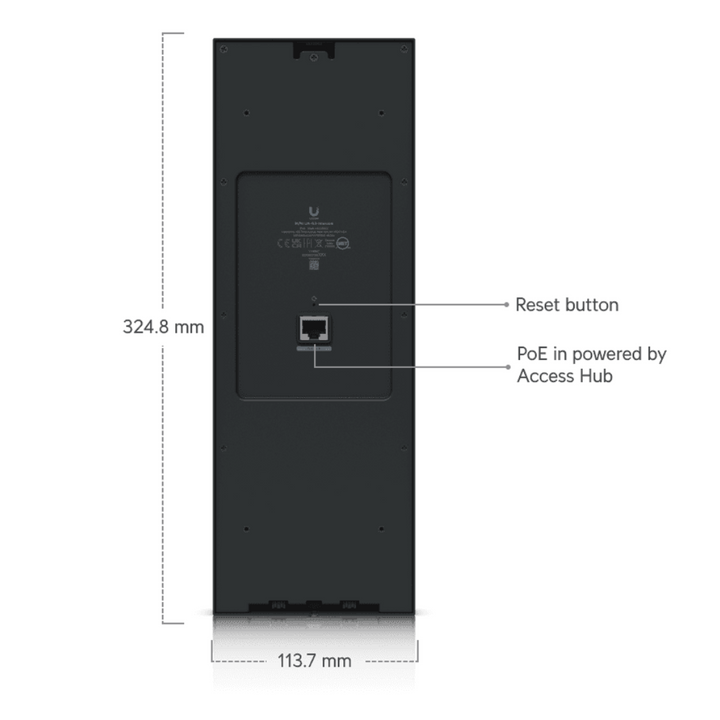

| Dimensions | 324.8 x 113.7 x 28.3 mm (12.8 x 4.5 x 1.1") |
| Integrated Camera | ✓ |
| NFC Card & Keyfob Access | ✓ |
| PIN Access | ✓ |
| Apple/Google Wallet | ✓ |
| Mobile Unlock | ✓ |
| Two-Way Intercom & Doorbell Access | ✓ |
| NDAA Compliant | ✓ |
| UL 294 Level |
Destructive attack: Level I Line security: Level I Endurance: Level I Standby power: Level I |
| Weatherproofing | IP65 |
| Mechanical | |
| Weight | Device: 965 g (2.1 lb) Bracket: 445 g (1 lb) |
| Enclosure Material | Aluminum alloy, UV-stabilized polycarbonate, glass |
| Mount Material | Powder-coated stainless steel |
| Mounting | Wall mount, gooseneck pedestal adapter (Included) Surface angle, flush mount, sunshield kit (Optional) |
| Hardware | |
| Indoor and Outdoor Use | Yes |
| Ambient Operating Temperature | Device: -30 to 60° C (-22 to 140° F) Display: -25 to 60° C (-13 to 140° F) |
| Ambient Operating Humidity | 5 to 90% noncondensing |
| Networking Interface | (1) GbE RJ45 port |
| Connectivity | BLE 4.2, NFC |
| Power Method | PoE |
| Max. Power Consumption | 13W |
| Supported Voltage Range | 48V DC |
| Sensors | Proximity sensor, ALS sensor |
| Display | 177 mm (7") diagonal |
| Touch Screen Technology | Capacitive multi-touch |
| Display Luminance | Max. 1000 nits (Typical) |
| Screen Orientation | Portrait |
| Resolution | 1024 x 600 px |
| Microphone | ✓ |
| Speaker | ✓ |
| NFC Frequency | 13.56 MHz |
| NFC Read Range | < 30 mm (1.18'') |
| NFC Technology |
ISO/IEC 14443A / 14443B / 15693 / 18092 (Ecma 340) MIFARE Classic / MIFARE DESFIRE Sony FeliCa™ (ID only) NFC Forum tags T1T, T2T, T3T, T4T and T5T ECP 2.0 |
| LEDs | Amber Learn More |
| Buttons | (1) Factory-reset |
| PoE Cabling Requirements | Cat 5e minimum, 26 AWG (patch cords), 24 AWG (riser cable) |
| Certifications | |
| Certifications | CE, FCC, IC, UL 294, CAN/ULC-60839-11-1 |
| Document Number | UA-G3-Intercom, V01 |
| Software | |
| Management Application | Access |
| Software Information | The software version can be checked at https://unifi.ui.com |
