Technical
| General | |
|---|---|

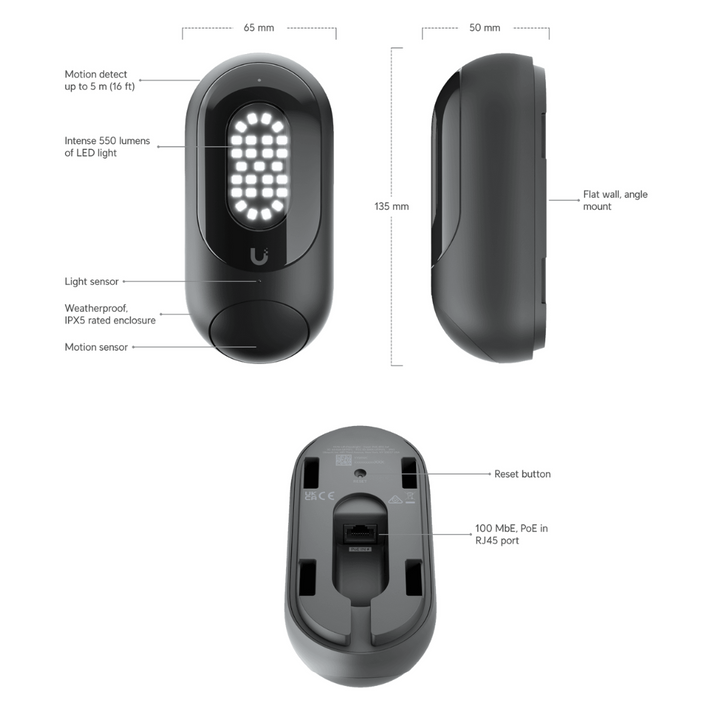

| Dimensions | 135 x 65 x 50 mm (5.3 x 2.6 x 2") |
| Weight |
Without mount: 216 g (7.6 oz) With flat wall mount: 236 g (8.3 oz) With angle mount: 273 g (9.6 oz) |
| Enclosure Material | Polycarbonate, aluminum alloy |
| Mount Material |
Angle Mount: Polycarbonate Flat Wall Mount: Polycarbonate |
| Weatherproofing | IPX5 |
| Hardware | |

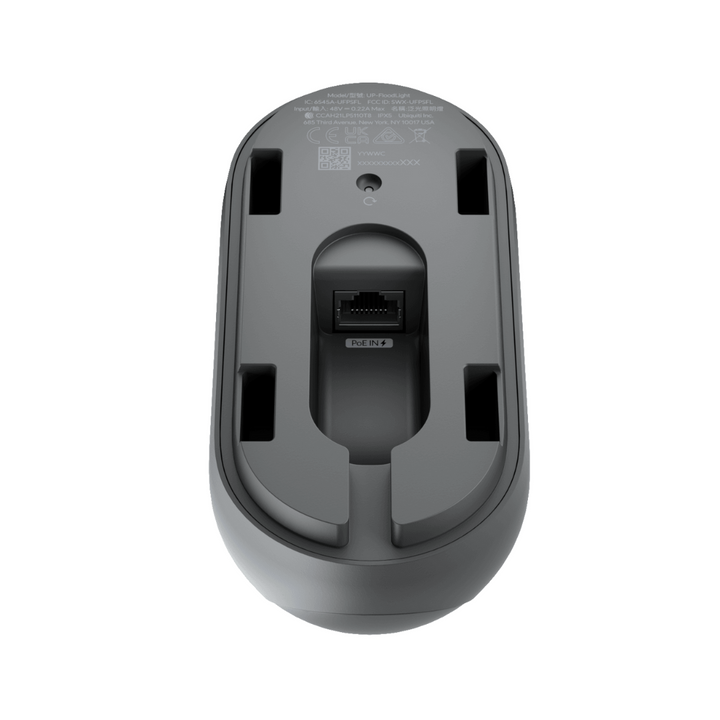

| Networking Interface | 10/100 MbE RJ45 port |
| Power Method | PoE, 48V DC, 0.22A Max. |
| Max. Power Consumption | 12.95W |
| ESD/EMP Protection | Air: ± 8kV, contact: ± 8kV |
| Radio Frequency | Bluetooth 4.0 |
| LEDs | R / B / W |
| Buttons | (1) Factory-reset |
| Operating Temperature | -10 to 45° C (14 to 113° F) |
| Operating Humidity | 20 to 80% noncondensing |
| Certifications | FCC, IC, CE |
| Software | |
| Application Requirements | Web Application: UniFi Protect |
| Mobile App | UniFi Protect iOS™ and Android™ |
