Flex Utility

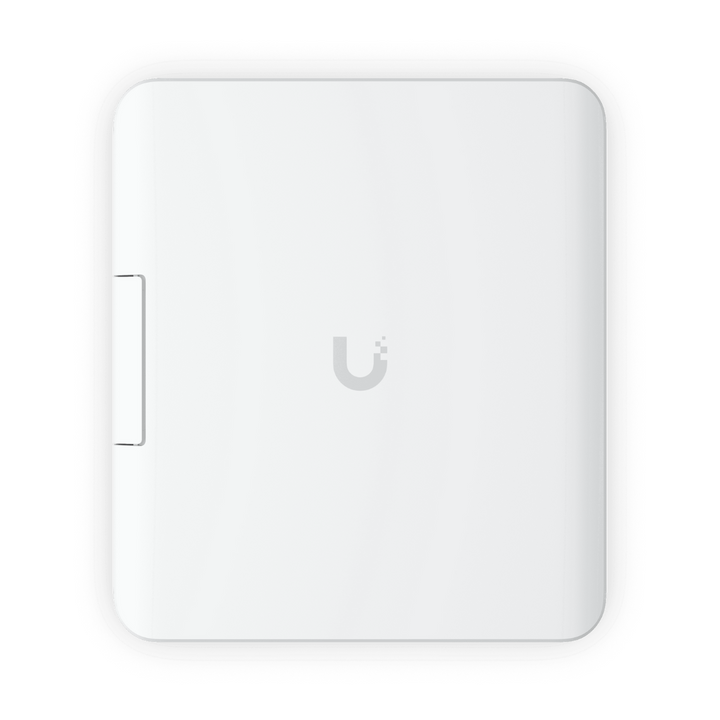

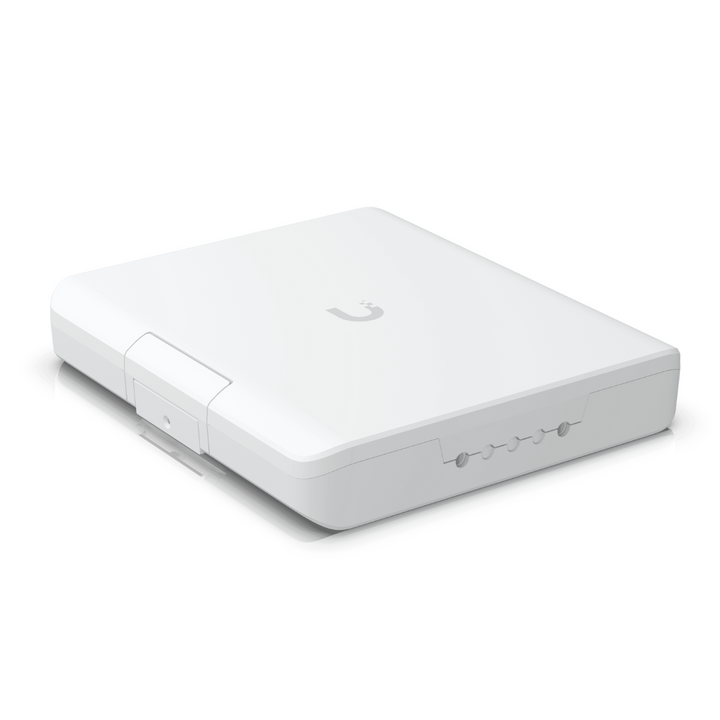

The Switch Flex Utility is an outdoor weatherproof enclosure designed for use with the Switch Flex.
Technical
| Dimensions | |
|---|---|
| Enclosure | 249 x 218 x 60 mm (9.8 x 8.6 x 2.4") |
| Adapter | 118.5 x 63 x 34.7 mm (4.7 x 2.5 x 1.4") |
| Weight | |
| Enclosure | 740 g (1.6 lb) |
| Adapter | 206 g (7.3 oz) |
| Electrical Specifications | |
| Output Voltage | 54V, 1.11A |
| Rated Voltage | 100—240V AC |
| 4-pair Powering | Pins 1, 2, 4, 5 (+) and 3, 6, 7, 8 (-) |
| Input Current | 1.5A Max. |
| Efficiency | 86+% |
| Output Ripple | 200 mVpp |
| Line Regulation | ≤1% |
| Load Regulation | ≤3% |
| Power Supply & Protection | |
| Power Supply | AC/DC |
| Surge Protection | 4kV difference and common mode |
| Environmental | |
| Ambient Storage Temperature | -30 to 70° C (-22 to 158° F) |
| Ambient Operating Temperature | -20 to 60° C (-4 to 140° F) |
| Ambient Operating Humidity | 5 to 90%, noncondensing |
| Compliance | |
| NDAA Compliant | ✓ |
| Certifications | CE, FCC, IC |
