Flex Mini
A compact, 5-port, Layer 2 switch that can be powered with PoE or a 5V USB-C adapter.
Technical
| Dimensions | |
|---|---|
| Enclosure | 107 x 70 x 21 mm (4.2 x 2.8 x 0.8") |
| Port Layout | |
| 1 GbE RJ45 | 5 (1G/100M/10M) |
| Form Factor | |
| Design | Compact desktop |
| Performance | |
| Switching Capacity | 10 Gbps |
| Total Non-Blocking Throughput | 5 Gbps |
| Forwarding Rate | 7 Mpps |
| Supported VLANs | 1,000 |
| MAC Address Table Size | 2,000 |
| Layer 2 Features | |
| Egress Rate Limit | ✓ |
| Flow Control | ✓ |
| Storm Control | ✓ |
| Multicast & Broadcast Rate Limiting | ✓ |
| Port Isolation | ✓ |
| Port Mirroring | ✓ |
| Jumbo Frames | ✓ |
| Hardware & Power | |
| Max. Power Consumption | 2.5W |

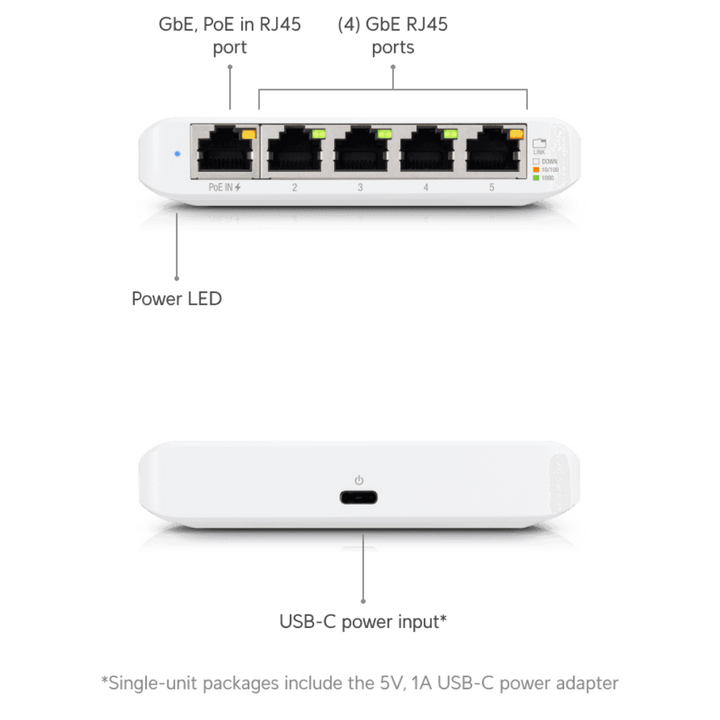

| Power Method | (1) USB Type-C, 5V DC, 1A (1) PoE |
| Power Input Method | USB Input / PoE |
| Power Supply | AC/DC, external, 5W |
| Supported Voltage Range | 4.8–5.2V DC (USB) | 44–57V (PoE) |
| Management | Ethernet |
| Heat Dissipation | 6.824 BTU/hr (Excluding PoE Output) |
| Weight | 150 g (5.3 oz) |
| Enclosure / Mount Material | Polycarbonate / Polycarbonate |
| ESD Protection | Air: ±16kV, Contact: ±12kV |
| Environmental | |
| Operating Temperature | -5 to 45° C (23 to 113° F) |
| Operating Humidity | 10 to 90% noncondensing |
| Compliance & Software | |
| NDAA Compliant | ✓ |
| Certifications | CE, FCC, IC, Anatel |
| Application Requirements | UniFi Network Version 5.12.5 and later |
