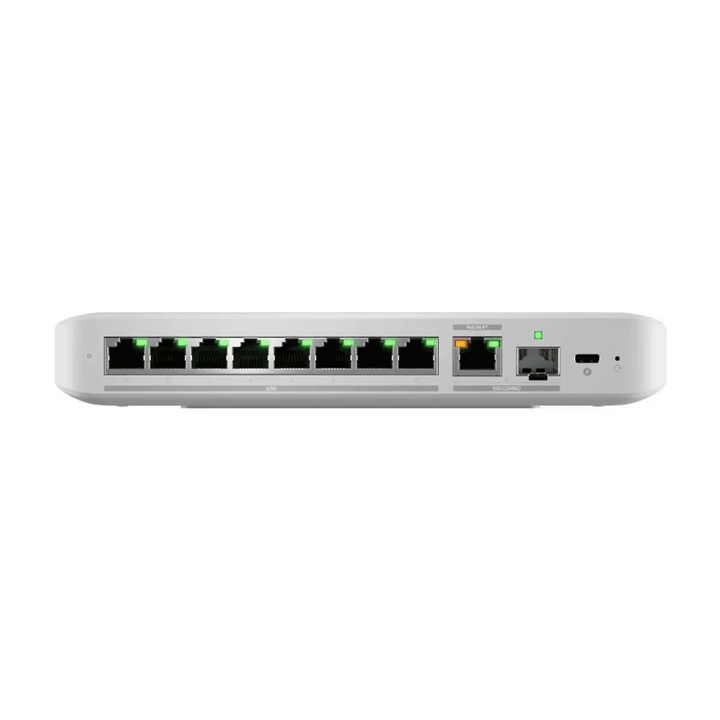

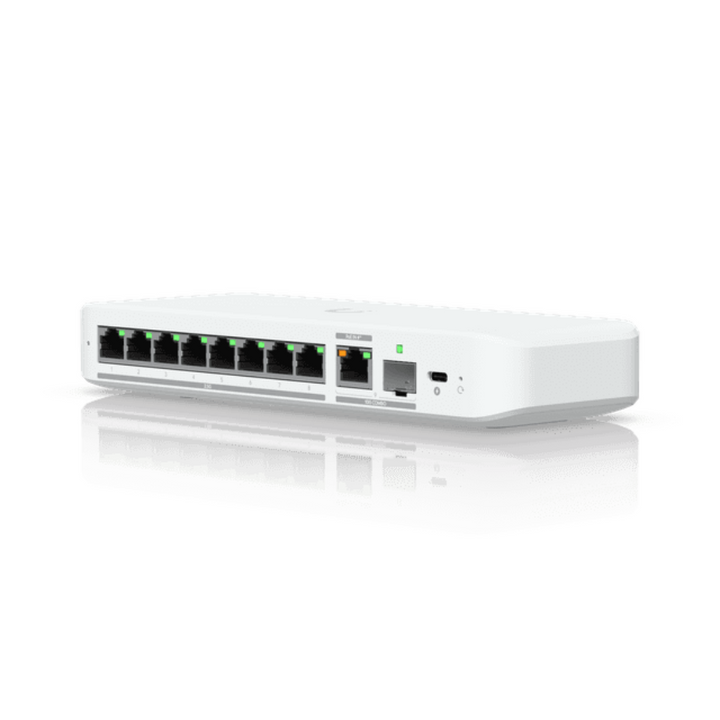

Flex 2.5G PoE
Flexible, 8-port 2.5 GbE switch with a 10 GbE RJ45/SFP+ combination uplink port that can be powered with a USB-C or PoE+ adapter.
Technical
| Dimensions | |
|---|---|

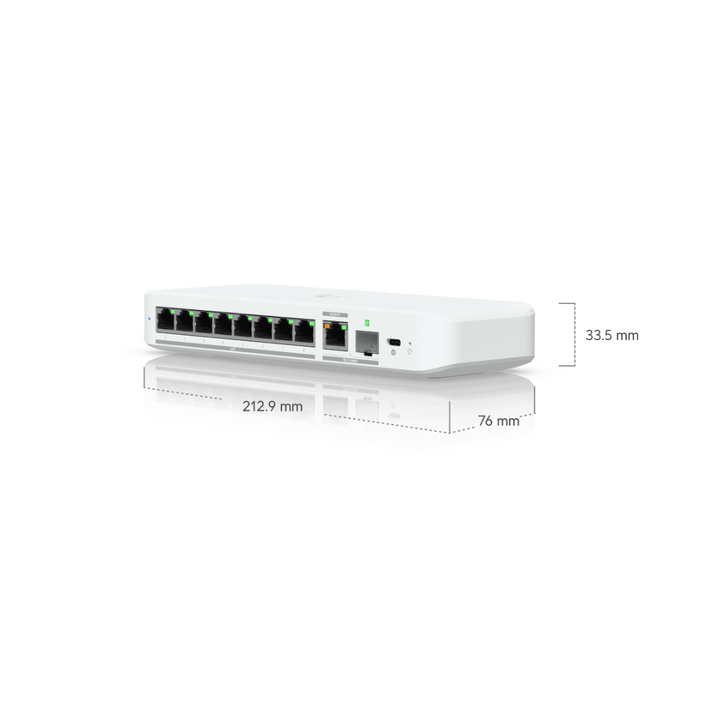

| Enclosure | 212.9 x 76 x 33.5 mm (8.4 x 3 x 1.3") |

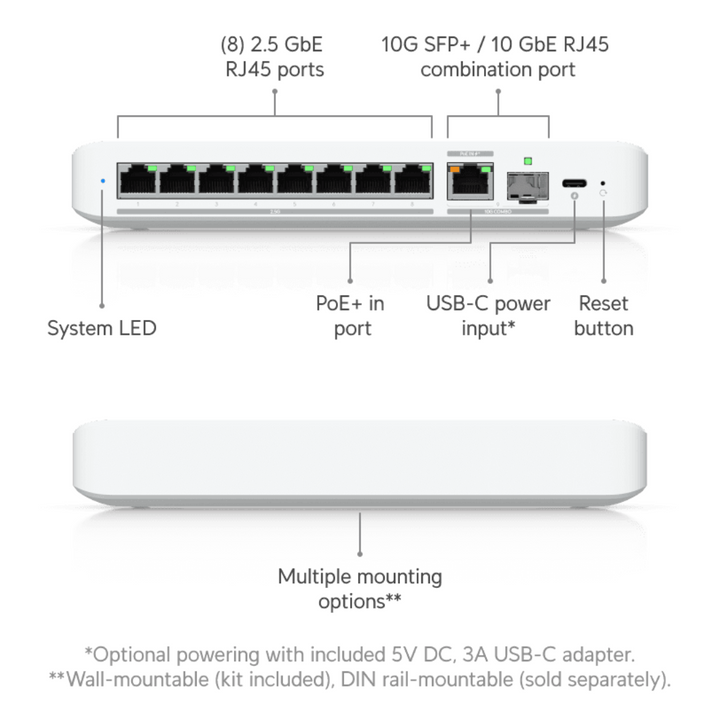

| Port Layout | |
| 2.5 GbE RJ45 | 8 (2.5G/1G/100M/10M) |
| 10 GbE RJ45 | 1 (10G/5G/2.5G/1G/100M) |
| 10G SFP+ | 1 (10G/1G) |
| Form Factor | |
| Design | Compact Desktop, Wall, DIN, Magnetic |
| Performance | |
| Switching Capacity | 60 Gbps |
| Total Non-Blocking Throughput | 30 Gbps |
| Forwarding Rate | 45 Mpps |
| Supported VLANs | 256 |
| MAC Address Table Size | 4,000 |
| Layer 2 Features | |
| STP & RSTP | ✓ |
| Egress Rate Limit | ✓ |
| Flow Control | ✓ |
| Storm Control | ✓ |
| Multicast & Broadcast Rate Limiting | ✓ |
| Port Isolation | ✓ |
| Port Mirroring | ✓ |
| Jumbo Frames | ✓ |
| Loop Protection | ✓ |
| Hardware & Power | |
| Max. Power Consumption | 14W (PoE input) / 14W (AC adapter input) |
| Power Method | (1) USB Type-C, 5V DC, 3A (1) PoE+ |
| Power Input Method | USB Input / PoE |
| Power Supply | AC/DC, external, 15W |
| Supported Voltage Range | 4.8–5.2V DC (USB) | 44–57V (PoE) |
| Management | Ethernet |
| Weight | 395 g (0.87 lb) |
| Enclosure / Mount Material | Polycarbonate / Polycarbonate |
| Environmental | |
| Operating Temperature | -20 to 45° C (-4 to 113° F) |
| Operating Humidity | 10 to 90% noncondensing |
| Compliance & Software | |
| NDAA Compliant | ✓ |
| Certifications | CE, FCC, IC, Anatel |
| Application Requirements | UniFi Network Version 9.0.114 and later |
