Flex
Flexible 5-port, Layer 2 PoE switch for indoor and outdoor use, that can be powered with PoE++.
Technical
| Hardware Specifications | |
|---|---|

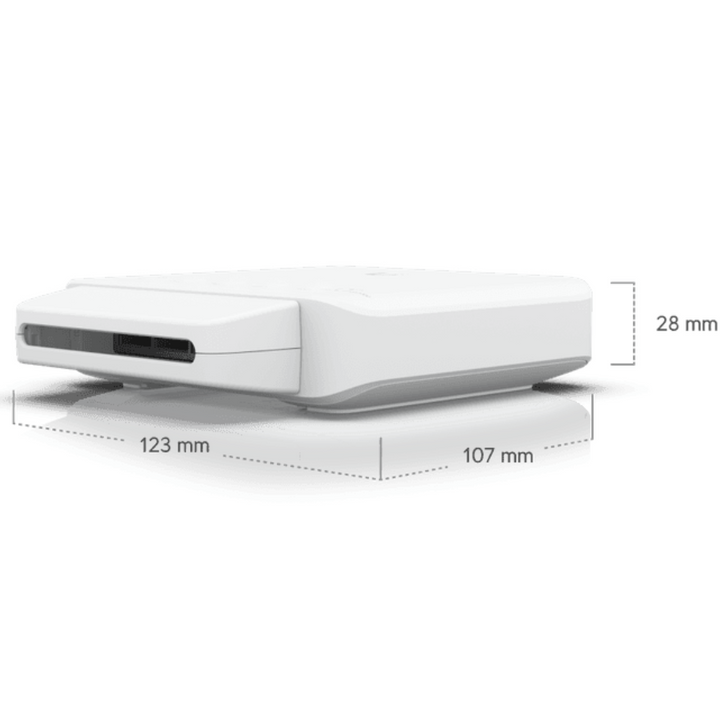

| Dimensions | 122.5 x 107.1 x 28 mm (4.8 x 4.2 x 1.1") |
| Form Factor | Compact desktop, wall, pole mount |

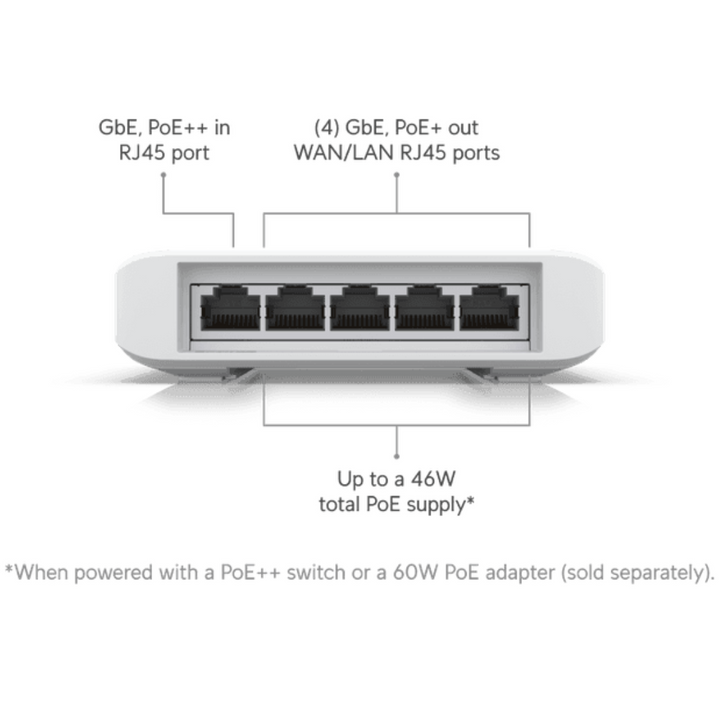

| Port Layout | 1 GbE RJ45: 5 (4 PoE+, 1 PoE++) |
| Max. PoE Output | Up to PoE+ |
| Total PoE Availability | 46W |
| PoE+ Ports | 4 |
| PoE++ Ports | 1 |
| Max PoE Wattage per Port | PoE+: 25W |
| Max Power Consumption | 5W (Excl. PoE), 51W (Incl. PoE) |
| Power Input | PoE++ only (50–57V) |
| Enclosure Type | Outdoor-ready |
| Weight | 230 g (8.1 oz) |
| Certifications | CE, FCC, IC, Anatel |
| NDAA Compliant | ✓ |
| Performance | |
| Switching Capacity | 10 Gbps |
| Total Non-Blocking Throughput | 5 Gbps |
| Forwarding Rate | 7 Mpps |
| Supported VLANs | 1,000 |
| MAC Address Table Size | 2,000 |
| Layer 2 Features | |
| Egress Rate Limit | ✓ |
| Flow Control | ✓ |
| Port Isolation | ✓ |
| Port Mirroring | ✓ |
| Jumbo Frames | ✓ |
| Environmental | |
| Heat Dissipation | 17.06 BTU/hr |
| Operating Temp (46W PoE) | -40 to 55°C (-40 to 131°F) |
| Operating Temp (25W PoE) | -40 to 65°C (-40 to 149°F) |
| Humidity | 5% – 95% non-condensing |
| ESD/EMP Protection | ±16kV air/contact |
| Software | |
| Management | Ethernet |
| Application Requirements | UniFi Network Version 5.10.3 and later |
