Enterprise Fortress Gateway
25G Cloud Gateway with 500+ UniFi device / 5,000+ client support, 12.5 Gbps IPS routing, and complete high availability.
Technical
| Category | Details |
|---|---|
| Dimensions | |
| Size | 442.4 x 43.7 x 325 mm (17.4 x 1.7 x 12.8") |
| UniFi Application Suite | |
| Network | ✓ |
| Managed UniFi Devices | 500+ |
| Simultaneous Users | 5,000+ |
| Max. WAN Port Count | 5 |
| Default WAN Ports | (1) 25G SFP28, (1) 2.5 GbE RJ45 |

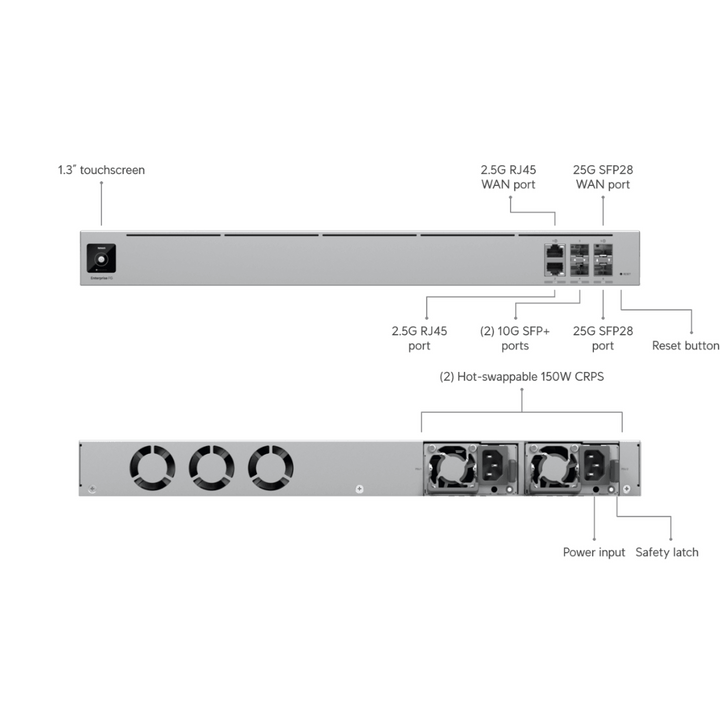

| Port Layout | |
| 2.5 GbE RJ45 | 2 (2.5G/1G/100M/10M) |
| 10G SFP+ | 2 (10G/1G) |
| 25G SFP28 | 2 (25G/10G/1G) |
| Security | |
| Stateful Firewall | ✓ |
| Application-Aware Layer 7 Firewall | ✓ |
| SSL Inspection & URL Filtering | ✓ |
| IPS/IDS Signatures | 95,000+ with CyberSecure Enterprise |
| VPN & SD-WAN | |
| License-Free SD-WAN | ✓ |
| Supported Protocols | Site Magic, IPsec, OpenVPN, WireGuard, L2TP, Teleport |
| VPN Throughput | Up to 1.2 Gbps (protocol-dependent) |
| Networking | |
| Dynamic Routing | OSPF, BGP |
| Advanced NAT | SNAT, DNAT, Masquerade, NAT Pooling, 1-to-1 NAT |
| IPv6 Support | ✓ |
| Hardware | |
| Processor | 18-core ARM® v8.2 at 2 GHz |
| Memory | — |
| Power | (2) Hot-swappable 150W CRPS, 100–240V AC |
| Weight | 6.5 kg (14.3 lb) |
| Software | |
| Mobile App | UniFi iOS™ v10.16.2+, UniFi Android™ v10.17.2+ |
