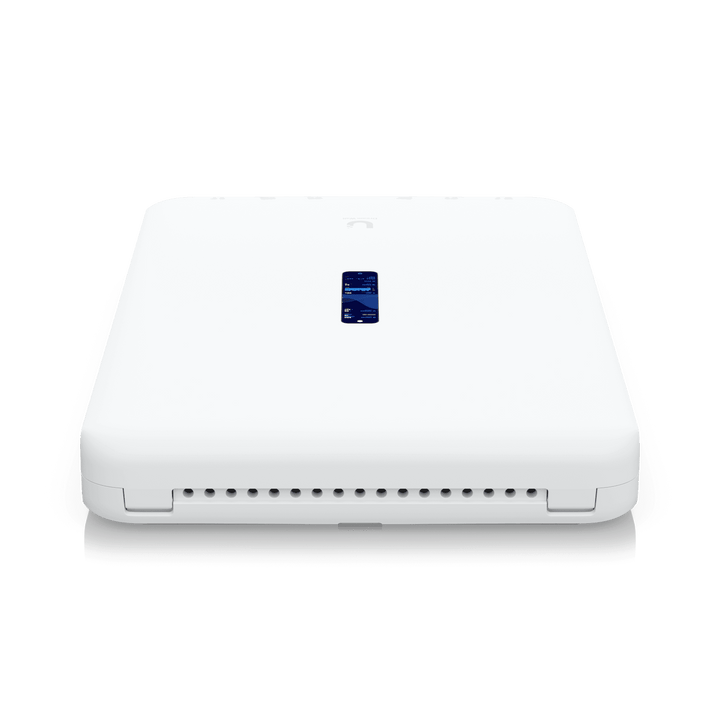

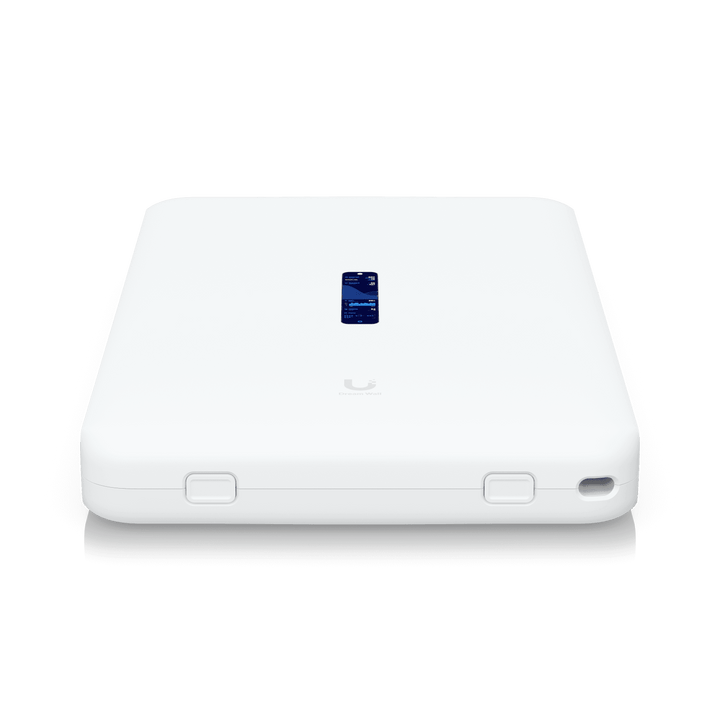

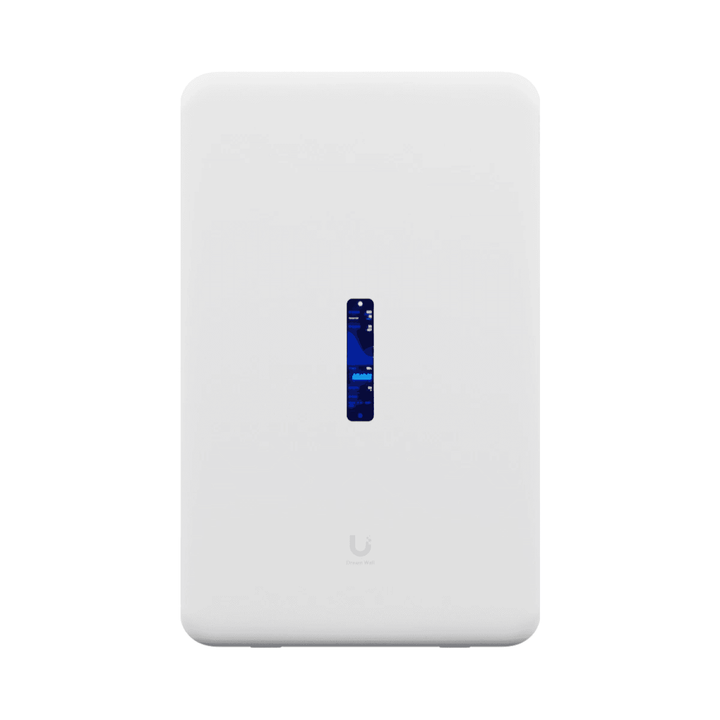

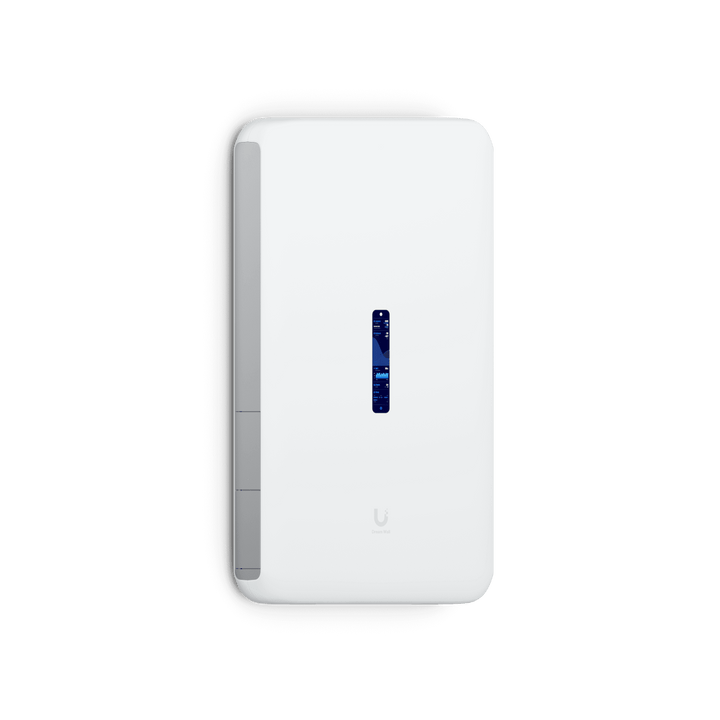

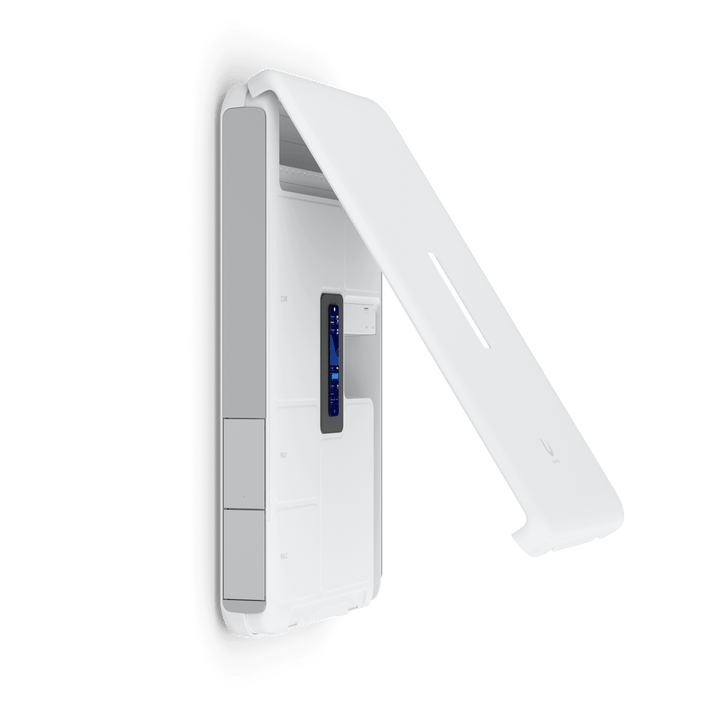

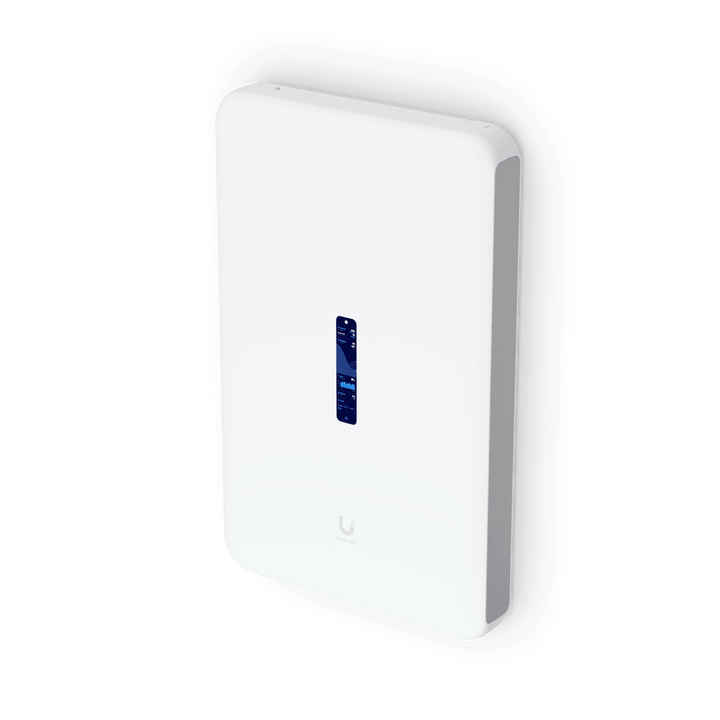

Dream Wall

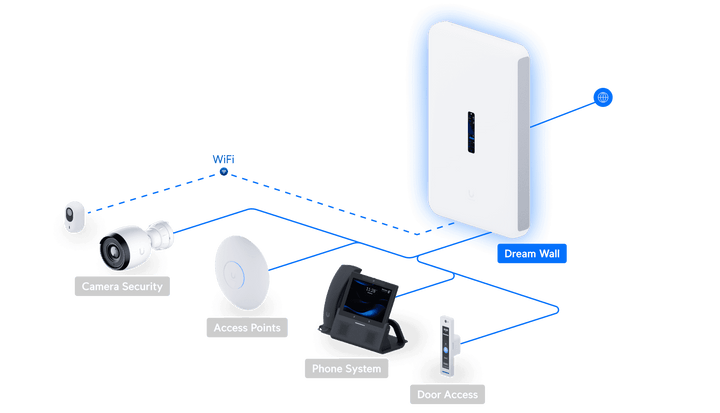

Wall-mounted 10G Cloud Gateway with integrated WiFi 6, high-power PoE switching, and full UniFi application support.
Technical
| Specifications | |
|---|---|

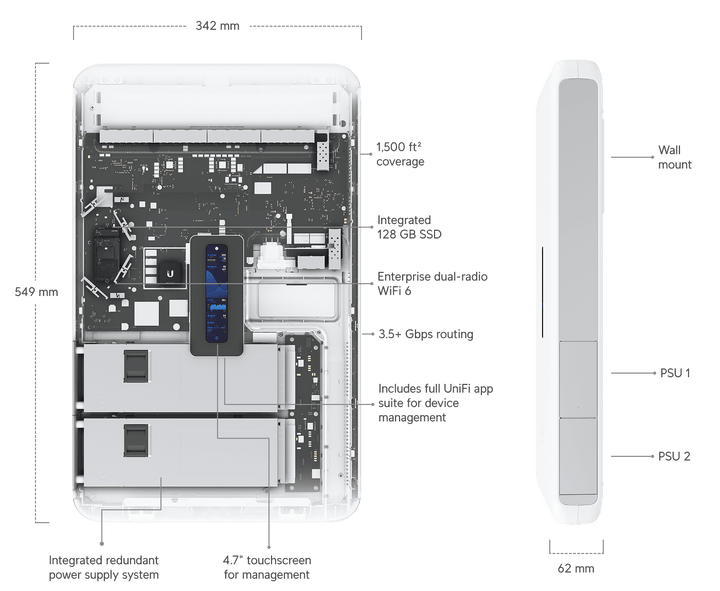

| Dimensions | 549 x 342 x 62 mm (21.6 x 13.5 x 2.4") |
| UniFi Application Suite | Network, Protect, Access, Talk, Connect |
| Managed UniFi Devices | 100+ |
| Managed Cameras | (12) HD, (7) 2K, (4) 4K |
| Simultaneous Users Connected | 300+ |
| Max. WAN Port Count | 8 |
| Default WAN Ports | (1) 2.5 GbE RJ45, (1) 10G SFP+ |

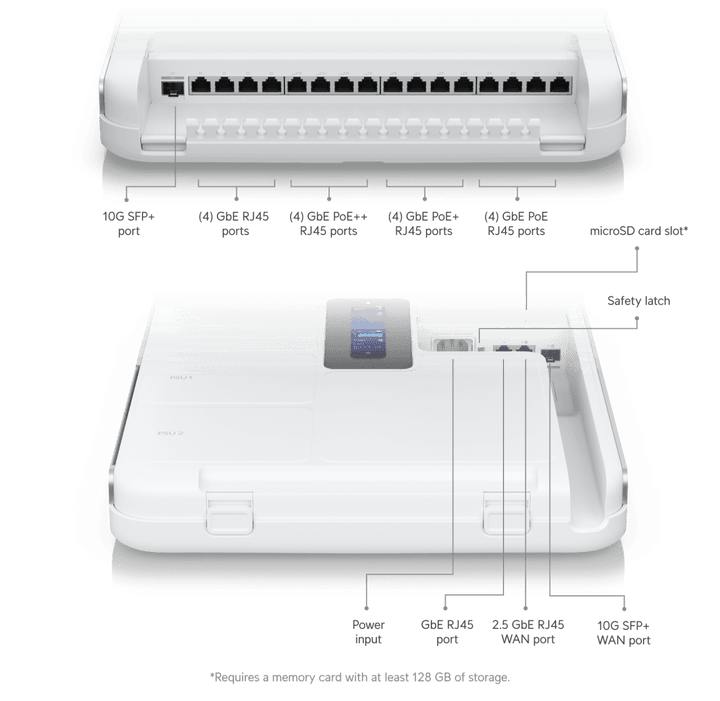

| Port Layout | (17) 1 GbE RJ45 (4 PoE++; 4 PoE+; 4 PoE), (1) 2.5 GbE RJ45, (2) 10G SFP+ |
| IDS/IPS Throughput | 3.5 Gbps |

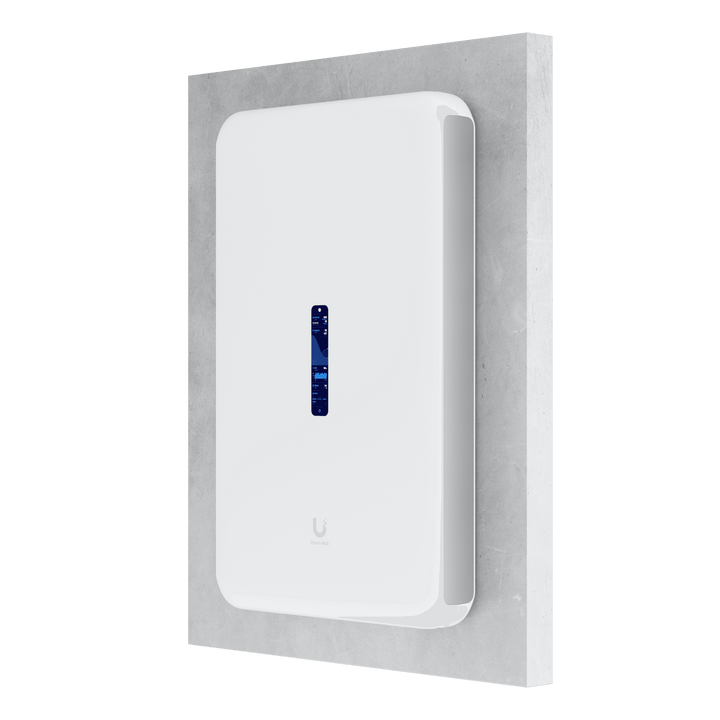

| Form Factor | Wall-mounted |

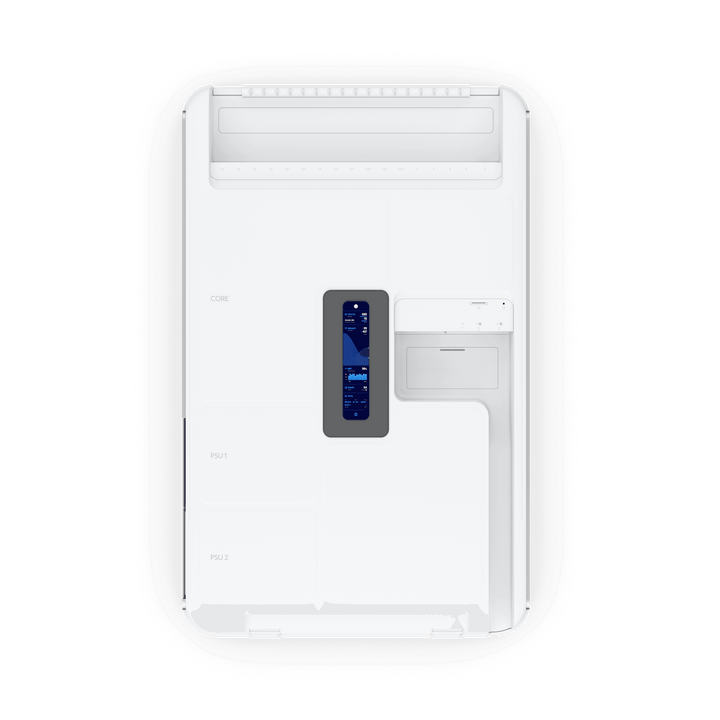

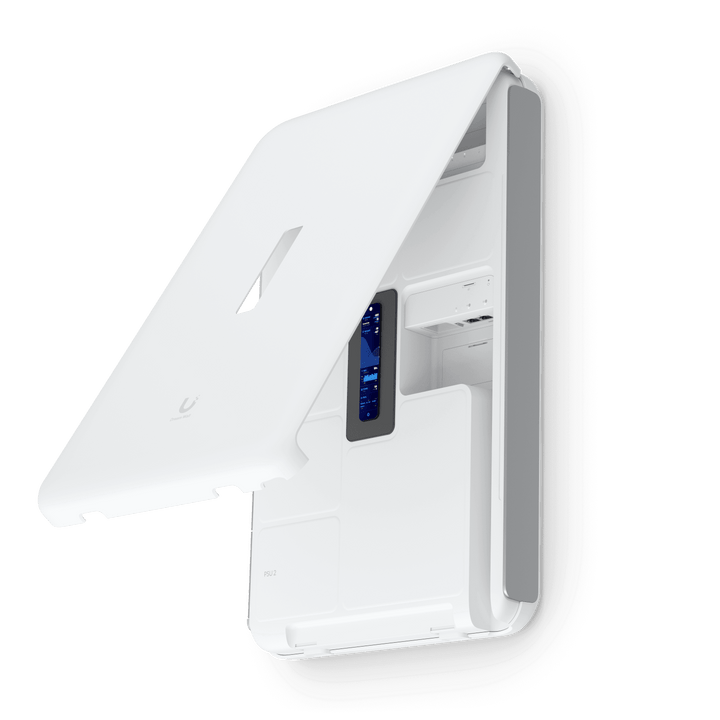

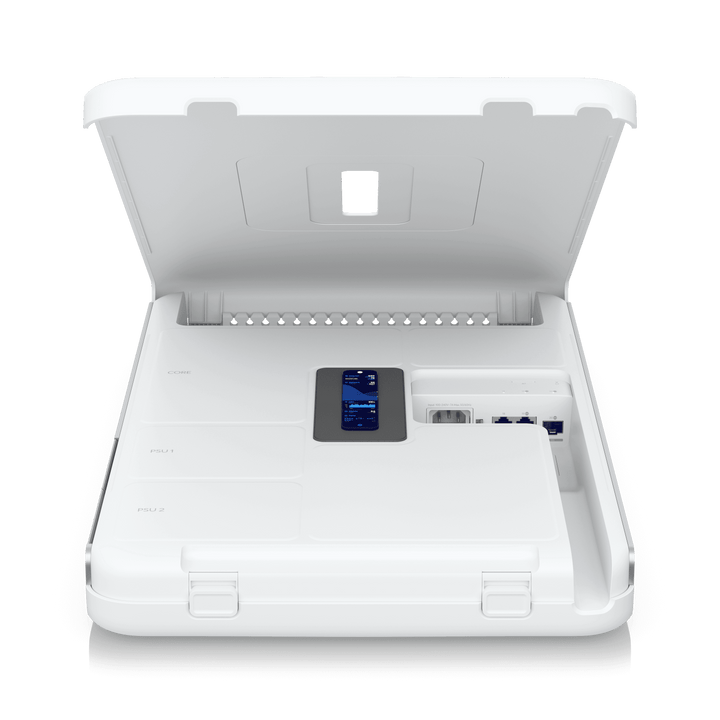

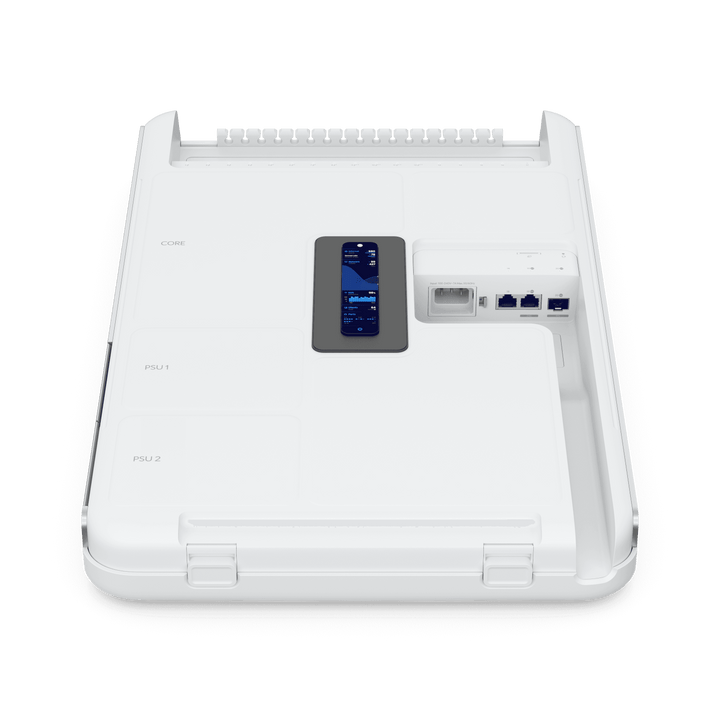

| Redundancy | (2) Hot-Swappable PSUs |
| Coverage Area | 140 m² (1,500 ft²) |
| Security | |
| Stateful Firewall, Layer 7 Firewall, DPI & Traffic ID, Zone-based Filtering, Content Filtering, IDS/IPS (55,000+ signatures with CyberSecure), Ad Blocking, VLAN/Subnet Segmentation | |
| VPN & SD-WAN | |
| License-Free SD-WAN, Site Magic, IPsec, OpenVPN, Identity Endpoint VPN, Teleport VPN, WireGuard, L2TP (Server & Client) | |
| Networking | |
| Multi-WAN Load Balancing, OSPF, BGP, Advanced QoS, mDNS, Advanced NAT, Integrated RADIUS, RadSec, LTE Backup Failover, WAN/VPN Routing, DHCP Server, IPv6, IGMP Proxy, MAC Table: 8,000 | |
| Integrated WiFi | |
| Standard | 802.11a/b/g/n/ac/ax (WiFi 6) |
| Throughput | 5 GHz: 2.4 Gbps, 2.4 GHz: 300 Mbps |
| MIMO | 5 GHz: 4x4 MU-MIMO, 2.4 GHz: 2x2 MU-MIMO |
| Antenna Gain | 5 GHz: 6 dBi, 2.4 GHz: 5.9 dBi |
| TX Power | 5 GHz: 26 dBm, 2.4 GHz: 23 dBm |
| Security | WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK) |
| Max. BSSIDs | 8 per Radio |
| Hardware | |
| NVR Storage | 512 GB microSD (pre-installed), 128 GB SSD, Expansion: MicroSD |
| PoE Budget | 420W (15.4W PoE, 30W PoE+, 60W PoE++) |
| Power Consumption | 532W (Including PoE Output) |
| Power Supply | (2) Hot-Swappable 550W AC/DC PSU |
| Processor | Quad-core ARM® Cortex®-A57 at 1.7 GHz |
| System Memory | 4 GB |
| Storage | 16 GB eMMC + 128 GB SSD + 512 GB microSD |
| Weight | 8.6 kg (19 lb) |
| Enclosure | Polycarbonate, galvanized steel, aluminum alloy |
| Display | 4.7" touchscreen |
| Management | Ethernet, Bluetooth |
| Certifications | CE, FCC, IC, Anatel |
| Software | |
| VLAN | 802.1Q |
| Guest Isolation | Yes |
