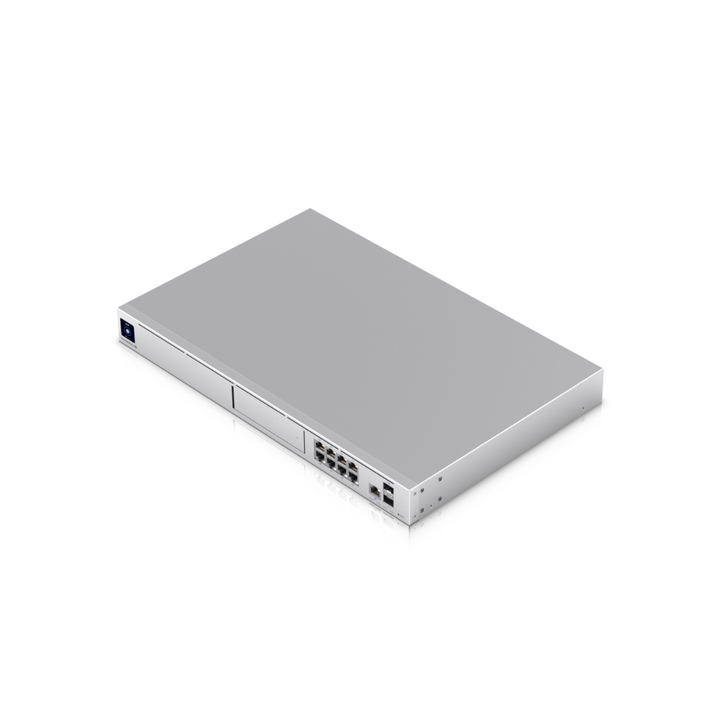

Dream Machine Special Edition
10G Cloud Gateway with 100+ UniFi device / 1,000+ client support, 3.5 Gbps IPS routing, and built-in PoE switching.
Technical
| Hardware Specifications | |
|---|---|

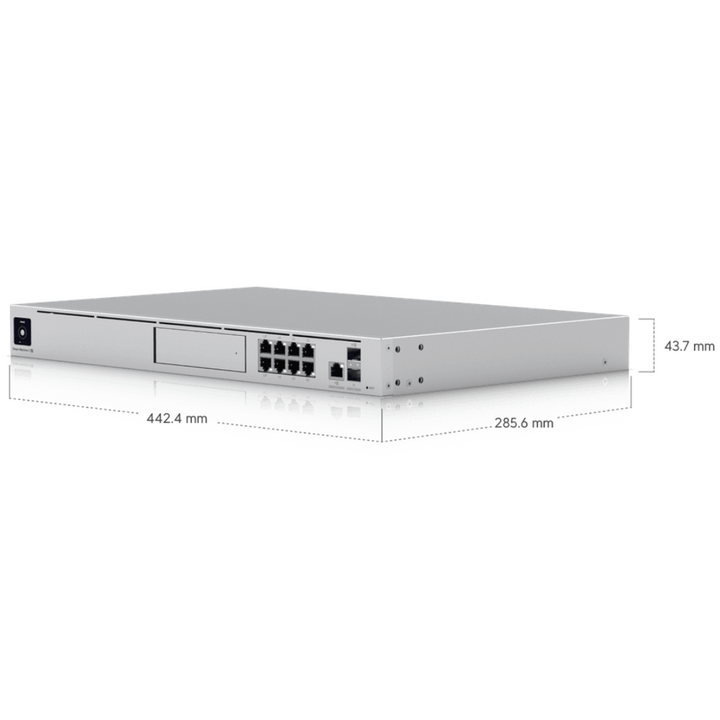

| Dimensions | 442.4 x 43.7 x 285.6 mm (17.4 x 1.7 x 11.2") |
| Form Factor | Rack mount (1U) |
| Weight | 5 kg (10.9 lb) |
| Processor | Quad-core ARM® Cortex®-A57 @ 1.7 GHz |
| System Memory | 4 GB |
| On-board Storage | 16 GB eMMC + 128 GB SSD (Integrated) |
| Built-in NVR Storage | (1) 3.5" HDD Bay |
| Enclosure Material | Aluminium CNC, SGCC steel |

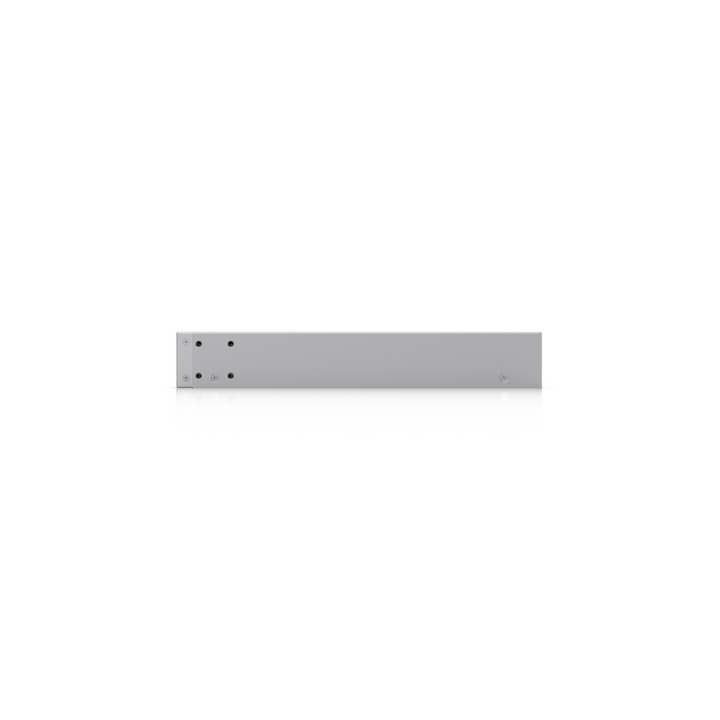

| Mount Material | SGCC steel |
| LCM Display | 1.3" Touchscreen |
| Management | Ethernet, Bluetooth |
| Button | (1) Factory-reset |
| LEDs | Ethernet, SFP+, RPS, PSU, HDD |
| Max. Power Consumption | 50W (Excluding PoE Output) |
| PoE Budget | 180W |
| Max PoE Wattage per Port | PoE: 15.4W, PoE+: 30W |
| Voltage Range (PoE Mode) | PoE: 44–57V, PoE+: 50–57V |

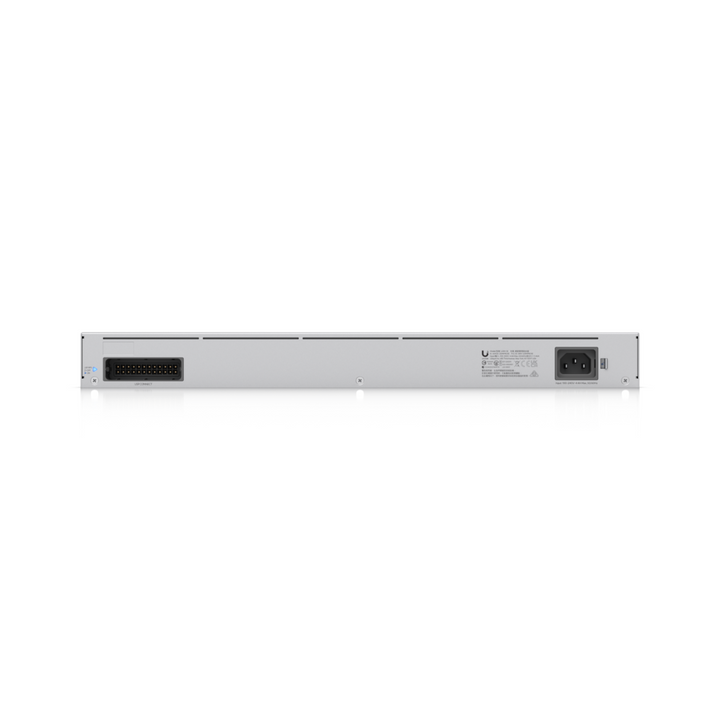

| Power Method |
(1) Universal AC input, 100–240V AC, 4.4A Max., 50/60 Hz (1) USP-RPS DC input, 52V DC, 3.94A |
| Power Supply | AC/DC, internal, 240W |
| Supported Voltage Range | 100—240V AC |
| Certifications | CE, FCC, IC, Anatel, SRRC |
| NDAA Compliant | ✓ |
| Networking | |

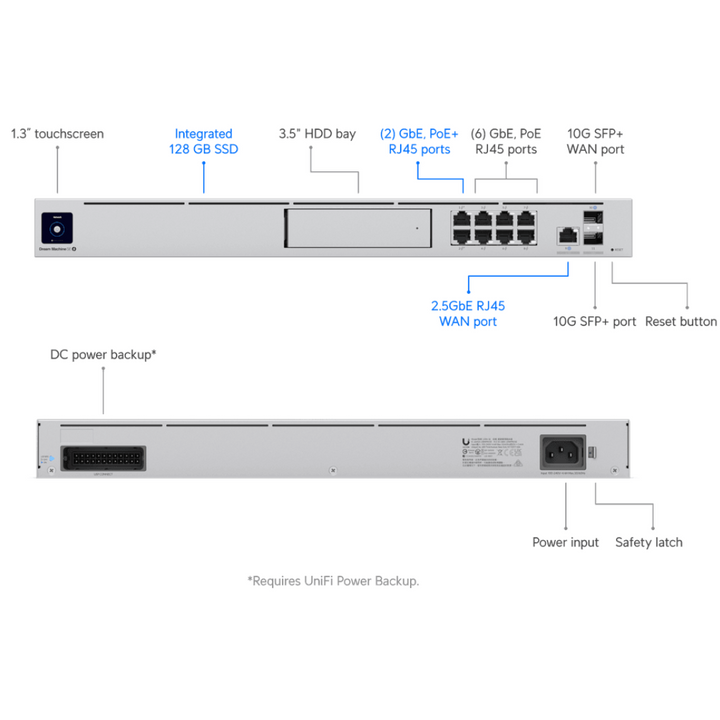

| Port Layout |
8 x 1 GbE RJ45 1 x 2.5 GbE RJ45 2 x 10G SFP+ |
| Default WAN Ports | (1) 10G SFP+, (1) 2.5 GbE RJ45 |
| Max WAN Port Count | 8 |
| MAC Address Table Size | 4,000 |
| Multi-WAN Load Balancing | ✓ |
| Shadow Mode (VRRP) | ✓ (High Availability Failover) |
| Dynamic Routing | OSPF, BGP |
| Advanced QoS | ✓ |
| Multicast DNS (mDNS) | ✓ |
| Advanced NAT | SNAT, DNAT, Masquerade, NAT Pooling, 1-to-1 NAT |
| Integrated RADIUS Server | ✓ |
| RADIUS over TLS (RadSec) | ✓ |
| Internet Failover | ✓ (Supports UniFi LTE Backup) |
| Internet Quality & Outage Reporting | ✓ |
| Policy-based WAN/VPN Routing | ✓ |
| Custom DHCP Server | ✓ |
| IPv6 ISP Support | ✓ |
| IGMP Proxy | ✓ |
| Security | |
| Stateful Firewall | ✓ |
| Layer 7 Firewall (Application-Aware) | ✓ |
| DPI & Traffic Identification | ✓ |
| Zone-Based Filtering | ✓ (Regions, Domains, Apps) |
| Content Filtering | ✓ |
| Intrusion Detection & Prevention | ✓ |
| IDS/IPS Signatures | 55,000+ (with CyberSecure) |
| Ad Blocking | ✓ |
| VLAN/Subnet Segmentation | ✓ |
| IDS/IPS Throughput | 3.5 Gbps |
| VPN & SD-WAN | |
| License-Free SD-WAN | ✓ |
| Site-to-Site VPN | ✓ (Site Magic) |
| VPN Server | ✓ (One-Click, Teleport) |
| VPN Protocols | IPsec, WireGuard, OpenVPN, L2TP |
| VPN Client Support | WireGuard, OpenVPN |
| Environmental | |
| Operating Temperature | -10 to 40°C (14 to 104°F) |
| Operating Humidity | 5% – 95% non-condensing |
| ESD/EMP Protection | Air: ±15kV, Contact: ±8kV |
| Software & Capabilities | |

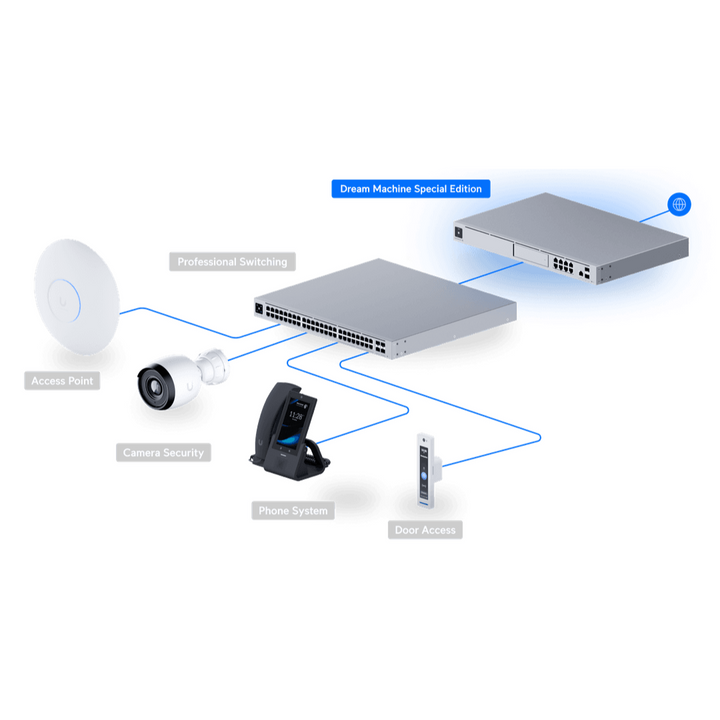

| UniFi Application Suite | Network, Protect, Access, Talk, Connect |
| Managed UniFi Devices | 100+ |
| Managed Cameras |
24 HD 14 2K 8 4K |
| Simultaneous Connected Users | 1,000+ |
