Technical
| General | |
|---|---|

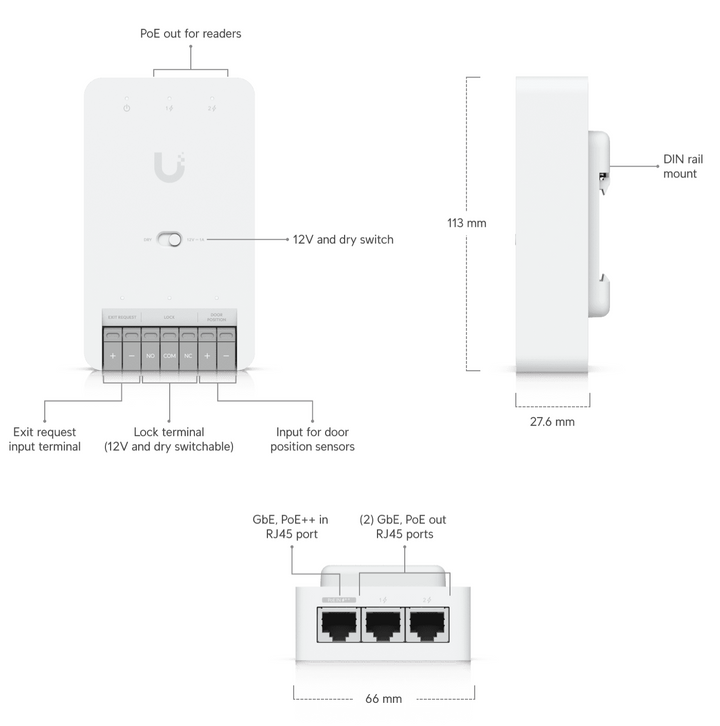

| Dimensions | 113 x 66 x 27.6 mm (4.4 x 2.6 x 1.1") |
| UniFi Application Suite | Access ✓ |
| Supported Doors | 1 |

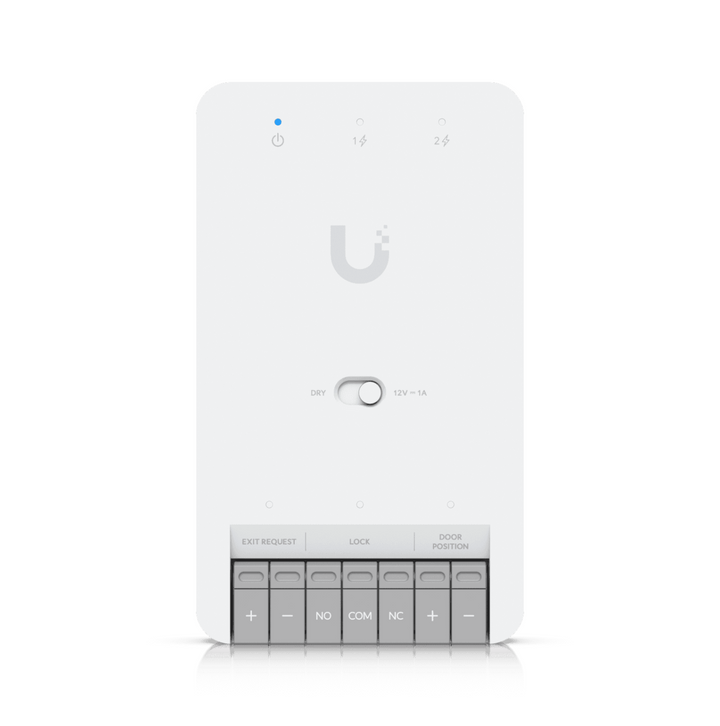

| Input Terminals | (1) Door exit request (1) Door position |
| Power Method | PoE++ UL 294 Power-limited Class 2 PSU UL 60950-1/62368-1 LPS/PS2 PSU |
| NDAA Compliant | ✓ |
| UL 294 Level | Destructive attack: Level I Line security: Level I Endurance: Level I Standby power: Level I |
| Mechanical | |
| Weight | 190 g (6.7 oz) |
| Enclosure Material | Polycarbonate, metal |

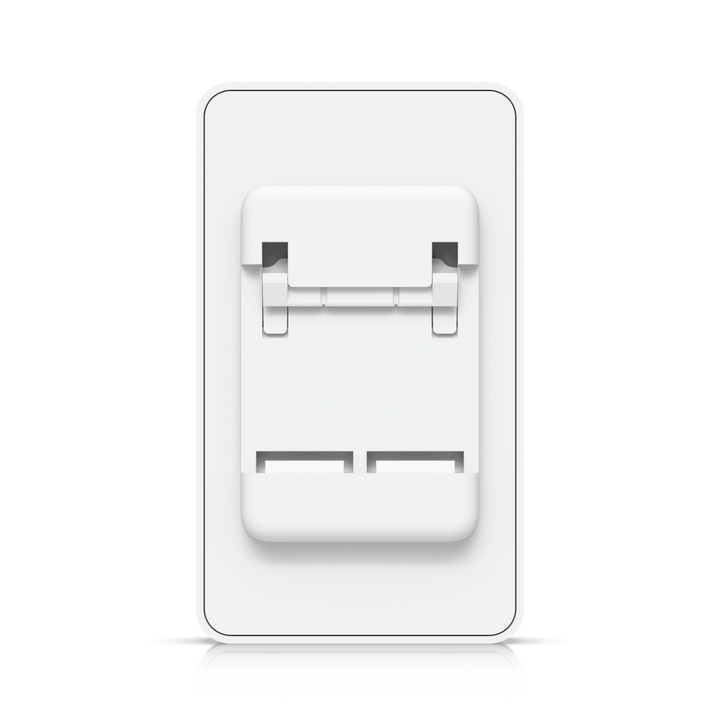

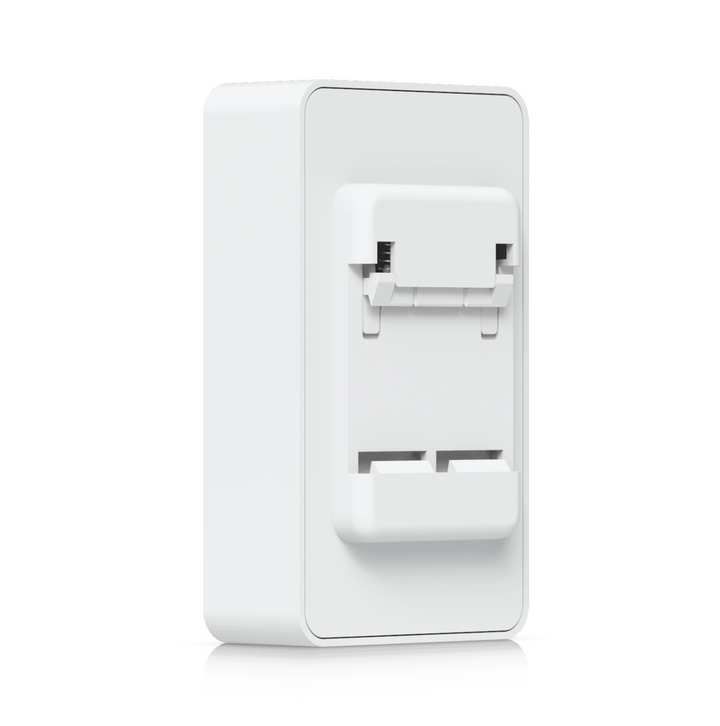

| Mounting | DIN-rail (Included) |
| Hardware | |
| Dry Output Relay | 30V DC, 1A |
| Indoor and Outdoor Use | Indoor only |
| Ambient Operating Temperature | 0 to 40° C (32 to 104° F) |
| Ambient Operating Humidity | 5 to 90% noncondensing |

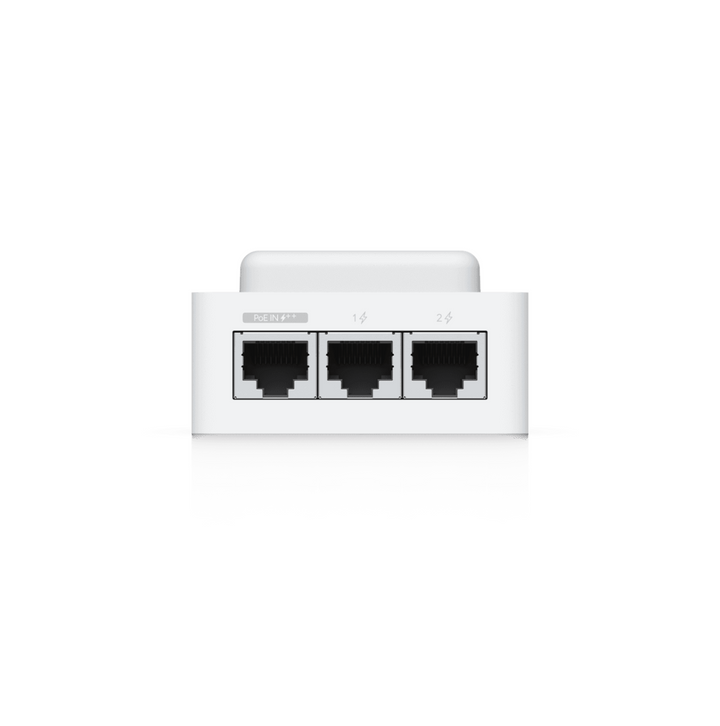

| Networking Interface | (3) GbE RJ45 ports |
| PoE Interface | (1) PoE++ input, 50V DC, 1A (2) PoE outputs, 50V DC, 30W per port (Max 45W aggregated) |
| Max. Power Consumption | 19W (Without PoE output) 50W (With PoE output) |
| LEDs | W/B Learn More |
| Buttons | (1) Factory-reset (1) Dry/Wet switch |
| Recommended Max. Cable Length |
UA-Lock-Electric (400mA) 24 AWG: 25 m (82 ft) 22 AWG: 42 m (138 ft) 20 AWG: 66 m (217 ft) 18 UACC-Cable-DoorLockRelay: 100 m (328 ft) UA-Lock-Magnetic-540kg (500mA) 24 AWG: 12 m (29 ft) 22 AWG: 20 m (66 ft) 20 AWG: 30 m (98 ft) 18 UACC-Cable-DoorLockRelay: 46 m (262 ft) UA-Lock-Magnetic-270kg (800mA) 24 AWG: 12 m (29 ft) 22 AWG: 20 m (98 ft) 20 AWG: 30 m (167 ft) 18 UACC-Cable-DoorLockRelay: 46 m (151 ft) Other locks (1A) 24 AWG: 9 m (30 ft) 22 AWG: 15 m (49 ft) 20 AWG: 24 m (79 ft) 18 UACC-Cable-DoorLockRelay: 36 m (118 ft) |
| PoE Cabling Requirements | Cat 5e minimum recommended. Patch cords: 26 AWG (0.13 mm²) Horizontal/riser: 24 AWG (0.21 mm²) |
| UL 294 Statement | Compliance with IEEE 802.3 specifications was not verified as part of UL 294. The equipment is intended to comply with ANSI/NFPA 70 Article 725.121. |
| CAN/ULC-60839-11-1 Grade | Grade I |
| Certifications | CE, FCC, IC, UL 294, CAN/ULC-60839-11-1 |
| Document Info | UA-Hub-Door-Mini, V01 |
| Software | |
| Management Application | Access |
| Software Information | The software version can be checked at https://unifi.ui.com |
