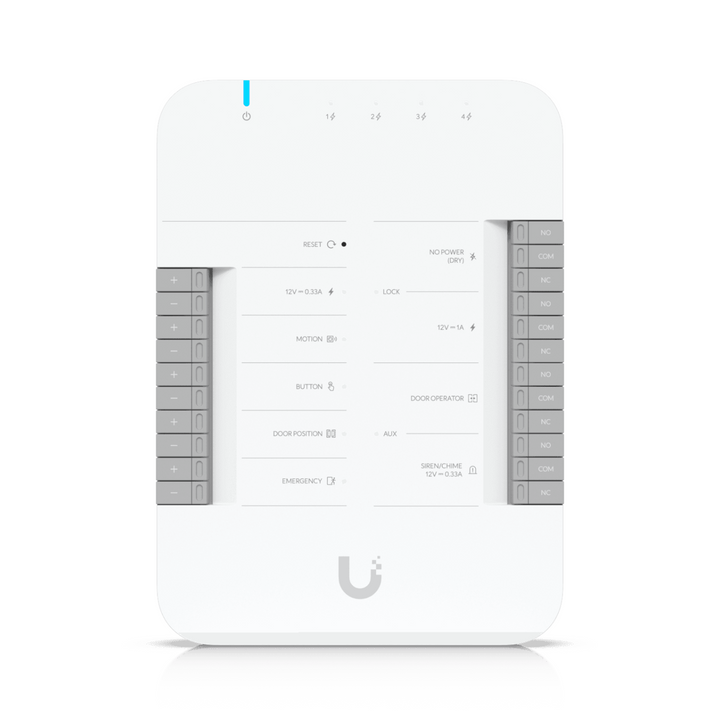

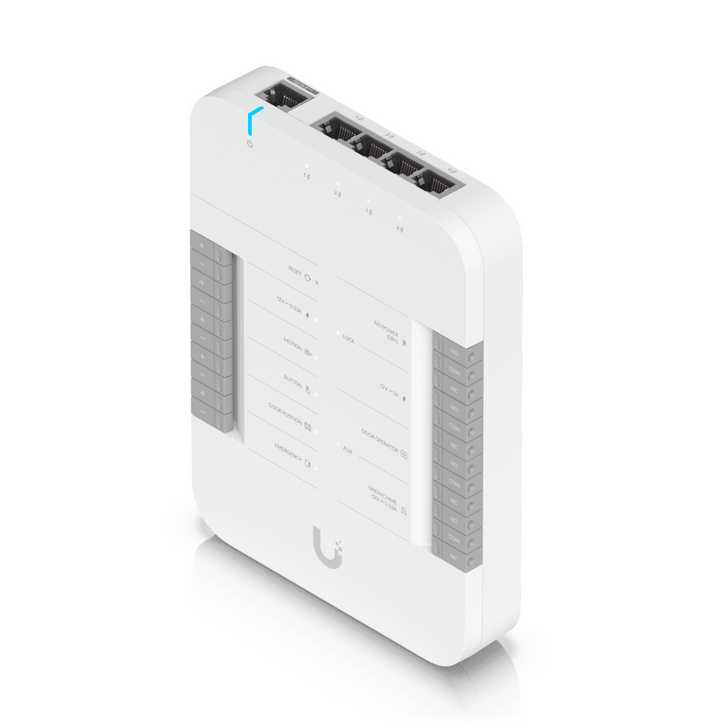

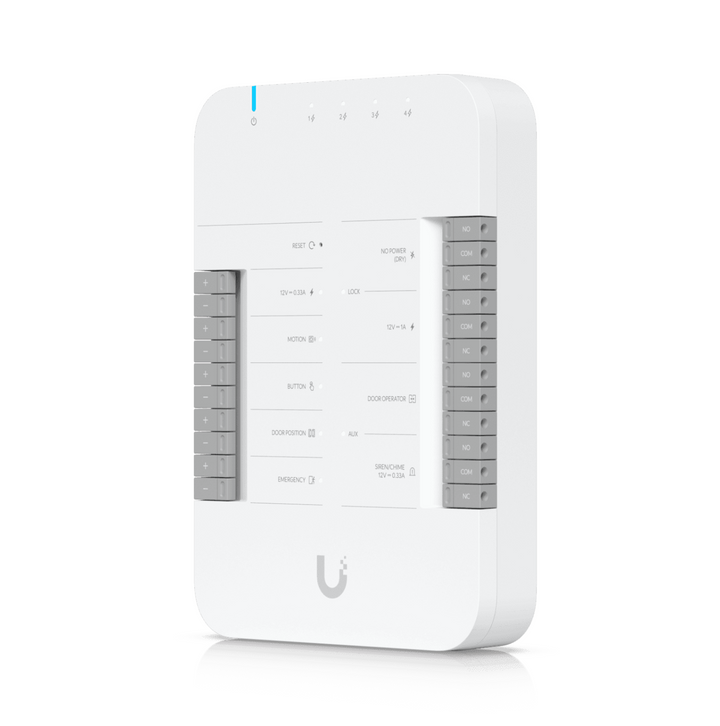

Door Hub

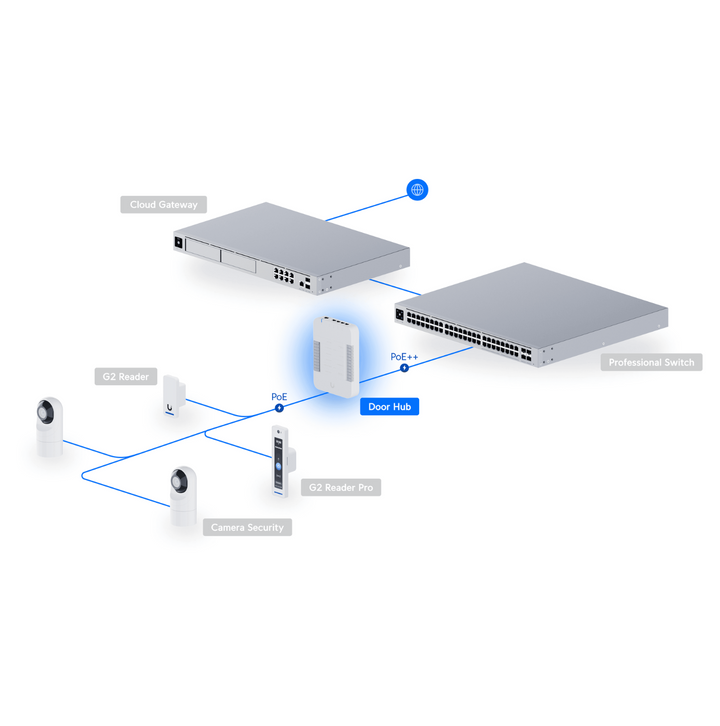

A single-door mechanism that provides complete entry and exit control via connected Access Readers.
Technical
| General | |
|---|---|

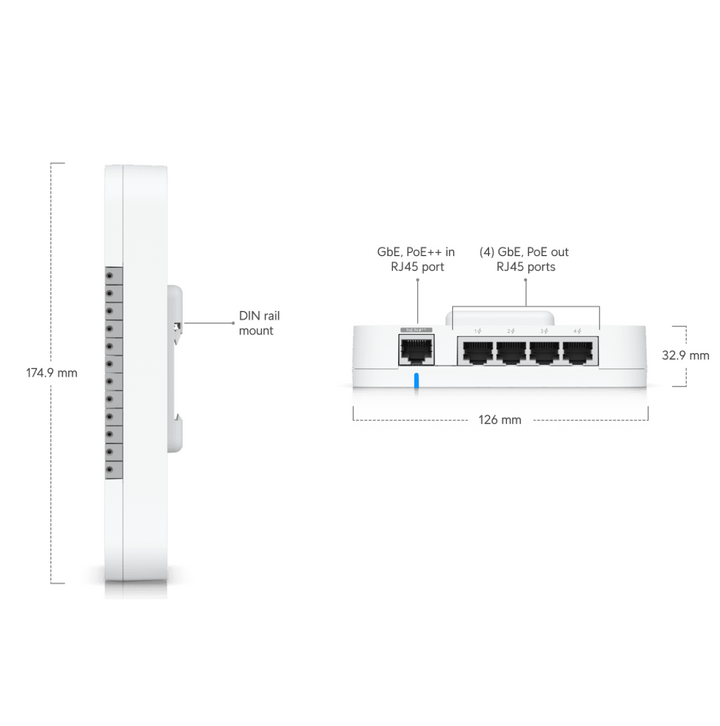

| Dimensions | 174.9 x 126 x 32.9 mm (6.9 x 5 x 1.3") |
| UniFi Application Suite | Access ✓ |
| Supported Doors | 1 |

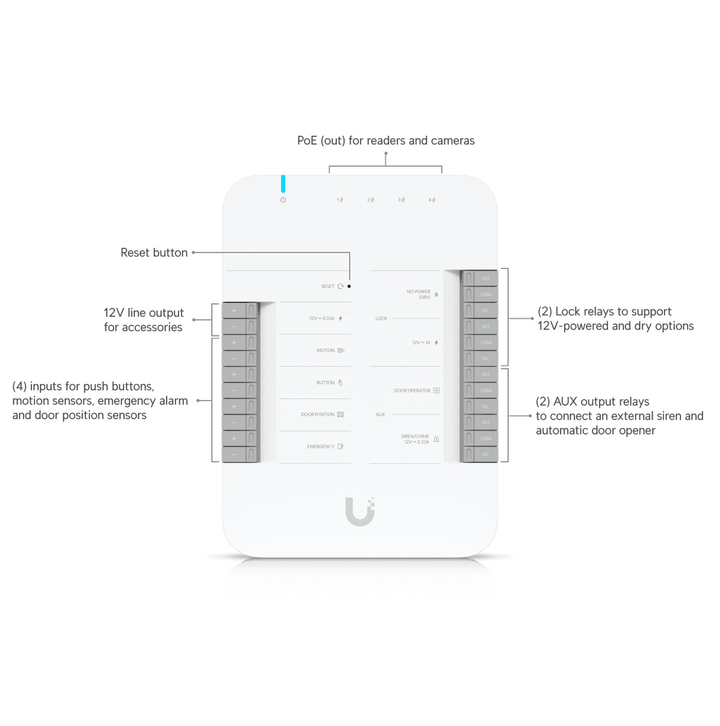

| Input Terminals | (2) Door exit request (1) Door position (1) Emergency |
| Power Method | PoE++ UL 294 Power-limited Class 2 PSU UL 60950-1/62368-1 LPS/PS2 PSU |
| NDAA Compliant | ✓ |
| UL 294 Level |
Destructive attack: Level I Line security: Level I Endurance: Level I Standby power: Level I |
| Mechanical | |
| Weight | 363 g (12.8 oz) |
| Enclosure Material | Polycarbonate |
| Mount Material | Polycarbonate |

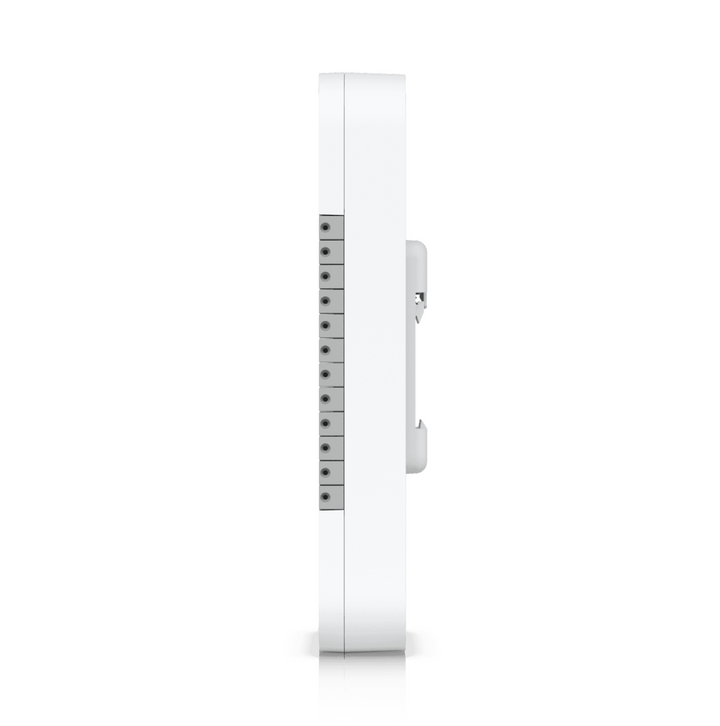

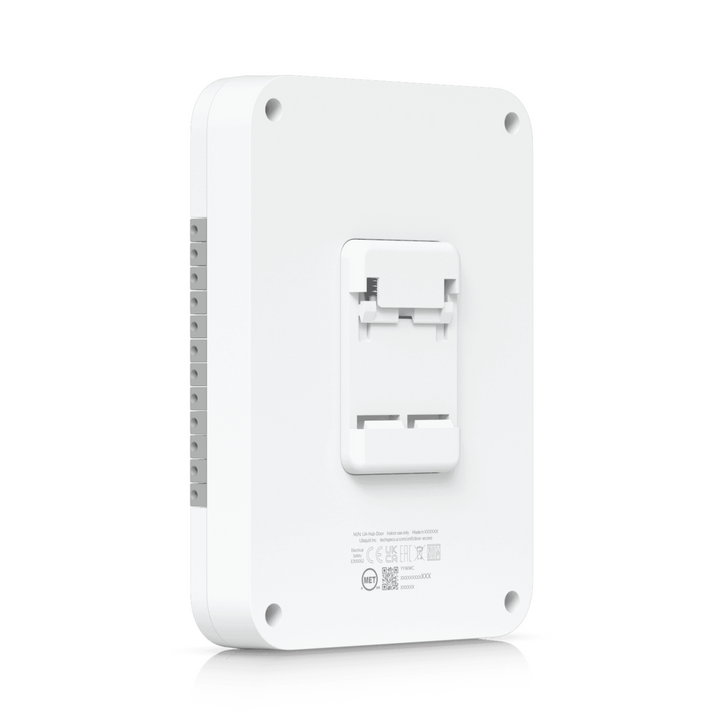

| Mounting | DIN-rail (Included) |
| Hardware | |
| Digital Input | Request to exit, request to enter, remote release, door position sensor |
| Dry Output Relay | Lock: 30V DC, 1A Aux: 30V DC, 1A |
| Powered Output Relay | Lock: 12V DC, 1A Aux: 12V DC, 0.33A 12V DC, 0.33A |
| Indoor and Outdoor Use | Indoor only |
| Ambient Operating Temperature | 0 to 40° C (32 to 104° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |

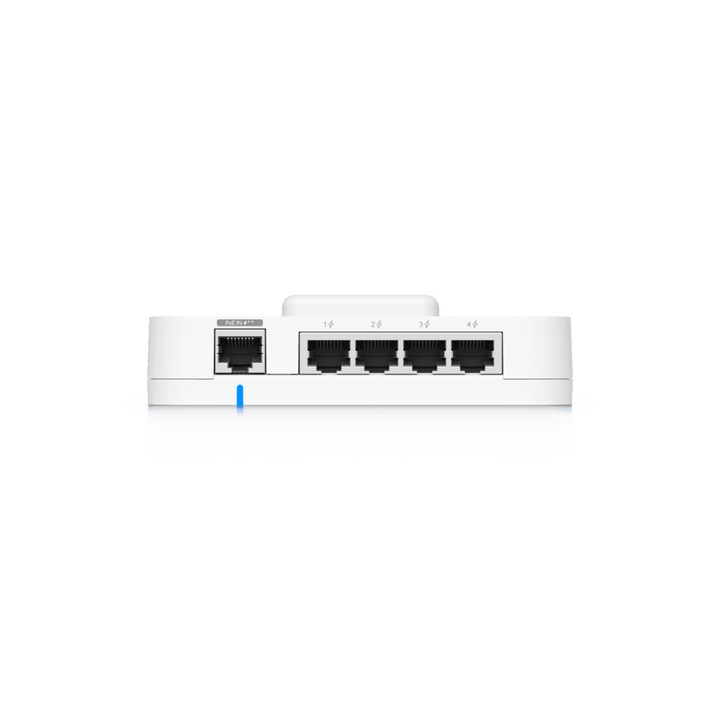

| Networking Interface | (5) 10/100/1000 Base-T |
| PoE Interface | (1) PoE++ input, 50V DC, 1A (4) PoE outputs, 50V DC, 30W per port (Max 45W aggregated) |
| Max. Power Consumption | 30W (Without PoE output) 50W (With PoE output) |
| LEDs | W/B Learn More |
| Buttons | (1) Factory-reset |
| Recommended Max. Cable Length | |
| UA-Lock-Electric (400mA) |
24 AWG: 25 m (82 ft) 22 AWG: 42 m (138 ft) 20 AWG: 66 m (217 ft) 18 UACC-Cable-DoorLockRelay: 100 m (328 ft) |
| UA-Lock-Magnetic-540kg (500mA) |
24 AWG: 20 m (66 ft) 22 AWG: 32 m (105 ft) 20 AWG: 51 m (167 ft) 18 UACC-Cable-DoorLockRelay: 80 m (262 ft) |
| UA-Lock-Magnetic-270kg (800mA) |
24 AWG: 12 m (29 ft) 22 AWG: 20 m (98 ft) 20 AWG: 30 m (167 ft) 18 UACC-Cable-DoorLockRelay: 46 m (151 ft) |
| Other Locks (1A) |
24 AWG: 9 m (30 ft) 22 AWG: 15 m (49 ft) 20 AWG: 24 m (79 ft) 18 UACC-Cable-DoorLockRelay: 36 m (118 ft) |
| PoE Cabling Requirements | Cat 5e minimum, 26 AWG (patch cords), 24 AWG (riser cable) |
| Certifications | |
| CAN/ULC-60839-11-1 Grade | Grade 1 |
| Certifications | CE, FCC, IC, UL 294, CAN/ULC-60839-11-1 |
| Document Number | UA-Hub-Door002, V01 |
| Software | |
| Management Application | Access |
| Software Information | The software version can be checked at https://unifi.ui.com |
