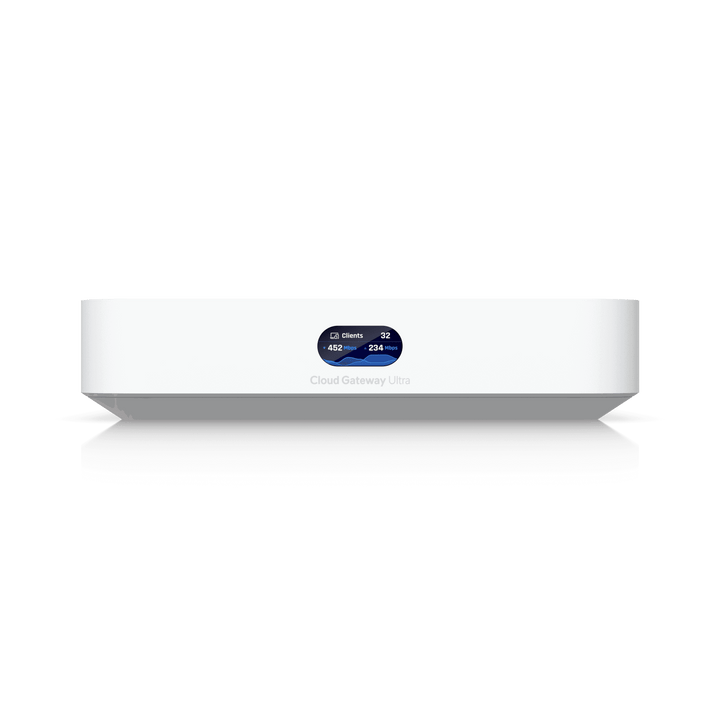

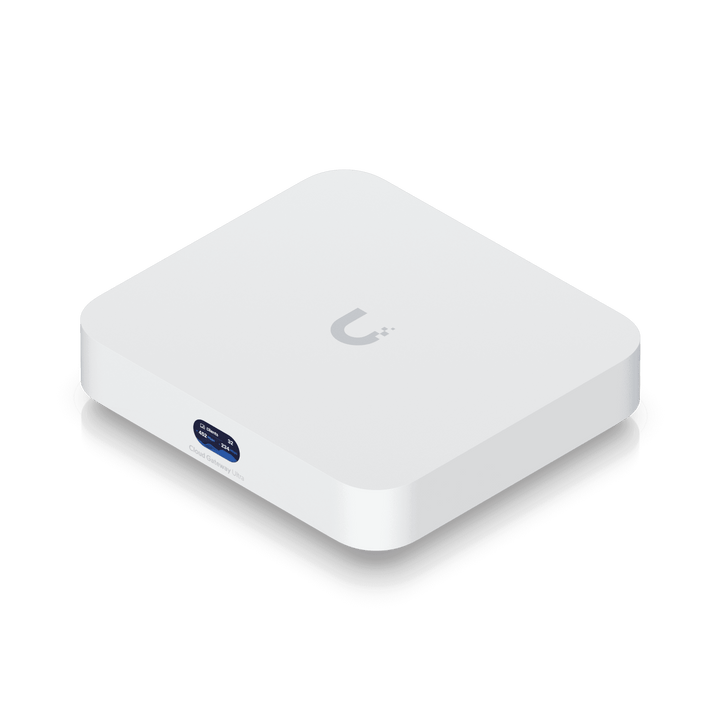

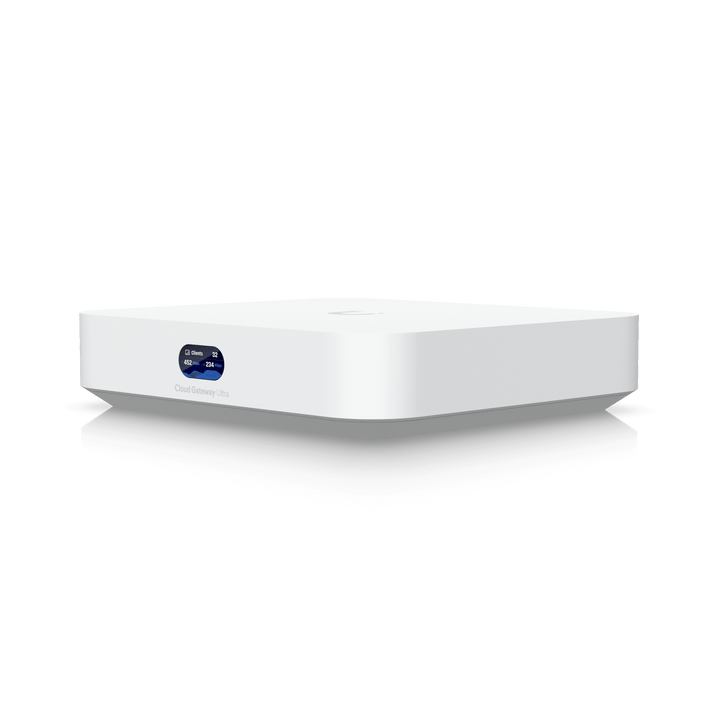

Cloud Gateway Ultra
Compact Cloud Gateway with 30+ UniFi device / 300+ client support, 1 Gbps IPS routing, and multi-WAN load balancing.
Technical
| Category | Details |
|---|---|
| Dimensions | |
| Size | 141.8 x 127.6 x 30 mm (5.6 x 5 x 1.2") |
| UniFi Application Suite | |
| Network | ✓ |
| Managed UniFi Devices | 30+ |
| Simultaneous Users | 300+ |
| Max. WAN Port Count | 4 |
| Default WAN Ports | (1) 2.5 GbE RJ45 |

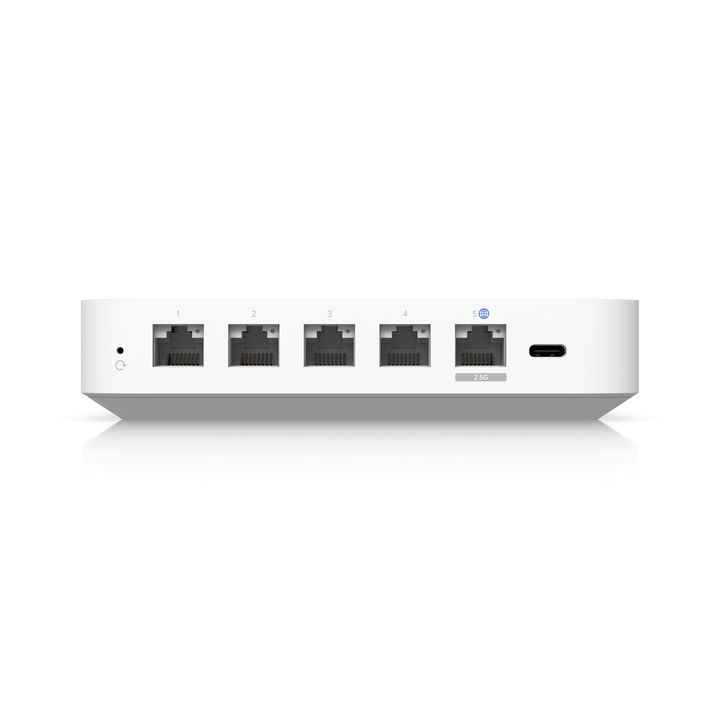

| Port Layout | |
| 1 GbE RJ45 | 4 (1G/100M/10M) |
| 2.5 GbE RJ45 | 1 (2.5G/1G/100M/10M) |
| Security | |
| Stateful Firewall | ✓ |
| Application-Aware Layer 7 Firewall | ✓ |
| DPI & Traffic Identification | ✓ |
| IDS/IPS Signatures | 55,000+ with CyberSecure |
| VPN & SD-WAN | |
| License-Free SD-WAN | ✓ |
| Supported Protocols | Site Magic, IPsec, OpenVPN, WireGuard, L2TP, Teleport |
| Networking | |
| Multi-WAN Load Balancing | ✓ |
| Dynamic Routing | OSPF |
| Advanced NAT | SNAT, DNAT, Masquerade, NAT Pooling, 1-to-1 NAT |
| MAC Address Table Size | 2,000 |
| Policy-based WAN/VPN Routing | ✓ |
| IPv6 Support | ✓ |
| Hardware | |
| Max. Power Consumption | 6.2W |
| Power Method | USB Type-C (5V DC/3A) |
| Processor | Quad-core ARM® Cortex®-A53 at 1.5 GHz |
| System Memory | 3 GB |
| On-board Storage | 16 GB |
| Weight | 520 g (1.1 lb) |
| Material | Polycarbonate |
| Software | |
| Management | Ethernet, Bluetooth |
| Compliance | NDAA, CE, FCC, IC, Anatel, SRRC |
| Mobile App | UniFi iOS™ v10.12.0+, UniFi Android™ v10.11.2+ |
