Cloud Gateway Max
Compact 2.5G Cloud Gateway with 30+ UniFi device / 300+ client support, 2.3 Gbps IPS routing, and selectable NVR storage.
Technical
| Hardware Specifications | |
|---|---|

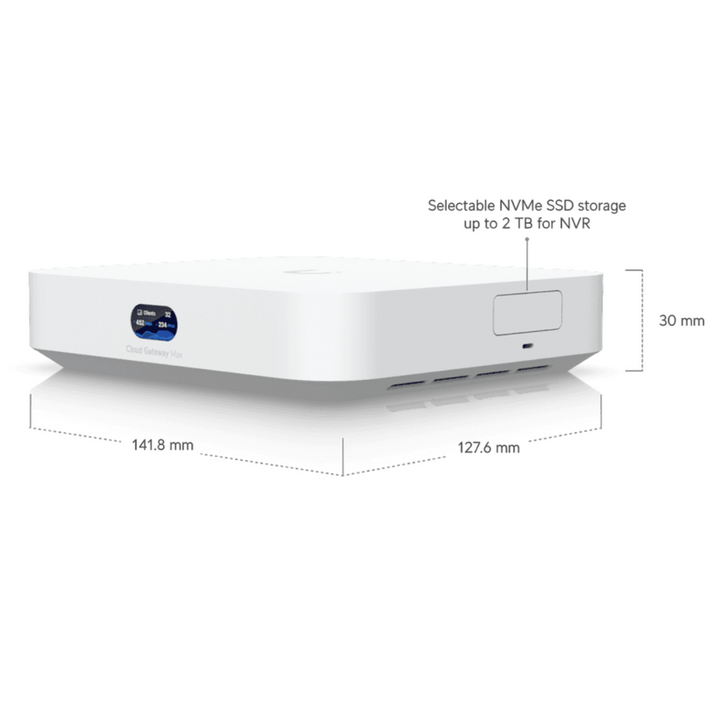

| Dimensions | 141.8 x 127.6 x 30 mm (5.6 x 5 x 1.2") |
| Form Factor | Compact desktop |
| Weight |
Without SSD: 460 g (1 lb) With SSD: 519 g (1.1 lb) |
| Processor | Quad-core ARM® Cortex®-A53 @ 1.5 GHz |
| System Memory | 3 GB |
| NVR Storage | Selectable NVMe SSD up to 2 TB |
| Enclosure Material | Polycarbonate |
| Display | 0.96" Status Display |
| Button | (1) Factory-reset |
| LEDs | Ethernet |
| Management | Ethernet, Bluetooth |
| Power Method | USB Type-C (5V DC / 5A) |
| Power Supply | USB Type-C Adapter Included |
| Max. Power Consumption | 16.1W |
| Supported Voltage Range | 100—240V AC |
| Certifications | CE, FCC, IC, Anatel, SRRC |
| NDAA Compliant | ✓ |
| Networking | |

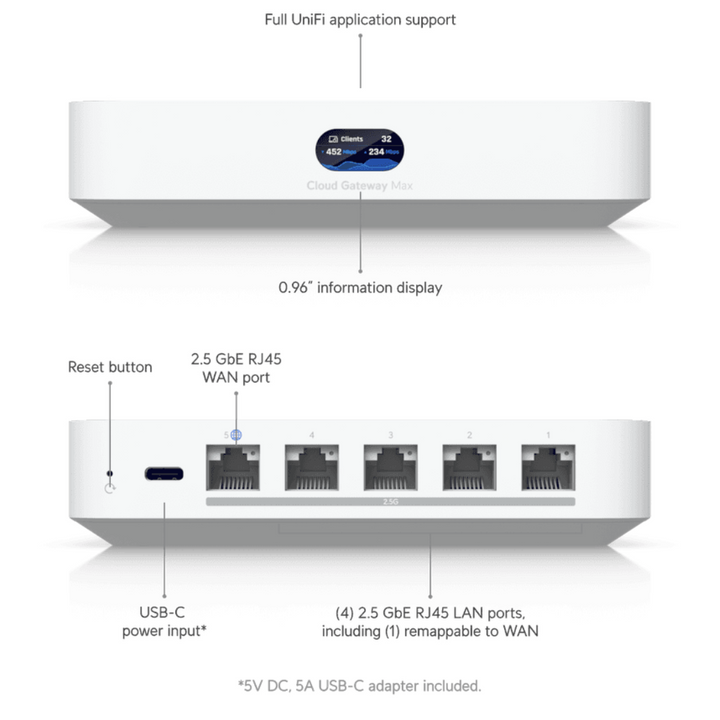

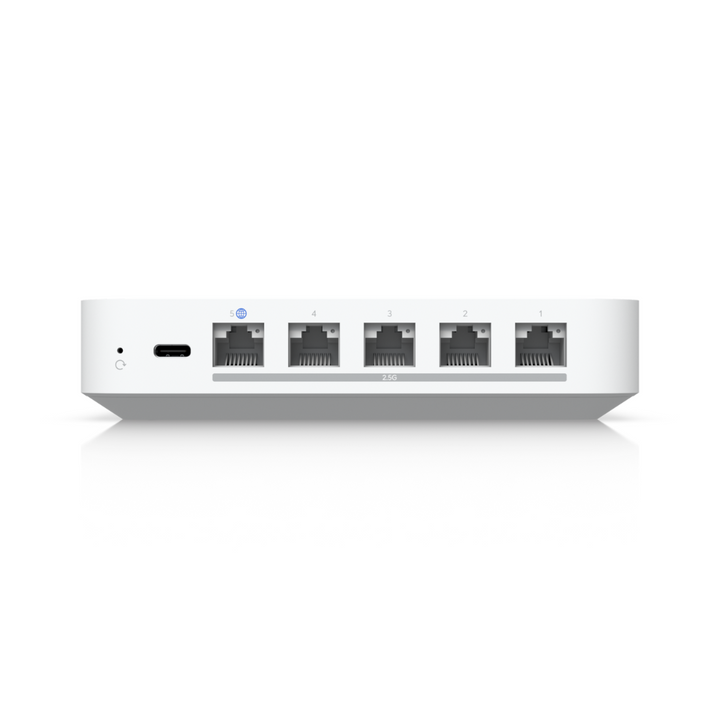

| Port Layout | 5 x 2.5 GbE RJ45 (2.5G/1G/100M/10M) |
| Default WAN Ports | (1) 2.5 GbE RJ45 |
| Max WAN Port Count | 4 |
| MAC Address Table Size | 2,000 |
| Multi-WAN Load Balancing | ✓ |
| Dynamic Routing | OSPF |
| Advanced QoS | ✓ |
| Multicast DNS (mDNS) | ✓ |
| Advanced NAT | SNAT, DNAT, Masquerade, NAT Pooling, 1:1 NAT |
| RADIUS Server | ✓ (with RadSec support) |
| IGMP Proxy | ✓ |
| IPv6 ISP Support | ✓ |
| Policy-based WAN/VPN Routing | ✓ |
| Custom DHCP Server | ✓ |
| WAN Failover | ✓ (with UniFi LTE Backup) |
| Internet Quality & Outage Reporting | ✓ |
| Security | |
| Stateful Firewall | ✓ |
| Application-Aware L7 Firewall | ✓ |
| DPI & Traffic Identification | ✓ |
| Zone-Based Filtering | ✓ (Regions, Domains, Apps) |
| Content Filtering | ✓ |
| Intrusion Detection & Prevention | ✓ |
| Ad Blocking | ✓ |
| IDS/IPS Signatures | 55,000+ with CyberSecure |
| VLAN/Subnet Traffic Segmentation | ✓ |
| IDS/IPS Throughput | 2.3 Gbps |
| VPN & SD-WAN | |
| SD-WAN | ✓ (License-Free) |
| Site-to-Site VPN | ✓ (Site Magic) |
| VPN Server | ✓ (Identity Endpoint, Teleport) |
| VPN Protocols | WireGuard, OpenVPN, L2TP, IPsec |
| VPN Client Support | WireGuard, OpenVPN |
| Environmental | |
| Operating Temperature | -10 to 40°C (14 to 104°F) |
| Operating Humidity | 5% – 95% non-condensing |
| ESD/EMP Protection | ±8kV Air, ±4kV Contact |
| Software | |
| UniFi Application Suite | Network, Protect, Access, Talk, Connect |
| Managed UniFi Devices | 30+ |
| Managed Cameras |
15 HD 8 2K 5 4K |
| Simultaneous Connected Users | 300+ |
| App Requirements | UniFi iOS/Android 10.17.2+ |
