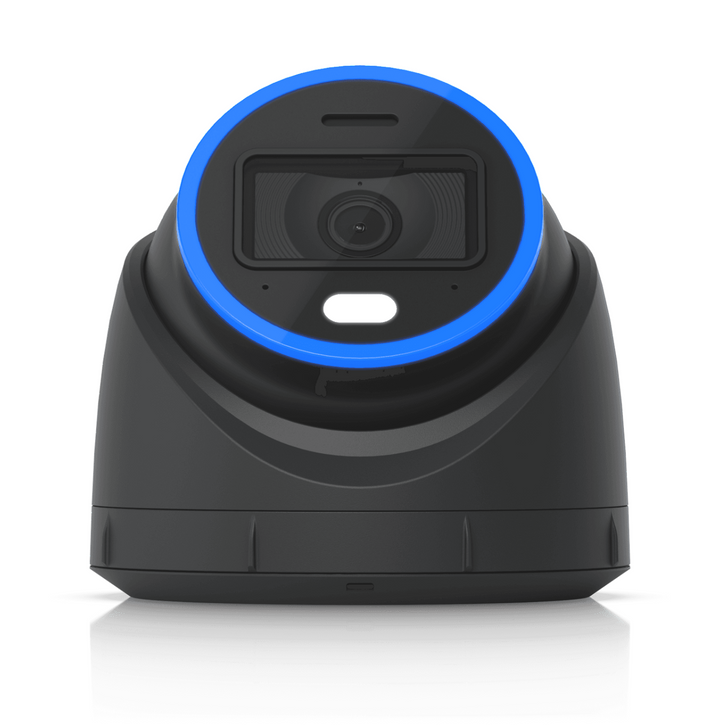

AI Turret
All-weather, vandal-proof 4K PoE+ turret camera with enhanced AI capabilities and IR and visible LEDs for night vision.
Technical
| General | |
|---|---|

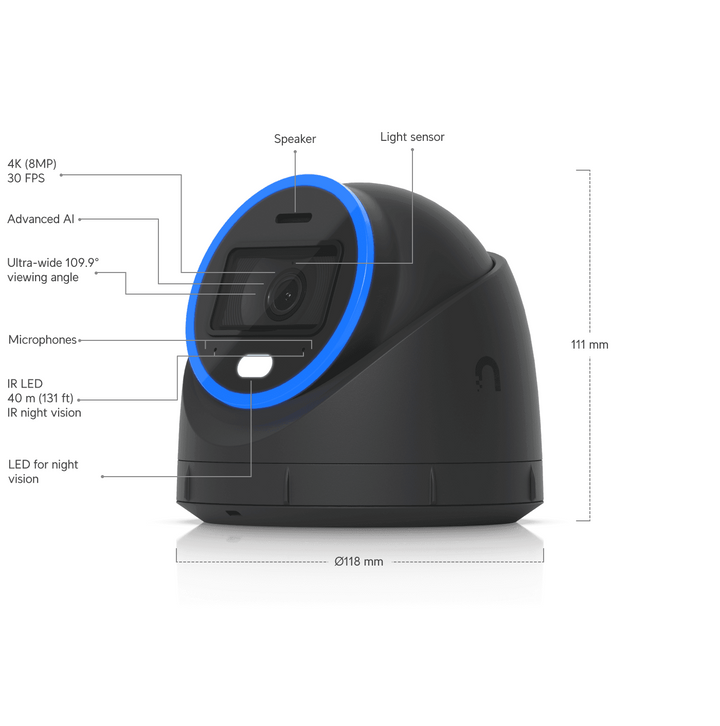

| Dimensions | Ø118 x 111 mm (Ø4.6 x 4.4") |
| IR Night Vision | 40 m (131 ft) |
| Face Recognition | ✓ |
| License Plate Recognition | ✓ |
| Smart Detections | People, Vehicles, Animals ✓ |
| Resolution | 4K (8MP 3840 x 2160, 16:9) |
| Field of View | H: 109.9°, V: 56.7°, D: 134.1° |
| Audio | Two-way audio |
| Weatherproofing | IP66 |
| Tamper Resistance | IK08 |

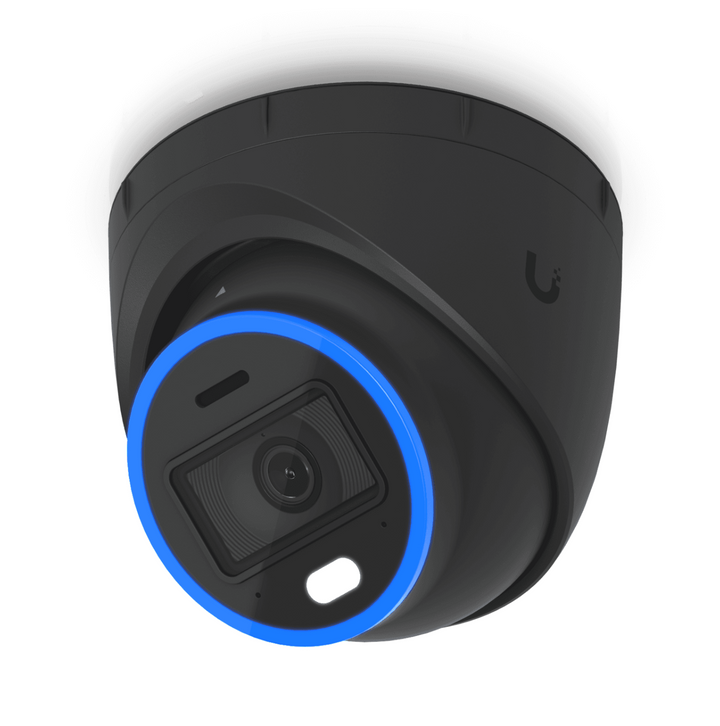

| Mounting | Ceiling, arm, wall, pendant mount, junction box |
| Performance | |
| Networking Interface | GbE RJ45 port |
| Image Settings | Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay, HDR |
| Max. Frame Rate | 30 FPS |
| Sensor | 1/1.8" 8MP |
| Lens | Fixed focal length |
| Night Mode | Built-in IR LED illumination and IR cut filter |
| Hardware | |
| Max. Power Consumption | 20W |
| Supported Voltage Range | 42.5—57V DC |
| Power Method | PoE+ |
| Processor | Quad-core Arm® Cortex®-A53 based chip |
| Weight | 990 g (2.2 lb) |
| Enclosure Material | Aluminum alloy, polycarbonate |

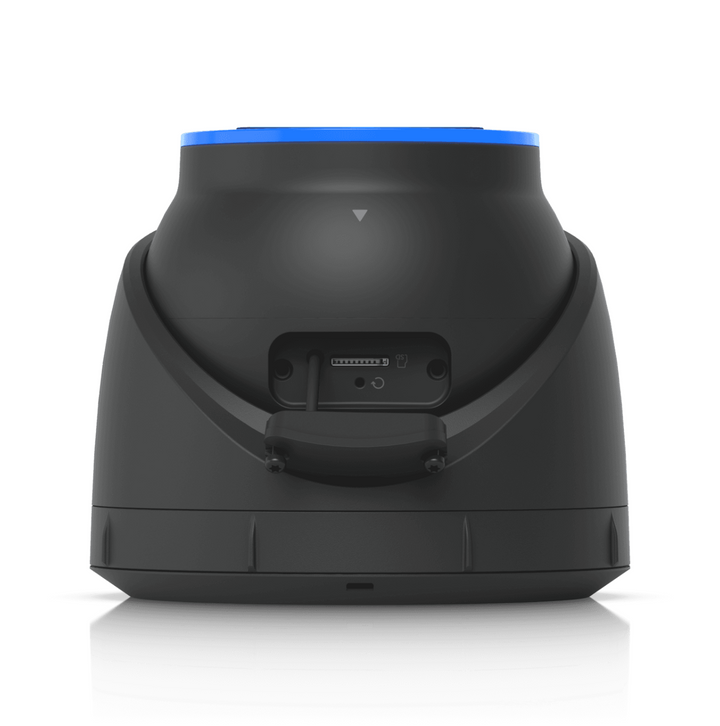

| Expansion Slot | MicroSD Card |
| Button | Factory Reset |

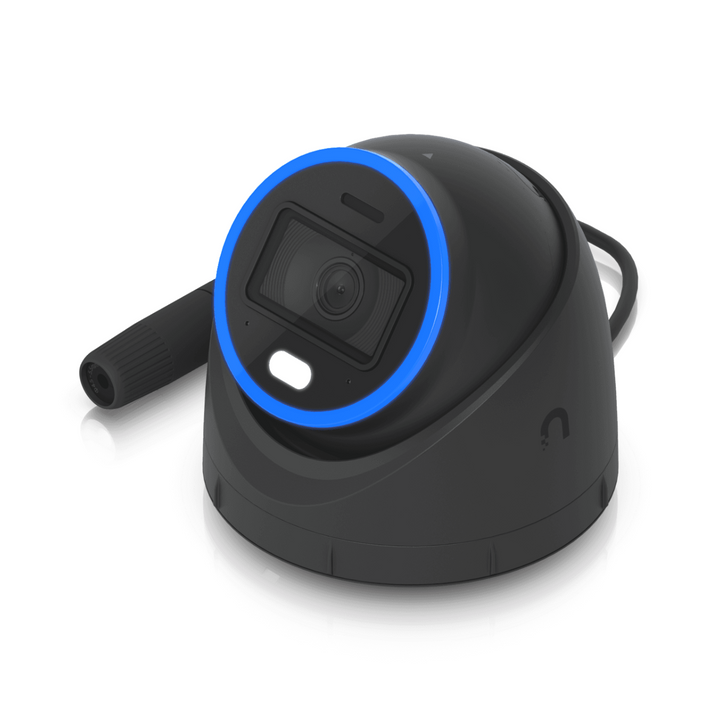

| Cable Connector | RJ45 |
| Cable Diameter | 4.5 mm (0.2") |
| Cable Length | 30 cm (1 ft) |
| Jacket Material | Thermoplastic elastomer |
| Jacket Enclosure | Ø20 x 70.6 mm (0.8 x 2.8") Material: Thermoplastic elastomer, polycarbonate, silicone rubber |
| Operating Temperature | -30 to 50º C (-22 to 122º F) |
| Operating Humidity | 0 to 90% noncondensing |
| Compliance | NDAA ✓ |
| Certifications | CE, FCC, IC |
