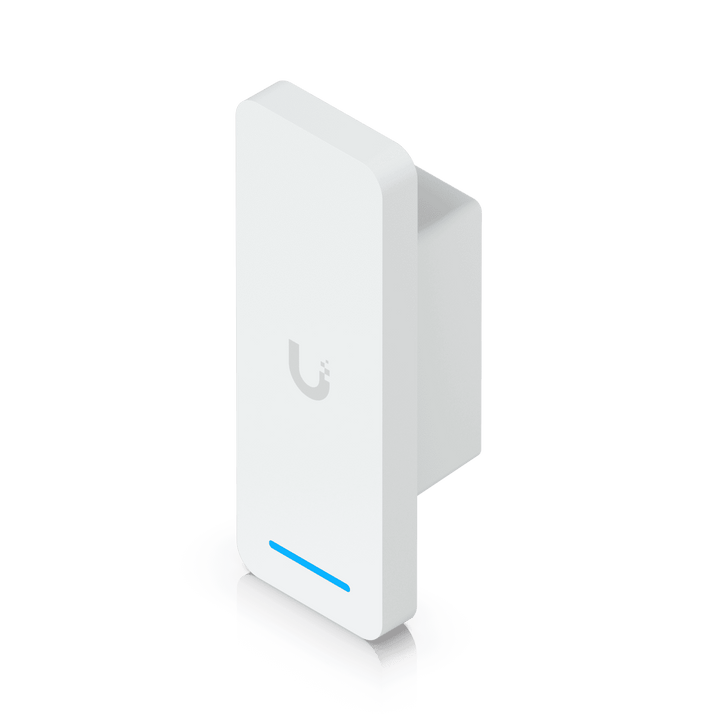

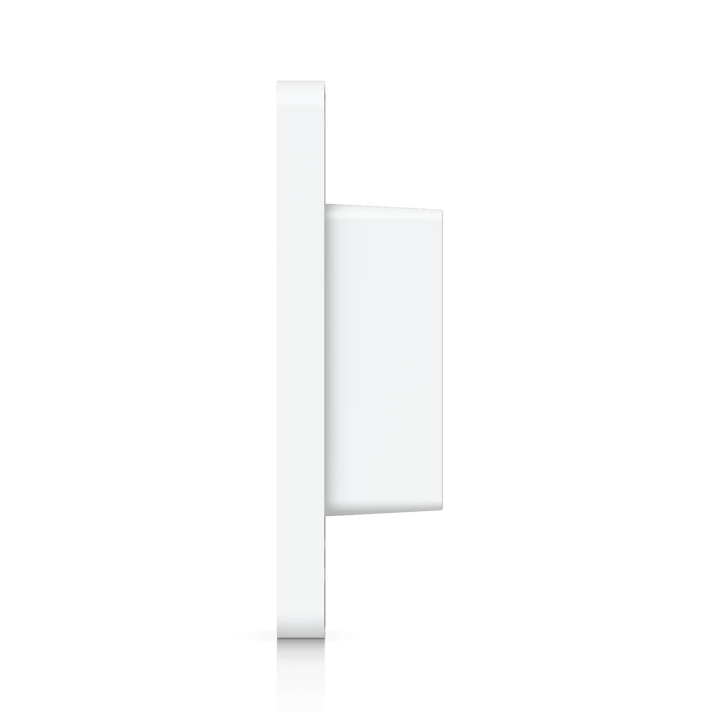

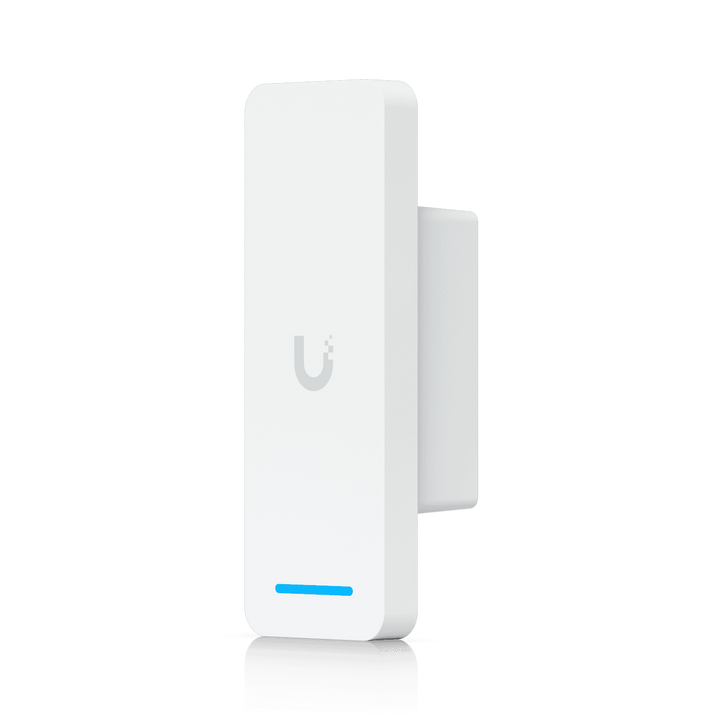

Access Ultra
An access reader with a built-in hub for complete, single-door entry control from one device.
Technical
| General | |

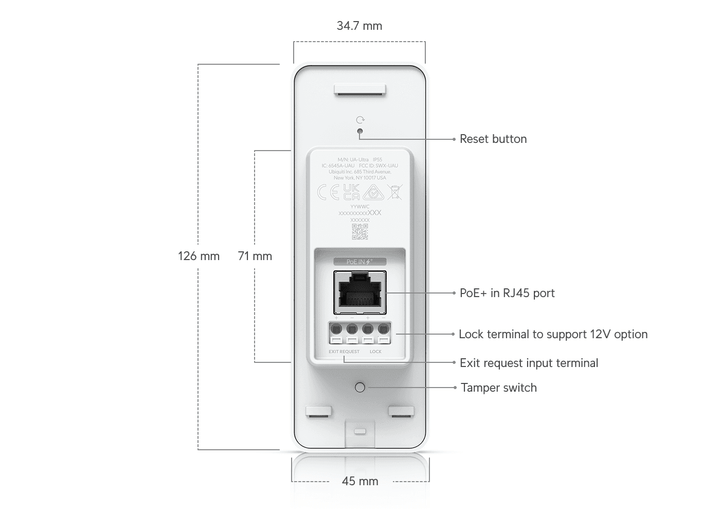

| Dimensions | 126 x 45 x 37.45 mm (4.9 x 1.8 x 4.5") |
| NFC Card & Keyfob Access | ✓ |
| Mobile Unlock | ✓ |
| Maximum User Count | 3,000 |
| NDAA Compliant | ✓ |
| UL 294 Level |
Destructive attack: Level I Line security: Level I Endurance: Level I Standby power: Level I |
| Tamper Switch | ✓ |
| Weatherproofing | IP55 |
| Mechanical | |
| Weight | 140 g (4.9 oz) |
| Enclosure Material | Polycarbonate, aluminum alloy |
| Mount Material | Stainless steel |
| Mounting | Wall mount, gang box mount (Included); Junction box (Optional) |
| Hardware | |
| Indoor and Outdoor Use | Yes |
| Ambient Operating Temperature | -30 to 40° C (-22 to 104° F) |
| Ambient Operating Humidity | 5 to 90% noncondensing |
| Networking Interface | (1) 10/100 MbE RJ45 port |
| Connectivity | BLE 4.2, Ethernet |
| Power Method | PoE+ |
| UL 294 Power-limited Class 2 PSU | ✓ |
| UL 60950-1/62368-1 LPS/PS2 PSU | ✓ |
| Max. Power Consumption | 18W |
| Supported Voltage Range | 44—57V DC |
| ESD/EMP Protection | Air: ±8kV, contact: ±4kV |
| Powered Output Relay | Lock: 12V DC, 1A |
| Speaker | ✓ |
| LEDs | R/G/B/W Learn More |
| Button | (1) Factory-reset |
| NFC Frequency | 13.56 MHz |
| NFC Read Range | < 50 mm (1.95'') |
| NFC Technology | ISO 14443A, 14443B, 15693, NFC Tag 1–5, MIFARE Classic, Plus, Ultralight, DESFire |
| PoE Cabling Requirements | |
|
Cat 5e cabling is the minimum recommended. Cable gauge must match transmission speed requirements. Minimum conductor gauge: 26 AWG (0.13 mm²) for patch cords; 24 AWG (0.21 mm²) for horizontal/riser cable. | |
| UL 294 Statement | |
|
Compliance with IEEE 802.3 specs not verified as part of UL 294. Intended to comply with ANSI/NFPA 70, Article 725.121 (Power Sources for Class 2 and Class 3 Circuits). | |
| Certifications | |
|
CE, FCC, IC, Anatel, SRRC, UL 294, CAN/ULC-60839-11-1 CAN/ULC-60839-11-1 Grade: I Document: UA-Ultra, V01 | |
| Software | |
| Management Application | Access |
| Software Information | The software version can be checked at https://unifi.ui.com |
